Quartz Hemispherical Shell Resonator

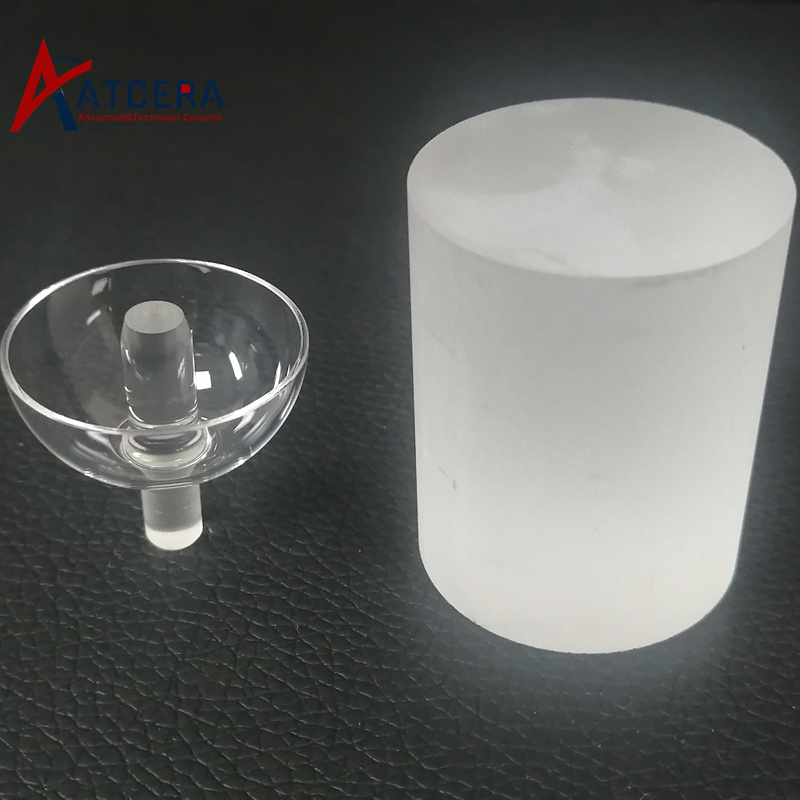

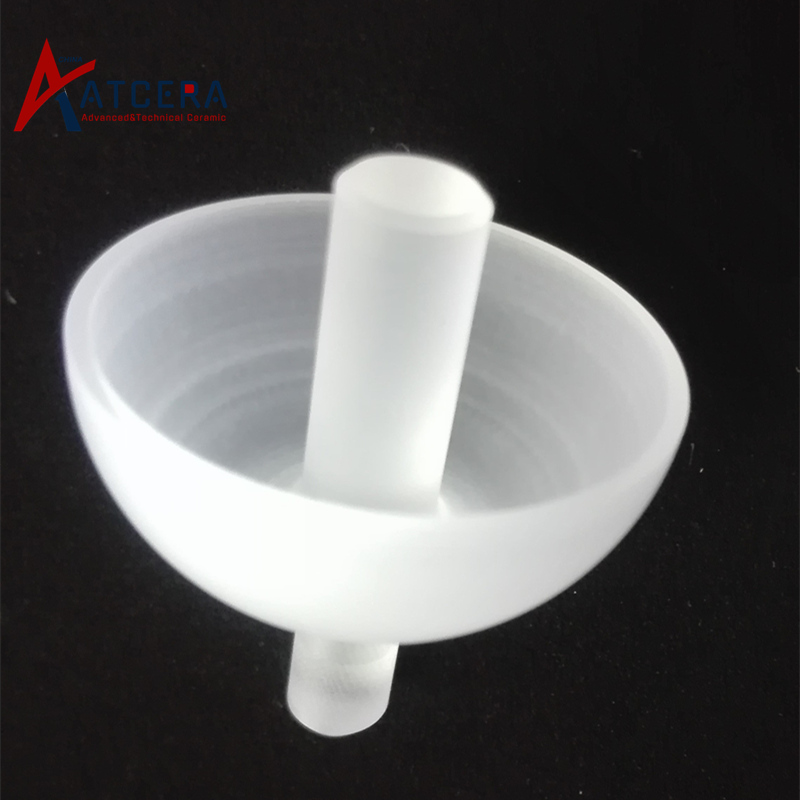

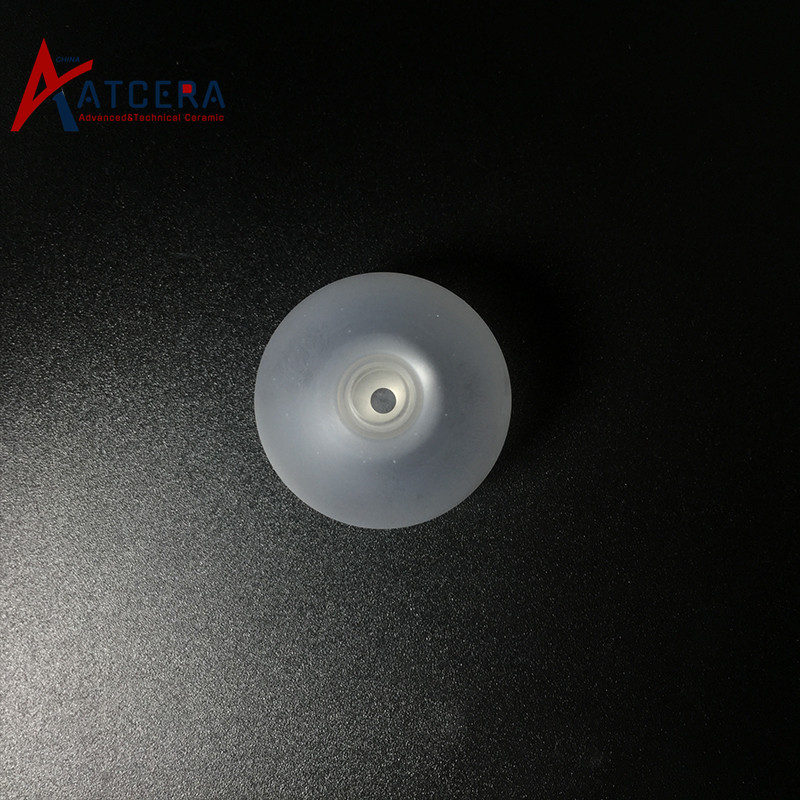

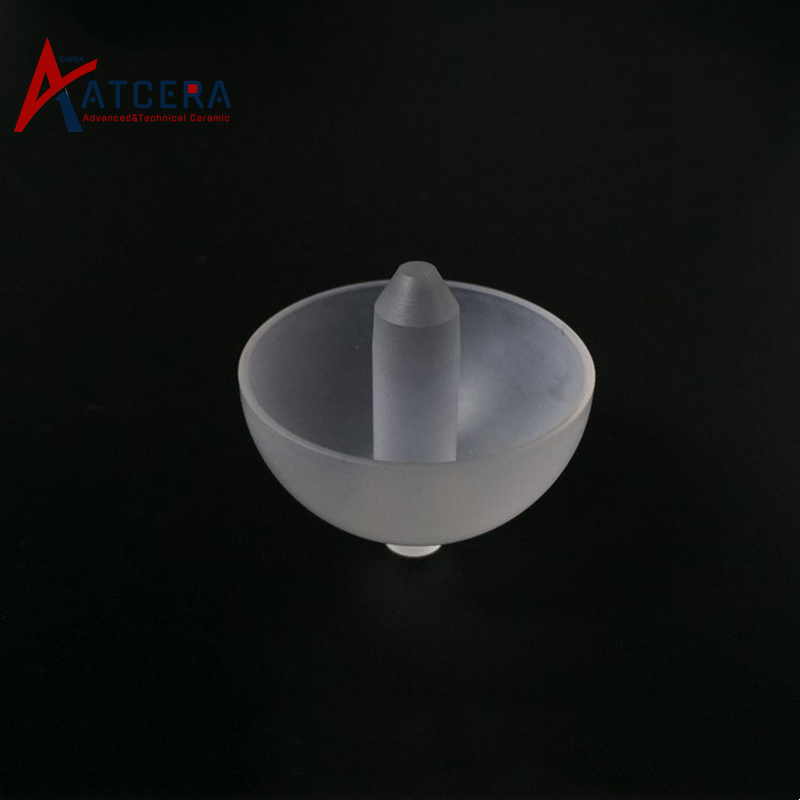

Quartz hemispherical shell resonator is made of high purity quartz material and is the core component of hemispherical resonantor gyroscope. It has high temperature resistance, good thermal stability, small thermal expansion coefficient, good corrosion resistance and excellent light transmission performance, also with large material hardness and elastic modulus, so not easy to deform. Therefore, the hemispherical shell resonator can maintain stable performance under extreme working conditions, and enable to ensure high accuracy and stability of the gyroscope.

Brand:
ATCERA
Item NO.:
AT-SIO-XZ1001

Materials
Quartz
Shapes
Mechanical Parts
Applications
Mechanical Parts , Military Industry

Inquire Now

Properties of Quartz Hemispherical Shell Resonator

1. Quartz hemispherical shell resonator has high temperature resistance, good thermal stability and small thermal expansion coefficient.

2. Quartz has large hardness and elastic modulus, not easy to deformation, and its density is low so weight is light.

3. Quartz has good corrosion resistance, excellent light transmission performance, it can maintain stable performance under extreme working conditions.

fused silica hemispherical shell resonator

Applications of Quartz Hemispherical Shell Resonator

Quartz hemispherical harmonic oscillator is the core component of hemispherical resonator gyroscope, which is used in aerospace field to realize flight attitude control and inertial measurement of aircraft or satellite.

Product Parameters
Material Parameters

Customization Design of Quartz Hemispherical Shell Resonator

We are committed to delivering optimal quartz hemispherical shell resonators tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and parameter requirements shall be provided if customized design request.

Concentricity: <1μm

Roundness: < 1μm

Inner and outer sphere concentricity: < 1μm

Send Requirements for Custom Design

Quartz Hemispherical Shell Resonator
Item no.	Dimension (mm)	Wall Thickness (mm)
AT-SIO-XZ1001	φ15～60	0.3～1.1

Technical Data of Fused Quartz Materials

Density (g/cm3)	2.2
Flexture Strength (MPa)	48
Elastic Modulus (GPa)	72
Poisson's Ratio	0.14-0.17
Compressive strength (MPa)	1100
Bending strength (MPa)	67
Moh's hardness	5.5~6.5
Maximum working temperature (long-term, ℃)	1100
Maximum working temperature (short-term, ℃)	1350
Thermal conductivity (W/m*K)	1.4
Thermal expansion coefficient (/℃)	5.5*10-7
Specific resistance (Ω*cm)	7*107

*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.

Valuable Information

Quartz Hemispherical Shell Resonator Packing

Quartz hemispherical shell resonators are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
