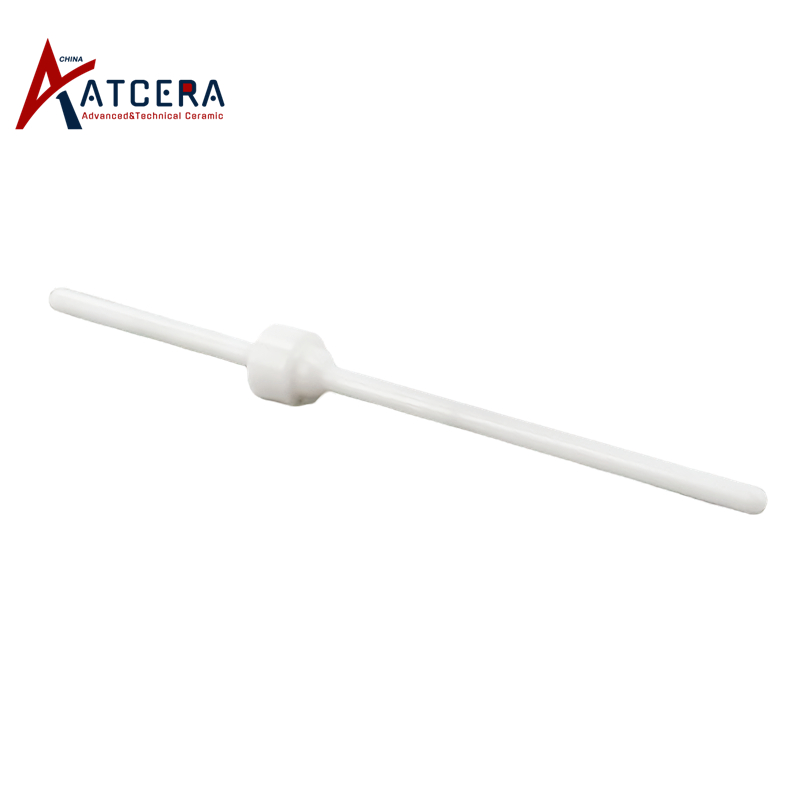

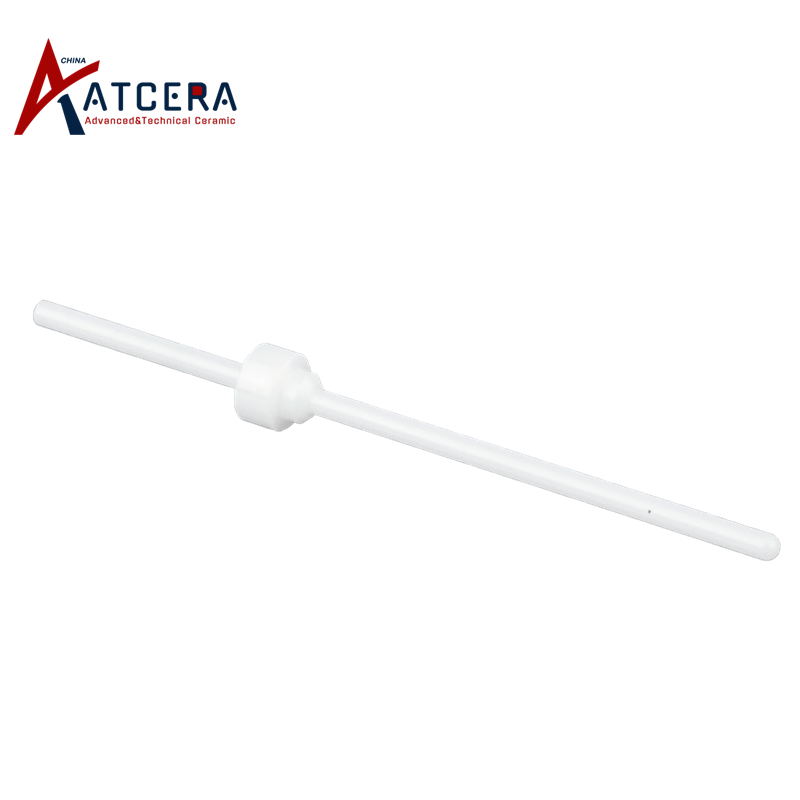

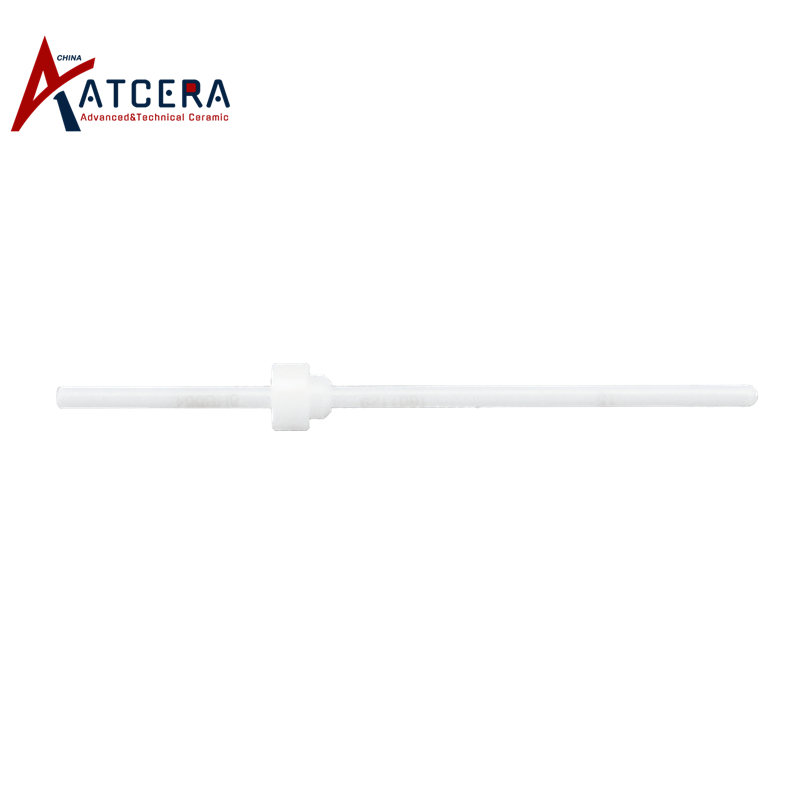

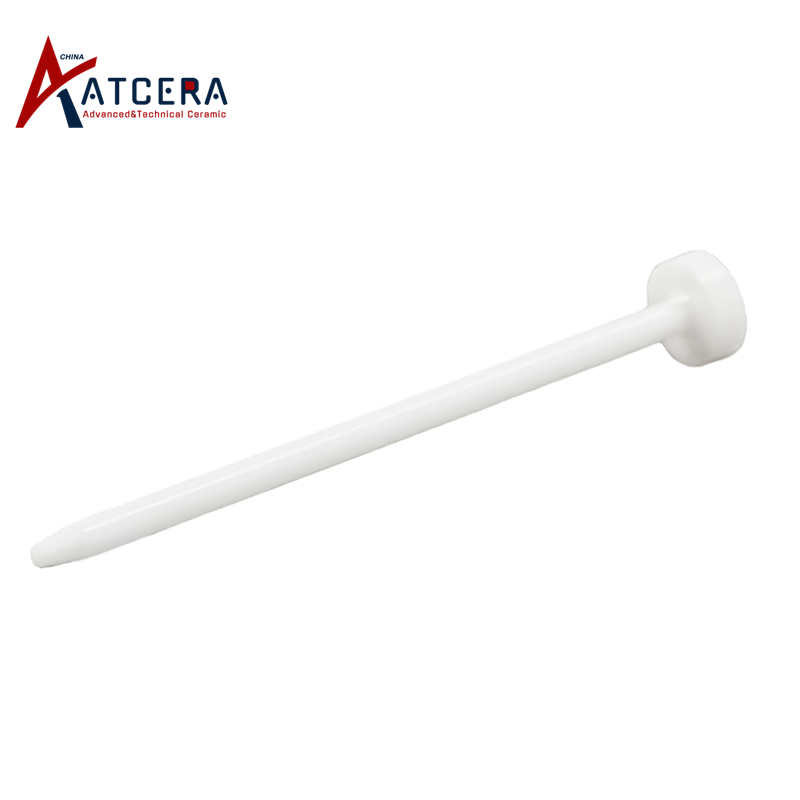

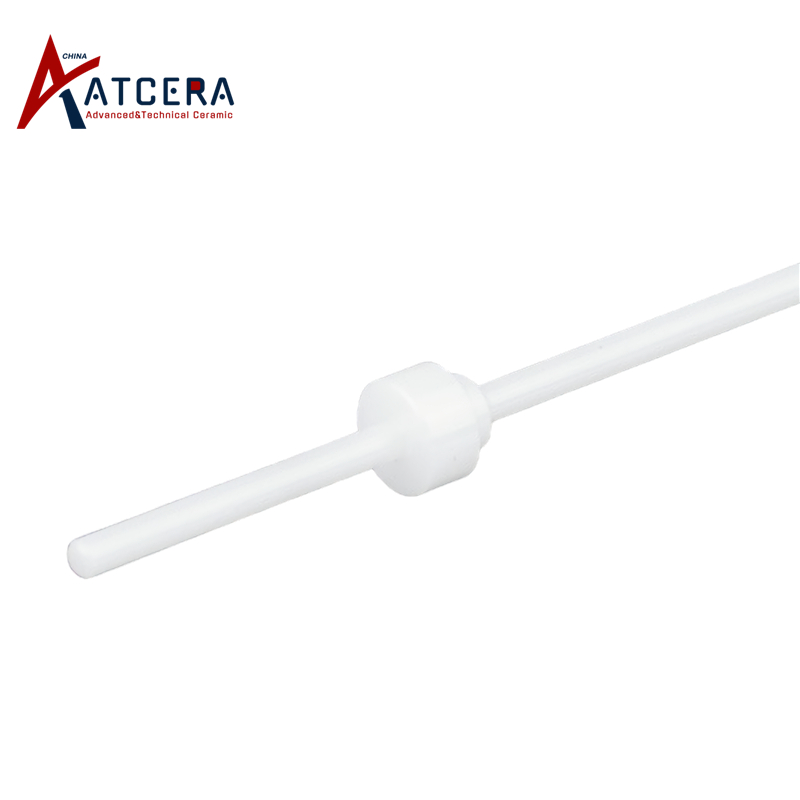

Zirconia Ceramic Piezoelectric Injector Pin

The Zirconia piezoelectric injection pin is a device that utilizes the piezoelectric effect to control fluid injection. Its core component is the striker, which moves towards the nozzle under the influence of a high-voltage electric field when the injection valve is activated, achieving injection by impacting the liquid.

Brand:
ATCERA
Item NO.:
AT-YHG-YD1001

Materials
Zirconia
Shapes
Valve
Applications
Mechanical Parts , Petrochemical Industry , Food Processing , Biology and Medicine

Inquire Now

Properties of Zirconia Ceramic Piezoelectric Injector Pin

1. The zirconia piezoelectric injection pin boasts high mechanical strength, excellent toughness, resistance to high temperatures and corrosion, as well as superior wear resistance. It caters to the injection requirements of various liquids, making it suitable for a wide range of applications and ensuring a long service life.

2. The zirconia piezoelectric injection pin possesses a smooth surface, excellent self-lubricating properties, and high processing accuracy, enabling it to achieve precision injection effects down to micrometer or even nanometer levels.

Applications of Zirconia Piezoelectric Injector Pin

The zirconia piezoelectric injection pin is designed for use in various types of piezoelectric injection valves. It is suitable for flow control in dispensing applications such as surface mount adhesives, conductive silver paste, LED phosphor glue, IC packaging glue, and surface coating adhesives.

Customization Design for Zirconia Ceramic Piezoelectric Injector Pin

We are committed to delivering optimal zirconia piezoelectric injector pins tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parametric specifications for customization.

Machining Tolerance:

1. The minimum inner hole diameter can reach ≥Ø0.02mm, with a precision of ±0.001mm.

2. The concentricity, true roundness, and other specifications can achieve a maximum accuracy of ±0.001mm.

3. The inner hole wall undergoes mirror polishing.

ceramic piezoelectric injector pin

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. During handling and use, the zirconia piezoelectric injection pin should be avoided from falling or colliding with hard objects to prevent damage.

2. Before use, the surface of the zirconia piezoelectric injection pin should be cleaned to remove impurities such as oil stains and dirt to prevent any adverse effects.

3. Regular inspections and cleaning of the zirconia piezoelectric injection pin are recommended to promptly remove surface dirt. If any damage is found, timely replacement is necessary to ensure the normal operation and service life of the injection valve.

Valuable Information

Zirconia Ceramic Piezoelectric Injector Pin Packing

Zirconia ceramic piezoelectric injector pins are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
