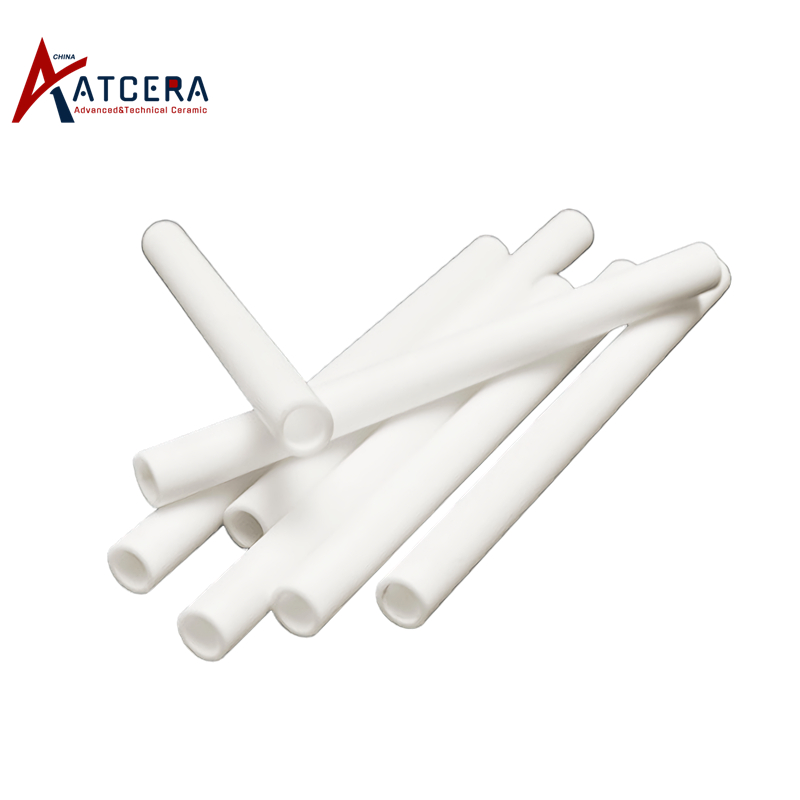

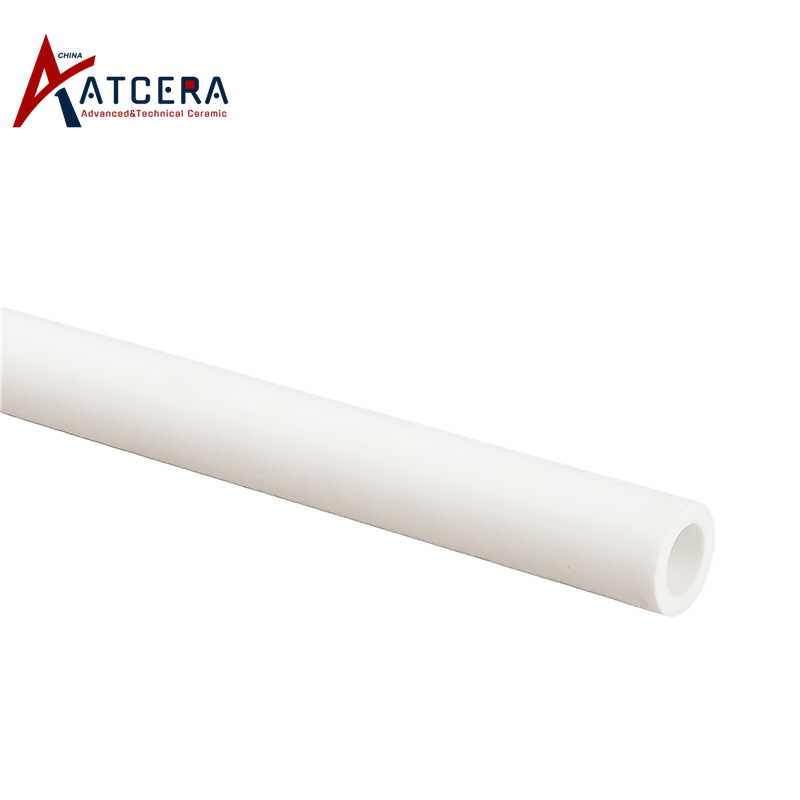

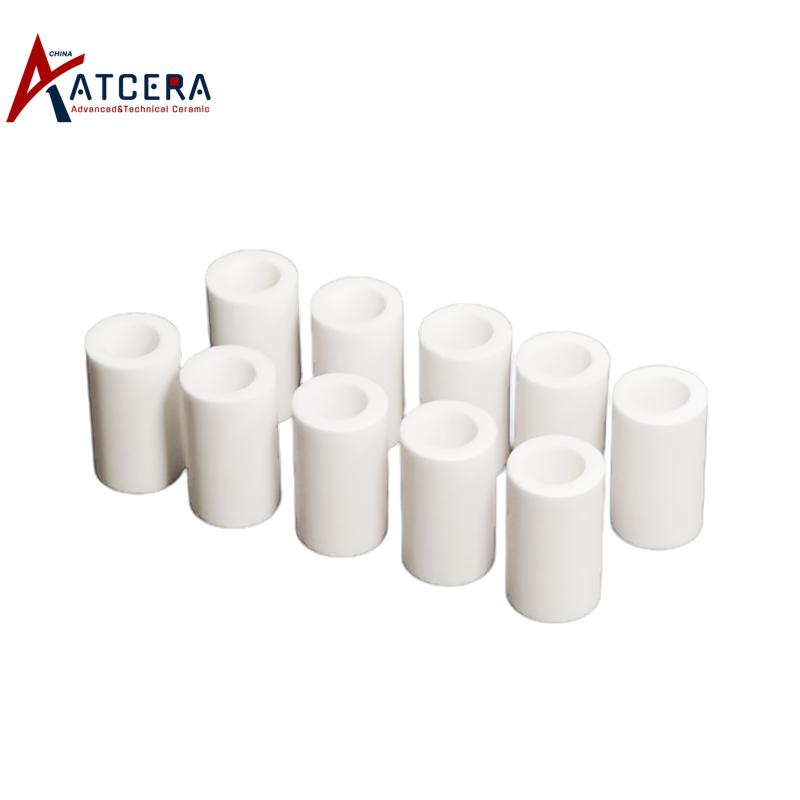

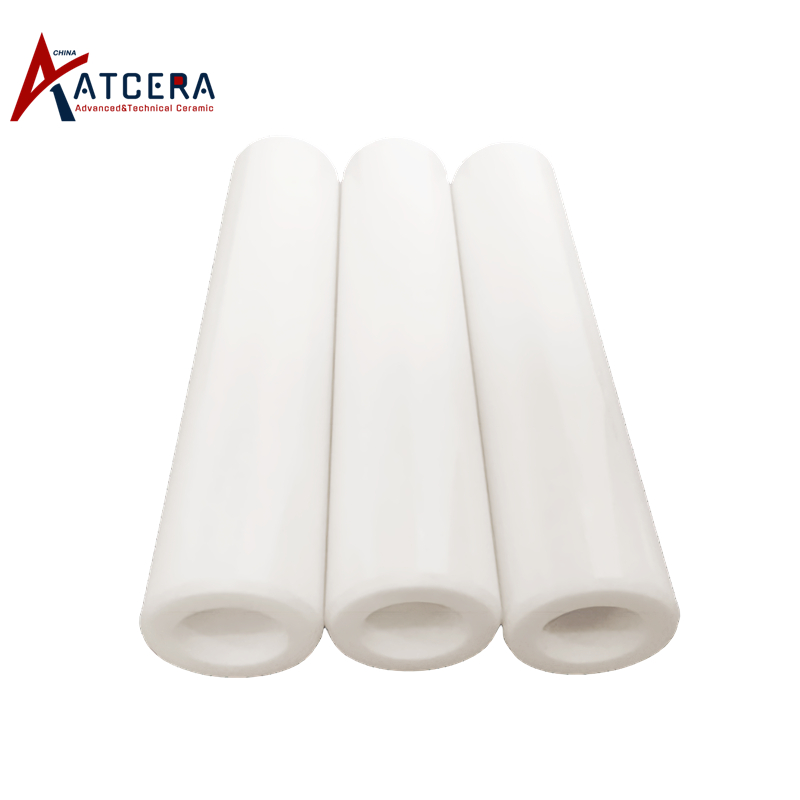

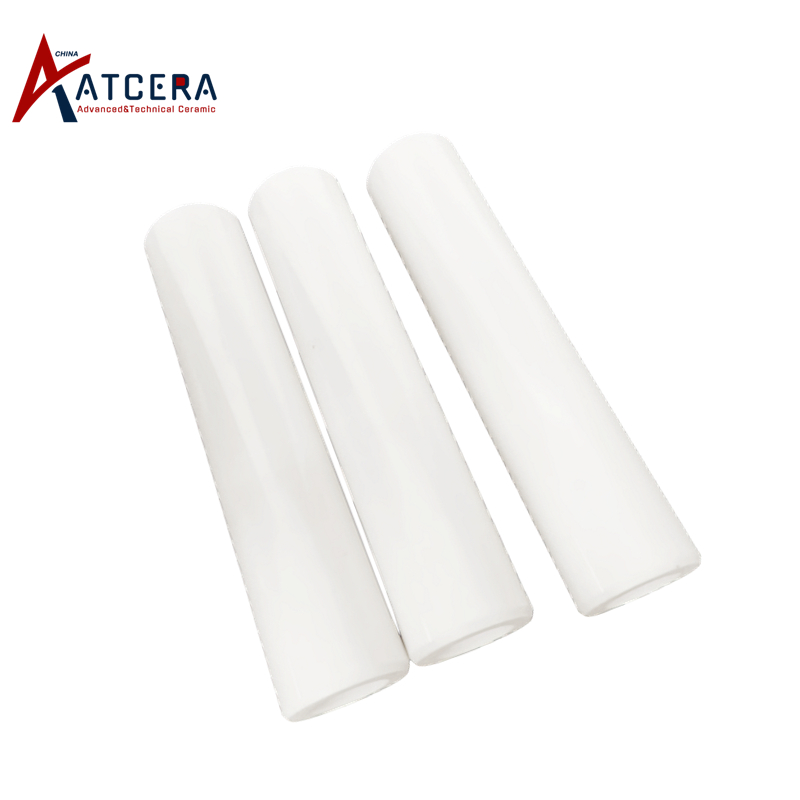

Zirconia Toughened Alumina Ceramic Tube ZTA Ceramic Pipe

Zirconia toughened alumina (ZTA) ceramic tube has high temperature resistance, acid and alkali resistance, good chemical stability, both high hardness of alumina ceramics, high wear resistance, but also the toughness of ZTA ceramics, in mechanical engineering, high temperature fire resistance, chemical, metallurgy and other industries have important applications.

Brand:
ATCERA
Item NO.:
AT-ZRG001

Materials
ZTA
Shapes
Tube
Applications
Semiconductor , Electronics and Electricity , Metallurgy Industry , Biology and Medicine

Inquire Now

Properties of Zirconia Toughened Alumina Tube

1. High wear resistance, high toughness

ZTA ceramic tube has high hardness, good wear resistance, long service life, high toughness and good mechanical impact resistance.

2. Good corrosion resistance

ZTA ceramic tube chemical stability is good, resistant to a variety of acid and alkali corrosion, can be applied to a variety of extreme environment performance is very stable.

3. High temperature resistance

ZTA ceramic tube has high temperature resistance, good thermal shock resistance, can be used at high temperature for a long time.

4. Good insulation performance

ZTA ceramic tube has high resistivity and good insulation performance, so it can be used in occasions or equipment where electrical insulation is required.

Applications of ZTA Ceramic Tube

ZTA ceramic tube has high temperature resistance, good thermal shock resistance, and has high mechanical strength, good toughness, corrosion resistance, wear resistance and other characteristics, it is widely used in mechanical engineering, medical equipment, petrochemical, metallurgy and other industries.

1. Mechanical engineering industry

ZTA ceramic tube has high compressive strength, good wear resistance, good toughness, stable performance at high temperature, and can be made into various mechanical parts, including connecting tube, piston cap, insulating protective sleeve, hydraulic cylinder,etc.

2. High temperature refractory industry

ZTA ceramic tube has high temperature resistance, good thermal conductivity and thermal shock resistance, corrosion resistance and wear resistance, can maintain stable performance under harsh working conditions, so it can be used to manufacture combustion tubes, thermocouple holding tubes, etc.

3. Chemical and metallurgical industries

ZTA ceramic tube has very good corrosion resistance, good chemical inertia, and does not react with various chemical media, while ceramic tube surface finish is high, fluid transport resistance is small, can be made into a pipeline to transport chemical liquids, as well as filter membrane tube for chemical process.

4. Medical and biological industries

ZTA ceramic tube has very good biological inert and compatibility, non-toxic and harmless, non-radioactive, corrosion resistance, in the medical and biological industry can be used to make syringes, tubular filters, biological experimental equipment.

Size Chart of Zirconia Toughened Alumina Tube

We are committed to delivering optimal zta tubes tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

1. Application information

2. Drawing and specification requirements, shall be provided if customized design request.

Machining Precision

1. diameter tolerance: ±0.01mm

2. hole depth tolerance: ±0.005mm

3. surfance roughness: Ra0.5

4. cylindricity: ±0.004mm

5. concentricity: ±0.003mm

6. parallelism: ±0.002mm

Send Requirements for Custom Design

Zirconia Toughened Alumina Tube
Item No.	Outer Dia. × Inner Dia. (mm)	Length (mm)
AT-ZRG001	0.7*0.3	L≤500mm
AT-ZRG002	0.8*0.4
AT-ZRG003	0.9*0.4
AT-ZRG004	1.0*0.5
AT-ZRG005	1.1*0.6
AT-ZRG006	1.2*0.6
AT-ZRG007	1.3*0.7
AT-ZRG008	1.4*0.8
AT-ZRG009	1.5*0.8
AT-ZRG010	2.0*1.0
AT-ZRG011	3.0*1.5
AT-ZRG012	3.0*2.0
AT-ZRG013	4.0*2.0
AT-ZRG014	4.0*3.0
AT-ZRG015	5.0*3.0
AT-ZRG016	5.0*3.5
AT-ZRG017	6.0*4.0
AT-ZRG018	7.0*4.5	L≤800mm
AT-ZRG019	8.0*4.0
AT-ZRG020	8.0*5.0
AT-ZRG021	9.0*6.0
AT-ZRG022	10.0*4.0
AT-ZRG023	10.0*6.0
AT-ZRG024	10.0*7.0
AT-ZRG025	12.0*4.0
AT-ZRG026	12.0*8.0
AT-ZRG027	14.0*4.0
AT-ZRG028	14*10
AT-ZRG029	15*11
AT-ZRG030	16*12
AT-ZRG031	18*14
AT-ZRG032	20*15
AT-ZRG033	25*19
AT-ZRG034	30*25
AT-ZRG035	40*30	L≤1000mm
AT-ZRG036	44*38
AT-ZRG037	50*40
AT-ZRG038	60*50
AT-ZRG039	70*60	L≤1500mm
AT-ZRG040	80*70
AT-ZRG041	90*80
AT-ZRG042	100*90
AT-ZRG043	110*100
AT-ZRG044	120*110
AT-ZRG045	150*140
AT-ZRG046	200*190

Technical Data of Zirconia Toughened Alumina (ZTA)

Material	Zirconia Toughened Alumina (ZTA)
Density (g/cm³)	≧4.1
Flexture Strength (MPa)	330
Young Modulus (GPa)	72
Poisson's Ratio	0.25
Compressive strength (MPa)	2300
Hardness (Hv)	67
Fracture toughness (MPa*m^1/2)	7
Maximum working temperature ( ℃)	1200
Thermal conductivity (W/m*K)	18
Thermal expansion coefficient (/℃)	8*10^-6
Thermal shock resistance (ΔT ℃)	250

*This chart illustrates the standard characteristics of the ZTA materials commonly employed in the manufacturing of our ZTA products and parts. Please be aware that the attributes of customized zirconia toughened alumina products and parts may vary depending on the specific processes involved.

Usage Instructions

1.ZTA ceramic tube should avoid violent collision and falling to prevent cracking or damage.

2.ZTA ceramic tube should be stored in a dry, ventilated environment to avoid moisture, also need to avoid long-term exposure to direct sunlight or high temperature environment, so as not to affect its performance.

3. Keep the ZTA ceramic tube clean during storage, clean the dust and dirt on the surface before use.

4. Check regularly during use, if any cracks and other defects begin to appear, it is necessary to stop continuing use and replace in time.

Valuable Information

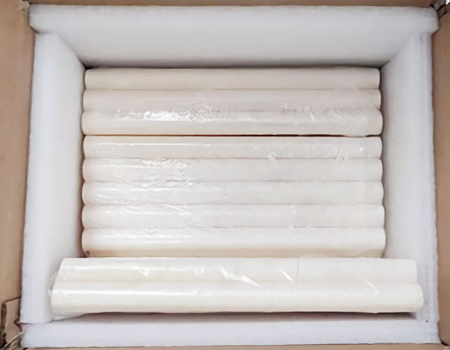

Zirconia Toughened Alumina Tube Packing

Zirconia toughened alumina tubes are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
