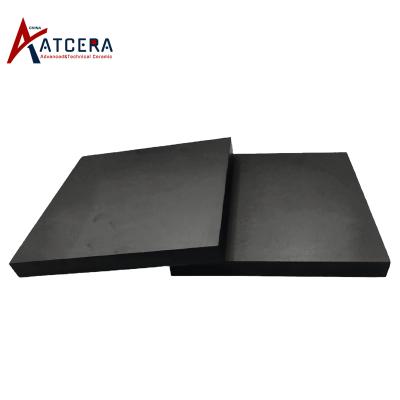

Silicon carbide ceramic bulletproof plate

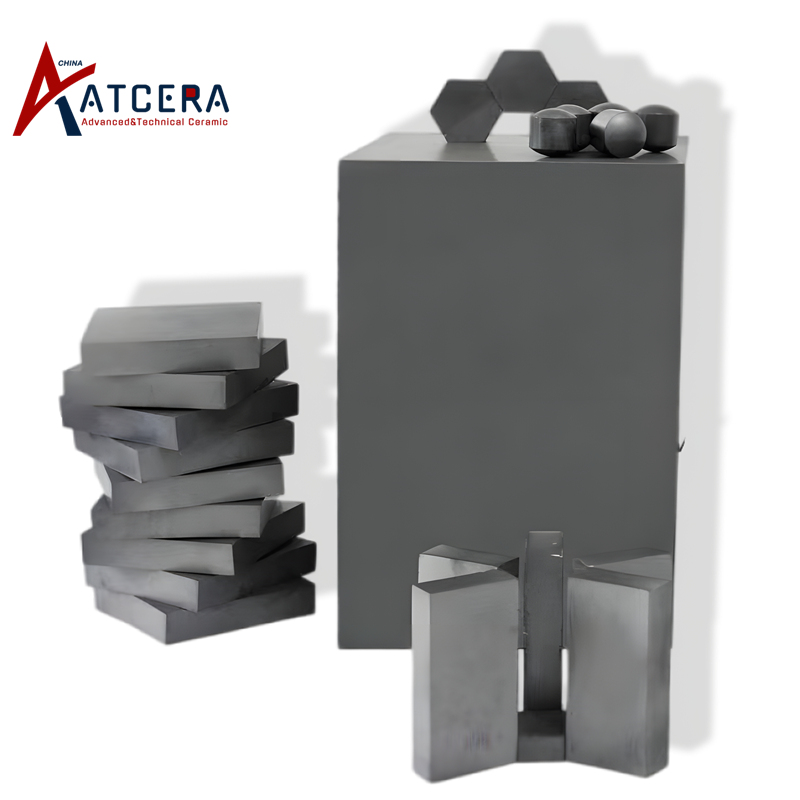

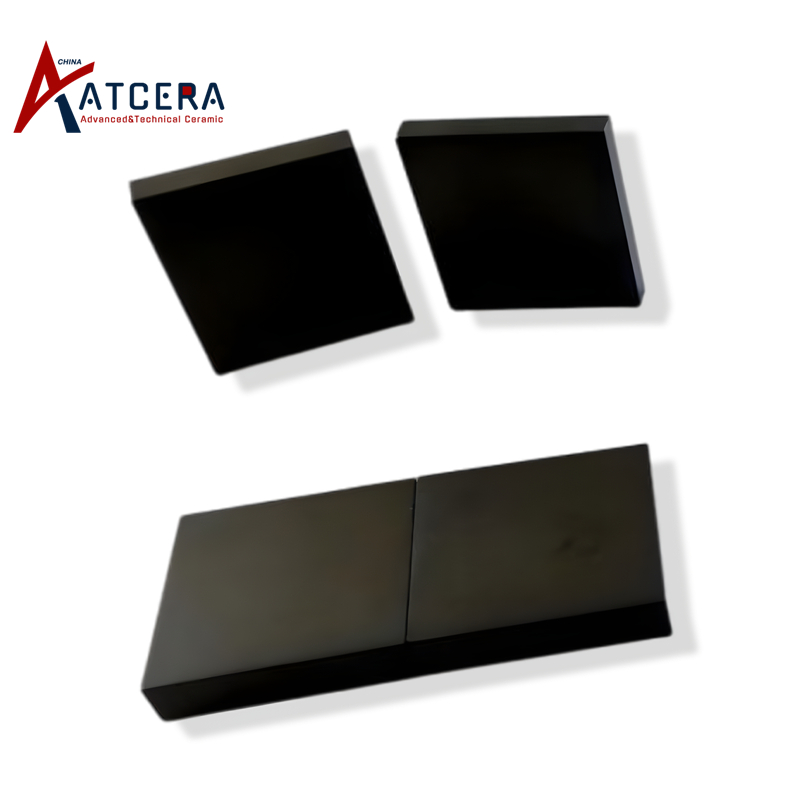

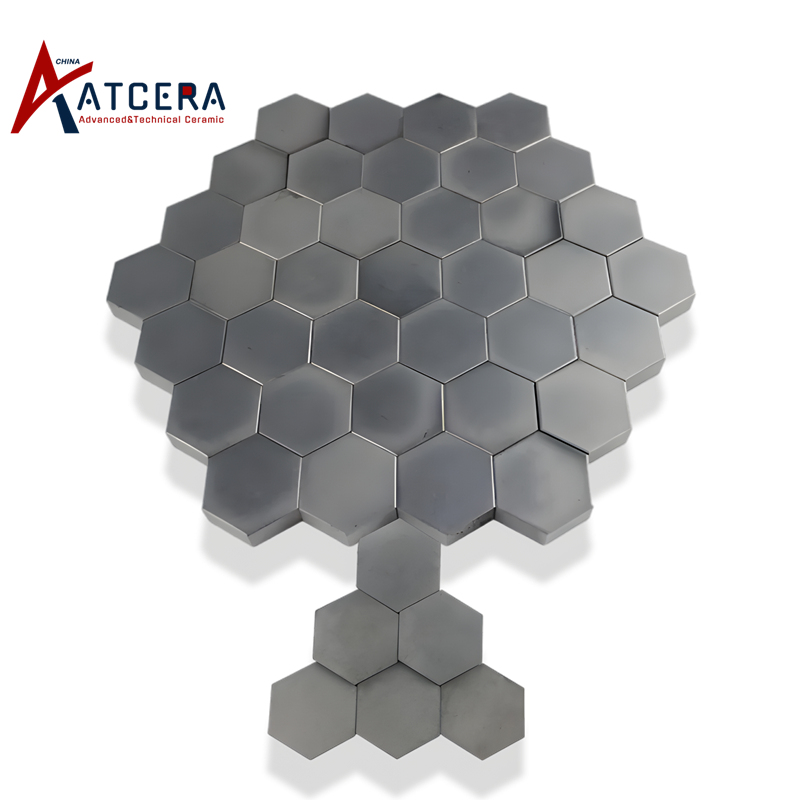

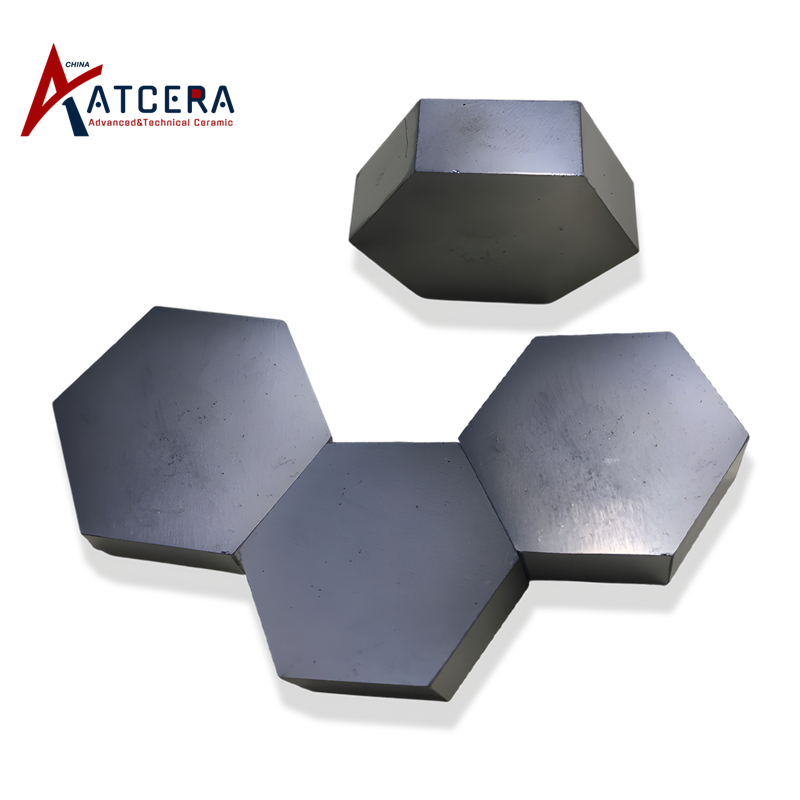

Silicon Carbide Ceramic Bulletproof Plate SiC Armor Plate

The hardness of silicon carbide ceramic bulletproof plate is high, reach to higher than HV2600 or more, and the bulletproof grade reaches NIJ IV level, which can be used as the lining of body armor and the protective armor of vehicles, aircraft and ships.

Brand:
ATCERA
Item NO.:
AT-THG-FD001

Materials
SiC
Shapes
Plate
Applications
Military Industry

Inquire Now

Properties of Silicon Carbide Ceramic Bulletproof Plate

Silicon carbide has excellent mechanical properties, oxidation resistance and wear resistance, also with good thermal stability, small coefficient of thermal expansion, thermal shock resistance and chemical corrosion resistance.

1. Silicon carbide bulletproof plate density is small, weight is light weight, so can reduce the total weight of bulletproof device;

2. Silicon carbide bulletproof plate has high hardness, high strength, good wear resistance, strong protective ability, and the resistance to the kinetic energy of bullets or shells, protective effect is good;

3. The performance of silicon carbide bulletproof plate is better than alumina plate, and cost is lower than boron nitride, so the cost performance is high.

Applications of SiC Armor Plate

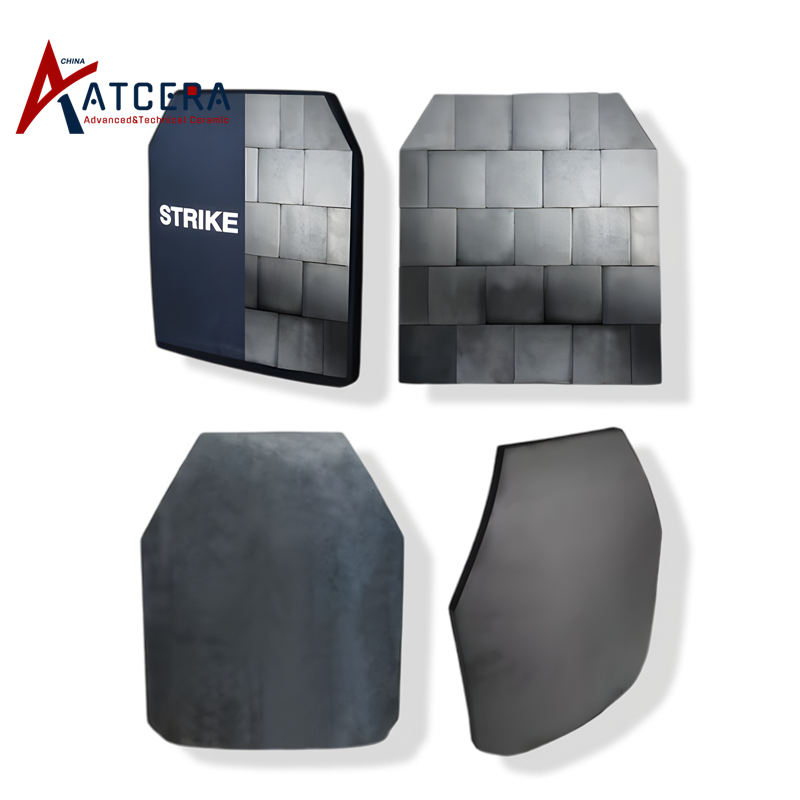

Silicon carbide bulletproof plate is mainly used in the manufacture of body armor and protective armor.

1. Military applications

Silicon carbide bulletproof plate in military applications can be used for individual body armor lining, as well as military vehicles, aircraft, ships protective armor;

2. Civil industry

Silicon carbide bulletproof plates are commonly used as bulletproof materials for armored vehicles and bulletproof vehicles.

Size Chart for Silicon Carbide Ceramic Bulletproof Plate

We are committed to delivering optimal silicon carbide bulletproof plate tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and requirements of product parameter shall be provided if customized design request.

Unless otherwise indicated, tolerance of dimension is ±0.5mm. Please contact ATCERA if other request for tolerance.

Send Requirements for Custom Design

Technical Specification:
Density	3.1-3.15g/cm³
Hardness	≥2600(HV0.5)
Compressive Strength	≥2200PMa
Flexture Strength	≥400MPa
Elastic Modulus	400GPa
Thermal Conductivity	90-110W/m*K
Maximum Working Temperature	1600℃
Coefficient of Thermal Expansion	4*10^-6/℃

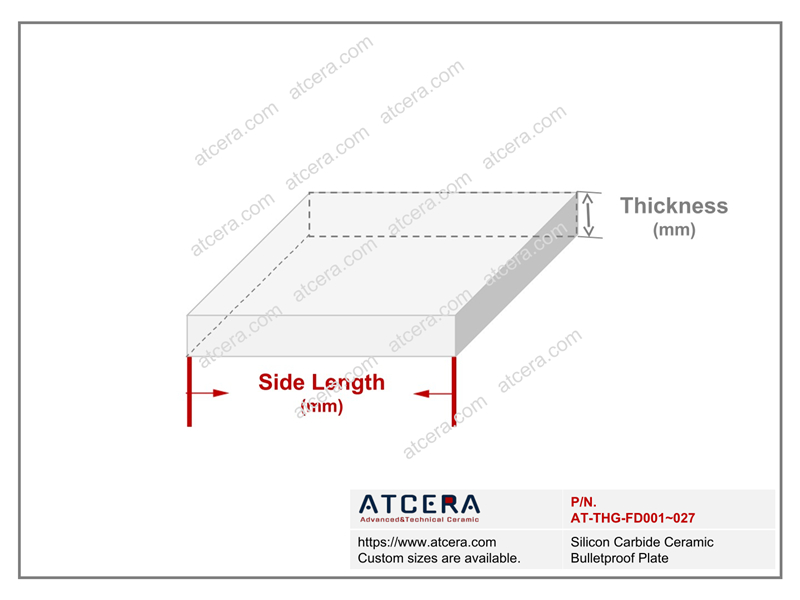

Drawing of Silicon Carbide Ceramic Bulletproof Plate

Silicon Carbide Ceramic Bulletproof Plate
Item NO.	Side Length (mm)	Thickness (mm)	SiC’s Purity (%)
AT-THG-FD001	20*20	2	99%
AT-THG-FD002	20*20	3	99%
AT-THG-FD003	20*20	4	99%
AT-THG-FD004	30*30	2	99%
AT-THG-FD005	30*30	3	99%
AT-THG-FD006	30*30	4	99%
AT-THG-FD007	30*30	5	99%
AT-THG-FD008	30*30	6	99%
AT-THG-FD009	30*30	7	99%
AT-THG-FD010	30*30	8	99%
AT-THG-FD011	30*30	9	99%
AT-THG-FD012	30*30	10	99%
AT-THG-FD013	40*40	2	99%
AT-THG-FD014	40*40	3	99%
AT-THG-FD015	47.6*47.6	3	99%
AT-THG-FD016	50*50	2	99%
AT-THG-FD017	50*50	3	99%
AT-THG-FD018	50*50	4	99%
AT-THG-FD019	50*50	5	99%
AT-THG-FD020	50*50	6	99%
AT-THG-FD021	50*50	7	99%
AT-THG-FD022	50*50	8	99%
AT-THG-FD023	50*50	9	99%
AT-THG-FD024	50*50	10	99%
AT-THG-FD025	100*100	2	99%
AT-THG-FD026	100*100	10	99%
AT-THG-FD027	100*100	20	99%

Technical Data of Silicon Carbide Materials

Item		Unit	Index Data
Item		Unit	Reaction-sintered SiC (SiSiC)	Silicon Nitride Bonded With SiC (NBSiC)	Sintered SiCn Without Pressure (SSiC)
SiC Content		%	85	80	99
Free Silicon Content		%	15	0	0
Max. Service Temp.		℃	1380	1550	1600
Density		g/cm3	3.02	2.72	3.1
Porosity		%	0	12	0
Bending Strength	20℃	Mpa	250	160	380
Bending Strength	1200℃	Mpa	280	180	400
Modulus of Elasticity	20℃	Gpa	330	220	420
Modulus of Elasticity	1200℃	Gpa	300	/	/
Thermal Conductivity	1200℃	W/m.k	45	15	74
Coefficient of Thermal Expansion		K-1×10-6	4.5	5	4.1
Vickers Hardness	HV	kg/mm2	2500	2500	2800

*This chart illustrates the standard characteristics of the silicon carbide materials commonly employed in the manufacturing of our SiC products and parts. Please be aware that the attributes of customized silicon carbide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Before using the silicon carbide bulletproof plate, it needs to be placed in a dry environment for a few days to ensure that it will not be affected by moisture;

2. Dust and fine particles may affect the performance of the silicon carbide bulletproof plate, so contact between silicon carbide and dust or other fine particles should be avoided during storage;

3. The silicon carbide bulletproof plate should avoid collision and violent vibration during transportation to prevent fragmentation;

4. Long-term contact with strong acid or alkali substances may reduce the performance of silicon carbide bulletproof plate, thus affecting the protective effect, so long-term contact with strong acid and alkali substances should be avoided.

Valuable Information

SiC Armor Plate Packing

silicon carbide bulletproof plates are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
