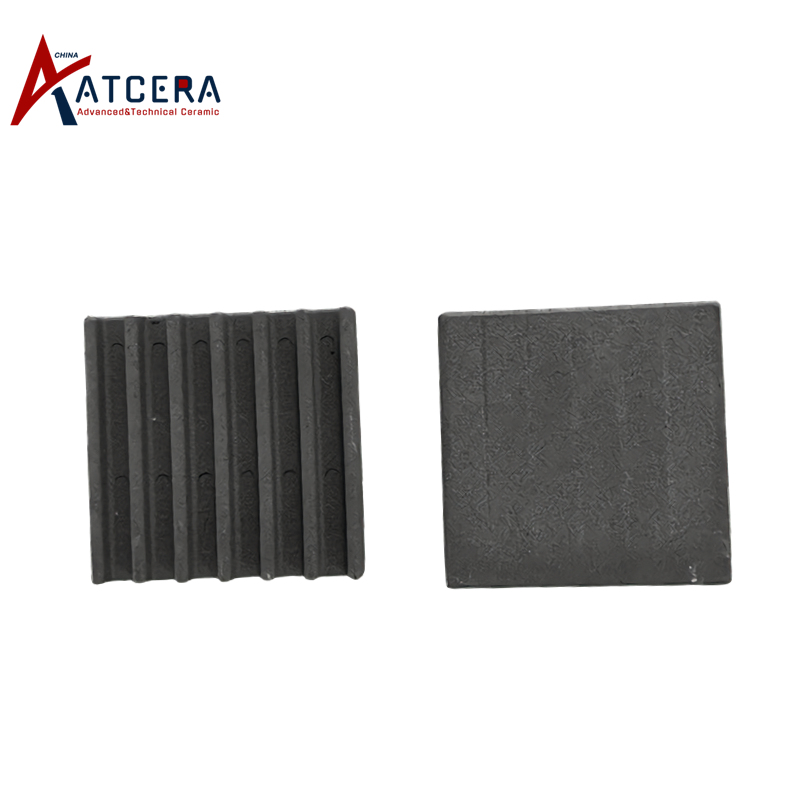

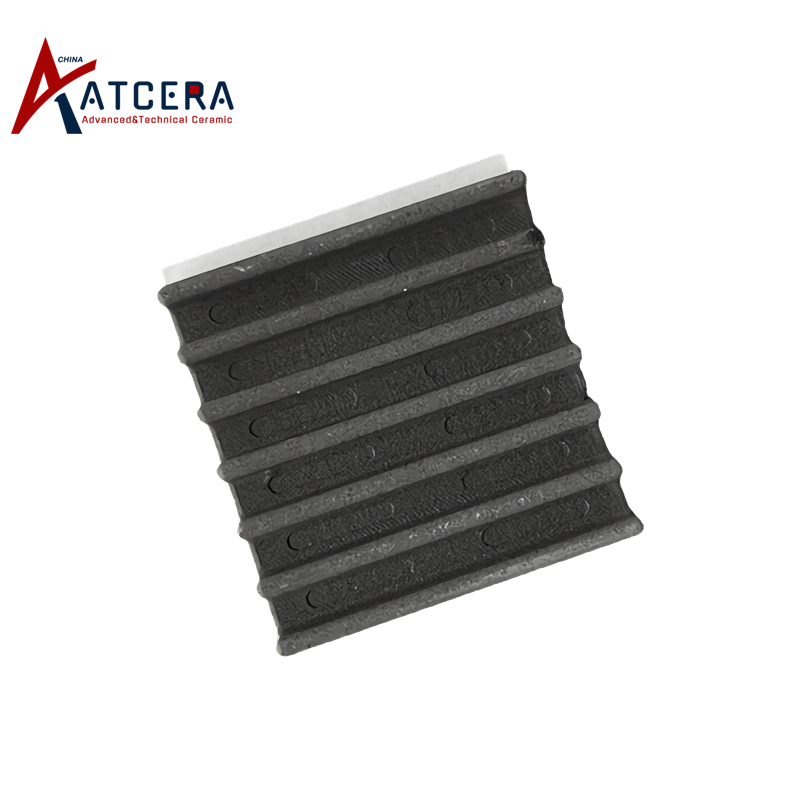

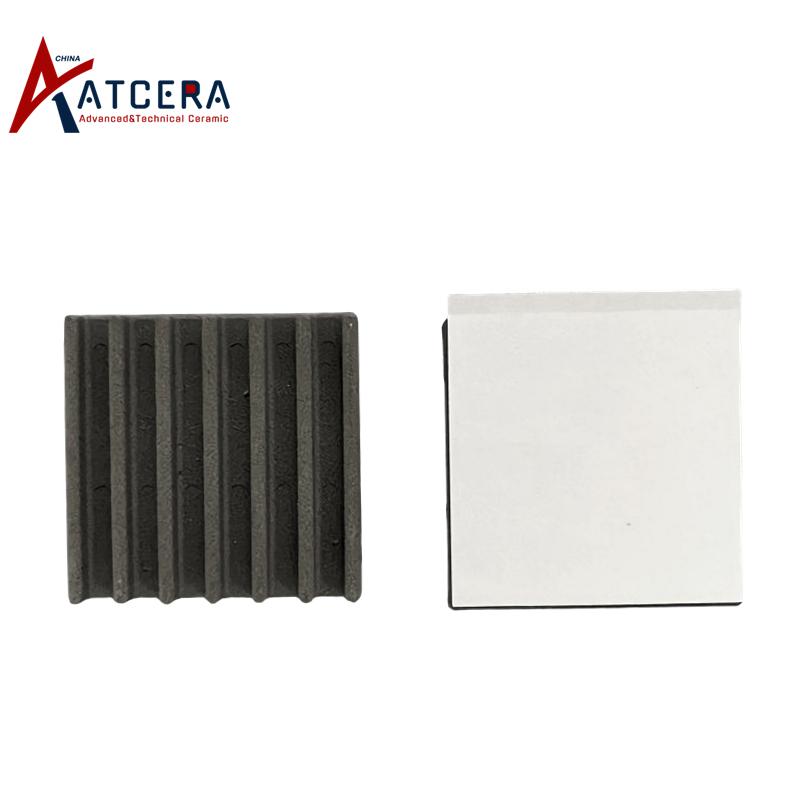

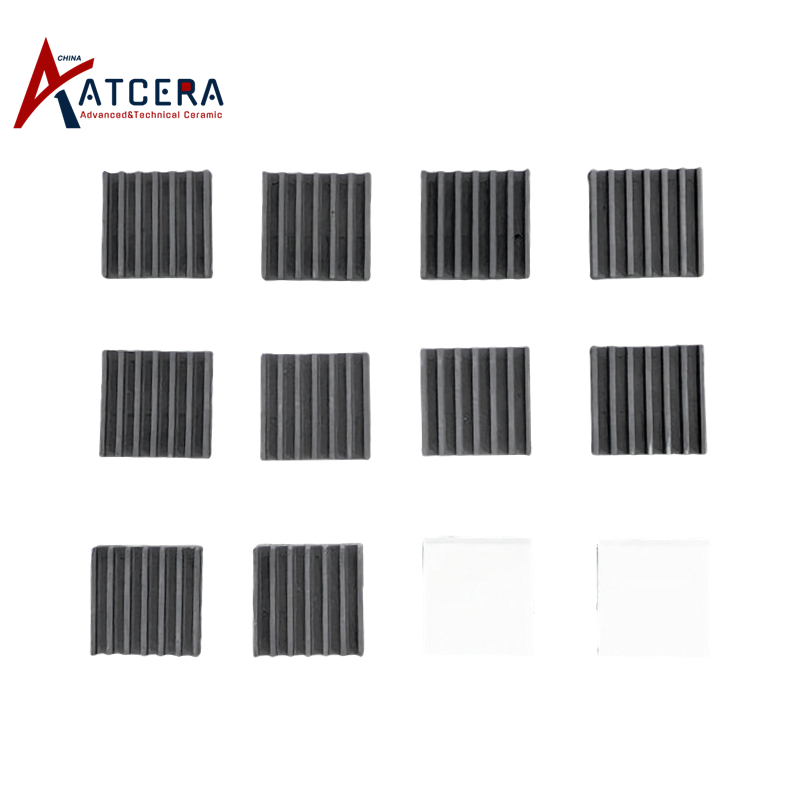

Silicon Carbide Thermal Conductive Ceramic Plate SiC Heat Sink

Silicon carbide thermal conductive ceramic plate is sintered from silicon carbide powder, with high thermal conductivity, high hardness, good wear resistance, high temperature and corrosion resistance. The interior is a microporous structure with a porosity of more than 30%, which increases the area in contact with the air and heat dissipation effect, so heat can be dissipated more quickly, which can be used to make heat sinks for electronic components and electrical equipment.

Brand:
ATCERA
Item NO.:
AT-SIC-P1047

Materials
SiC
Shapes
Plate
Applications
Electronics and Electricity , Mechanical Parts

Inquire Now

Properties of Silicon Carbide Ceramic Thermal Conductive Plate

1. Good cooling effect

Silicon carbide thermal conductive ceramic plate has high thermal conductivity, the heat dissipation effect is further strengthened by the internal porous structure, and rapid heat dissipation can be achieved.

2. Good corrosion resistance

Silicon carbide thermal conductive ceramic plate resistant to acid, alkali and other chemicals corrosion, can be applied to a variety of corrosive media environment.

3. Good wear resistance

Silicon carbide thermal conductive ceramic plate has high hardness, good wear resistance, long service life.

4. High temperature resistance

Silicon carbide thermal conductive ceramic plate has good high temperature resistance, the highest use temperature can reach 1600℃.

Applications of SiC Thermal Conductive Plate

Silicon carbide thermal conductive ceramic plate is used to make heat sinks for electronic components and electrical equipment, such as integrated circuits, power modules, cpus, memory, LED, LCD TVS, routers, etc.

Size Chart for Silicon Carbide Thermal Conductive Plate

We are committed to delivering optimal silicon carbide thermal conductive plates tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Drawings and product parameter requirements shall be provided if customized design request.

Silicon Carbide Thermal Conductive Plate
Item NO.	Length (mm)	Width (mm)	Thickness (mm)
AT-SIC-P1047	10	10	1.5
AT-SIC-P1048	10	10	2
AT-SIC-P1049	10	10	3
AT-SIC-P1050	10	10	5
AT-SIC-P1051	10	12	2.5
AT-SIC-P1052	10	15	2
AT-SIC-P1053	11	13	5
AT-SIC-P1054	15	15	2
AT-SIC-P1055	15	15	3
AT-SIC-P1056	15	15	4
AT-SIC-P1057	15	15	5
AT-SIC-P1058	20	20	10
AT-SIC-P1059	20	20	10
AT-SIC-P1060	20	20	2.5
AT-SIC-P1061	20	20	2
AT-SIC-P1062	20	20	5
AT-SIC-P1063	20	20	5
AT-SIC-P1064	25	25	10
AT-SIC-P1065	25	25	2.5
AT-SIC-P1066	25	25	3
AT-SIC-P1067	25	25	5
AT-SIC-P1068	25	25	5
AT-SIC-P1069	25	25	8
AT-SIC-P1070	30	30	10
AT-SIC-P1071	30	30	2.5
AT-SIC-P1072	30	30	5
AT-SIC-P1073	30	30	5
AT-SIC-P1074	30	30	8
AT-SIC-P1075	35	35	10
AT-SIC-P1076	40	40	3
AT-SIC-P1077	40	40	4
AT-SIC-P1078	40	40	5
AT-SIC-P1079	40	40	5
AT-SIC-P1080	40	40	7
AT-SIC-P1081	40	40	8
AT-SIC-P1082	50	50	5
AT-SIC-P1083	50	50	5
AT-SIC-P1084	60	60	5
AT-SIC-P1085	60	60	8

Technical Data of Silicon Carbide Materials

Item		Unit	Index Data
Item		Unit	Reaction-sintered SiC (SiSiC)	Silicon Nitride Bonded With SiC (NBSiC)	Sintered SiCn Without Pressure (SSiC)
SiC Content		%	85	80	99
Free Silicon Content		%	15	0	0
Max. Service Temp.		℃	1380	1550	1600
Density		g/cm3	3.02	2.72	3.1
Porosity		%	0	12	0
Bending Strength	20℃	Mpa	250	160	380
Bending Strength	1200℃	Mpa	280	180	400
Modulus of Elasticity	20℃	Gpa	330	220	420
Modulus of Elasticity	1200℃	Gpa	300	/	/
Thermal Conductivity	1200℃	W/m.k	45	15	74
Coefficient of Thermal Expansion		K-1×10-6	4.5	5	4.1
Vickers Hardness	HV	kg/mm2	2500	2500	2800

*This chart illustrates the standard characteristics of the silicon carbide materials commonly employed in the manufacturing of our SiC products and parts. Please be aware that the attributes of customized silicon carbide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. The silicon carbide thermal conductive ceramic plate should be carefully checked before use to confirm whether there are cracks or damage, and remove the dust and impurities on the surface.

2. Silicon carbide thermal conductive ceramic plate should be stored in a dry, ventilated place to avoid long-term exposure to wet or high temperature environment, so as not to affect its performance.

3. When handling and installing silicon carbide thermal conductive ceramic plates, violent collision and falling should be avoided to avoid breakage.

Valuable Information

Silicon Carbide Ceramic Thermal Conductive Plate Packing

Silicon carbide thermal conductive plates are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
