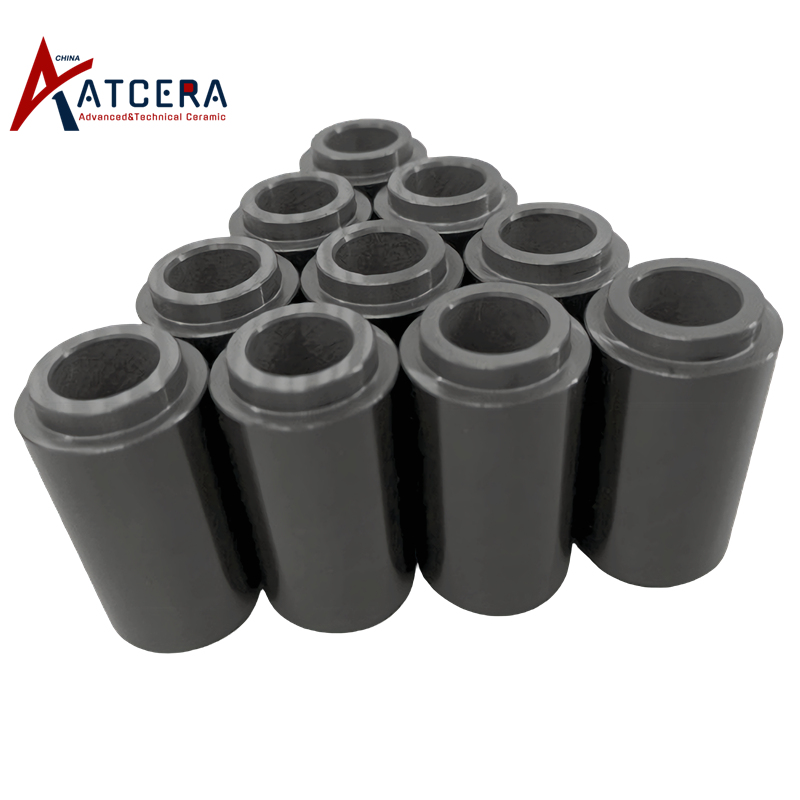

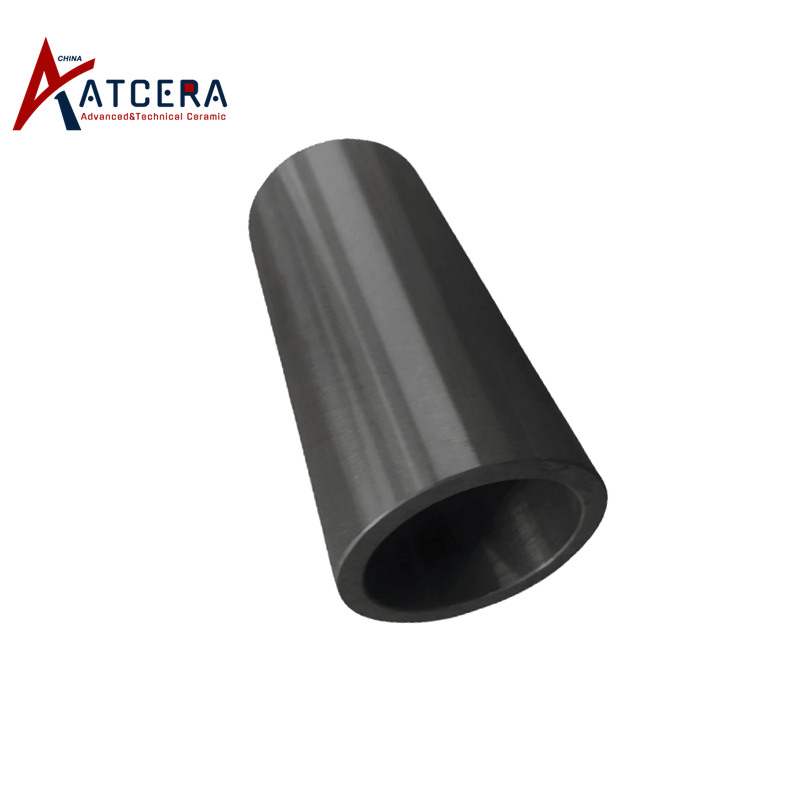

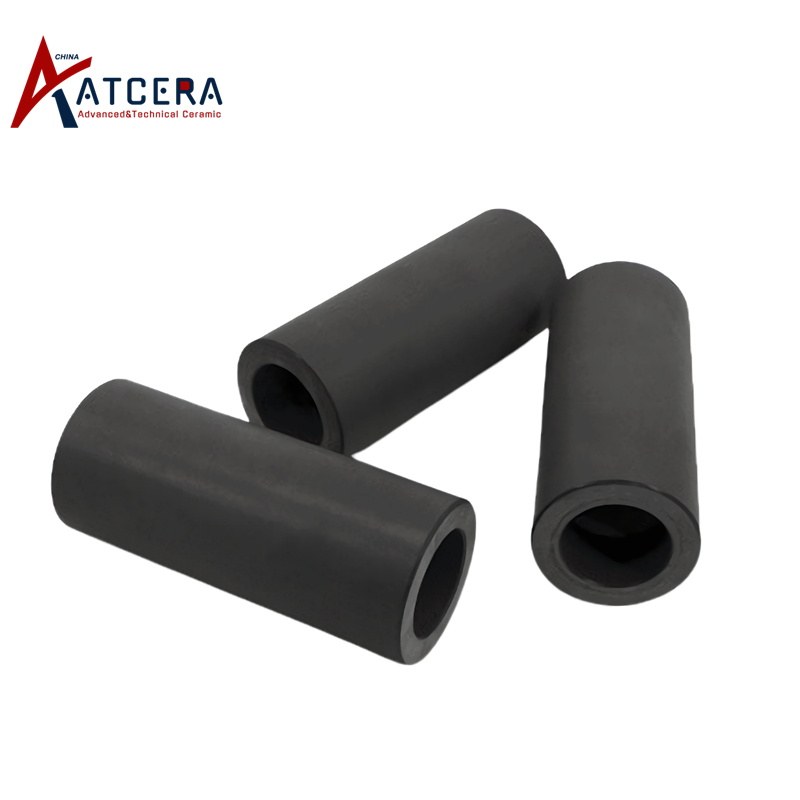

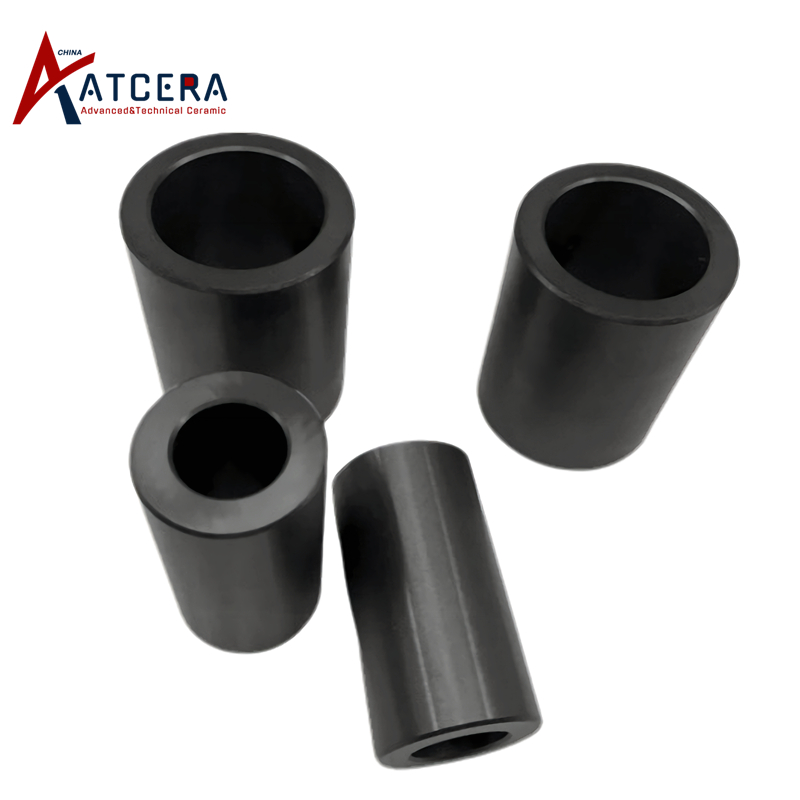

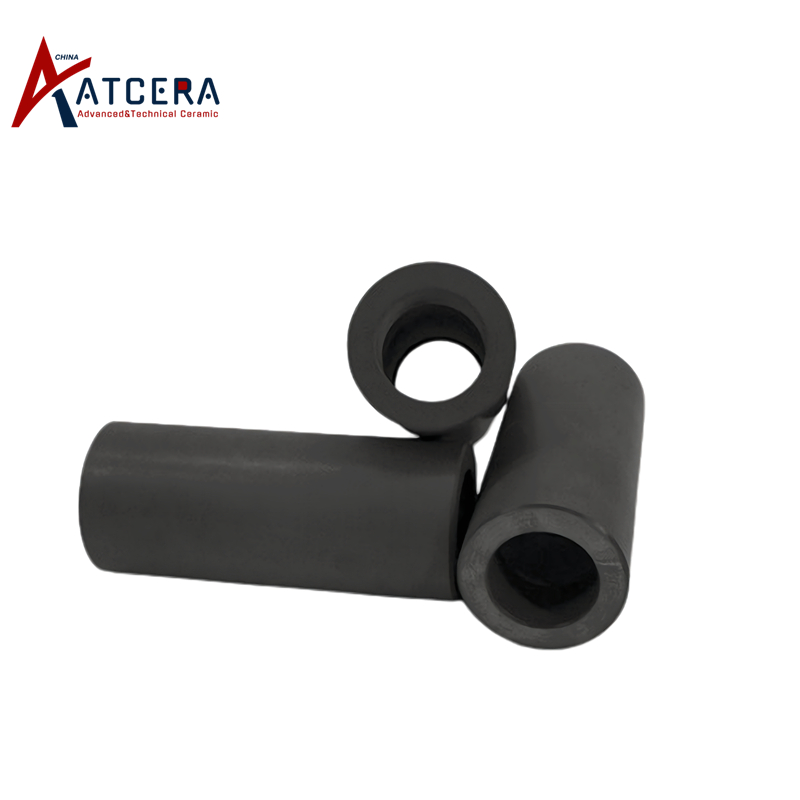

Silicon Nitride Ceramic Shaft Sleeve

Silicon nitride ceramic shaft sleeve is made of silicon nitride powder as raw material, sintered at high temperature after forming, as an important part of the mechanical device, it is installed between bearing and shaft, plays a protective and buffer role, also to reduce friction and wear, extend the service life of the shaft and bearing. Silicon carbide shaft sleeve is mainly used in rotating mechanical devices, such as engines, motors, reducers, pumps, etc.

  • Brand:

    ATCERA
  • Item NO.:

    AT-SNB-0001
  • Materials

    Si3N4
  • Shapes

    Mechanical Parts
  • Applications

    Mechanical Parts , Petrochemical Industry , Metallurgy Industry
Silicon nitride ceramic shaft sleeve

Properties of Silicion Nitride Ceramic Shaft Sleeve



1. Silicon nitride shaft sleeve has high mechanical strength, good toughness and wear resistance, which can provide support and protection for the shaft to avoid direct wear and failure of the shaft.





2. Silicon nitride sleeve has high temperature resistance, good corrosion resistance, it can separate shaft and bearing, to avoid bearing direct contact with high temperature environment or corrosive media.





3. Silicon nitride ceramic sleeve has self-lubrication, low noise, easy assembly, can be used for occasions that can not be lubricated or lubricated more difficult, such as vacuum, high temperature and other environments.





4. Silicon nitride sleeve has high thermal conductivity, small thermal expansion coefficient, also with large elastic modulus, so the deformation under high temperature or heavy load is very small, which is conductive to high precision operation.

Silicon nitride shaft sleeve ceramic

Applications of Si3N4 Shaft Sleeve







Silicon nitride sleeve is installed between bearing and shaft, which can provide support for the shaft, prevent wear of the shaft, reduce friction between the shaft and the bearing so to reduce the operating resistance and extend service life of the equipment.



It is widely used in machinery manufacturing, aerospace, automobile manufacturing and medical equipment and other industries.













Size Chart of Si3N4 Shaft Sleeve

We are committed to delivering optimal silicon nitride shaft sleeves tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.



Drawing and parameter requirements shall be provided if customized design request.



Machining Tolerance:

Diameter: ±0.003mm

Surfance roughness:Ra0.02

Cylindricity:±0.003mm

Concentricity:±0.002mm

Parallelism: ±0.002mm









Silicon Nitride Ceramic Shaft Sleeve
Item NO. Outer Dia.
(mm)
Inner Dia.
(mm)
Length
(mm)
Purity
(%)
AT-SNB-0001 20 12 43 85-99
AT-SNB-0002 17 9 43 85-99
AT-SNB-0003 15 10 45 85-99
AT-SNB-0004 19 11 47 85-99
AT-SNB-0005 23 13 51 85-99
AT-SNB-0006 24 14 58 85-99
AT-SNB-0007 28 20 61 85-99
AT-SNB-0008 30 22 68 85-99
AT-SNB-0009 32 26 70 85-99
AT-SNB-0010 37 30 72 85-99
AT-SNB-0011 43 35 83 85-99
AT-SNB-0012 48 40 108 85-99
AT-SNB-0013 59 45 108 85-99
AT-SNB-0014 70 35 108 85-99
AT-SNB-0015 76 40 120 85-99
AT-SNB-0016 93 80 124 85-99







Technical Data of Silicon Nitride Materials

Si3N4 Type Gas pressure sintering Si3N4 Hot pressing sintering Si3N4
Density (g/cm3) 3.2 3.3
Flexture strength (MPa) 700 900
Young Modulus (GPa) 300 300
Poisson's ratio 0.25 0.28
Compressive strength (MPa) 2500 3000
Hardness (GPa) 15 16
Fracture toughness (MPa*m1/2) 5~7 6~8
Maximum working temperature (℃) 1100 1300
Thermal conductivity (W/m*K) 20 25
Thermal expansion coefficient (/℃) 3*10-6 3.1*10-6
Thermal shock resistance (ΔT ℃) 550 800



*This chart illustrates the standard characteristics of the silicon nitride materials commonly employed in the manufacturing of our Si3N4 products and parts. Please be aware that the attributes of customized silicon nitride products  and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.









Usage Instructions




1. Select appropriate sleeve
According to the working environment and equipment dimension, select the appropriate parameters and size of the silicon nitride shaft sleeve.



2. Install correctly
The silicon nitride ceramic shaft sleeve should be matched with the shaft and bearing inner ring to achieve a full range of uniform load.



3. Regular checkup
During operation of the equipment, the wear of the shaft sleeve should be checked regularly. If the wear is serious, or there are cracks or other defects, it needs to be replaced in time.


Valuable Information



Si3N4 Shaft Sleeve Packing

Si3N4 Shaft Sleeve Packing





Silicon nitride shaft sleeves are carefully packaged in appropriate containers to avoid any potential damage.

















Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
