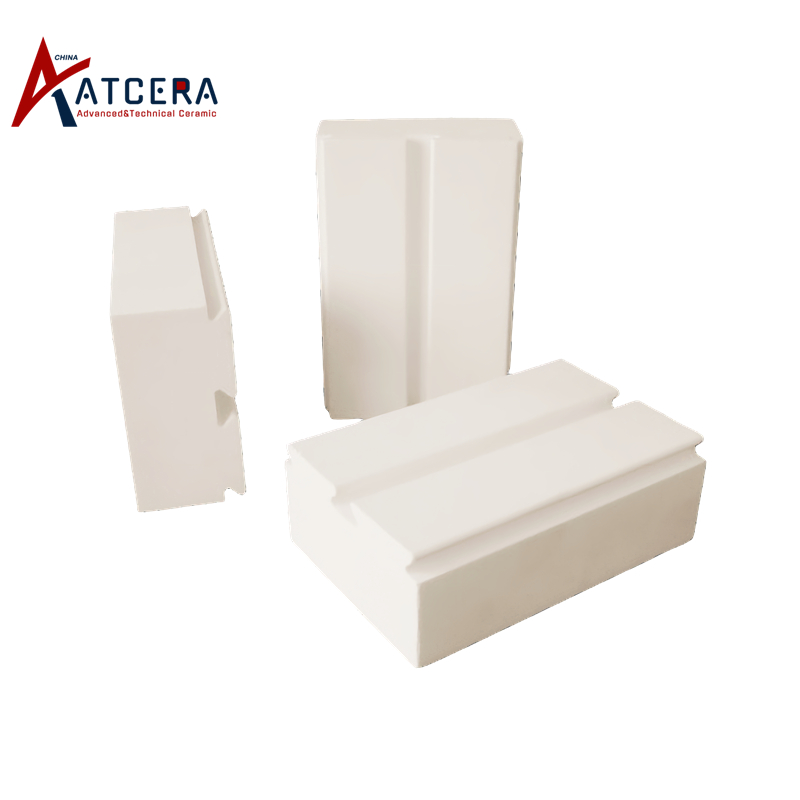

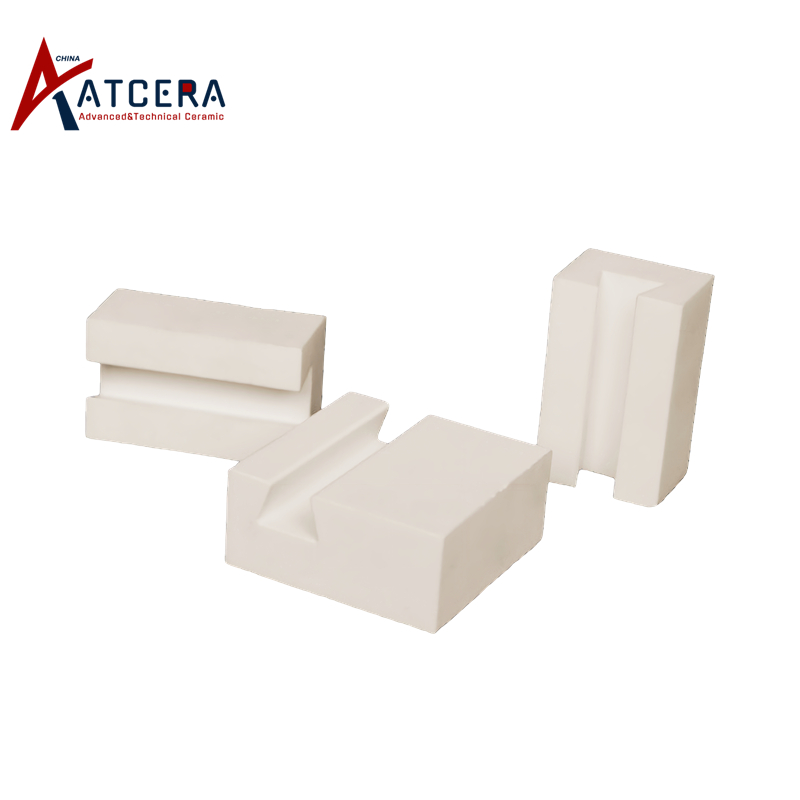

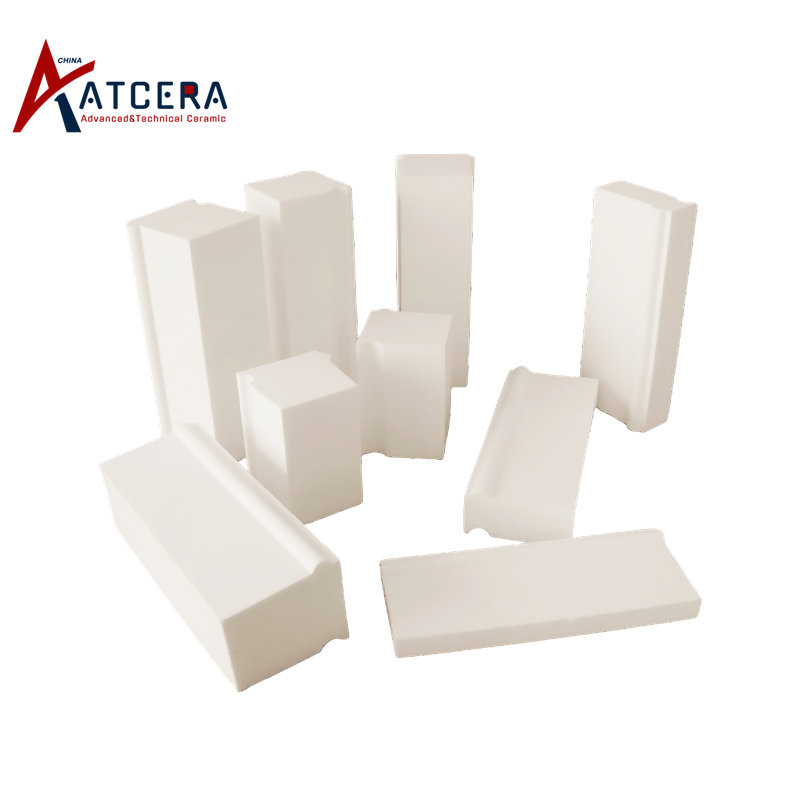

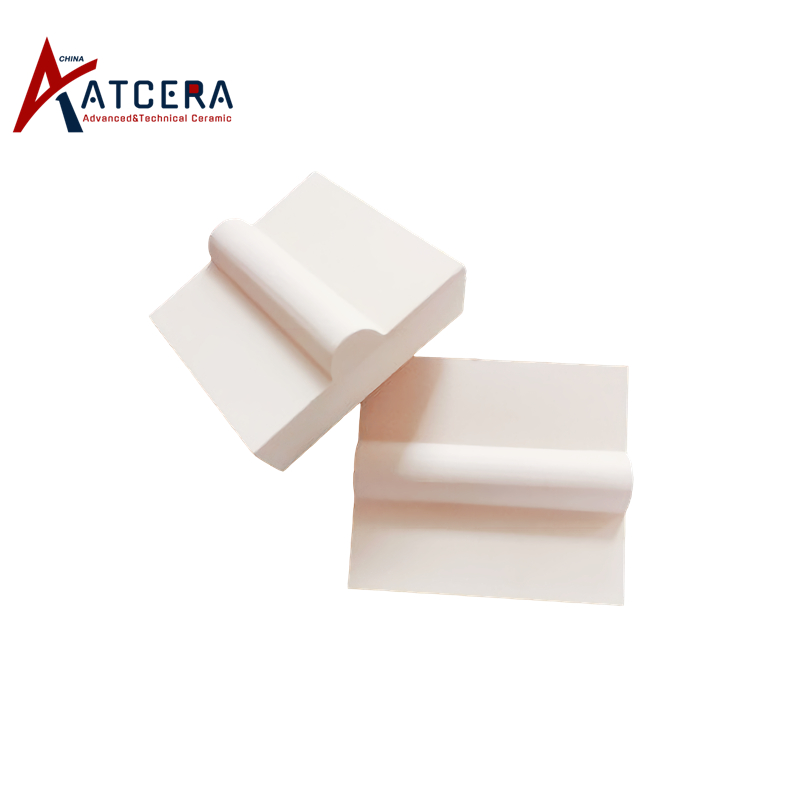

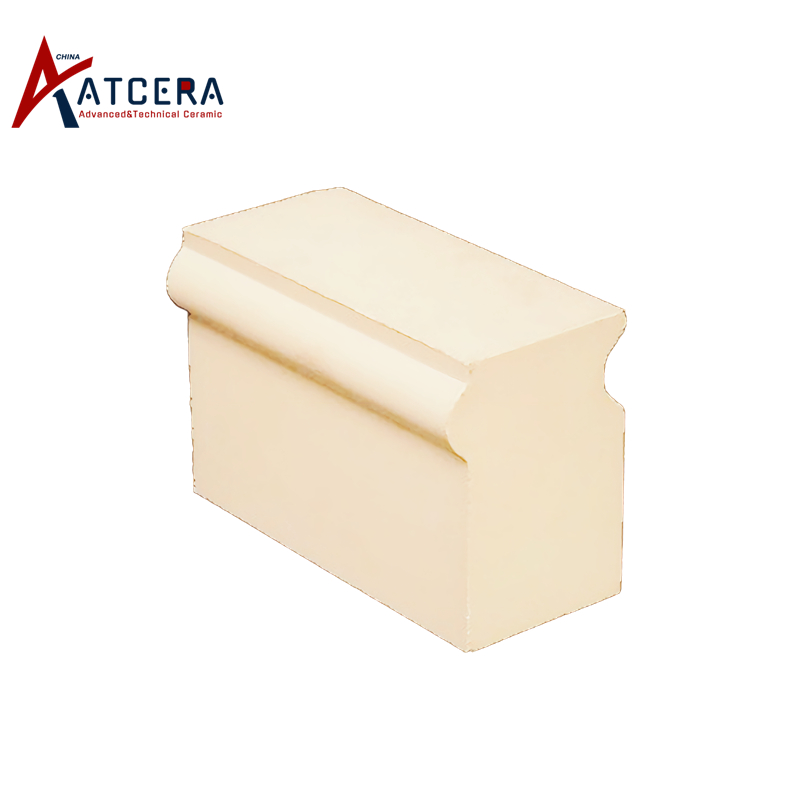

Zirconia Ceramic Lining Brick

Zirconia lining bricks possess high hardness and excellent abrasion resistance, which are installed at the wearing parts of ball mills, material conveying equipment, coal preparation equipment, and other devices. They serve as the material contact surface, enduring abrasion and impacts. Compared to alumina lining bricks, zirconia lining bricks exhibit superior mechanical impact resistance, abrasion resistance, and longer service life.

Brand:
ATCERA
Item NO.:
AT-YHG-CZ1001

Materials
Zirconia
Shapes
Mechanical Parts
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Zirconia Ceramic Lining Brick

1. Zirconia lining bricks, with their high hardness and excellent abrasion resistance, can extend the service life of equipment without contaminating the grinding materials.

2. They possess high mechanical strength and excellent impact resistance, capable of resisting the impacts of grinding balls in ball mills and protecting the equipment from deformation.

Applications of Zirconia Lining Brick

Zirconia lining bricks are installed at the wearing parts of ball mills, material conveying equipment, coal preparation equipment, and other devices, functioning as the material contact surface to endure abrasion and impacts.

Size Chart of Zirconia Ceramic Lining Brick

We are committed to delivering optimal zirconia lining bricks tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parametric specifications for customization.

Zirconia Ceramic Lining Brick
Item No.	Height (mm)	Upper Width/Lower Width (mm)	Length (mm)
AT-YHG-CZ1001	15	45/50	150
AT-YHG-CZ1002	25	45/50	150
AT-YHG-CZ1003	35	45/50	150
AT-YHG-CZ1004	40	45/50	150
AT-YHG-CZ1005	50	45/50	150
AT-YHG-CZ1006	60	45/50	150
AT-YHG-CZ1007	70	45/50	150
AT-YHG-CZ1008	90	45/50	150
AT-YHG-CZ1009	100	45/50	150
AT-YHG-CZ1010	15	50	75
AT-YHG-CZ1011	25	50	75
AT-YHG-CZ1012	35	50	75
AT-YHG-CZ1013	40	50	75
AT-YHG-CZ1014	50	50	75
AT-YHG-CZ1015	60	50	75
AT-YHG-CZ1016	70	50	75
AT-YHG-CZ1017	90	50	75
AT-YHG-CZ1018	100	50	75
AT-YHG-CZ1019	15	45/50	75
AT-YHG-CZ1020	25	45/50	75
AT-YHG-CZ1021	35	45/50	75
AT-YHG-CZ1022	40	45/50	75
AT-YHG-CZ1023	50	45/50	75
AT-YHG-CZ1024	60	45/50	75
AT-YHG-CZ1025	70	45/50	75
AT-YHG-CZ1026	90	45/50	75
AT-YHG-CZ1027	100	45/50	75
AT-YHG-CZ1028	15	25	150
AT-YHG-CZ1029	25	25	150
AT-YHG-CZ1030	35	25	150
AT-YHG-CZ1031	40	25	150
AT-YHG-CZ1032	50	25	150
AT-YHG-CZ1033	60	25	150
AT-YHG-CZ1034	70	25	150
AT-YHG-CZ1035	90	25	150
AT-YHG-CZ1036	100	25	150
AT-YHG-CZ1037	15	22.5/25	150
AT-YHG-CZ1038	25	22.5/25	150
AT-YHG-CZ1039	35	22.5/25	150
AT-YHG-CZ1040	40	22.5/25	150
AT-YHG-CZ1041	50	22.5/25	150
AT-YHG-CZ1042	60	22.5/25	150
AT-YHG-CZ1043	70	22.5/25	150
AT-YHG-CZ1044	90	22.5/25	150
AT-YHG-CZ1045	100	22.5/25	150

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Before adhesive installation of zirconia lining bricks, it is necessary to thoroughly clean the inner surface of the equipment, removing rust, oil stains, dirt, and other impurities to prevent a decrease in adhesive strength and potential detachment during use.

2. The wear-resistant ceramic adhesive used for installation must be mixed according to the specified ratio, and the construction temperature should be controlled within the optimal operating range of the adhesive to ensure effective adhesion.

3. During installation, the wear-resistant ceramic adhesive should be applied evenly, and after placement, a rubber mallet should be used to tap the bricks to ensure tighter adhesion to the equipment.

Valuable Information

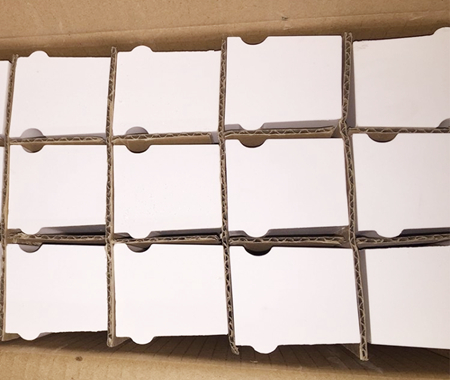

Zirconia Ceramic Lining Brick Packing

Zirconia ceramic lining bricks are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
