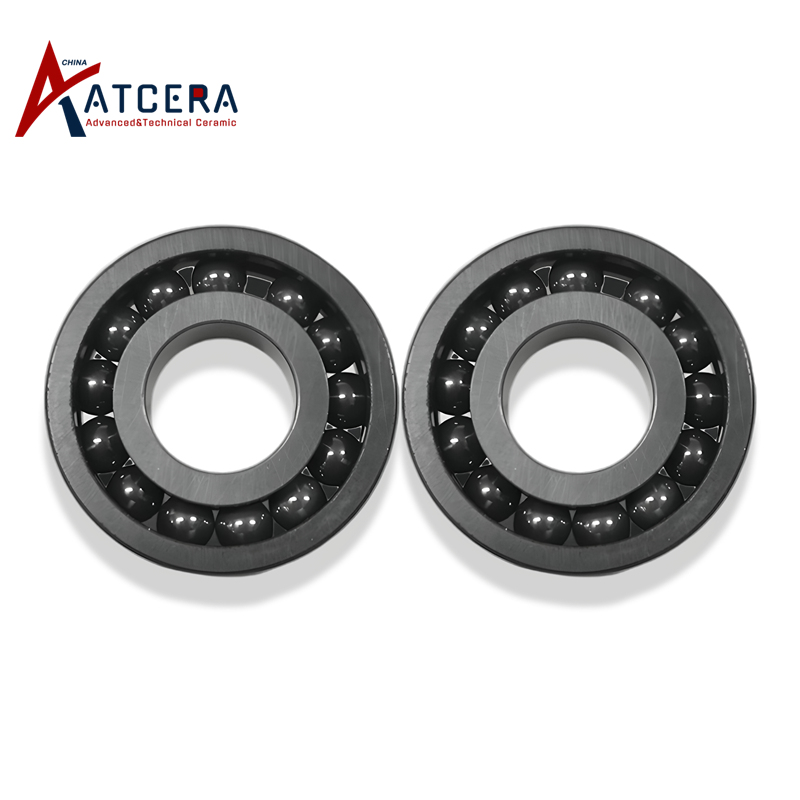

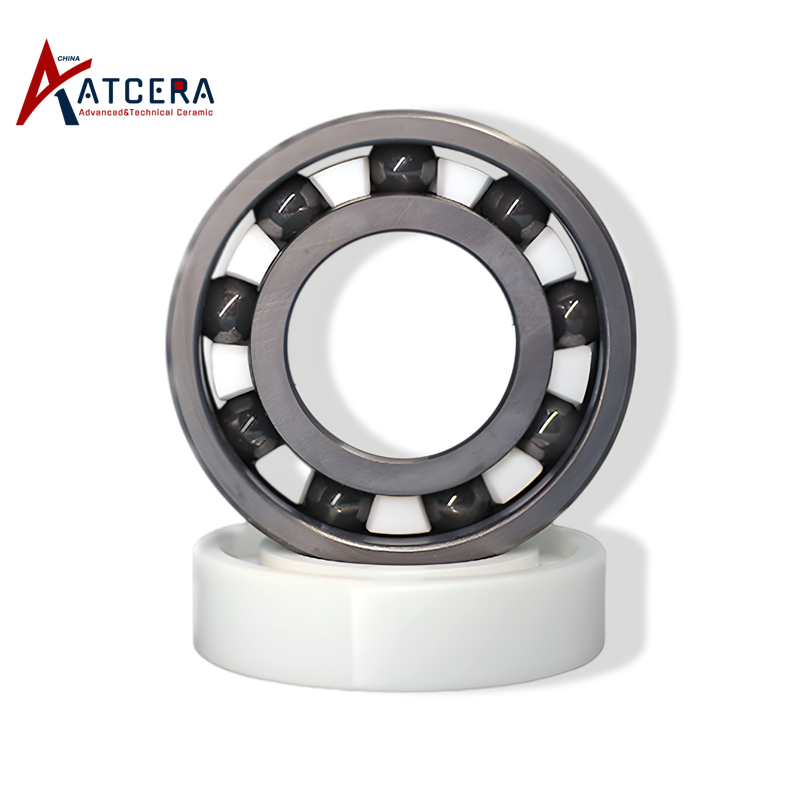

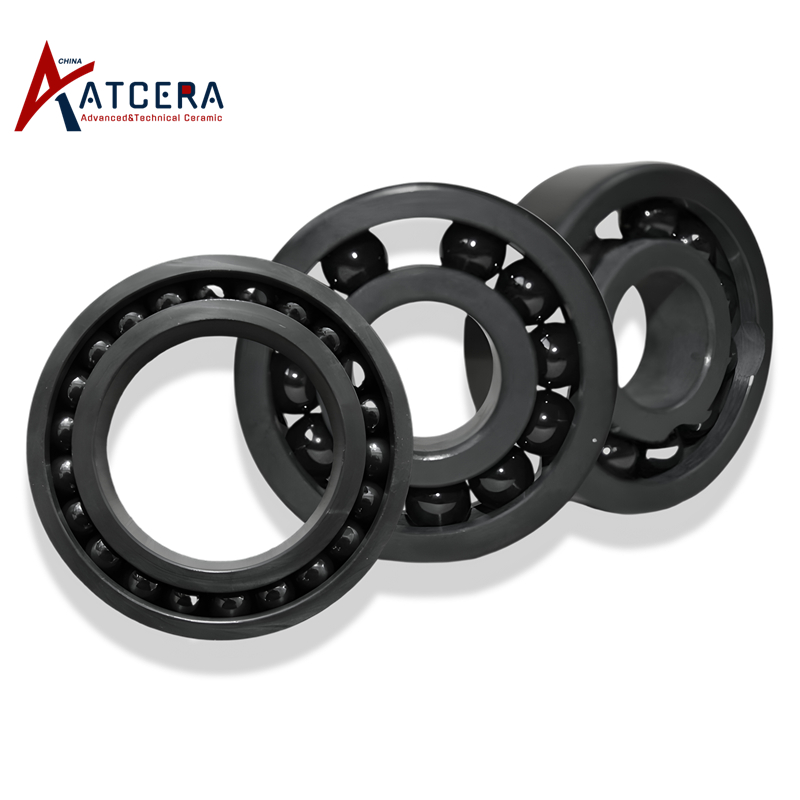

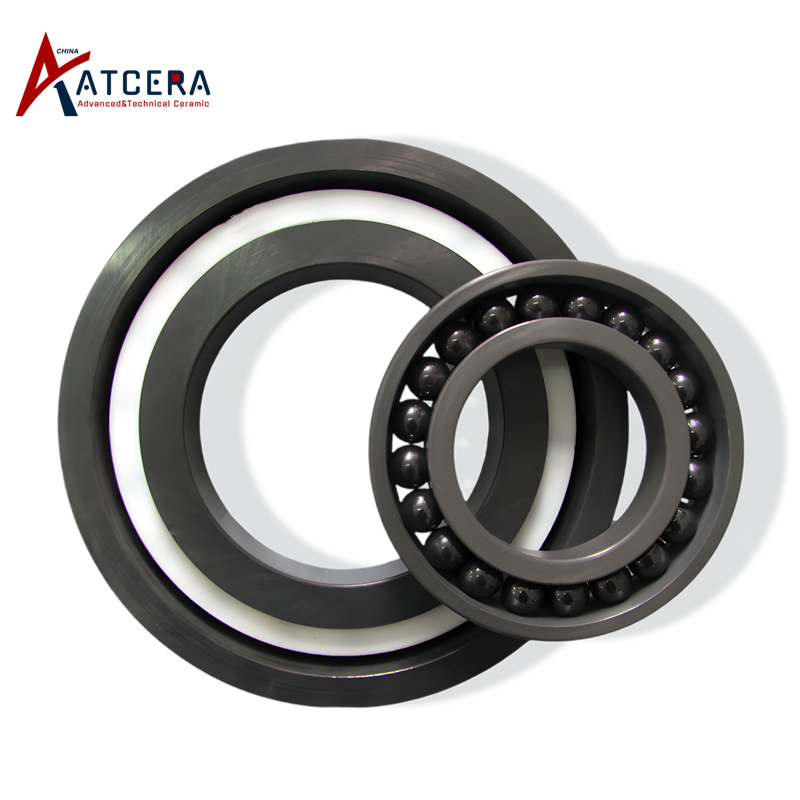

Silicon carbide ceramic ball bearing
Silicon carbide ceramic ball bearing
Silicon carbide ceramic ball bearing
Silicon carbide ceramic ball bearing
Silicon carbide ceramic ball bearing

Silicon Carbide Ball Bearing SiC Full Ceramic Bearing

Silicon carbide bearing is a kind of high-performance bearing, mainly composed of inner ring, outer ring and rollers, with characteristics of high hardness, wear resistance, light weight, high temperature resistance, corrosion resistance, oxidation resistance, etc., it is suitable for harsh working environment and high speed occasions.

  • Brand:

    ATCERA

  • Item NO.:

    AT-SIC-ZC684CE

  • Materials

    SiC

  • Shapes

    Bearing

  • Applications

    Mechanical Parts , Petrochemical Industry , Metallurgy Industry , Lithium Battery Production
Inquire Now

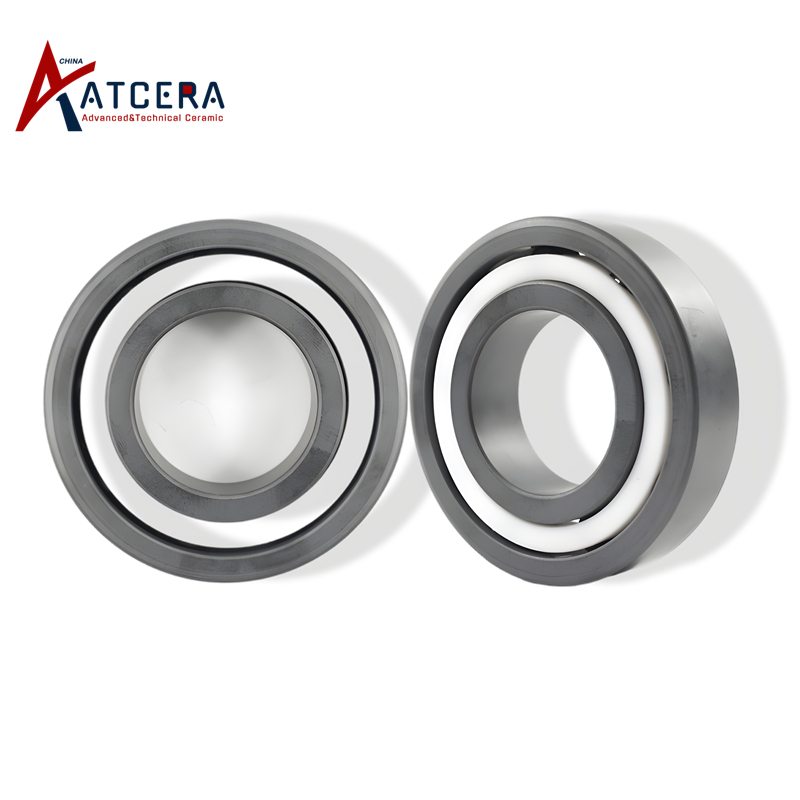

SiC ceramic ball bearing

Properties of Silicon Carbide Ball Bearing



1. High limit speed

Silicon carbide ceramic density is only 40% of steel density, so the centrifugal force of operation can be reduced during operation, thereby limit speed can be significantly increased..

2. High precision

The hardness and Young's modulus of silicon carbide ceramic are much higher than that of steel, so the mechanical deformation is smaller under the same load, therefore silicon carbide bearing can be applied to occasions with higher precision requirements.

3. Longer service life

Silicon carbide ceramic bearing weight is light, and operation centrifugal force is smaller, raceway load is reduced. What's more, the friction coefficient of silicon carbide is small, temperature rise is lower during operation, so the wear is less and bearing have longer service life, more than 5 times of steel bearings;

4. Wide working temperature range

Silicon carbide can maintain stable performance at high and low temperatures, and the coefficient of thermal expansion is small, the bearing clearance is less affected by temperature changes than steel bearing, so that it can be used in a wider temperature range.

5. No need lubrication

Ceramic has self-lubricating characteristics, usually no need lubricating oil or grease, so it can be applied to high vacuum and high cleanliness occasions, to avoid the pollution of lubricating oil or grease;

6. Corrosion resistance

Silicon carbide bearing has good resistance to acid, alkali and other chemical corrosion, it can be used in chemical corrosion occasions;

7. Nonmagnetic

Silicon carbide is non-magnetic material, magnetic matter or abrasive particles are not easy to adhere to the bearing channel, which can reduce abrasive wear.

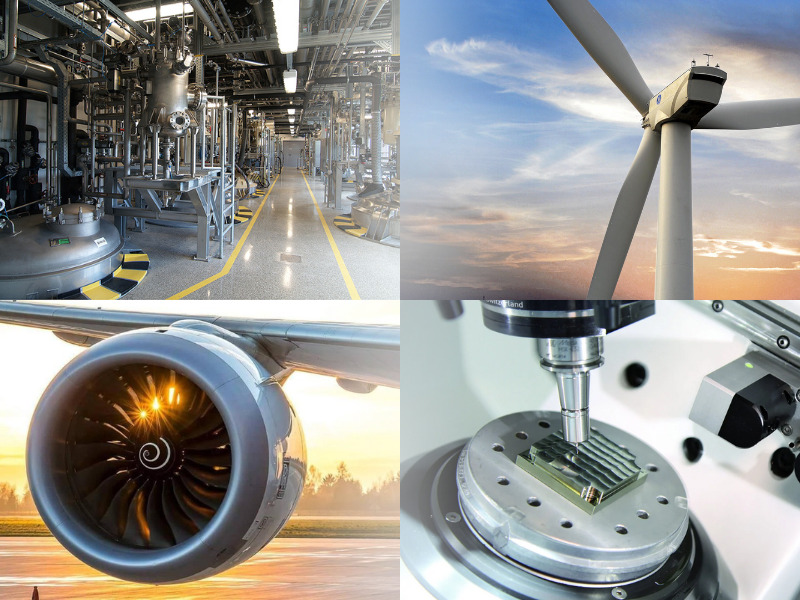

Applications of SiC Full Ceramic Bearing

Applications of SiC Full Ceramic Bearing



Silicon carbide ceramic bearing has good wear resistance, no magnetic, good electrical insulation, acid and alkali corrosion resistance, self-lubrication, small friction coefficient, light weight, high temperature resistance, it is widely used in high precision machinery, chemical industry, electronics, medical, high temperature environment, metallurgy, aerospace and other industries to ensure stable operation and long service life of equipment, also reduce maintenance costs.



1. Chemical industry

Silicon carbide bearing has good corrosion resistance, it is widely used in liquid and gas conveying equipment in the chemical industry, especially for occasions with corrosion media, such as pickling machines, chemical pumps, etc.

2. Electronics industry

Silicon carbide bearings have small friction coefficient, and weight is light, it is often used in precision machining equipment and electronic components, such as chip manufacturing devices, hard disk motors, high-precision machine tools, etc.

3. Machinery industry

Silicon carbide bearing has high compressive strength, good toughness, good wear resistance, low friction coefficient, it is widely used in the mechanical industry, such as high-speed motors, hydraulic pumps, precision machine tools, wind turbines, high-speed trains, etc., bearing long service life, good stability, reduce equipment maintenance costs;

4. Aerospace industry

Silicon carbide bearing because of its non-magnetic, good electrical insulation, high temperature resistance, high rigidity, good wear resistance and other advantages, in the aerospace field it has a very important application, such as aircraft engines, gyroscopes, inertial measurement devices and so on;

5. Metallurgy and high temperature environment

Silicon carbide bearing has high temperature resistance, good thermal shock resistance, widely used in metallurgy, rubber and plastic production equipment and other high temperature environment.

Size Chart for Silicon Carbide Ball Bearing

We are committed to delivering prime silicon carbide ceramic ball bearing tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.



Please provide the requirements listed below at least, if the customized design needed:
1. Use environment, working temperature, design rotation speed, load and other parameters;
2. Size and tolerance requirements of outer diameter, inner diameter and height;
3. Drawings and specifications requirements.



Machining Tolerance:
Tolerance class P0 to P5 available, please contact ATCERA for your request.



Send Requirements for Custom Design

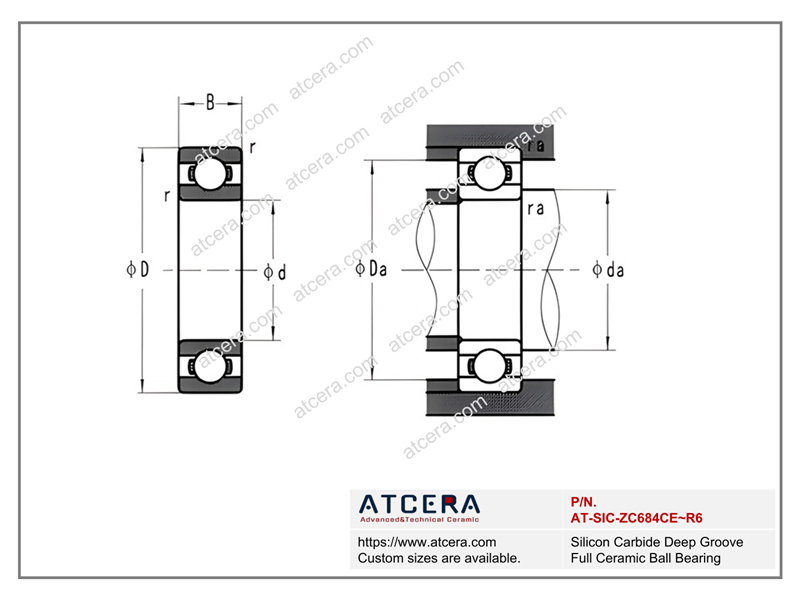

Drawing of Silicon Carbide Deep Groove Full Ceramic Ball Bearing

Silicon Carbide Deep Groove Full Ceramic Ball Bearing
Item NO. d - Inner Diameter
(mm)		 D - Outer Diameter
(mm)		 B - Height
(mm)		 r
(Minimum)		 Installation Size (mm)
da
(Minimum)		 da
(Maximum)		 Da
(Maximum)		 ra
(Maximum)
AT-SIC-ZC684CE 4 9 2.5 0.1 4.8 / 8.2 0.1
AT-SIC-ZC694CE 4 11 4 0.15 5.2 / 9.8 0.15
AT-SIC-ZC604CE 4 12 4 0.2 5.6 / 10.4 0.2
AT-SIC-ZC624CE 4 13 5 0.2 5.6 / 11.4 0.2
AT-SIC-ZC634CE 4 16 5 0.3 6 / 14 0.3
AT-SIC-ZC685CE 5 11 3 0.15 6.2 / 9.8 0.15
AT-SIC-ZC695CE 5 13 4 0.2 6.6 / 11.4 0.2
AT-SIC-ZC605CE 5 14 5 0.2 6.6 / 12.4 0.2
AT-SIC-ZC625CE 5 16 5 0.3 7 / 14 0.3
AT-SIC-ZC635CE 5 19 6 0.3 7 / 17 0.3
AT-SIC-ZC686CE 6 13 3.5 0.15 7.2 / 11.8 0.15
AT-SIC-ZC696CE 7 15 5 0.2 7.6 / 13.4 0.2
AT-SIC-ZC606CE 8 17 6 0.3 8 / 15 0.3
AT-SIC-ZC626CE 9 19 6 0.3 8 / 17 0.3
AT-SIC-ZC636CE 10 22 7 0.3 8 / 20 0.3
AT-SIC-ZC687CE 7 14 3.5 0.15 8.2 / 12.8 0.15
AT-SIC-ZC697CE 7 17 5 0.3 9 / 15 0.3
AT-SIC-ZC607CE 7 19 6 0.3 9 / 17 0.3
AT-SIC-ZC627CE 7 22 7 0.3 9 / 20 0.3
AT-SIC-ZC637CE 7 26 9 0.3 9 / 24 0.3
AT-SIC-ZC688CE 8 16 4 0.2 9.6 / 14.4 0.2
AT-SIC-ZC698CE 8 19 6 0.3 10 / 17 0.3
AT-SIC-ZC608CE 8 22 7 0.3 10 / 20 0.3
AT-SIC-ZC628CE 8 24 8 0.3 10 / 22 0.3
AT-SIC-ZC638CE 8 28 9 0.3 10 / 26 0.3
AT-SIC-ZC689CE 9 17 4 0.2 10.6 / 15.4 0.2
AT-SIC-ZC699CE 9 20 6 0.3 11 / 18 0.3
AT-SIC-ZC609CE 9 24 7 0.3 11 / 22 0.3
AT-SIC-ZC629CE 9 26 8 0.3 11 / 24 0.3
AT-SIC-ZC639CE 9 30 10 0.6 13 / 26 0.6
AT-SIC-ZC6800CE 10 19 5 0.3 12 12 17 0.3
AT-SIC-ZC6900CE 10 22 6 0.3 12 12.5 20 0.3
AT-SIC-ZC6000CE 10 26 8 0.3 12 13 24 0.3
AT-SIC-ZC6200CE 10 30 9 0.6 14 16 26 0.6
AT-SIC-ZC6300CE 10 35 11 0.6 14 16.5 31 0.6
AT-SIC-ZC6801CE 12 21 5 0.3 14 14 19 0.3
AT-SIC-ZC6901CE 12 24 6 0.3 14 14.5 22 0.3
AT-SIC-ZC16001CE 12 28 7 0.3 14 / 26 0.3
AT-SIC-ZC6001CE 12 28 8 0.3 14 15.5 26 0.3
AT-SIC-ZC6201CE 12 32 10 0.6 16 17 28 0.6
AT-SIC-ZC6301CE 12 37 12 1 17 18 32 1
AT-SIC-ZC6802CE 15 24 5 0.3 17 17 22 0.3
AT-SIC-ZC6902CE 15 28 7 0.3 17 17 26 0.3
AT-SIC-ZC16002CE 15 32 8 0.3 17 / 30 0.3
AT-SIC-ZC6002CE 15 32 9 0.3 17 19 30 0.3
AT-SIC-ZC6202CE 15 35 11 0.6 19 20.5 31 0.3
AT-SIC-ZC6302CE 15 42 13 1 20 22.5 37 1
AT-SIC-ZC6803CE 17 26 5 0.3 19 19 24 0.3
AT-SIC-ZC6903CE 17 30 7 0.3 19 19.5 28 0.3
AT-SIC-ZC16003CE 17 35 8 0.3 19 / 33 0.3
AT-SIC-ZC6003CE 17 35 10 0.3 19 21.5 33 0.3
AT-SIC-ZC6203CE 17 40 12 0.6 21 23.5 36 0.6
AT-SIC-ZC6303CE 17 47 14 1 22 25.5 42 1
AT-SIC-ZC6403CE 17 62 17 1.1 23.5 / 55.5 1
AT-SIC-ZC6804CE 20 32 7 0.3 22 22.5 30 0.3
AT-SIC-ZC6904CE 20 37 9 0.3 22 24 35 0.3
AT-SIC-ZC16004CE 20 42 8 0.3 22 / 40 0.3
AT-SIC-ZC6004CE 20 42 12 0.6 24 25.5 38 0.6
AT-SIC-ZC6204CE 20 47 14 1 25 26.5 42 1
AT-SIC-ZC6304CE 20 52 15 1.1 26.5 28 45.5 1
AT-SIC-ZC6404CE 20 72 19 1.1 26.5 / 65.5 1
AT-SIC-ZC6805CE 25 37 7 0.3 27 27 35 0.3
AT-SIC-ZC6905CE 25 42 9 0.3 27 28.5 40 0.3
AT-SIC-ZC16005CE 25 47 8 0.3 27 / 45 0.3
AT-SIC-ZC6005CE 25 47 12 0.6 29 30 43 0.6
AT-SIC-ZC6205CE 25 52 15 1 30 32 47 1
AT-SIC-ZC6305CE 25 62 17 1.1 31.5 36 55.5 1
AT-SIC-ZC6405CE 25 80 21 1.5 33 / 72 1.5
AT-SIC-ZC6806CE 30 42 7 0.3 32 32 50 1
AT-SIC-ZC6906CE 30 47 9 0.3 32 34 57 1
AT-SIC-ZC16006CE 30 55 9 0.3 32 42.5 65.5 1
AT-SIC-ZC6006CE 30 55 13 1 35 36.5 53 1
AT-SIC-ZC6206CE 30 62 16 1 35 38.5 60 1
AT-SIC-ZC6306CE 30 72 19 1.1 36.5 42.5 68.5 1
AT-SIC-ZC6406CE 30 90 23 1.5 54 / 82 2
AT-SIC-ZC6807CE 35 47 7 0.3 37 37 45 0.3
AT-SIC-ZC6907CE 35 55 10 0.6 39 39 51 0.6
AT-SIC-ZC16007CE 35 62 9 0.3 37 / 60 0.3
AT-SIC-ZC6007CE 35 62 14 1 40 41.5 57 1
AT-SIC-ZC6207CE 35 72 17 1.1 41.5 44.5 65.5 1
AT-SIC-ZC6307CE 35 80 21 1.5 43 47 72 1.5
AT-SIC-ZC6407CE 35 100 25 1.5 43 / 92 1.5
AT-SIC-ZC6808CE 40 52 7 0.3 42 42 50 0.3
AT-SIC-ZC6908CE 40 62 12 0.6 44 46 58 0.6
AT-SIC-ZC16008CE 40 68 9 0.3 42 / 66 0.3
AT-SIC-ZC6008CE 40 68 15 1 45 47.5 63 1
AT-SIC-ZC6208CE 40 80 18 1.1 46.5 50.5 73.5 1
AT-SIC-ZC6308CE 40 90 23 1.5 48 53 80 1.5
AT-SIC-ZC6408CE 40 110 27 2 49 / 101 2
AT-SIC-ZC6809CE 45 58 7 0.3 47 47.5 56 0.3
AT-SIC-ZC6909CE 45 68 12 0.6 49 50 64 0.6
AT-SIC-ZC16009CE 45 75 10 0.6 49 / 71 0.6
AT-SIC-ZC6009CE 45 75 16 1 50 53.5 70 1
AT-SIC-ZC6209CE 45 85 19 1.1 51.5 55.5 78.5 1
AT-SIC-ZC6309CE 45 100 25 1.5 53 61.5 92 1.5
AT-SIC-ZC6409CE 45 120 29 2 54 / 111 2
AT-SIC-ZC6810CE 50 65 7 0.3 52 52.5 63 0.3
AT-SIC-ZC6910CE 50 72 12 0.6 54 55 68 0.6
AT-SIC-ZC16010CE 50 80 10 0.6 54 / 76 0.6
AT-SIC-ZC6010CE 50 80 16 1 55 58.5 75 1
AT-SIC-ZC6210CE 50 90 20 1.1 56.5 60 83.2 1
AT-SIC-ZC6310CE 50 110 27 2 59 68 101 2
AT-SIC-ZC6410CE 50 130 31 2.1 61 / 119 2
AT-SIC-ZC6811CE 55 72 9 0.3 57 59 70 0.3
AT-SIC-ZC6911CE 55 80 13 1 60 61.5 75 1
AT-SIC-ZC16011CE 55 90 11 0.6 59 / 86 0.6
AT-SIC-ZC6011CE 55 90 18 1.1 61.5 64 83.5 1
AT-SIC-ZC6211CE 55 100 21 1.5 63 66.5 92 1.5
AT-SIC-ZC6311CE 55 120 29 2 64 72.5 111 2
AT-SIC-ZC6411CE 55 140 33 2.1 66 / 129 2
AT-SIC-ZC6812CE 60 78 10 0.3 62 64 76 0.3
AT-SIC-ZC6912CE 60 85 13 1 65 66 80 1
AT-SIC-ZC16012CE 60 95 11 0.6 64 / 91 0.6
AT-SIC-ZC6012CE 60 95 18 1.1 66.5 69 88.5 1
AT-SIC-ZC6212CE 60 110 22 1.5 68 74.5 102 1.5
AT-SIC-ZC6312CE 60 130 31 2.1 71 79 119 2
AT-SIC-ZC6412CE 60 150 35 2.1 71   139 2
AT-SIC-ZC6813CE 65 85 10 0.6 69 69 81 0.6
AT-SIC-ZC6913CE 65 90 13 1 70 71.5 85 1
AT-SIC-ZC16013CE 65 100 11 0.6 69 / 96 0.6
AT-SIC-ZC6013CE 65 100 18 1.1 71.5 73 93.5 1
AT-SIC-ZC6213CE 65 120 23 1.5 73 80 112 1.5
AT-SIC-ZC6313CE 65 140 33 2.1 76 85.5 129 2
AT-SIC-ZC6814CE 70 90 10 0.6 74 74.5 86 0.6
AT-SIC-ZC6914CE 70 100 16 1 75 77.5 95 1
AT-SIC-ZC16014CE 70 110 13 0.6 74 / 106 0.6
AT-SIC-ZC6014CE 70 110 20 1.1 76.5 80.5 103.5 1
AT-SIC-ZC6214CE 70 125 24 1.5 78 84 117 1.5
AT-SIC-ZC6314CE 70 150 35 2.1 81 92 139 2
AT-SIC-ZC6815CE 75 95 10 0.6 79 79.5 91 0.6
AT-SIC-ZC6915CE 75 105 16 1 80 82 100 1
AT-SIC-ZC16015CE 75 115 13 0.6 79 / 111 0.6
AT-SIC-ZC6015CE 75 115 20 1.1 81.5 85.5 108.5 1
AT-SIC-ZC6215CE 75 130 25 1.5 83 90 122 1.5
AT-SIC-ZC6816CE 80 100 10 0.6 84 84.5 96 0.6
AT-SIC-ZC6916CE 80 110 16 1 85 87.5 105 1
AT-SIC-ZC16016CE 80 125 14 0.6 84 / 121 0.6
AT-SIC-ZC6016CE 80 125 22 1.1 86.5 91 118.5 1
AT-SIC-ZC6216CE 80 140 26 2 89 95.5 131 2
AT-SIC-ZC6817CE 85 110 13 1 90 90.5 105 1
AT-SIC-ZC6917CE 85 120 18 1.1 91.5 94.5 113.5 1
AT-SIC-ZC16017CE 85 130 14 0.6 89 / 126 0.6
AT-SIC-ZC6017CE 85 130 22 1.1 91.5 96 123.5 1
AT-SIC-ZC6217CE 85 150 28 2 94 102 141 2
AT-SIC-ZC6818CE 90 115 13 1 95 95.5 110 1
AT-SIC-ZC6918CE 90 125 18 1.1 96.5 98.5 118.5 1
AT-SIC-ZC16018CE 90 140 16 1 95 / 135 1
AT-SIC-ZC6018CE 90 140 24 1.5 98 103 132 1.5
AT-SIC-ZC6819CE 95 120 13 1 100 102 115 1
AT-SIC-ZC6919CE 95 130 18 1.1 101.5 104 123.5 1
AT-SIC-ZC16019CE 95 145 16 1 100 / 140 1
AT-SIC-ZC6019CE 95 145 24 1.5 103 109 137 1.5
AT-SIC-ZC6820CE 100 125 13 1 105 106 120 1
AT-SIC-ZC6920CE 100 140 20 1.1 106.5 111 133.5 1
AT-SIC-ZC16020CE 100 150 16 1 105 / 145 1
AT-SIC-ZC6020CE 100 150 24 1.5 108 113 142 1.5
AT-SIC-ZC6821CE 105 130 13 1 110 111 125 1
AT-SIC-ZC6921CE 105 145 20 1.1 111.5 116 138.5 1
AT-SIC-ZC6822CE 110 140 16 1 115 117 135 1
AT-SIC-ZC6922CE / 150 20 1.1 116.5 121 143.5 1
AT-SIC-ZC6824CE 120 150 16 1 125 127 145 1
AT-SIC-ZC6924 120 165 22 1.1 / / / /
AT-SIC-ZC16024 120 180 19 1 / / / /
AT-SIC-ZC6024 120 180 28 2 / / / /
AT-SIC-ZC6224 120 215 40 2.1 / / / /
AT-SIC-ZC6324 120 260 55 3 / / / /
AT-SIC-ZC6826 130 165 18 1.1 / / / /
AT-SIC-ZC6926 130 180 24 1.5 / / / /
AT-SIC-ZC16026 130 200 22 1.1 / / / /
AT-SIC-ZC6026 130 200 33 2 / / / /
AT-SIC-ZC6226 130 230 40 3 / / / /
AT-SIC-ZC6326 130 280 58 4 / / / /
AT-SIC-ZC6828 140 175 18 1.1 / / / /
AT-SIC-ZC6928 140 190 24 1.5 / / / /
AT-SIC-ZC16028 140 210 22 1.1 / / / /
AT-SIC-ZC6028 140 210 33 2 / / / /
AT-SIC-ZC6228 140 250 42 3 / / / /
AT-SIC-ZC6328 140 300 62 4 / / / /
AT-SIC-ZC6830 150 190 20 1.1 / / / /
AT-SIC-ZC6930 150 210 28 2 / / / /
AT-SIC-ZC16030 150 225 24 1.1 / / / /
AT-SIC-ZC6030 150 225 35 2.1 / / / /
AT-SIC-ZC6230 150 270 45 3 / / / /
AT-SIC-ZC6330 150 320 65 4 / / / /
AT-SIC-ZC60/22 22 44 12 0.6 / / / /
AT-SIC-ZC62/22 22 50 14 1 / / / /
AT-SIC-ZC63/22 22 56 16 1.1 / / / /
AT-SIC-ZC60/28 28 52 12 0.6 / / / /
AT-SIC-ZC62/28 28 58 16 1 / / / /
AT-SIC-ZC63/28 28 68 18 1.1 / / / /
AT-SIC-ZC60/32 33 58 13 1 / / / /
AT-SIC-ZC62/32 33 65 17 1 / / / /
AT-SIC-ZC63/32 33 75 20 1.1 / / / /
AT-SIC-ZC603CE 3 9 3 / / / / /
AT-SIC-ZC606CE 6 17 6 / / / / /
AT-SIC-ZCMR117 7 11 3 / / / / /
AT-SIC-ZCMR128 8 12 3.5 / / / / /
AT-SIC-ZCMR85 5 8 2.5 / / / / /
AT-SIC-ZCMR63-1 3 6 2.5 / / / / /
AT-SIC-ZCMR85-1 5 8 2 / / / / /
AT-SIC-ZCMR148 8 14 4 / / / / /
AT-SIC-ZCMR84 4 8 2 / / / / /
AT-SIC-ZCMR126 6 12 4 / / / / /
AT-SIC-ZCMR74-1 4 7 2 / / / / /
AT-SIC-ZCMR84-1 4 8 3 / / / / /
AT-SIC-ZCMR74 4 7 2.5 / / / / /
AT-SIC-ZCMR148 8 14 3.5 / / / / /
AT-SIC-ZCMR63 3 6 2 / / / / /
AT-SIC-ZCMR103 3 10 4 / / / / /
AT-SIC-ZCMR104 4 10 4 / / / / /
AT-SIC-ZCMR105 5 10 3 / / / / /
AT-SIC-ZCMR105-1 5 10 4 / / / / /
AT-SIC-ZCMR106 6 10 2.5 / / / / /
AT-SIC-ZCMR106-1 6 10 3 / / / / /
AT-SIC-ZCMR115 5 11 4 / / / / /
AT-SIC-ZCMR52 2 5 2.5 / / / / /
AT-SIC-ZCMR62 2 6 2.5 / / / / /
AT-SIC-ZCMR94 4 9 3 / / / / /
AT-SIC-ZCMR95 5 9 3 / / / / /
AT-SIC-ZCR188 6.35 12.7 4.763 / / / / /
AT-SIC-ZCR6 9.525 22.225 5.556 / / / / /



Technical Data of Silicon Carbide Materials



Item Unit Index Data
Reaction-sintered SiC
(SiSiC)		 Silicon Nitride Bonded With SiC
(NBSiC)		 Sintered SiCn Without Pressure
(SSiC)
SiC Content % 85 80 99
Free  Silicon Content % 15 0 0
Max. Service Temp. ℃ 1380 1550 1600
Density g/cm3 3.02 2.72 3.1
Porosity % 0 12 0
Bending Strength 20℃ Mpa 250 160 380
1200℃ Mpa 280 180 400
Modulus of Elasticity 20℃ Gpa 330 220 420
1200℃ Gpa 300 / /
Thermal Conductivity 1200℃ W/m.k 45 15 74
Coefficient of Thermal Expansion K-1×10-6 4.5 5 4.1
Vickers Hardness HV kg/mm2 2500 2500 2800



*This chart illustrates the standard characteristics of the silicon carbide materials commonly employed in the manufacturing of our SiC products and parts. Please be aware that the attributes of customized silicon carbide products and parts may vary depending on the specific processes involved.



Usage Instructions




1. Bearing selection
Silicon carbide bearing is precision parts, need to choose the appropriate bearings according to the size of the shaft, tolerance and load, to avoid improper fit or overload.

2. Bearing installation
When install silicon carbide bearing, it is necessary to apply equal pressure on the circumference of the ring end face. In order to load the ring, it is forbidden to hit the bearing end face directly with a hammer, so as not to damage the bearing.

3. Matching of bearing and shaft
The fit selection of SiC ceramic bearing must be selected according to the load direction and load features. For rotating load and indefinite load, the ring should adopt a static fit, and for static load, the combination of excessive fit and dynamic fit can be adopted.

4. Bearing lubrication
The silicon carbide ceramic bearing itself has a certain lubricity, but in order to further increase lubrication and ensure the service life of the bearing under high-speed rotation, an appropriate amount of lubricating oil or grease can be added.

5. Bearing maintenance
Regularly check the vibration and noise of SiC bearing, the temperature of bearing operation and the state of lubricating oil, according to the use of the environment and operating conditions of regular cleaning and maintenance, timely clean off the debris on the bearing.


Valuable Information



SiC Full Ceramic Bearing Packing

SiC Full Ceramic Bearing Packing



Silicon carbide ceramic ball bearing are carefully packaged in appropriate containers to avoid any potential damage.

























Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
Related Blog
Preparation Of Aluminum Nitride Substrate And Selection Of Sintering Additives
In the field of high-tech materials, aluminum nitride (AlN) ceramics, with its excellent thermal conductivity, excellent electrical insulation properties and excellent mechanical strength, have become the core material in key fields such as electronic packaging, power electronics and microwave communication equipment. However, the preparation of aluminum nitride substrate is a complex process...
Read More
Application Requirements Of Aluminum Nitride Substrate
Aluminum nitride (AlN) as an advanced ceramic material, because of its unique physical and chemical properties, has shown great application potential in electronic packaging, power electronics, high frequency communication and other fields. As a core component in these fields, aluminum nitride substrates not only have to meet the basic physical performance requirements, but also need to ...
Read More
Effect Of Bulk Density Of Granulated Powder On Sintering Densification Of Silicon Nitride Balls
  Si3N4 powder is the main raw material for the preparation of silicon nitride balls. Selecting the appropriate treatment method to obtain the powder with regular shape and uniform particle size distribution is the basis for the stable implementation of Si3N4 ceramic ball forming, sintering, processing and other processes. According to the different atomization methods, the spray gr...
Read More
Optimizing The Spray Granulation Process To Improve The Performance Of Si3N4 balls
Silicon nitride (Si3N4) balls show great potential in the field of high-speed, high-precision, long-life bearings due to their excellent properties, such as lightweight, self-lubricating, high insulation, non-magnetic, high elastic modulus and excellent corrosion resistance. This paper aims to discuss the optimization of the spray granulation process of Si3N4 powder, especially the press...
Read More
Silicon Nitride Ball: A New Choice For High-Tech Powder Grinding Media
With the rapid development of high-tech industry, the requirements for fineness, purity and consistency of powder materials are increasing. As a key component in the powder preparation process, the performance of grinding medium directly determines the quality of the final product. Traditionally, zirconia ceramic balls are widely used in the field of ultra-fine grinding because of their high bendi...
Read More
Application Performance And Advantage Analysis Of Silicon Nitride Ball In Ultrafine Grinding Field
With the rapid development of nanotechnology and ultrafine material science, the demand for high-purity and ultrafine powder is increasing day by day. Silicon nitride ball, with its excellent hardness, very low wear rate and good chemical stability, has gradually become the key grinding medium in the field of ultrafine grinding. The purpose of this paper is to systematically describe the performan...
Read More
Study On Performance Characteristics And Application Of Silicon Nitride Ball In Mechanical Engineering Field
With the rapid development of modern mechanical engineering technology, the requirements for material properties are increasingly stringent, especially under extreme conditions such as high temperature, high speed, strong corrosion, etc., traditional metal materials and polymer materials have been difficult to meet the needs. Silicon nitride (Si ₄) As an advanced ceramic material with excellent ov...
Read More
Sol-gel Polishing Technology: Challenges And Opportunities To Innovate Silicon Carbide Substrate Polishing
Silicon carbide, the emerging star of the semiconductor material industry, is gradually leading the innovation trend of microelectronics technology with its excellent performance indicators. Its unique thermal conductivity, far superior to traditional semiconductor materials, provides the possibility for efficient heat dissipation, especially in high-power electronic devices show unparalleled adva...
Read More
Application And Advantages Of Plasma Assisted Polishing In AlN Substrate Processing
Aluminum nitride (AlN) ceramics, as a material with excellent thermal conductivity, mechanical properties and electrical properties, have been widely used in large-scale integrated circuits and electronic packages in recent years. Its excellent properties make it an ideal cooling substrate and packaging material. However, due to the high hardness, high brittleness and low fracture toughness of alu...
Read More
Silicon Carbide Substrate Processing Challenges with Innovative Applications Of Metal Friction-induced Reaction Grinding Technology
In the field of semiconductor materials, silicon carbide (SiC) with its excellent thermal conductivity, wide band gap characteristics, high breakdown electric field strength and high electron mobility, is gradually becoming a research and development hotspot, leading the innovation of a new generation of electronic devices. As a substrate material for key components, the broad application prospect...
Read More

Related Products

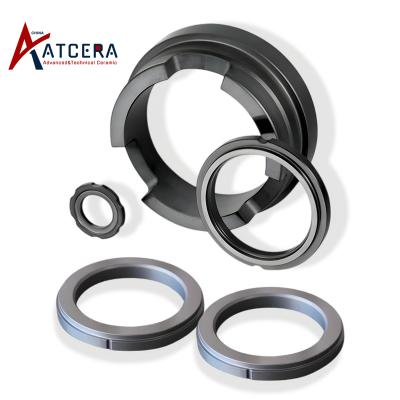

Silicon carbide sealing ring
Silicon Carbide Sealing Ring SiC Seal Ring

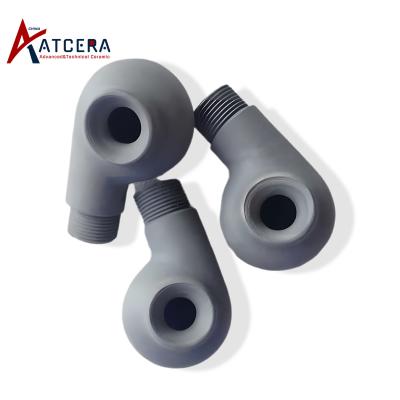

Silicon carbide nozzle
Silicon Carbide Nozzle SiC Vortex Nozzle

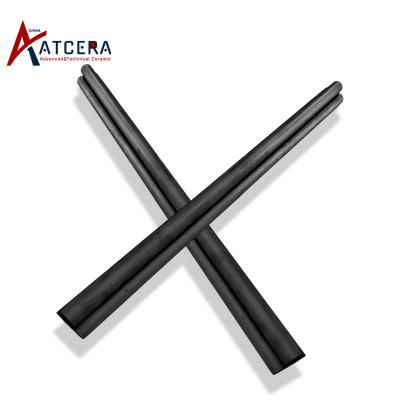

Silicon carbide heat exchange tube
Silicon Carbide Heat Exchange Tube SiC tube Sheet For Heat Exchanger

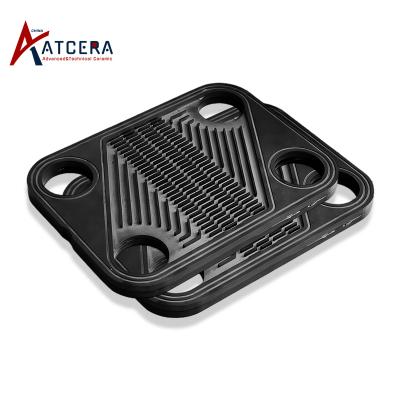

Silicon carbide heat exchange plate
Silicon Carbide Heat Exchange Plate SiC Plate For Heat Exchanger

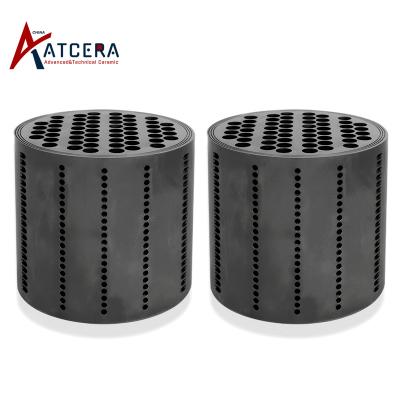

Silicon carbide heat exchange block
Silicon Carbide Heat Exchange Block SiC Plug For Heat Exchanger

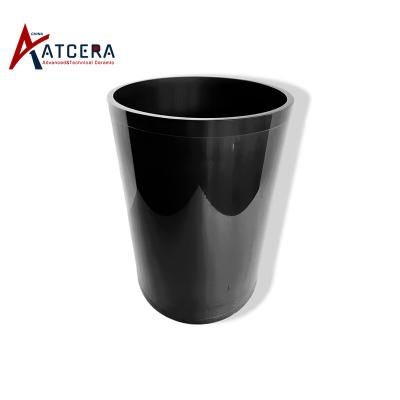

Silicon carbide sleeve
Silicon Carbide Sleeve SiC Ceramic Liner

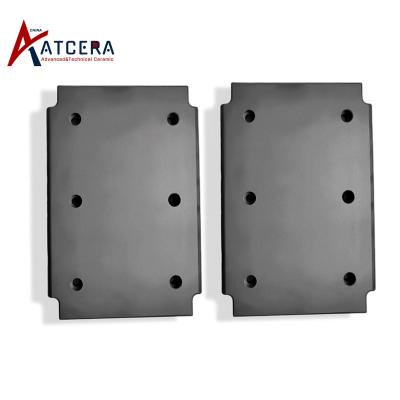

Silicon carbide mold
Silicon Carbide Mold SiC Mold For Glass Moulding

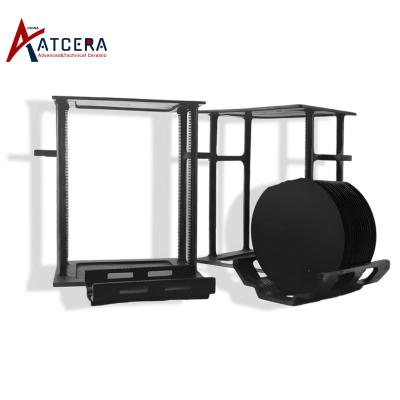

Silicon carbide wafer boat
Silicon Carbide Wafer Boat SiC Boat For Wafer Handling

FAQ

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.

All FAQs

Send Your inquiry

Subject:
Silicon Carbide Ball Bearing SiC Full Ceramic Bearing
Upload
* File ONLY PDF/JPG./PNG. Available.
Submit Now
About My Brand
Products
Resources
Hot Tags

Copyright © 2024 HUNAN ATCERA CO. Ltd. All Rights Reserved.

XML | Privacy Policy IPv6

Contact With Us
Contact With Us
Simply fill out the form below as best you can. And don't sweat the details.
Submit
Looking for Video?
Contact Us #
19311583352

Office Hours

  • Monday to Friday: 9:00 AM - 12:00 PM, 2:00 PM - 5:30 PM

Please note that our office hours are based on Beijing Time, which is eight hours ahead of Greenwich Mean Time (GMT). We appreciate your understanding and cooperation in scheduling your inquiries and meetings accordingly. For any urgent matters or queries outside our regular hours, feel free to contact us via email, and we will get back to you as soon as possible. Thank you for your business, and we look forward to serving you.

Home

Products

whatsApp

contact
