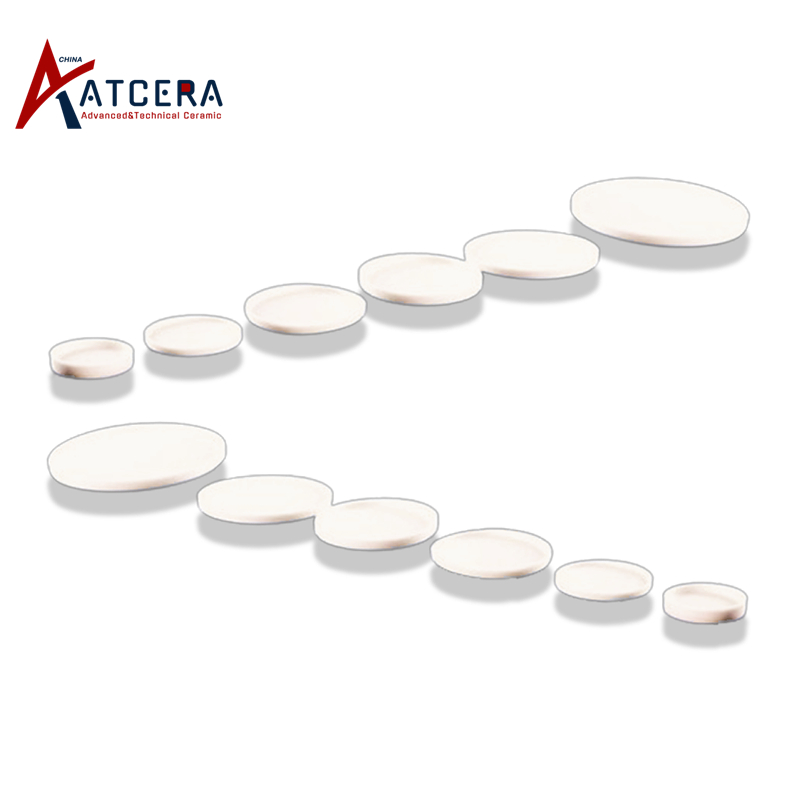

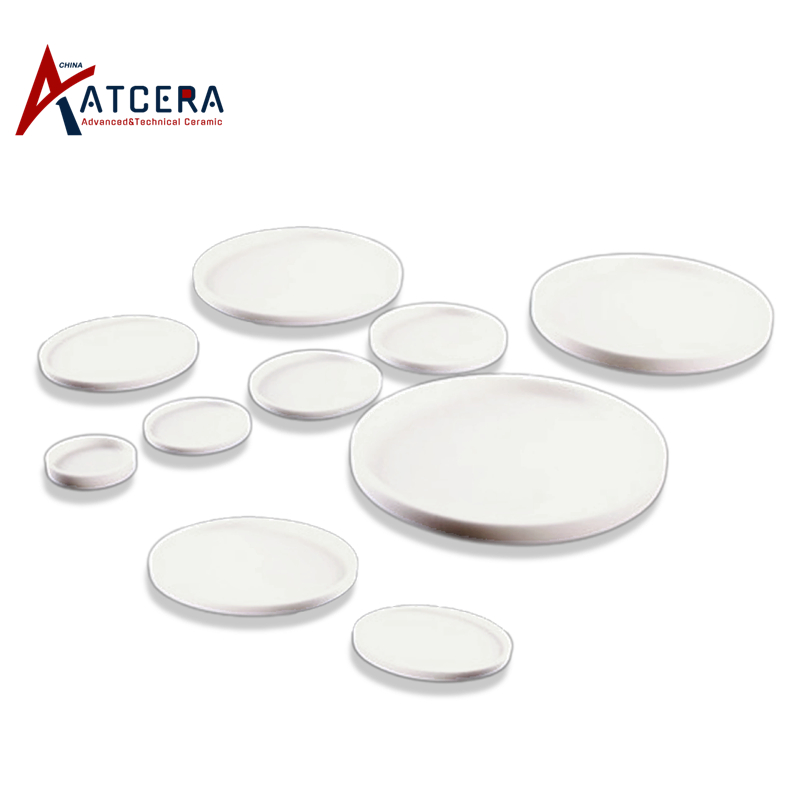

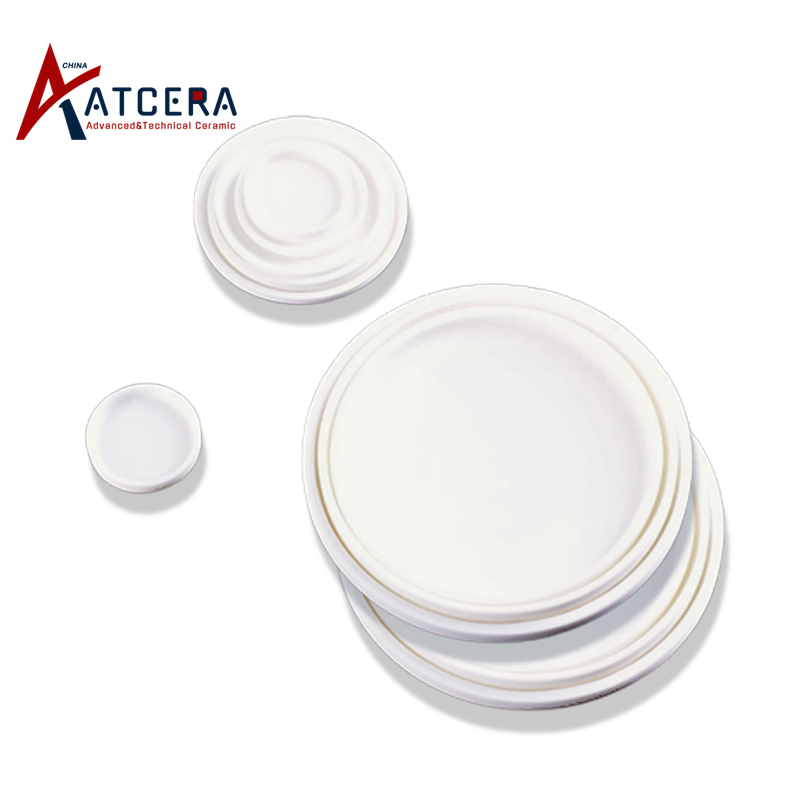

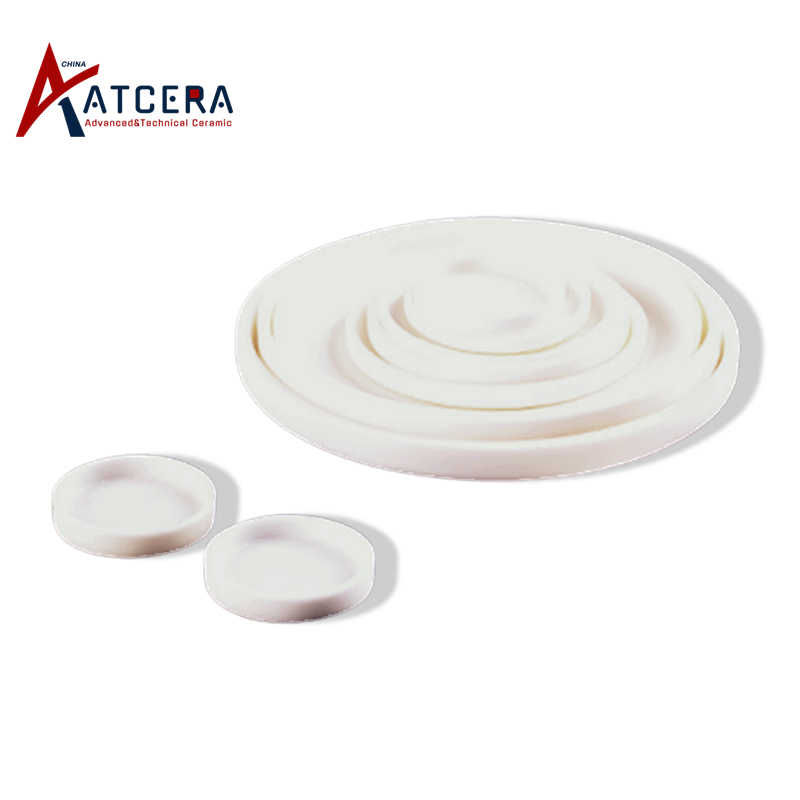

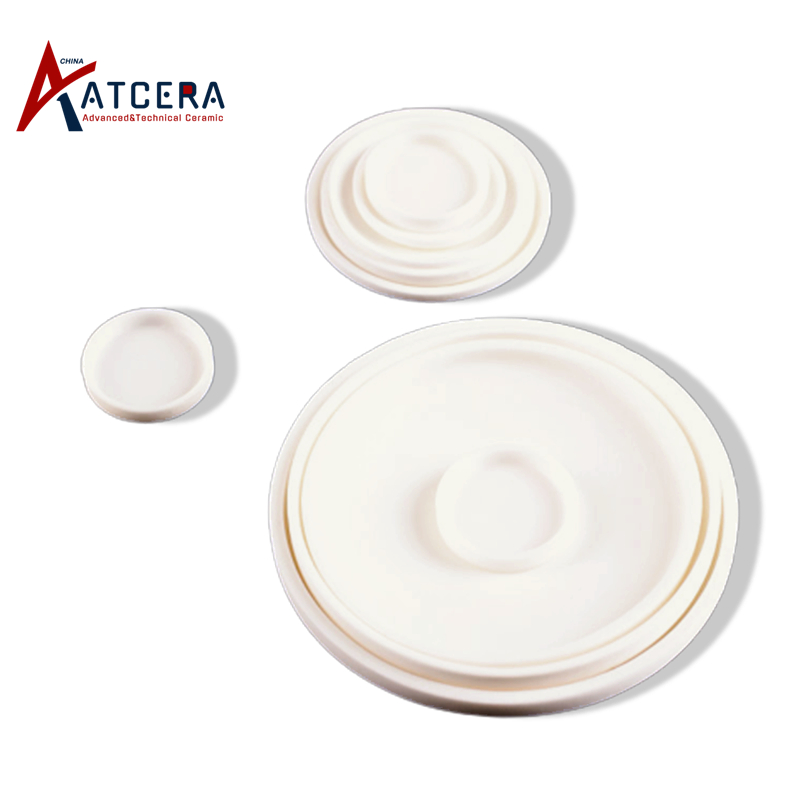

Zirconium Oxide Crucible Lids Customized

The zirconia crucible lid serves as a crucial component in creating a hermetically sealed chamber with the crucible, ensuring a stable reaction space that safeguards the material from external disturbances and prevents spillage.

  • Brand:

    ATCERA
  • Item NO.:

    AT-YHG-G001
  • Materials

    Zirconia
  • Shapes

    Plate
  • Applications

    Mechanical Parts , Petrochemical Industry , Metallurgy Industry , Lithium Battery Production
zirconia oxide crucible cover

Advantages of Zirconium Oxide Crucible Lids



1. High temperature resistance, the highest working temperature can reach up to 2200℃.



2. High hardness, good wear resistance and acid and alkali corrosion resistance.



3. Crucible lid is used with the crucible to form a relatively closed space.

zirconia lid

Applications of Zirconia Crucible Cover



Maintain a stable reaction space to prevent the material from being affected by the external environment or splashing outside of the crucible.



Size Chart of Zirconia Crucible Cover

We are committed to delivering flawless zirconium oxide crucible cover tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Requirements for Custom Design
1. Drawing (requirements of material, size, tolerance standard, etc. could be attached) and other specification requirements.
2. Application scenario

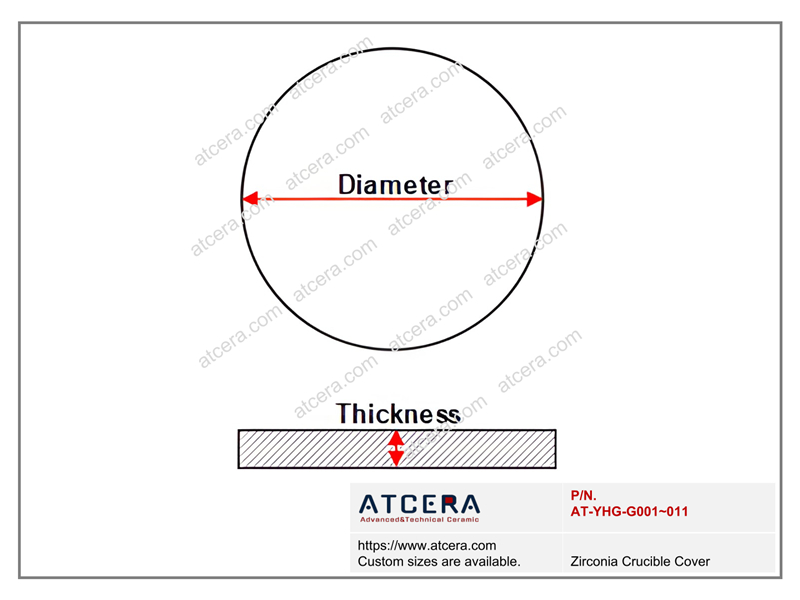

Drawing of Zirconia Crucible Cover

Zirconia Crucible Cover
Item No. Diameter (mm) Thickness (mm)
AT-YHG-G001 30 5
AT-YHG-G002 35 4.5
AT-YHG-G003 37 5
AT-YHG-G004 37 5
AT-YHG-G005 38 4.5
AT-YHG-G006 50 5.5
AT-YHG-G007 60 5
AT-YHG-G008 68 4.7
AT-YHG-G009 73 5
AT-YHG-G010 80 5
AT-YHG-G011 84 5



Technical Data of Zirconium Oxide Materials

Material Zirconia (ZrO2)+ Stabilizing agent
Thermal Conductivity 3.0w/m.k
Temperature resistance 1000℃
Density 5.65-6.05g/cm3
Thermal Expansion Coefficient 0.00001/℃
Bending Strength 480-1000MPa
Hardness (Hv) 1200-1450HV1
Fracture Toughness 6-8MPa*m1/2
Hazardous Substances In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products  and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.



8. Safety during use: zirconia crucible works at high temperature, and personal protective equipment such as heat-releasing gloves and protective glasses should be worn when using to avoid burns or eye injuries.

9. Storhen store zirconia crucible, it should be placed in a dry and ventilated place to avoid friction or collision with other items, so as not to scratch or damage the surface of the crucible.

Valuable Information



Production Process Flow

Production Process Flow



1. Dry pressing forming



2. Hot pressing casting



3. Medium temperature dewaxing



4. High temperature sintering



5. Centerless grinding



6. Internal grinding



7. External grinding



8. Plane grinding



9. Honing and polishing

Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
