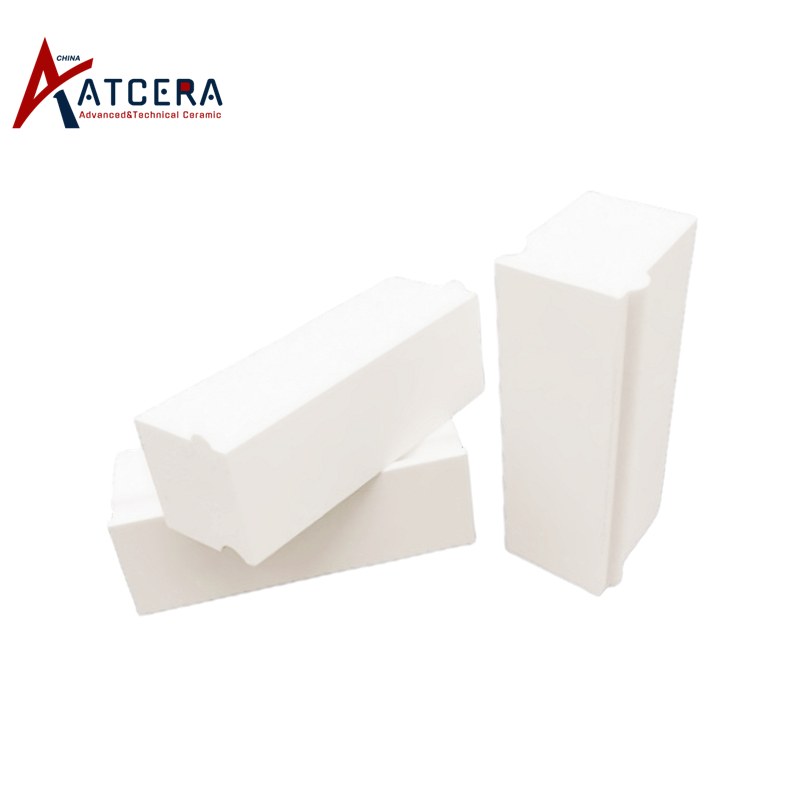

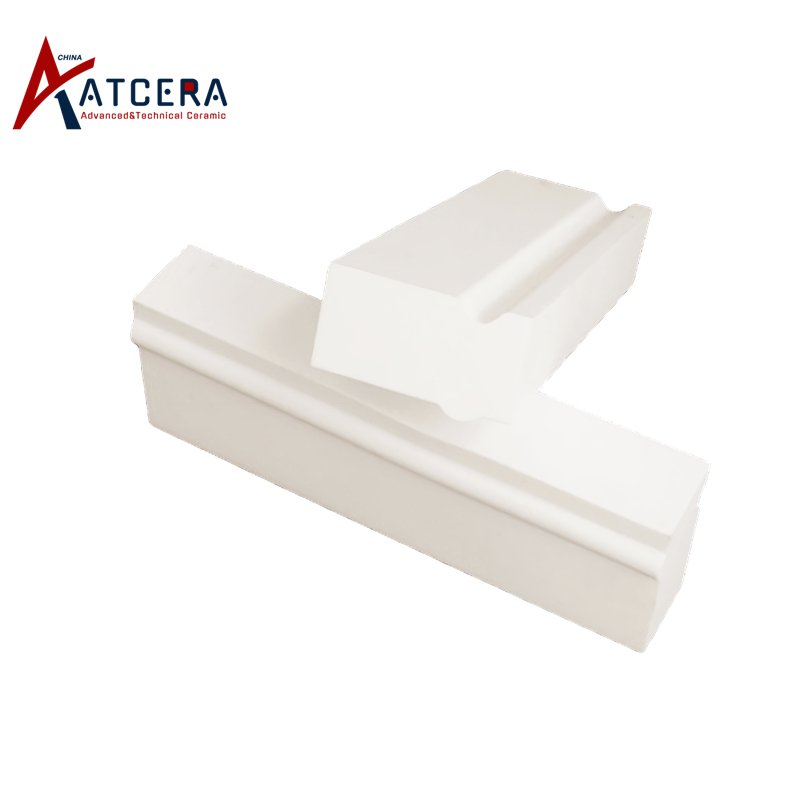

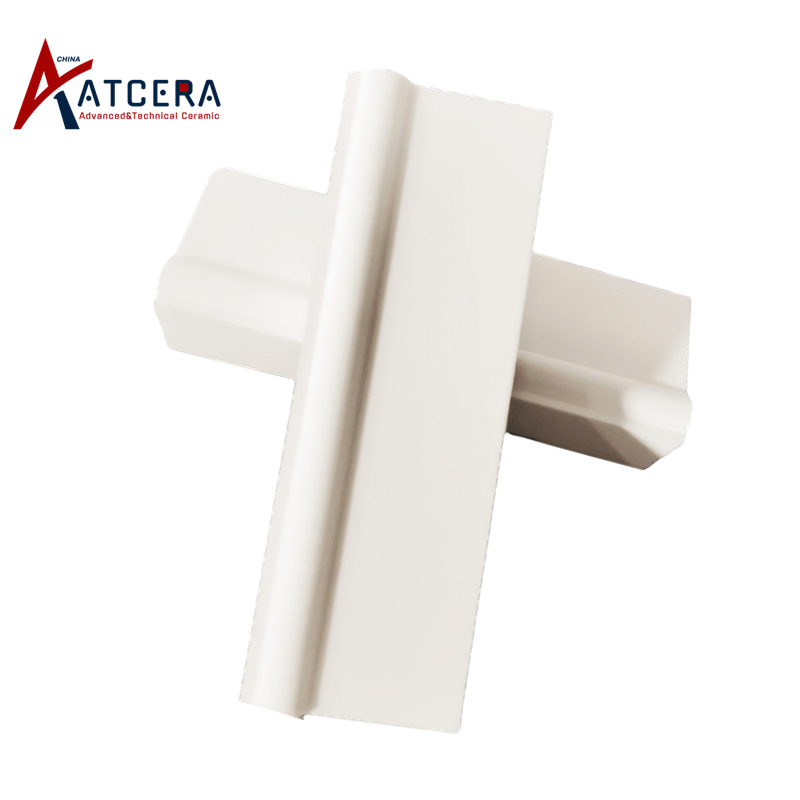

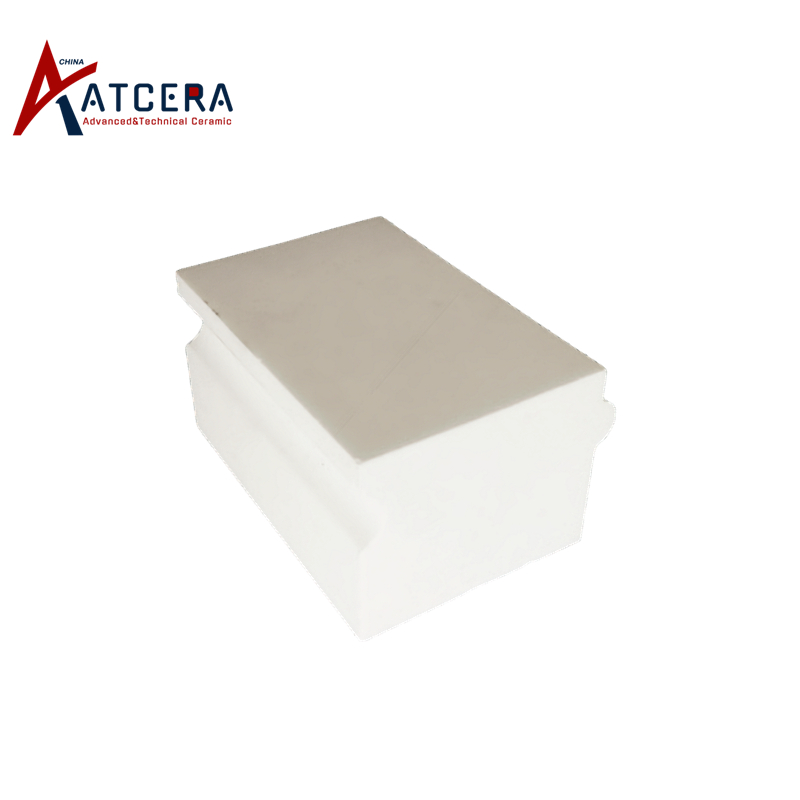

Zirconia Toughened Alumina Ceramic Lining Brick

The ZTA lining brick is primarily composed of alumina, augmented with a specific ratio of zirconia ceramic. Formed and sintered at high temperatures, it possesses a hardness and toughness that falls between alumina and zirconia ceramics. Characterized by its high-temperature resistance, corrosion resistance, exceptional wear performance, and robust durability, it is designed to be installed at wear-prone areas of ball mills, material handling equipment, coal preparation machinery, and other relevant devices. Serving as a material contact surface, it withstands abrasion and impact, thereby extending the service life of equipment. Compared to conventional alumina lining bricks, ZTA lining bricks exhibit superior mechanical shock resistance, wear performance, and longer service life.

Brand:
ATCERA
Item NO.:
AT-ZR-CZ001

Materials
ZTA
Shapes
Plate
Applications
Mechanical Parts , Metallurgy Industry

Inquire Now

Properties of Zirconia Toughened Alumina Lining Brick

1. With its high hardness and excellent wear resistance, the ZTA lining brick prolongs the service life of equipment while ensuring no contamination to the grinding materials.

2. Boasting high mechanical strength and impact resistance, the ZTA lining brick effectively resists the impact of grinding balls in ball mills, safeguarding the equipment from deformation.

Applications of ZTA Ceramic Lining Brick

The ZTA lining brick is intended for installation at wear-prone areas of ball mills, material handling equipment, coal preparation machinery, and other similar devices. Serving as a material contact surface, it withstands abrasion and impact, extending the service life of equipment.

Size Chart of Zirconia Toughened Alumina Lining Brick

We are committed to delivering optimal zta lining bricks tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Please provide drawings, product specifications, and any other relevant requirements for customization.

Send Requirements for Custom Design

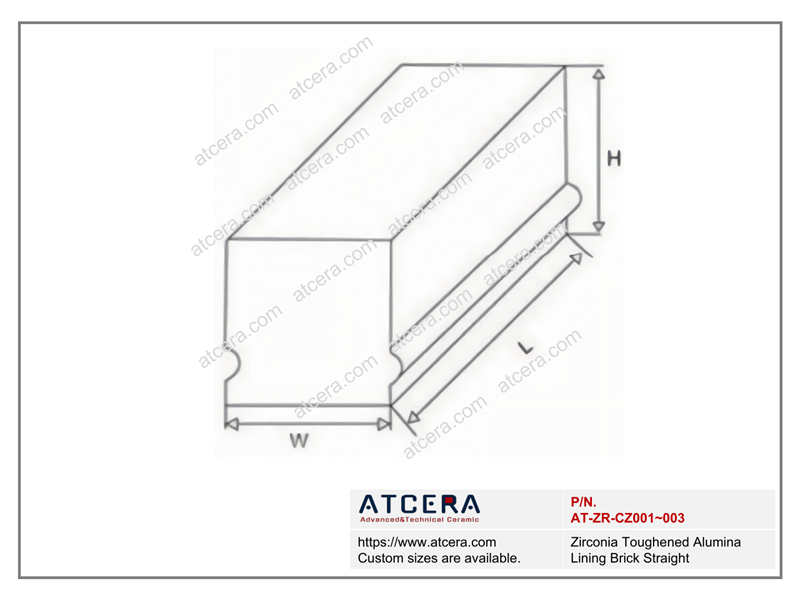

Drawing of Zirconia Toughened Alumina Lining Brick Straight

Item No.	Zirconia Toughened Alumina Lining Brick Straight
AT-ZR-CZ001	Hight (mm)	35	40	50	60	70	90
AT-ZR-CZ002	Width (mm)	50	50	50	50	50	50
AT-ZR-CZ003	Length (mm)	150	150	150	150	150	150

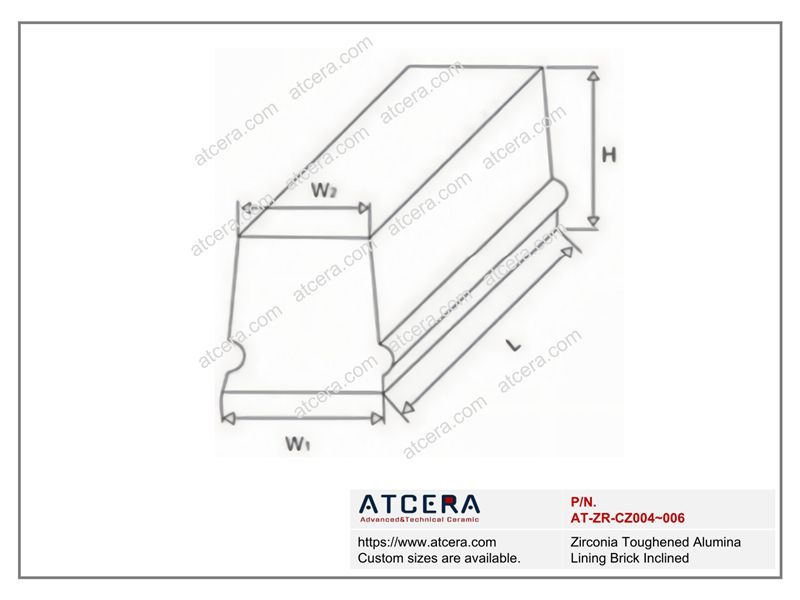

Drawing of Zirconia Toughened Alumina Lining Brick Inclined

Item No.	Zirconia Toughened Alumina Lining Brick Inclined
AT-ZR-CZ004	Hight (mm)	35	40	50	60	70	90
AT-ZR-CZ005	Upper/Lower Width (mm)	45/50	45/50	45/50	45/50	45/50	45/50
AT-ZR-CZ006	Length (mm)	150	150	150	150	150	150

Item No.	Zirconia Toughened Alumina Lining Brick Half-straight
AT-ZR-CZ007	Hight (mm)	35	40	50	60	70	90
AT-ZR-CZ008	Width (mm)	50	50	50	50	50	50
AT-ZR-CZ009	Length (mm)	75	75	75	75	75	75

Item No.	Zirconia Toughened Alumina Lining Brick Half-inclined
AT-ZR-CZ010	Hight (mm)	35	40	50	60	70	90
AT-ZR-CZ011	Upper/Lower Width (mm)	45/50	45/50	45/50	45/50	45/50	45/50
AT-ZR-CZ012	Length (mm)	75	75	75	75	75	75

Item No.	Zirconia Toughened Alumina Lining Brick Thin
AT-ZR-CZ013	Hight (mm)	35	40	50	60	70	90
AT-ZR-CZ014	Width (mm)	25	25	25	25	25	25
AT-ZR-CZ015	Length (mm)	150	150	150	150	150	150

Item No.	Zirconia Toughened Alumina Lining Thin Inclined
AT-ZR-CZ013	Hight (mm)	35	40	50	60	70	90
AT-ZR-CZ014	Width (mm)	22.5/25	22.5/25	22.5/25	22.5/25	22.5/25	22.5/25
AT-ZR-CZ015	Length (mm)	150	150	150	150	150	150

Technical Data of Zirconia Toughened Alumina (ZTA)

Material	Zirconia Toughened Alumina (ZTA)
Density (g/cm³)	≧4.1
Flexture Strength (MPa)	330
Young Modulus (GPa)	72
Poisson's Ratio	0.25
Compressive strength (MPa)	2300
Hardness (Hv)	67
Fracture toughness (MPa*m^1/2)	7
Maximum working temperature ( ℃)	1200
Thermal conductivity (W/m*K)	18
Thermal expansion coefficient (/℃)	8*10^-6
Thermal shock resistance (ΔT ℃)	250

*This chart illustrates the standard characteristics of the ZTA materials commonly employed in the manufacturing of our ZTA products and parts. Please be aware that the attributes of customized zirconia toughened alumina products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Before adhering the ZTA lining brick, thoroughly clean the inner surface of the equipment, removing rust, oil stains, dirt, and other impurities to ensure optimal adhesion and prevent detachment during use.

2. Adhere to the specified mixing ratio for the wear-resistant ceramic adhesive, maintaining the working temperature within the recommended range to guarantee adhesion effectiveness.

3. Apply the wear-resistant ceramic adhesive evenly during installation, and after placing the brick, use a rubber mallet to tap it gently to ensure a tighter bond with the equipment.

Valuable Information

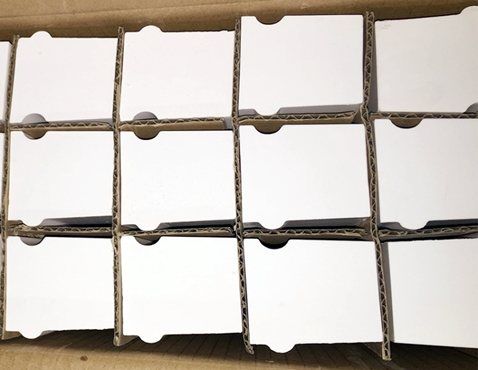

Zirconia Toughened Alumina Lining Brick Packing

Zirconia toughened alumina lining bricks are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Silicon Carbide Substrate Processing Challenges with Innovative Applications Of Metal Friction-induced Reaction Grinding Technology

In the field of semiconductor materials, silicon carbide (SiC) with its excellent thermal conductivity, wide band gap characteristics, high breakdown electric field strength and high electron mobility, is gradually becoming a research and development hotspot, leading the innovation of a new generation of electronic devices. As a substrate material for key components, the broad application prospect...

Exploration Of Laser Processing Technology Of AlN Substrate To Realize High Quality Flat Machining Surface

With the rapid development of electronic technology, the integration and performance requirements of large-scale integrated circuits are increasing day by day. As a key supporting material, aluminum nitride ceramics have become an ideal cooling substrate and packaging material because of their excellent thermal conductivity, mechanical strength, corrosion resistance and excellent electrical proper...

ELID Grinding Process Of AlN Substrate: Solving The Difficult Problem Of Machining High-hardness Brittleness

With the rapid development of microelectronics technology, the requirements for electronic packaging materials are increasingly stringent. Aluminum nitride ceramics, with its excellent thermal conductivity, excellent mechanical properties, corrosion resistance and excellent electrical properties, become the leader of large-scale integrated circuit cooling substrate and packaging materials. However...

AlN Ceramic Magnetorheological Polishing Process Achieves High-Quality Surface For AlN Substrate

Today, with the rapid development of the electronics industry, aluminum nitride ceramics have become the first choice for large-scale integrated circuit cooling substrates and packaging materials because of their excellent thermal conductivity, excellent mechanical properties, corrosion resistance and good electrical properties. Especially in the pursuit of miniaturization and high performance int...

Chemical Mechanical Polishing Of AlN Substrate: The Key Path To Overcome Micro-cracks And Subsurface Damage

In the field of microelectronic packaging, aluminum nitride ceramics are gradually becoming the preferred material for high-performance chip cooling substrates due to their excellent thermal conductivity, mechanical strength and electrical properties. However, its high hardness and high brittleness can easily cause surface micro-cracks and sub-surface damage during processing, which directly affec...

Study On Thermal Conductivity Of Aluminum Nitride Substrate And Analysis Of Influence Of Oxygen Impurity

For a long time, most of the substrate materials of high-power hybrid integrated circuits have been using Al2O3 and BeO ceramics, but the thermal conductivity of the Al2O3 substrate is low, and the thermal expansion coefficient is not well matched with Si. Although the comprehensive performance of BeO is excellent, its high production cost and highly toxic shortcomings limit its application and pr...

Evolution Of Ceramic Substrate Materials: Breakthroughs From Alumina To Aluminum Nitride And Silicon Nitride

In today's rapidly changing electronics industry, ceramic substrate materials as a key basis for supporting high-performance electronic devices, its performance and characteristics directly affect the overall performance and reliability of electronic products. From the early alumina ceramics to the later aluminum nitride, silicon nitride and other new materials, the development of ceramic substrat...

The Applicability of Aluminum Nitride Substrate as a Packaging Material for Enhancing Heat Dissipation in Power Devices

With the rapid development of electronic technology, the comprehensive performance of electronic chips is improving day by day, but the overall size is shrinking. This trend brings significant performance improvements, but it also comes with a serious challenge - a dramatic increase in heat flux. For electronic devices, even a small increase in temperature can have a significant impact on their pe...

Thermal Conductivity Improvement of Silicon Nitride Substrate

In the field of advanced ceramic materials, silicon nitride (Si3N4) has attracted much attention for its excellent mechanical strength, chemical stability and high temperature properties. However, the thermal conductivity of silicon nitride ceramics, as one of the key factors affecting its wide application, has been an important subject in materials science research. This paper aims to investigate...

Exploring Lattice Vibration Mechanism And Sintering Assistant Strategy Of Silicon Nitride Substrates

In cutting-edge technologies such as high-performance electronic packaging, aerospace and energy conversion, silicon nitride (Si3N4) substrate materials are highly regarded for their excellent mechanical properties, chemical stability and high temperature resistance. However, the thermal conductivity of silicon nitride, as one of the key factors affecting its wide application, has always been...

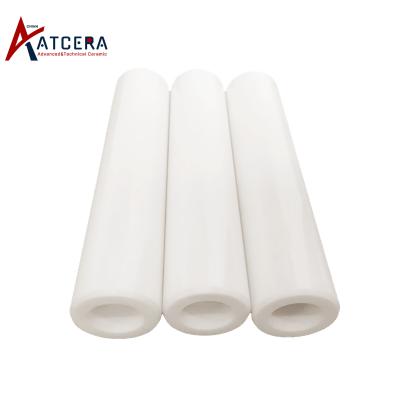

Zirconia Toughened Alumina Ceramic Tube ZTA Ceramic Pipe

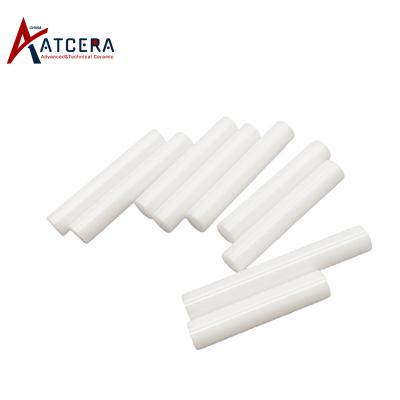

Zirconia Toughened Alumina Ceramic Rod ZTA Ceramic Bar

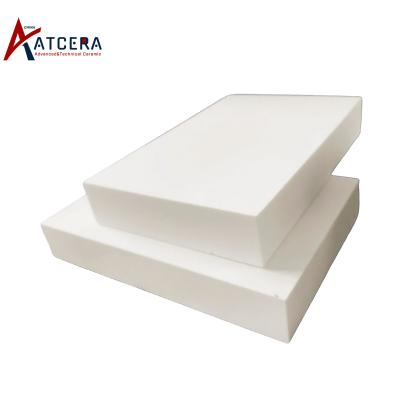

Zirconia Toughened Alumina Ceramic Lining Board

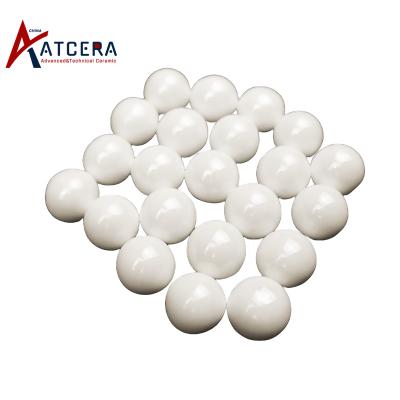

Zirconia Toughened Alumina Grinding Ball ZTA Grinding Bead

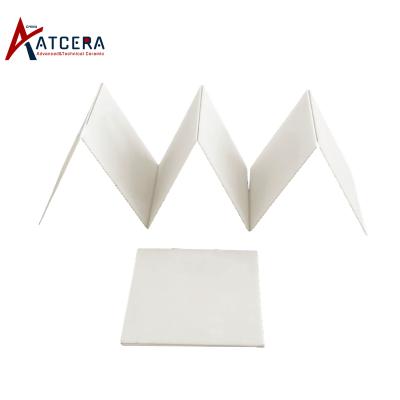

Zirconia Toughened Alumina Ceramic Lining Plate

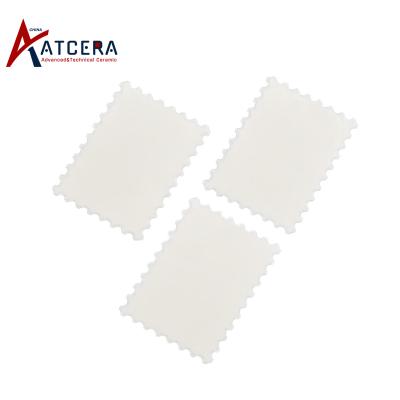

Zirconia Toughened Alumina Ceramic Substrate

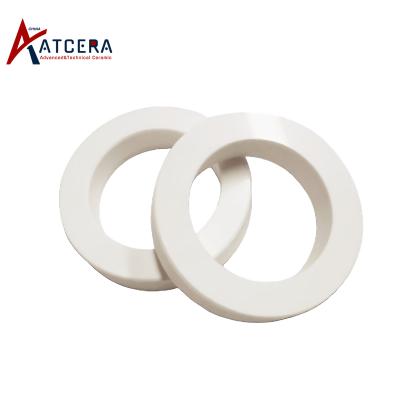

Zirconia Toughened Alumina Ceramic Ring
