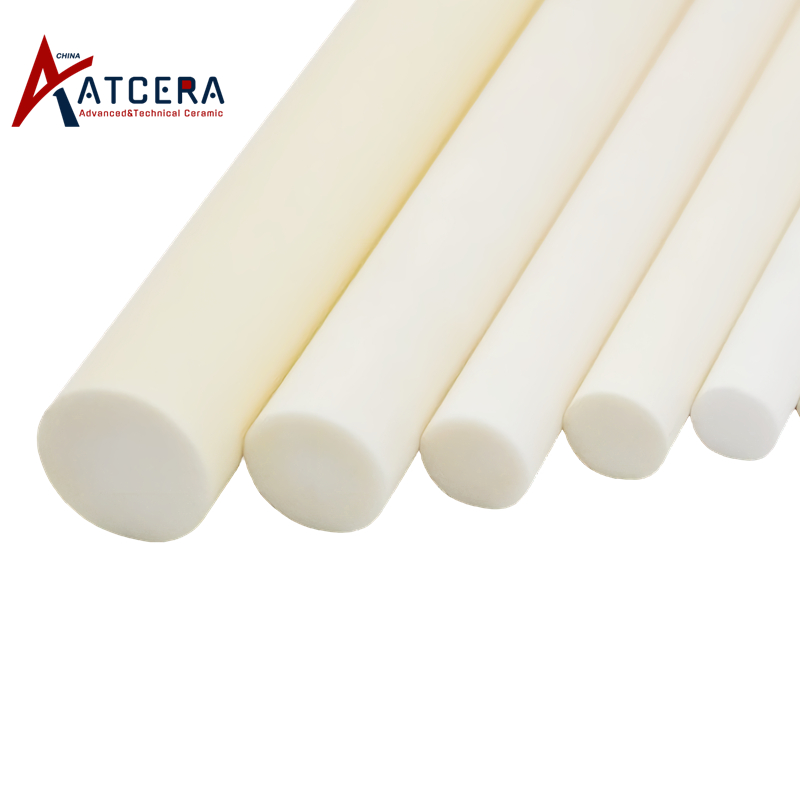

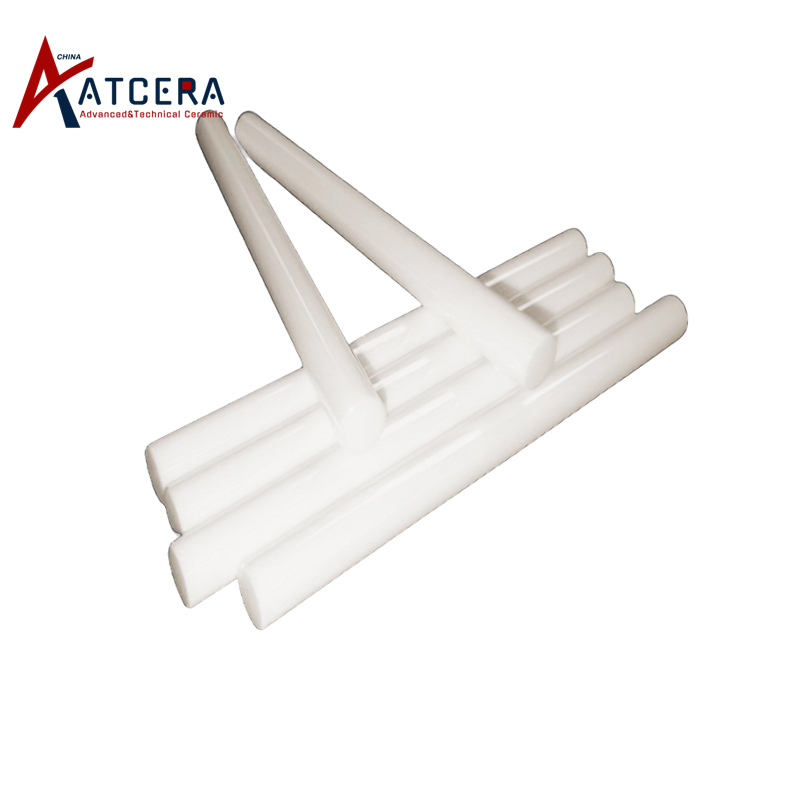

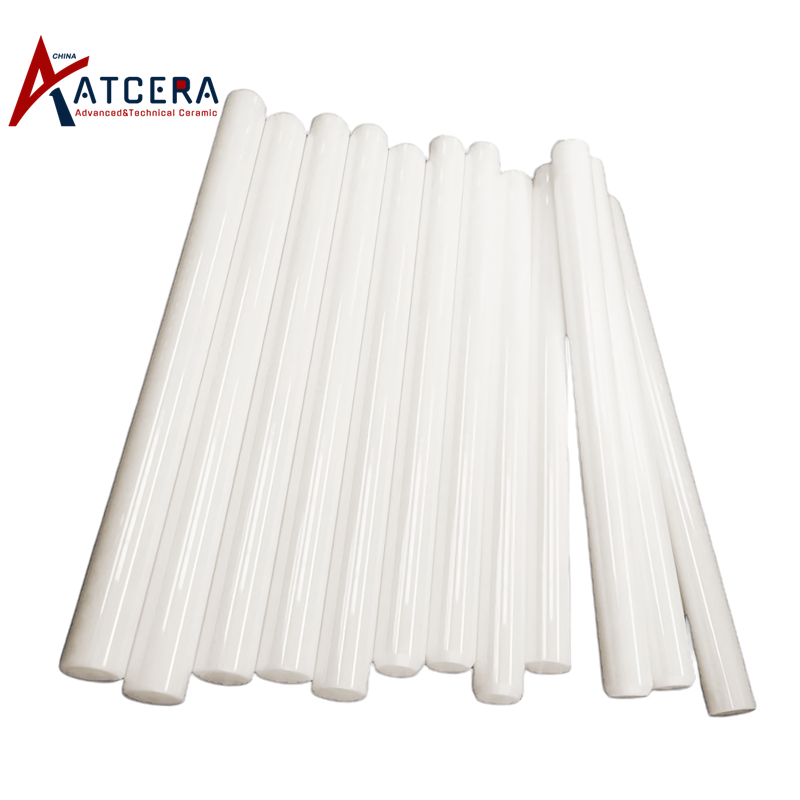

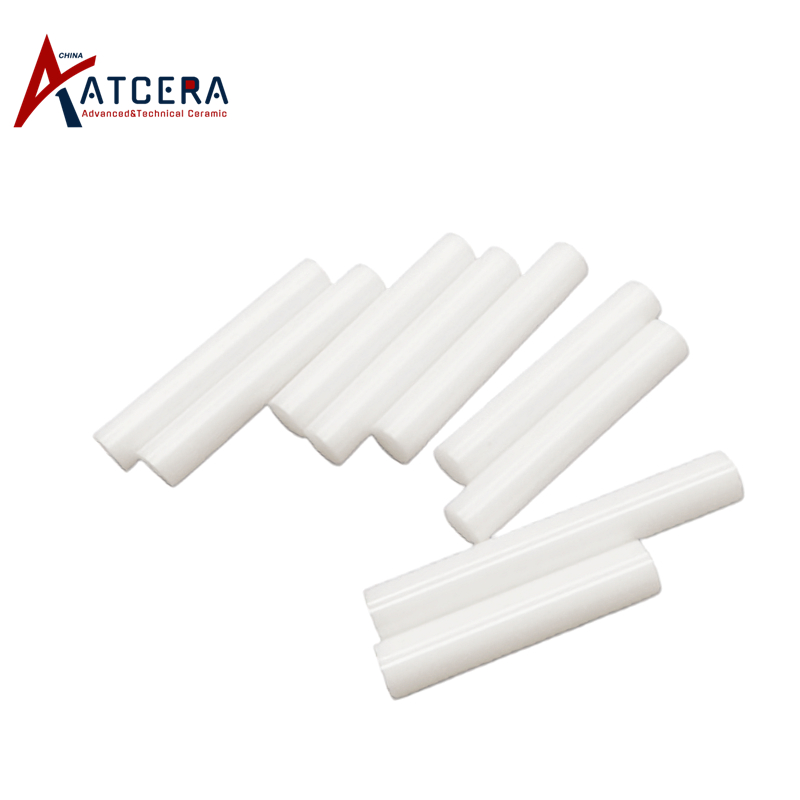

Zirconia Toughened Alumina Ceramic Rod ZTA Ceramic Bar

Zirconia toughened alumina (ZTA) ceramic rod has high temperature resistance, acid and alkali resistance, good chemical stability, both high hardness of alumina ceramics, high wear resistance, but also the toughness of ZTA ceramics, in mechanical engineering, high temperature fire resistance, chemical, electrical and electronic, metallurgy and other industries have important applications.

Brand:
ATCERA
Item NO.:
AT-ZR-B001

Materials
ZTA
Shapes
Rod
Applications
Electronics and Electricity , Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Zirconia Toughened Alumina Rod

1. High wear resistance, high toughness

ZTA ceramic rod has high hardness, good wear resistance, long service life, high toughness and good mechanical impact resistance.

2. Good corrosion resistance

ZTA ceramic rod chemical stability is good, resistant to a variety of acid and alkali corrosion, can be applied to a variety of extreme environment performance is very stable.

3. High temperature resistance

ZTA ceramic rod has high temperature resistance, good thermal shock resistance, can be used at high temperature for a long time.

4. Good insulation performance

ZTA ceramic rod has high resistivity and good insulation performance, so it can be used in occasions or equipment where electrical insulation is required.

Applications of ZTA Ceramic Rod

ZTA ceramic rod can be used to fabricate high temperature furnace roller rod, furnace lead-in rod, heat treatment furnace roller, hydraulic rod, shaft, plunger, grinding rod and other wear parts, electrical insulation parts, chemical equipment parts, etc.

1. High temperature refractory industry

ZTA ceramic rod has high temperature resistance, good thermal shock resistance, oxidation resistance and good wear resistance, can maintain stable performance under harsh working conditions, in the high temperature refractory industry applications are mainly used as furnace roller rod, furnace inlet rod, heat treatment furnace roller, heating rod, etc.

2. Mechanical engineering industry

ZTA ceramic rod has high mechanical strength, good wear resistance, light weight, stable performance at high temperature, can be made into a variety of mechanical parts, including hydraulic rod, shaft, plunger, grinding rod, etc. Mechanical parts made by ceramic has longer service life than metal, meanwhile the weight of the parts can be greatly reduced.

3. Chemical and Metallurgical industries

ZTA ceramic rod has very good corrosion resistance, good chemical inertia, and does not react with various chemical media, suitable for manufacturing a variety of chemical equipment, such as stirring, support, drainage parts, etc., but also can be used as a variety of catalyst carrier, used in the chemical process.

4. Electronic and Electrical industry

ZTA ceramic rod has excellent electrical insulation performance, high breakdown resistance voltage, high mechanical strength, it can be used to produce electronic and electrical equipment insulation parts, which with high reliability and long service life.

Size Chart of Zirconia Toughened Alumina Rod

We are committed to delivering optimal zta rods tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

1. Application information

2. Drawing and specification requirements, shall be provided if customized design request.

Machining Precision

1. diameter tolerance: ±0.01mm

2. hole depth tolerance: ±0.005mm

3. surfance roughness: Ra0.5

4. cylindricity: ±0.004mm

5. concentricity: ±0.003mm

6. parallelism: ±0.002mm

Send Requirements for Custom Design

Zirconia Toughened Alumina Rod
Item No.	Diameter (mm)	Length (mm)
AT-ZR-B001	1	15-1000
AT-ZR-B002	2	15-1000
AT-ZR-B003	3	15-1000
AT-ZR-B004	4	15-1000
AT-ZR-B005	5	15-1000
AT-ZR-B006	6	15-1000
AT-ZR-B007	7	15-1000
AT-ZR-B008	8	15-1000
AT-ZR-B009	9	15-1000
AT-ZR-B010	10	15-1000
AT-ZR-B011	11	15-1500
AT-ZR-B012	12	15-1500
AT-ZR-B013	13	15-1500
AT-ZR-B014	14	15-1500
AT-ZR-B015	15	15-1500
AT-ZR-B016	16	15-1500
AT-ZR-B017	17	15-1500
AT-ZR-B018	18	15-1500
AT-ZR-B019	19	15-1500
AT-ZR-B020	20	15-1500
AT-ZR-B021	21	15-1500
AT-ZR-B022	22	15-1500
AT-ZR-B023	23	15-1500
AT-ZR-B024	24	15-1500
AT-ZR-B025	25	15-1500
AT-ZR-B026	26	15-1500
AT-ZR-B027	27	15-1500
AT-ZR-B028	28	15-1500
AT-ZR-B029	29	15-1500
AT-ZR-B030	30	15-1500
AT-ZR-B031	31	15-1500
AT-ZR-B032	32	15-1500
AT-ZR-B033	33	15-1500
AT-ZR-B034	34	15-1500
AT-ZR-B035	35	15-1500

Technical Data of Zirconia Toughened Alumina (ZTA)

Material	Zirconia Toughened Alumina (ZTA)
Density (g/cm³)	≧4.1
Flexture Strength (MPa)	330
Young Modulus (GPa)	72
Poisson's Ratio	0.25
Compressive strength (MPa)	2300
Hardness (Hv)	67
Fracture toughness (MPa*m^1/2)	7
Maximum working temperature ( ℃)	1200
Thermal conductivity (W/m*K)	18
Thermal expansion coefficient (/℃)	8*10^-6
Thermal shock resistance (ΔT ℃)	250

*This chart illustrates the standard characteristics of the ZTA materials commonly employed in the manufacturing of our ZTA products and parts. Please be aware that the attributes of customized zirconia toughened alumina products and parts may vary depending on the specific processes involved.

Usage Instructions

1.ZTA ceramic rod should avoid violent collision and falling to prevent cracking or damage.

2.ZTA ceramic rod should be stored in a dry, ventilated environment to avoid moisture, also need to avoid long-term exposure to direct sunlight or high temperature environment, so as not to affect its performance.

3. Keep the ZTA ceramic rod clean during storage, clean the dust and dirt on the surface before use.

4. Check regularly during use, if any cracks and other defects begin to appear, it is necessary to stop continuing use and replace in time.

Valuable Information

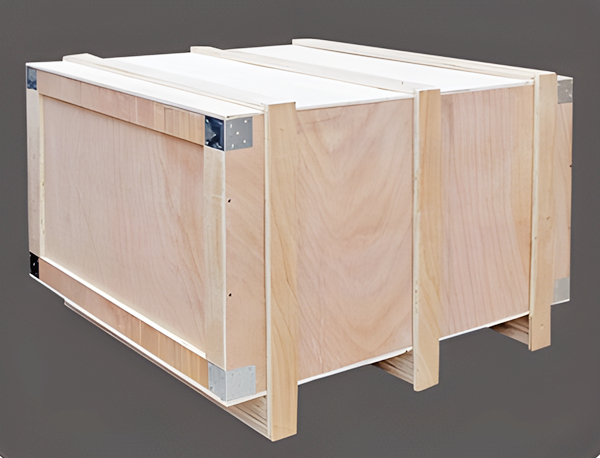

Zirconia Toughened Alumina Rod Packing

Zirconia toughened alumina rods are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
