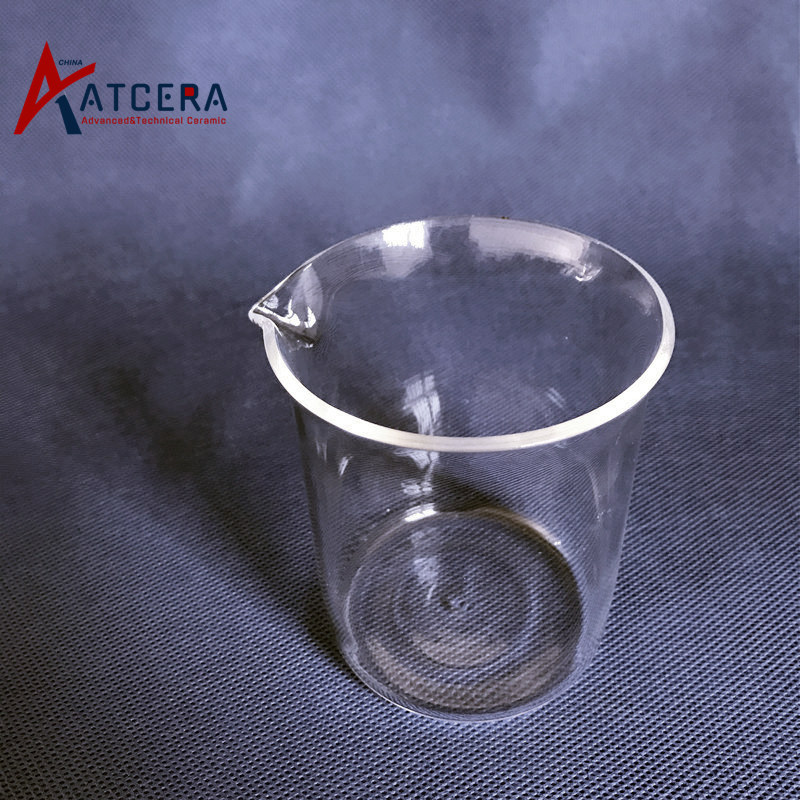

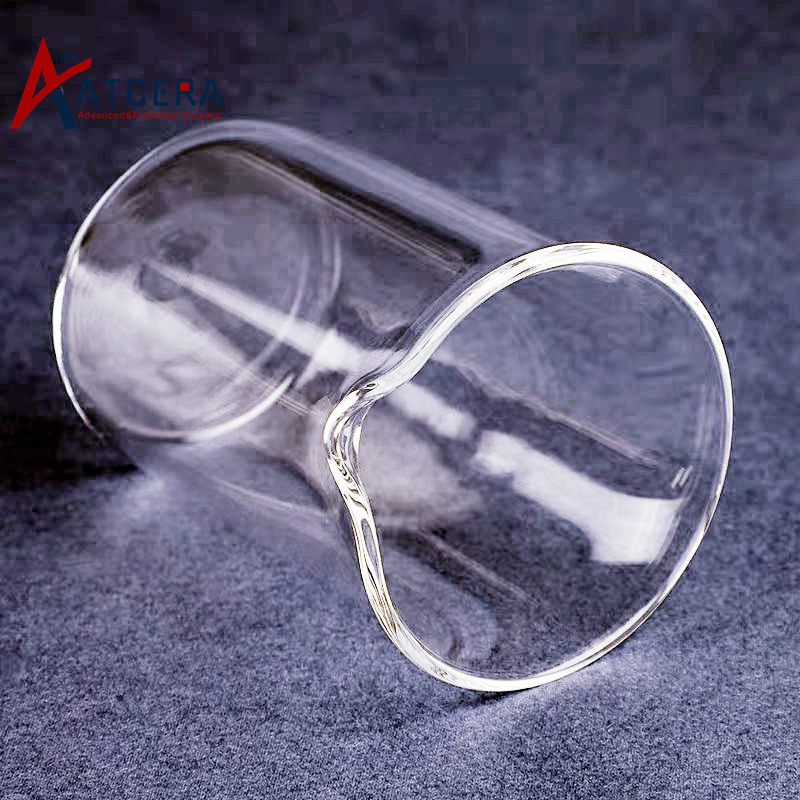

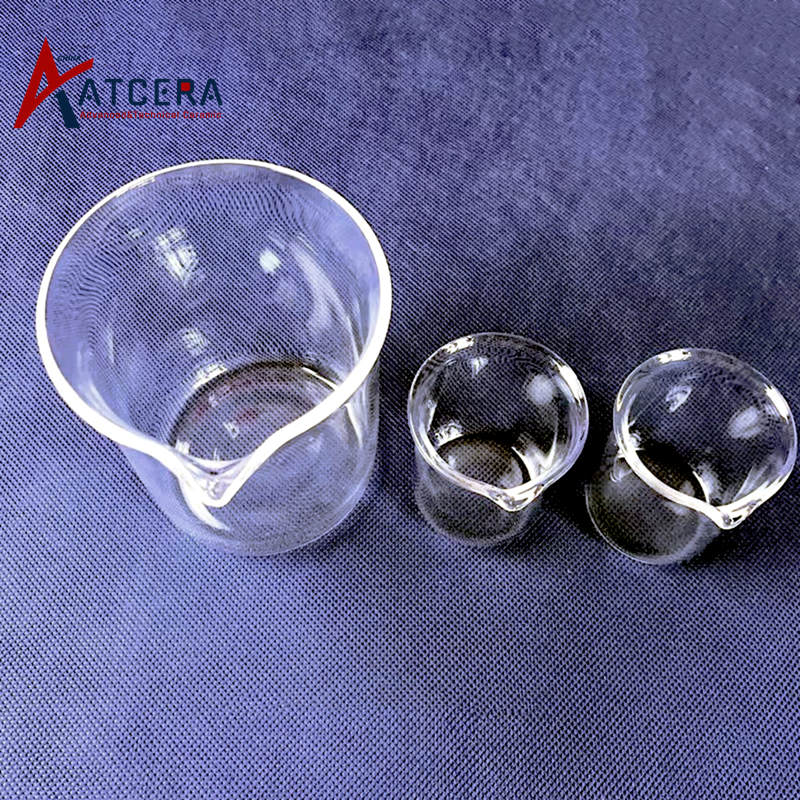

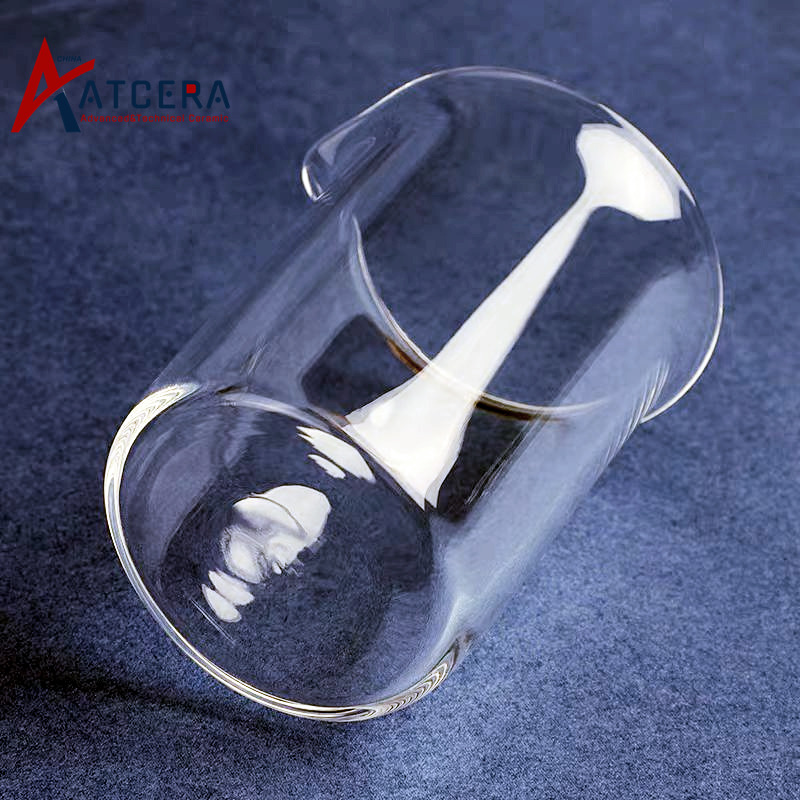

Quartz Glass Beaker for Laboratory Use

Quartz enzyme label plate is made of high-purity quartz by fusion process, which has good light transmittance, easy to observe and detect, good corrosion resistance, without pollution to the specimen. It can be used for enzyme-linked immunosorbent assay, cell culture analysis, immune and transgenic product identification, medical clinical diagnosis, hemagglutination test analysis, etc.

Brand:
ATCERA
Item NO.:
AT-SY-B001

Materials
Quartz
Shapes
Mechanical Parts
Applications
Laboratory Equipment and Instruments

Inquire Now

Properties of Quartz Glass Beaker

1. Quartz beaker has high temperature resistance, good thermal shock resistance, can resist sharp temperature changes.

2. Quartz material is non-toxic and harmless, with good corrosion resistance, will not be eroded by chemical solutions.

3.Quartz beaker transparency is very high, almost all visible light and ultraviolet light have good penetration, observation is very convenient.

Applications of Quartz Glass Beaker for Laboratory Use

Quartz beaker can be used for liquid heating, evaporation or concentration, and dissolution of solid substances or crystallization, can also be used as a container for chemical reactions.

Product Parameters
Material Parameters

Customization Design of Quartz Glass Beaker

We are committed to delivering optimal quartz glass beakers tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and parameter requirements shall be provided if customized design request.

Send Requirements for Custom Design

Quartz Glass Beaker
Item no.	Volume (ml)	Outer Dia. (mm)	Height (mm)	Purity (%)
AT-SY-B001	5	20	32	99.99
AT-SY-B002	10	25	37	99.99
AT-SY-B003	25	35	50	99.99
AT-SY-B004	50	45	60	99.99
AT-SY-B005	100	53	70	99.99
AT-SY-B006	150	60	80	99.99
AT-SY-B007	200	65	88	99.99
AT-SY-B008	250	70	97	99.99
AT-SY-B009	300	75	103	99.99
AT-SY-B010	400	80	112	99.99
AT-SY-B011	500	87	118	99.99
AT-SY-B012	600	90	130	99.99
AT-SY-B013	800	97	140	99.99
AT-SY-B014	1000	105	158	99.99
AT-SY-B015	2000	133	195	99.99
AT-SY-B016	3000	150	225	99.99
AT-SY-B017	5000	178	260	99.99

Technical Data of Fused Quartz Materials

Density (g/cm3)	2.2
Flexture Strength (MPa)	48
Elastic Modulus (GPa)	72
Poisson's Ratio	0.14-0.17
Compressive strength (MPa)	1100
Bending strength (MPa)	67
Moh's hardness	5.5~6.5
Maximum working temperature (long-term, ℃)	1100
Maximum working temperature (short-term, ℃)	1350
Thermal conductivity (W/m*K)	1.4
Thermal expansion coefficient (/℃)	5.5*10-7
Specific resistance (Ω*cm)	7*107

*This chart illustrates the standard characteristics of the quartz materials commonly employed in the manufacturing of our quartz products and parts. Please be aware that the attributes of customized quartz products and parts may vary depending on the specific processes involved.

Valuable Information

Quartz Glass Beaker Packing

Quartz glass beakers are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
