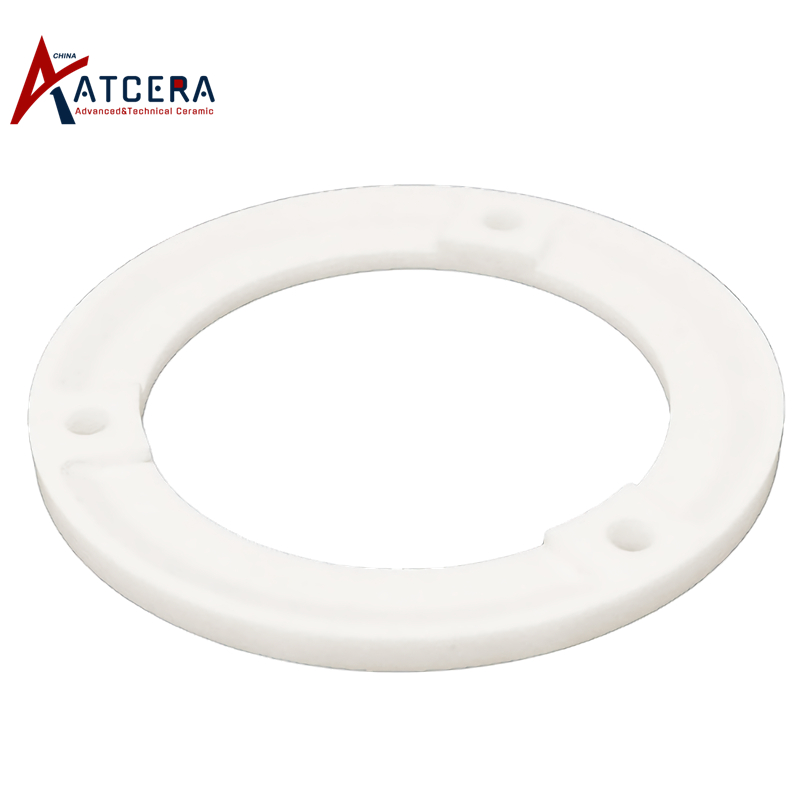

ZTA ceramic ring

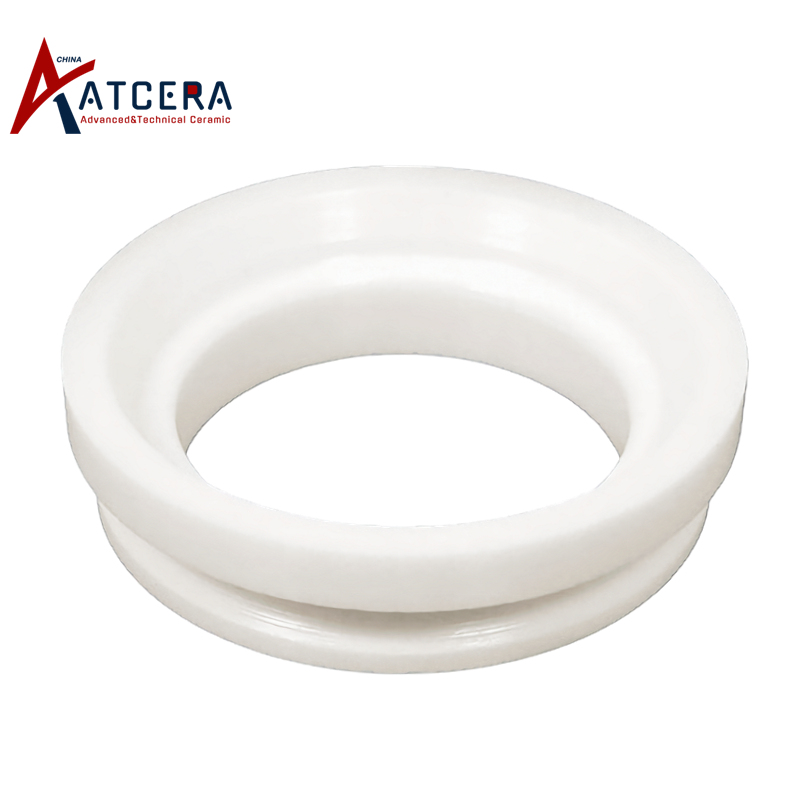

ZTA ceramic ring

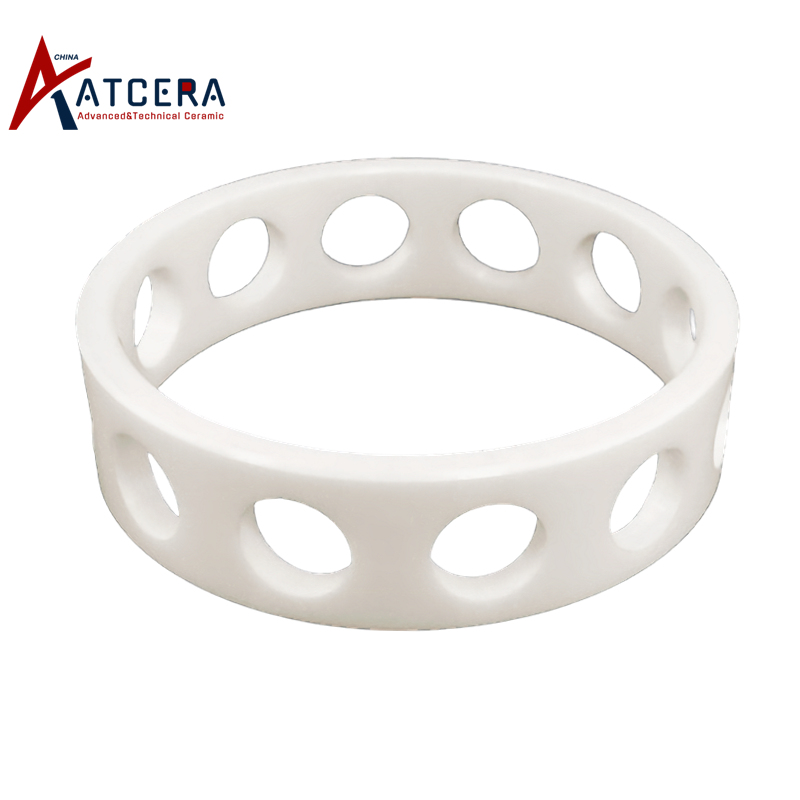

ZTA ceramic ring

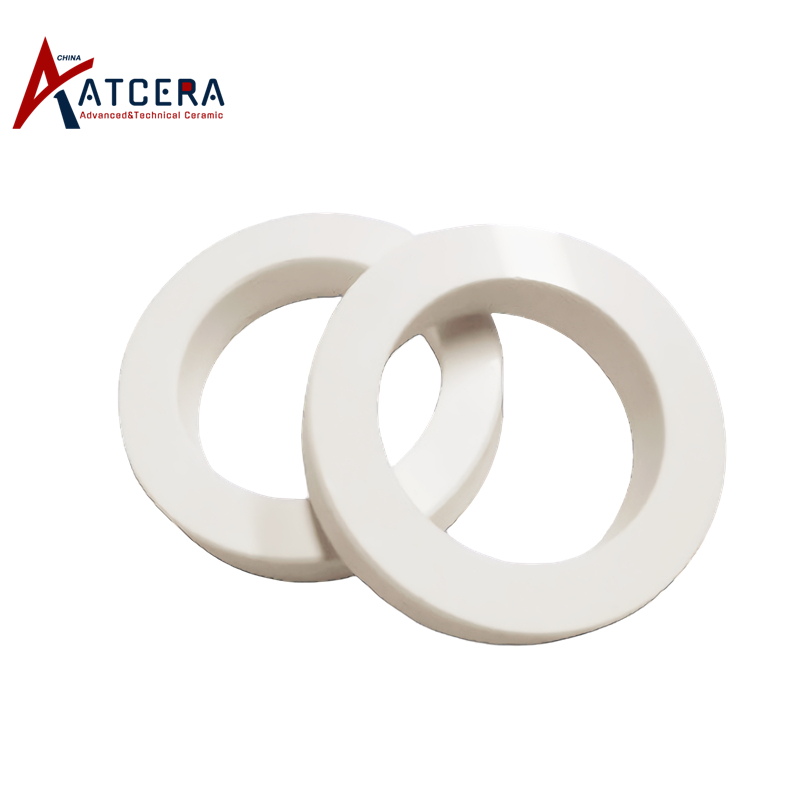

ZTA ceramic ring

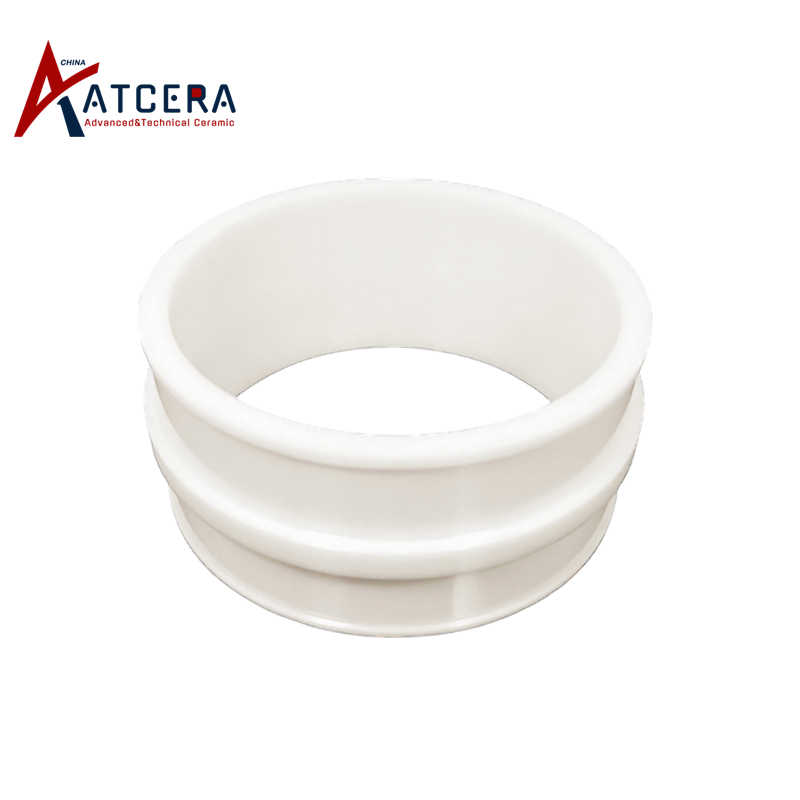

ZTA ceramic ring

Zirconia Toughened Alumina Ceramic Ring

The ZTA ceramic ring is primarily fabricated using alumina powder as the primary raw material, with the addition of a certain proportion of zirconia powder. It is formed and sintered at high temperatures, resulting in exceptional characteristics such as high-temperature and corrosion resistance, superior wear-resistance, and robust toughness. Installed in various mechanical equipment, it collaborates with other components to fulfill functions like fixation, sealing, and isolation.

  • Brand:

    ATCERA
  • Item NO.:

    AT-ZR-CZ001
  • Materials

    ZTA
  • Shapes

    Ring
  • Applications

    Mechanical Parts , Petrochemical Industry , Metallurgy Industry
zirconia toughened alumina ring

Properties of Zirconia Toughened Alumina Ring





1. The ZTA ceramic ring boasts high mechanical strength, good ductility, strong load-bearing capacity, and impact resistance.



2. It exhibits exceptional high-temperature resistance, with a maximum working temperature exceeding 1400°C. Its thermal stability allows for prolonged use in high-temperature environments.



3. The ZTA ceramic ring possesses outstanding corrosion resistance, capable of direct contact with most acids, alkalis, and other chemicals. It maintains stable performance in high-humidity environments and adapts to various harsh working conditions.



4. With its high hardness and excellent wear resistance, the ZTA ceramic ring ensures a long service life.

ZTA rings

Applications of ZTA Ceramic Ring







The ZTA ceramic ring finds extensive applications in mechanical equipment across various industrial sectors, including automotive manufacturing, petrochemical engineering, metallurgy, textile, and engineering machinery.





















Size Chart of Zirconia Toughened Alumina Ring

We are committed to delivering optimal zta rings tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.



Drawing or samples, application environment, and other specifications shall be provided if customized design request.







Zirconia Toughened Alumina Ring
Item No. Outer Dia.
(mm)
Inner Dia.
(mm)
Hight
(mm)
AT-ZR-CZ001 35 40 50
AT-ZR-CZ002 50 50 50
AT-ZR-CZ003 150 150 150







Technical Data of Zirconia Toughened Alumina (ZTA)

Material
 Zirconia Toughened Alumina (ZTA)
Density (g/cm3)  ≧4.1
Flexture Strength (MPa)  330
Young Modulus (GPa)  72
Poisson's Ratio  0.25
Compressive strength (MPa)  2300
Hardness (Hv)  67
Fracture toughness (MPa*m1/2)  7
Maximum working temperature ( ℃)  1200
Thermal conductivity (W/m*K)  18
Thermal expansion coefficient (/℃)  8*10-6
Thermal shock resistance (ΔT ℃)  250



*This chart illustrates the standard characteristics of the ZTA materials commonly employed in the manufacturing of our ZTA products and parts. Please be aware that the attributes of customized zirconia toughened alumina products and parts may vary depending on the specific processes involved.









Usage Instructions




1. Select an appropriate ZTA ceramic ring based on the design dimensions and the working environment to achieve optimal performance.



2. Before installation, clean the ZTA ceramic ring and the installation surface of dust and impurities to ensure its effectiveness and service life.



3. The ambient temperature should not exceed the maximum operating temperature of the ZTA ceramic ring. Excessive temperatures can accelerate aging and reduce its service life.


Valuable Information



Zirconia Toughened Alumina Ring Packing

Zirconia Toughened Alumina Ring Packing





Zirconia toughened alumina rings are carefully packaged in appropriate containers to avoid any potential damage.

















Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
