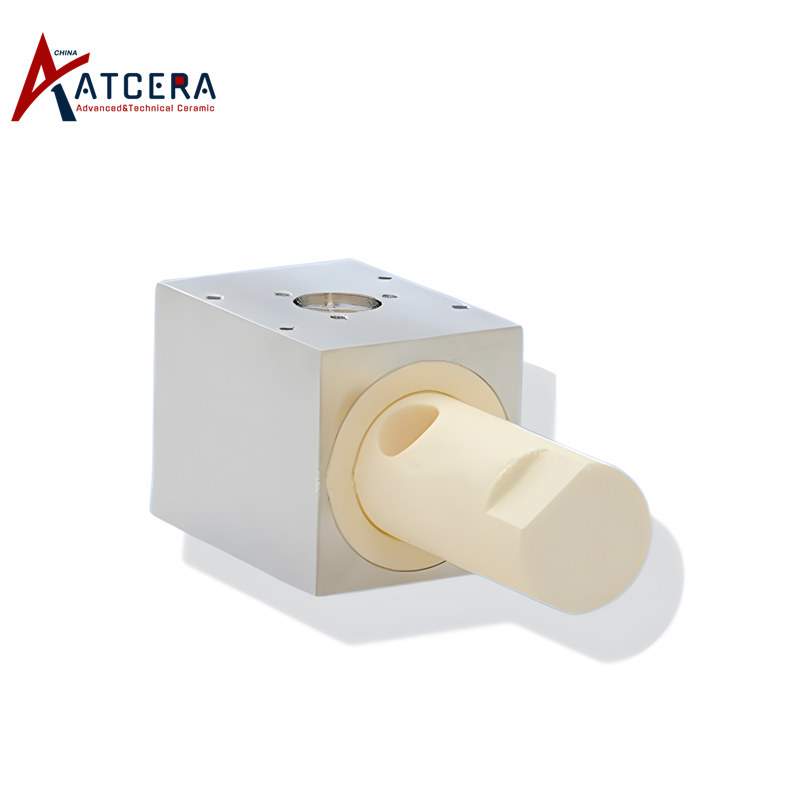

Alumina Ceramic Filling Pump Plunger Pump Piston Pump

Alumina ceramic filling pump is a type of high-precision liquid filling pump, usually constituted by the pump body, rotating body (there is a liquid inlet and outlet hole), plunger, sealing ring and other parts. Plunger in the ceramic pump body to do reciprocating linear movement, for liquid inhalation and discharge, rotary body can rotate to achieve the liquid inlet and outlet switch.

Brand:
ATCERA
Item NO.:
AT-CP-001

Materials
Alumina
Shapes
Pump
Applications
Mechanical Parts , Petrochemical Industry , Food Processing , Lithium Battery Production

Inquire Now

Properties of Al2O3 Filling Pump

⩟ Strong corrosion resistance

Alumina ceramic material has good corrosion resistance, can be used to transport a variety of corrosive liquids, no pollution to the liquid.

⩟ High precision

The processing precision of alumina ceramic material is high, which can meet the high precision filling requirements;

⩟ Long life

The alumina material has high hardness and good wear resistance, so service life of alumina filling pump is long;

⩟ Easy maintenance

The structure of alumina ceramic filling pump is simple, online clean is available, which can reduce maintenance costs;

⩟ High safety

Alumina material itself is non-toxic and harmless, good biological compatibility, no stimulation and side effects to human body.

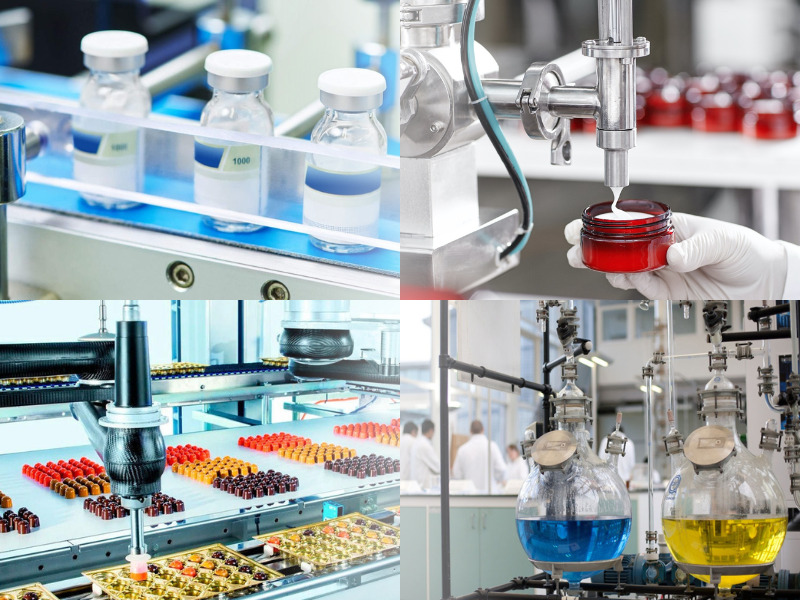

Applications of Ceramic Filling Pump

Alumina ceramic filling pump is suitable for online filling machine, used to fill a variety of liquids, such as pharmaceutical liquid, beverage, cosmetics, electrolyte, liquid additives, etc.

⩟ Food industry

Used for beverage, dairy products, spices and other liquids quantitative filling, filling accuracy is high, meanwhile without any influence to the quality and taste.

⩟ Pharmaceutical industry

Owing to Al2O3's good biocompatibility, alumina filling pump can be used for the filling and measurement of various liquid pharmaceutical and biological agents, to meet the high requirements for drug safety and stability in biomedicine field.

⩟ Cosmetics industry

Used in perfume, lotion and other liquid cosmetics filling, to achieve high precision and high efficiency.

⩟ Chemical industry

Aluminum oxide material is chemically inert and has good corrosion resistance, and can be used for precision filling of various chemical liquids, such as chemical agents, battery electrolytes, etc.

Size Chart for Alumina Ceramic Filling Pump

We are committed to delivering alumina filling pump tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Drawing and specification requirement shall be provided if customized request.

Machining Tolerance

1. Filling range: 0.2-50ML (please consult ATCERA for larger filling volume);

2. Use temperature: 10~40℃ (please consult ATCERA for other use temperature);

3. Filling accuracy: deviation withing ±1% for filling volume <2ML, and ±0.5% for filling volume >2ML.

Alumina Filling Pump For Cosmetics
Item NO.	Volmue (ml)	Al2O3's Purity (%)	Filling Accuracy (%)
AT-CP-001	0.2	95-99	＜1%
AT-CP-002	0.5	95-99	＜1%
AT-CP-003	1	95-99	＜1%
AT-CP-004	2	95-99	＜1%
AT-CP-005	3	95-99	＜0.5%
AT-CP-006	5	95-99	＜0.5%
AT-CP-007	7	95-99	＜0.5%
AT-CP-008	10	95-99	＜0.5%
AT-CP-009	15	95-99	＜0.5%
AT-CP-010	16	95-99	＜0.5%
AT-CP-011	20	95-99	＜0.5%

Alumina Filling Pump For Pharmaceutical and Biological Agents
Item NO.	Volmue (ml)	Al2O3's Purity (%)	Filling Accuracy (%)
AT-CP-1001	0.5	95-99	＜1%
AT-CP-1002	1	95-99	＜1%
AT-CP-1003	2	95-99	＜1%
AT-CP-1004	3	95-99	＜0.5%
AT-CP-1005	5	95-99	＜0.5%
AT-CP-1006	7	95-99	＜0.5%
AT-CP-1007	10	95-99	＜0.5%
AT-CP-1008	15	95-99	＜0.5%
AT-CP-1009	16	95-99	＜0.5%
AT-CP-1010	20	95-99	＜0.5%
AT-CP-1011	30	95-99	＜0.5%
AT-CP-1012	40	95-99	＜0.5%

Alumina Filling Pump For Food
Item NO.	Volmue (ml)	Al2O3's Purity (%)	Filling Accuracy (%)
AT-CP-2001	1	95-99	＜1%
AT-CP-2002	2	95-99	＜1%
AT-CP-2003	3	95-99	＜0.5%
AT-CP-2004	5	95-99	＜0.5%
AT-CP-2005	7	95-99	＜0.5%
AT-CP-2006	10	95-99	＜0.5%
AT-CP-2007	15	95-99	＜0.5%
AT-CP-2008	16	95-99	＜0.5%
AT-CP-2009	20	95-99	＜0.5%
AT-CP-2010	30	95-99	＜0.5%
AT-CP-2011	40	95-99	＜0.5%
AT-CP-2012	40-220	95-99	＜0.5%

Alumina Filling Pump For Battery Electrolytes
Item NO.	Volmue (ml)	Al2O3's Purity (%)	Volume of Battery Electrolytes (g)	Filling Accuracy (%)
AT-CP-3001	0.5	95-99	0.5g	＜0.3%
AT-CP-3002	1	95-99	1g	＜0.3%
AT-CP-3003	2	95-99	3g	＜0.3%
AT-CP-3004	3	95-99	8g	＜0.3%
AT-CP-3005	4	95-99	18g	＜0.3%
AT-CP-3006	5	95-99	40g	＜0.3%

Specification of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Installation requirements

When install the alumina filling pump, ensure the perpendicularity (or levelness) and fix it firmly to avoid axial and radial movement.

2. Liquid temperature

The liquid temperature should be within the use temperature range to ensure the normal operation and accuracy of the filling pump.

3. Liquid properties

For liquid containing solid particles or high viscosity, it is necessary to pre-treat or select appropriate pump head.

4. Pump cleaning

Before or after each use, the pump body and related components should be cleaned in time to prevent residue deterioration in the pump body.

5. Regular maintenance

It is recommended to regularly check the pump plunger, seals and other parts wear, and timely replacement or adjustment if any wear that may affect the pump performance.

6. Pump storage

In the case that alumina filling pump is not used for a long time, the pump should be cleaned and stored in a dry and cool environment.

Valuable Information

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Could Hot Press Sintering Be the Future of High-Performance Transparent Ceramic Production?

As a new inorganic nonmetallic material with high performance and multiple functions, transparent ceramics show great application potential in optics, electronics, aerospace and other fields because of its excellent light transmission, high strength, high hardness and good thermal and chemical stability. Among the many methods to prepare transparent ceramics, hot pressing sintering has become one ...

How Does Vacuum Sintering Technology Facilitate the Preparation of Transparent Ceramics?

As a kind of high performance material, transparent ceramics show great application potential in the fields of optical window, laser medium and high temperature wave transmittance materials because of its unique optical transparency and excellent mechanical properties. Among the many methods of preparing transparent ceramics, vacuum sintering technology has become one of the most widely resea...

What Are The Advantages Of Cold Isostatic Pressing In The Preparation Of Transparent Ceramics?

As a kind of high performance material, transparent ceramics show great application potential in optics, electronics, aerospace and other fields because of its excellent light transmission, high hardness, high temperature resistance and other characteristics. However, the preparation process of transparent ceramics is complicated, and the molding technology is one of the key factors to determine i...

Transparent Ceramics: Basic Principle & Process of Dry Pressing Molding Technology

As a new material with excellent optical properties, transparent ceramics have shown great application potential in optical Windows, laser devices, high temperature sensors and other fields. In the process of its preparation, molding technology is one of the key links, which directly affects the performance and quality of the final product. Among the many molding methods, dry pressing has bec...

How Do Sintering Process Parameters Affect The Properties Of Alumina Substrate?

As a high-performance material, alumina substrate has been widely used in electronics, aerospace and new energy fields. The preparation process involves many complicated processes, in which casting and drying process are the key links to ensure the quality of the substrate. In this article, the effects of raw material formula, casting film thickness and sintering process parameters on th...

What Are Future Trends In Alumina Substrate Preparation Process For Enhanced Performance?

Because of its excellent mechanical properties, thermal stability and chemical inertness, alumina substrate has shown wide application potential in electronic packaging, thermal management and high-performance structural parts. The preparation process involves complex process steps, in which casting process, as the core link, plays a decisive role in the performance of the final product. This...

What Are The Key Factors Influencing Alumina Substrate Performance During Preparation?

In the rapidly developing electronics industry, alumina substrate has become an indispensable substrate for electronic components with its excellent insulation properties, chemical stability, high thermal conductivity and good high-frequency characteristics. It not only provides support for electronic components, but also plays a key role in heat dissipation and insulation. However, the prepa...

Why Is Process Optimization Crucial for High-Quality Alumina Substrate Preparation?

The preparation of alumina substrate is a multi-step process with high precision, in which the choice of solvent directly affects the homogeneity of slurry, drying efficiency and physical properties of the final product. The solvent must not only be able to quickly dissolve each component to form a stable slurry, but also need to have rapid volatilization characteristics to ensure efficient d...

How Do Alumina Powder Characteristics Affect Alumina Substrate Casting Process?

In the field of electronics industry, alumina substrate has become an indispensable base material for electronic components because of its excellent insulation, chemical stability, high thermal conductivity and good high-frequency performance. It not only plays the role of support and heat dissipation, but also ensures the insulation performance of electronic components. Alumina casting slurr...

Technological Advancements To Improve Silicon Carbide Substrate CMP Efficiency

With the continuous progress of semiconductor technology, silicon carbide (SiC), as a high-performance material, has shown great application potential in the field of power electronic devices. However, in the preparation process of silicon carbide substrate, surface quality control is particularly critical, especially after thinning, grinding and polishing and other processes to obtain ultra-...

Alumina Ceramic Metering Pump Al2O3 Dosing Pump

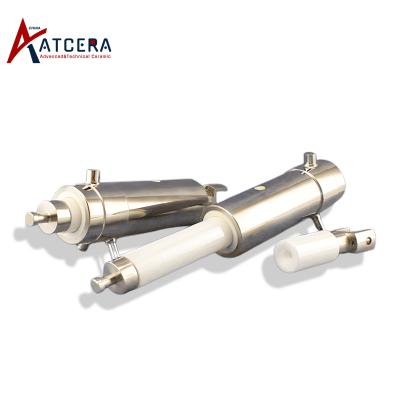

Aluminum Oxide Alumina Ceramic Piston Pump
