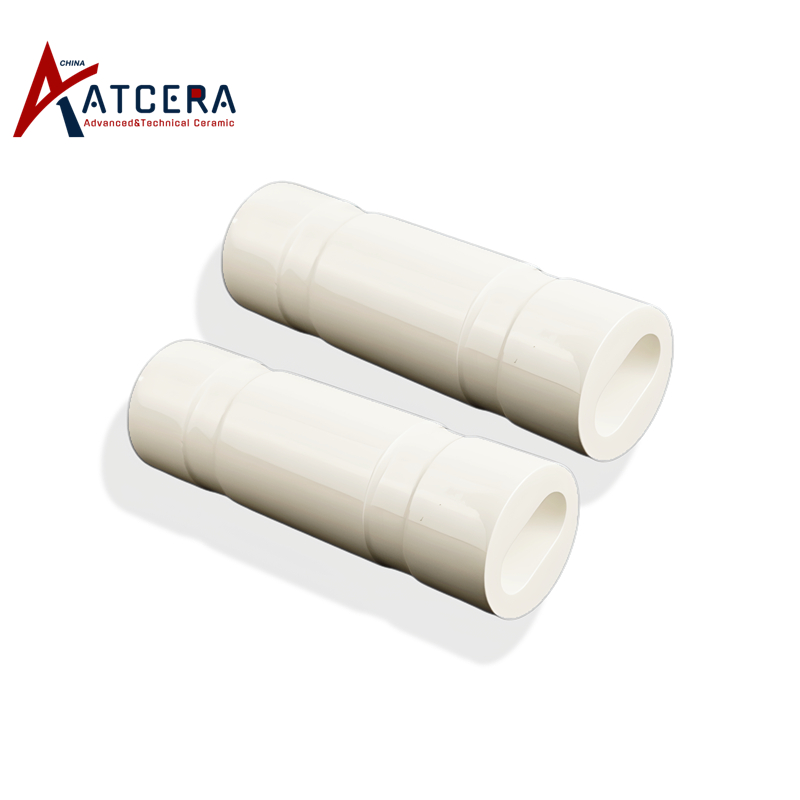

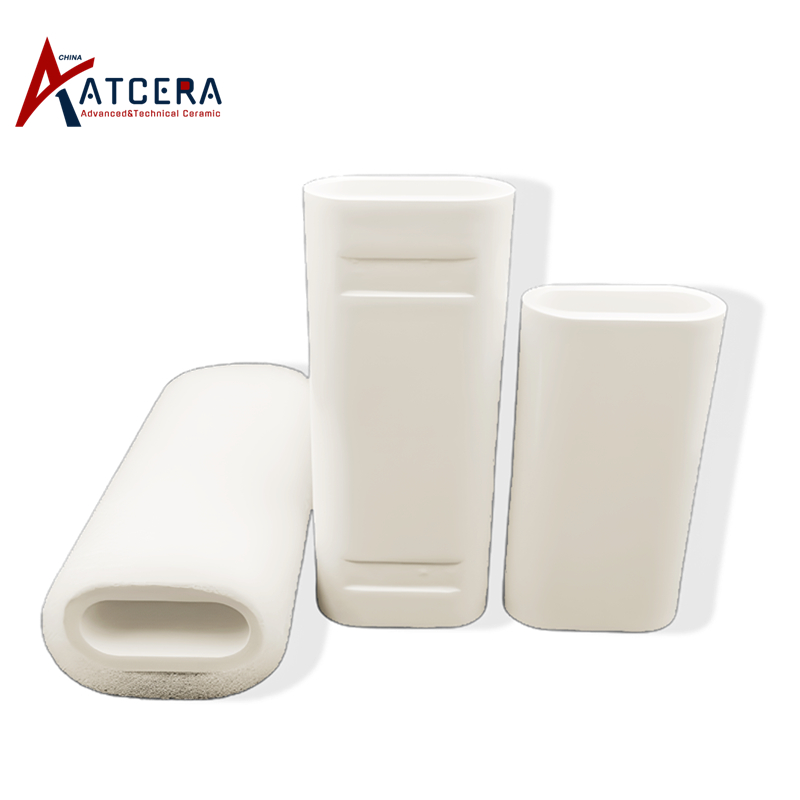

Alumina Ceramic Laser Reflector Ceramic Reflector

Reflector is an important part of the laser, used to bounce the laser beam back to the medium for many times, so that the laser has an amplification effect, to generate laser beam with high energy and high monochromaticity and then emits out. The reflector can achieve a higher reflectivity to a specified wavelenght beam by coating technology.

Brand:
ATCERA
Item NO.:
AT-YHL-FS001

Materials
Alumina
Shapes
Mechanical Parts
Applications
Mechanical Parts , Biology and Medicine , Communications

Inquire Now

Advantages of Al2O3 Ceramic Laser Reflector

⩟ High reflectivity in the working band of the laser medium, and strong absorption in the non-working band, thus improving the monochromaticity of the output laser;

⩟ Alumina ceramic laser reflector can withstand strong light source irradiation, and obtain higher laser output with the same pump energy source, energy efficiency is higher;

⩟ Alumina ceramic laser reflector has good corrosion resistance, can be directly in contact with cooling medium, and service life is long;

⩟ Small thermal expansion coefficient, little influence by ambient temperature, adapt to a wide range of working temperatures;

⩟ The alumina material strength is high, alumina laser reflector can overcome the impact of vibration, and can withstand a certain mechanical impact, improve the reliability of laser devices.

Applications of Alumina Laser Reflector

Alumina ceramic laser reflector can be used in a variety of different power lasers, for machining, medical cosmetics, optical measurement instruments, communications, mapping, etc.

1. Flash light and continuous wave laser pump chamber which with Nd:YAG or Alexendrite as laser medium, they can be used for welding, cutting, marking, etc.;

2. Layered and segmented pump chambers for diode-pumped lasers;

3. DPSS laser for scientific and medical applications and distance meter;

4. Intense Pulsed light (IPL) lasers for medical and cosmetic purposes.

Size Chart for Alumina Ceramic Laser Reflector

We are committed to delivering well-performed alumina ceramic laser reflector tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Requirements for Custom Design

1. The type of pump chamber, single lamp single rod pump chamber or double lamp single rod pump chamber

2. Size of reflector (drawing shall be provided) and specification requirements

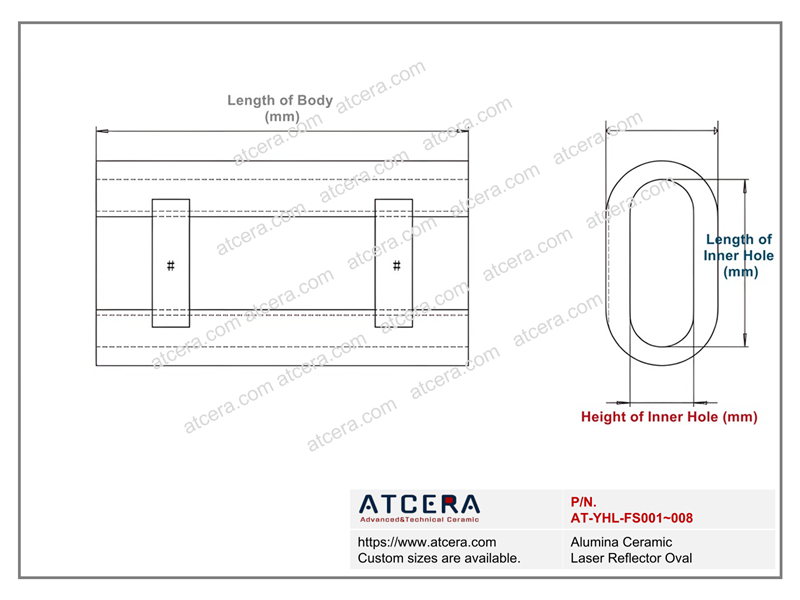

Drawing of Alumina Ceramic Laser Reflector Oval

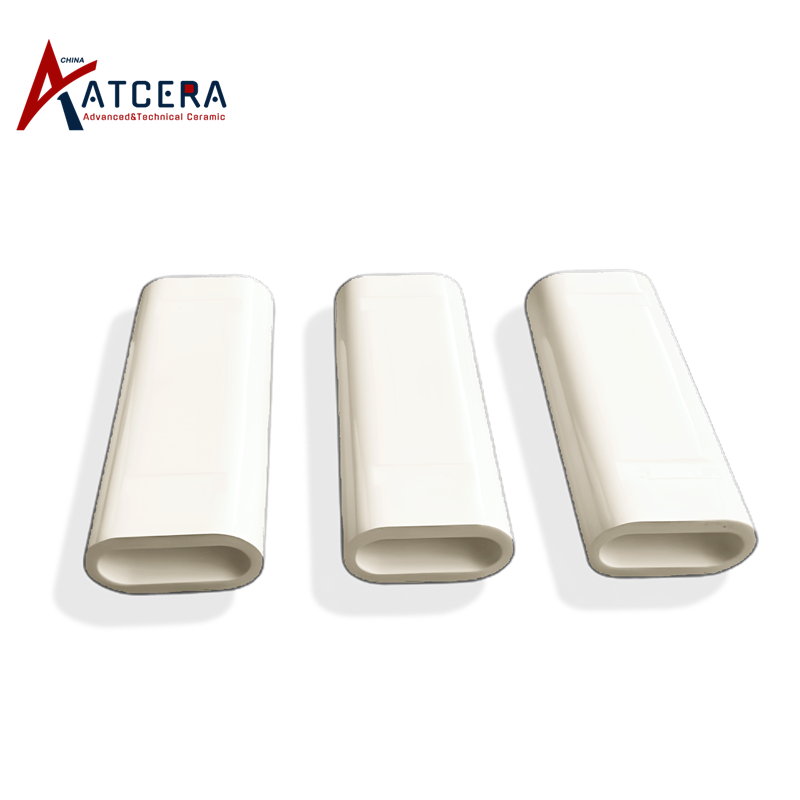

Alumina Ceramic Laser Reflector Oval
Item NO.	Length of Body (mm)	Height of Inner Hole (mm)	Length of Inner Hole (mm)	Note
AT-YHL-FS001	71.5	/	/	Oval pump chamber
AT-YHL-FS002	92	/	/	Oval pump chamber
AT-YHL-FS003	101	14.5	30	Oval, Single lamp/Single rod pump chamber
AT-YHL-FS004	100	17	45	Oval, Double lamp/Single rod pump chamber
AT-YHL-FS005	130	17	45	Oval, Double lamp/Single rod pump chamber
AT-YHL-FS006	150	17	45	Oval, Double lamp/Single rod pump chamber
AT-YHL-FS007	160	17	45	Oval, Double lamp/Single rod pump chamber
AT-YHL-FS008	170	17	45	Oval, Double lamp/Single rod pump chamber

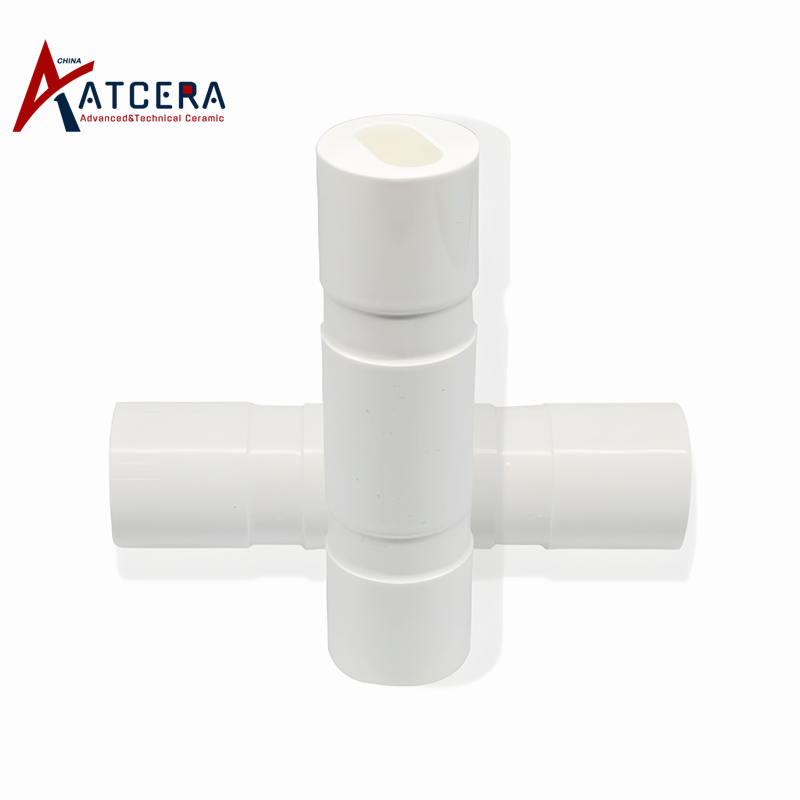

Drawing of Alumina Ceramic Laser Reflector Cylindrical

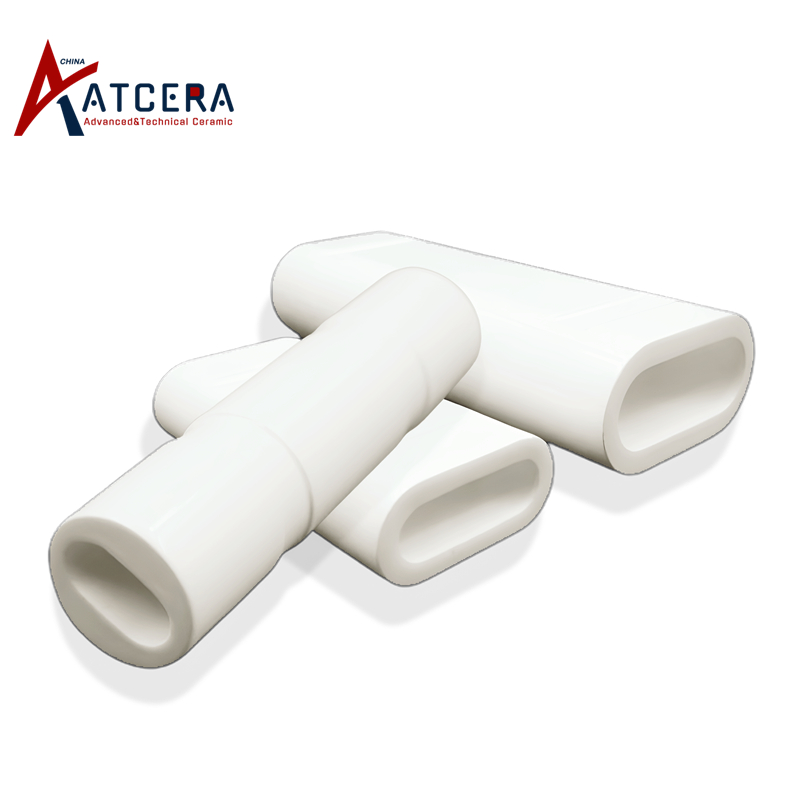

Alumina Ceramic Laser Reflector Cylindrical
Item NO.	Length of Body (mm)	Height of Inner Hole (mm)	Length of Inner Hole (mm)	Note
AT-YHL-FS009	64	8	16.5	Cylindrical, Single lamp/Single rod pump chamber
AT-YHL-FS010	89	9.3	19.3	Cylindrical, Single lamp/Single rod pump chamber
AT-YHL-FS011	97	12	22	Cylindrical, Single lamp/Single rod pump chamber
AT-YHL-FS012	97	15	27.7	Cylindrical, Single lamp/Single rod pump chamber
AT-YHL-FS013	97	12	22	Cylindrical, Single lamp/Single rod pump chamber
AT-YHL-FS014	100	14.4	28.4	Cylindrical, Single lamp/Single rod pump chamber
AT-YHL-FS015	100	17	32	Cylindrical, Single lamp/Single rod pump chamber
AT-YHL-FS016	100	18	34	Cylindrical, Single lamp/Single rod pump chamber
AT-YHL-FS017	115	12	22	Cylindrical, Single lamp/Single rod pump chamber
AT-YHL-FS018	117	12	22	Cylindrical, Single lamp/Single rod pump chamber
AT-YHL-FS019	120	14.4	28.4	Cylindrical, Single lamp/Single rod pump chamber
AT-YHL-FS020	120	16	43	Cylindrical, Double lamp/Single rod pump chamber

Specification of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Be careful during installation, transportation and using process to avoid impact or friction;

2. The laser ceramic reflector should be kept clean, and avoid the impact of dust or other impurities, which may affect its optical performance;

3. During the installation process,ensure that the connection between the ceramic laser reflector and other optical components is firm to avoid loosening or displacement caused by vibration or temperature change;

4. In the process of use, the ceramic laser reflector should be regularly checked, if there is crack or the surface becomes rough, it should be replaced.

Valuable Information

Machining Precision

1. Diameter Tolerance: ±0.003mm

2. Hole Depth Tolerance: ±0.005mm

3. Surfance Roughness: Ra0.02

4. Cylindricity: ±0.002mm

5. Parallelism:±0.002mm

Other information as described in the product specification.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
