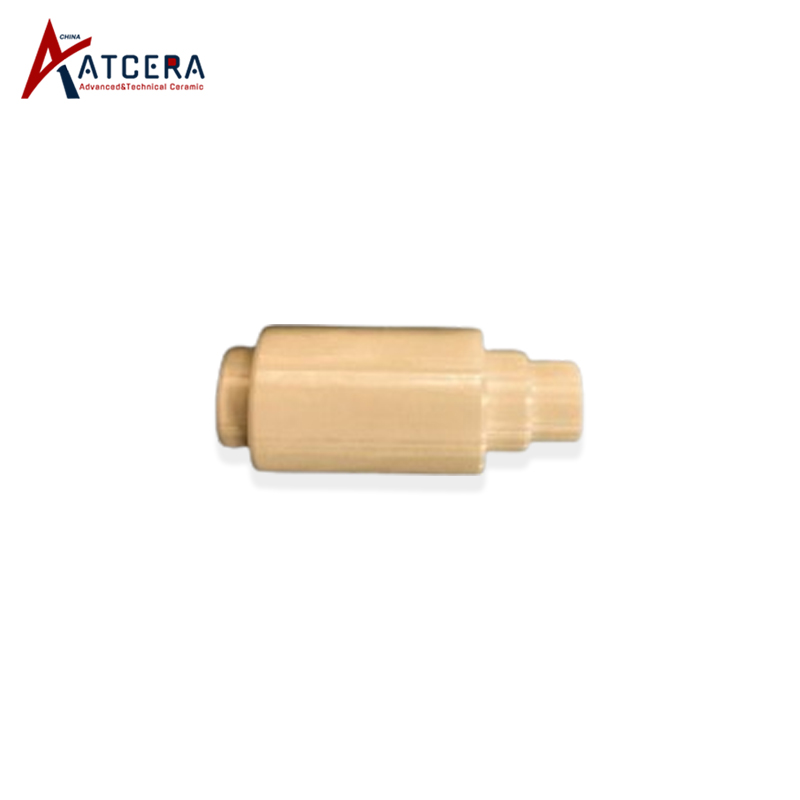

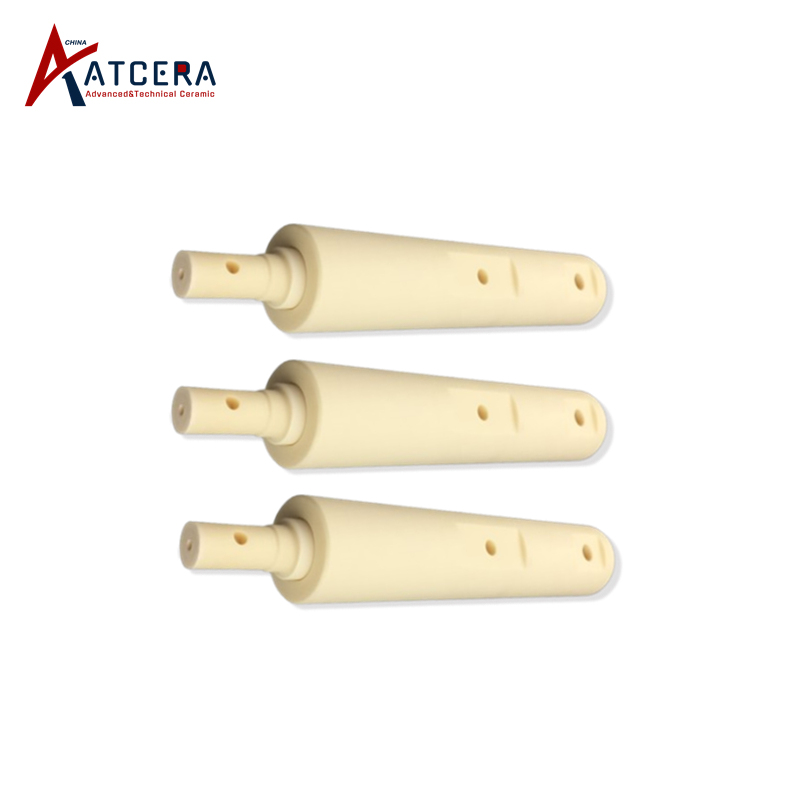

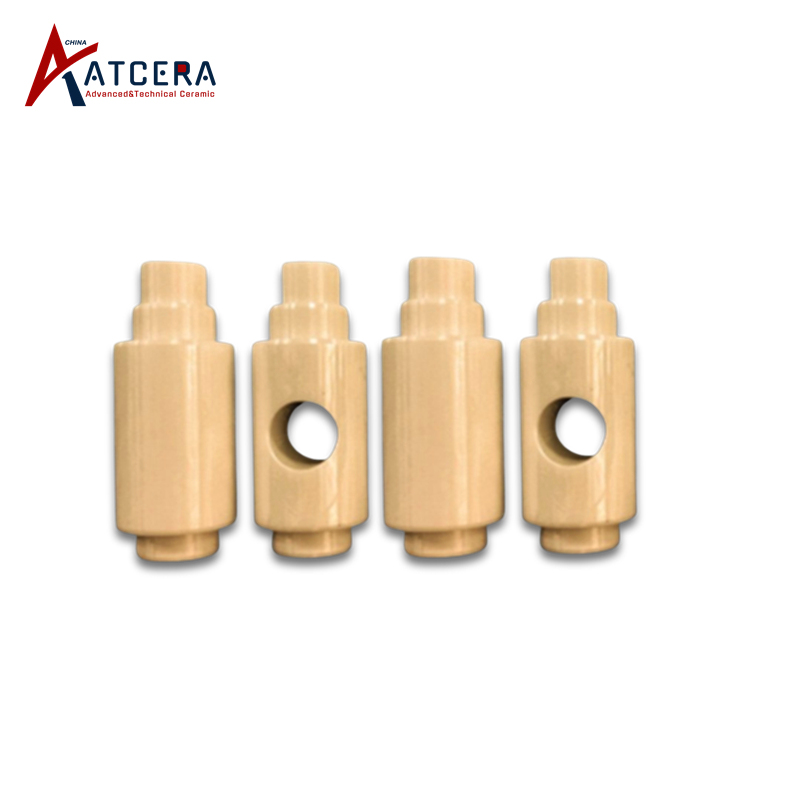

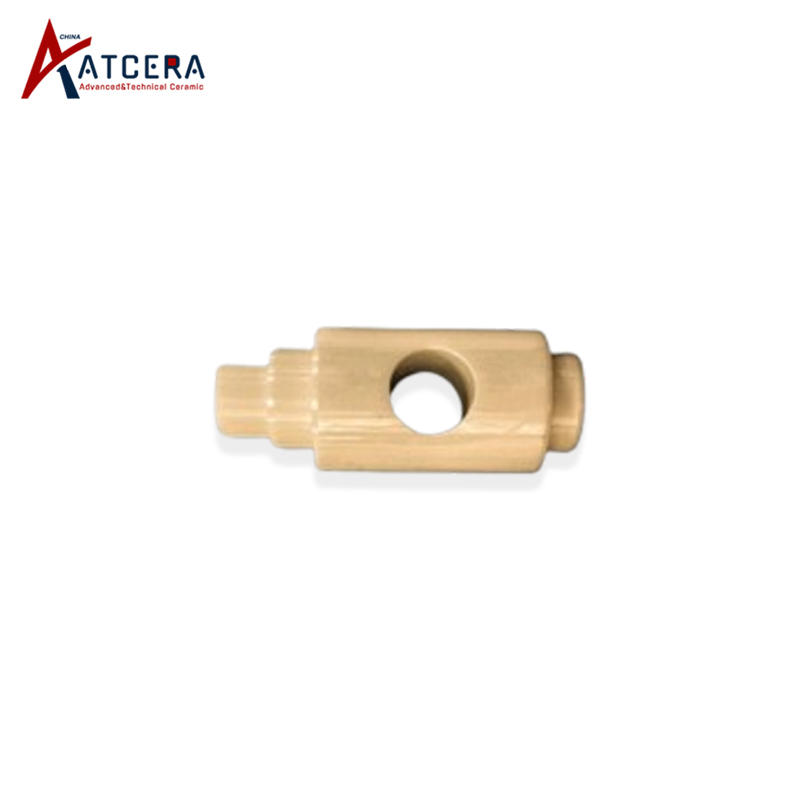

Magnesia Stablized Zirconia Ceramic Piston MSZ Ceramic Pistons

Magnesia stablized zirconia ceramic piston is made of zirconia ceramics with magnesia as stabilizer, with high mechanical strength, good impact resistance, good abrasion and corrosion resistance, good resistance to high temperature and thermal shock. It is mainly used in piston pumps to regulate the pressure and flow rate of fluids through reciprocating motion, widely used in pharmaceutical instruments, environmental engineering, petrochemical industry, engineering machinery, etc.

Brand:
ATCERA
Item NO.:
AT-MG-Z001

Materials
MSZ
Shapes
Mechanical Parts
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Magnesia Stablized Zirconia Ceramic Piston

1. Magnesia stablized zirconia ceramic piston with high mechanical strength, good impact resistance, good wear resistance and long service life;

2. Magnesia stablized zirconia ceramic piston has a smooth surface, good self-lubricating performance, lubrication-free maintenance, and low operating resistance;

3. Magnesia stablized zirconia ceramic piston is resistant to high temperature and corrosion, the maximum operating temperature can reach higher than 1000℃, with superb thermal shock resistance and chemical stability, can withstand rapid temperature changes, and can be in direct contact with a variety of acidic and alkaline substances, without the risk of corrosion failure.

Applications of MSZ Ceramic Piston

Magnesia stablized zirconia ceramic pistons are mainly used in piston pumps, which are widely used in pharmaceutical instruments, environmental engineering, petroleum as well as chemical industry, engineering machinery, etc.

Size Chart of Magnesia Stablized Zirconia Ceramic Piston

We are committed to delivering magnesia stablized zirconia ceramic piston tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide rawing and parameter requirements for customization.

Magnesia Stablized Zirconia Ceramic Piston
Item NO.	Diameter (mm)	Length (mm)
AT-MG-Z001	10	50
AT-MG-Z002	20	80
AT-MG-Z003	28	100
AT-MG-Z004	35	150
AT-MG-Z005	50.8	304
AT-MG-Z006	80	320
AT-MG-Z007	100	350

Technical Data of Mg-PSZ Materials

Material	Magnesia stablized zirconia (MSZ)
Density (g/cm3)	5.7
Flexture strength (MPa)	540
Young Modulus (GPa)	250
Poisson's ratio	0.31
Compressive strength (MPa)	2500
Hardness (HV)	1100
Fracture toughness (MPa*m1/2)	7.5
Maximum working temperature (℃)	1200
Thermal conductivity (W/m*K)	18
Thermal expansion coefficient (/℃)	*810-6**
Thermal shock resistance (ΔT ℃)	250

*This chart illustrates the standard characteristics of the magnesia stablized zirconia materials commonly employed in the manufacturing of our magnesia stablized zirconia products and parts. Please be aware that the attributes of customized msz products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Select the appropriate size and tolerance to ensure that the MSZ ceramic piston can move freely and without leakage after matching with the cylinder.

2. During installation, ensure that the zirconia piston and inner surface of the cylinder body are clean, without dust or other impurities.

3. After installation, test the flexibility of the piston and leakage first, and then apply load to put into use formally.

4. Check the working condition of the piston regularly. If there are cracks or serious wear, it should be replaced in time.

Valuable Information

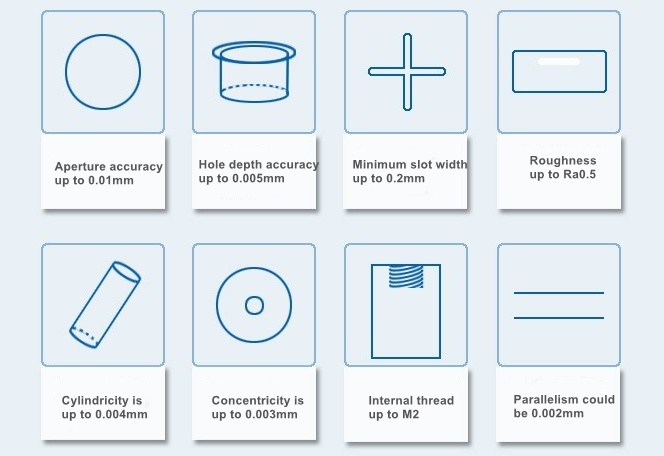

Machining Precision

1. Diameter Tolerance: ±0.01mm

2. Hole Depth Tolerance: ±0.005mm

3. Surfance Roughness: Ra0.5

4. Cylindricity: ±0.004mm

5. Concentricity: ±0.003mm

6. Parallelism: ±0.002mm

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Could Hot Press Sintering Be the Future of High-Performance Transparent Ceramic Production?

As a new inorganic nonmetallic material with high performance and multiple functions, transparent ceramics show great application potential in optics, electronics, aerospace and other fields because of its excellent light transmission, high strength, high hardness and good thermal and chemical stability. Among the many methods to prepare transparent ceramics, hot pressing sintering has become one ...

How Does Vacuum Sintering Technology Facilitate the Preparation of Transparent Ceramics?

As a kind of high performance material, transparent ceramics show great application potential in the fields of optical window, laser medium and high temperature wave transmittance materials because of its unique optical transparency and excellent mechanical properties. Among the many methods of preparing transparent ceramics, vacuum sintering technology has become one of the most widely resea...

What Are The Advantages Of Cold Isostatic Pressing In The Preparation Of Transparent Ceramics?

As a kind of high performance material, transparent ceramics show great application potential in optics, electronics, aerospace and other fields because of its excellent light transmission, high hardness, high temperature resistance and other characteristics. However, the preparation process of transparent ceramics is complicated, and the molding technology is one of the key factors to determine i...

Transparent Ceramics: Basic Principle & Process of Dry Pressing Molding Technology

As a new material with excellent optical properties, transparent ceramics have shown great application potential in optical Windows, laser devices, high temperature sensors and other fields. In the process of its preparation, molding technology is one of the key links, which directly affects the performance and quality of the final product. Among the many molding methods, dry pressing has bec...

How Do Sintering Process Parameters Affect The Properties Of Alumina Substrate?

As a high-performance material, alumina substrate has been widely used in electronics, aerospace and new energy fields. The preparation process involves many complicated processes, in which casting and drying process are the key links to ensure the quality of the substrate. In this article, the effects of raw material formula, casting film thickness and sintering process parameters on th...

What Are Future Trends In Alumina Substrate Preparation Process For Enhanced Performance?

Because of its excellent mechanical properties, thermal stability and chemical inertness, alumina substrate has shown wide application potential in electronic packaging, thermal management and high-performance structural parts. The preparation process involves complex process steps, in which casting process, as the core link, plays a decisive role in the performance of the final product. This...

What Are The Key Factors Influencing Alumina Substrate Performance During Preparation?

In the rapidly developing electronics industry, alumina substrate has become an indispensable substrate for electronic components with its excellent insulation properties, chemical stability, high thermal conductivity and good high-frequency characteristics. It not only provides support for electronic components, but also plays a key role in heat dissipation and insulation. However, the prepa...

Why Is Process Optimization Crucial for High-Quality Alumina Substrate Preparation?

The preparation of alumina substrate is a multi-step process with high precision, in which the choice of solvent directly affects the homogeneity of slurry, drying efficiency and physical properties of the final product. The solvent must not only be able to quickly dissolve each component to form a stable slurry, but also need to have rapid volatilization characteristics to ensure efficient d...

How Do Alumina Powder Characteristics Affect Alumina Substrate Casting Process?

In the field of electronics industry, alumina substrate has become an indispensable base material for electronic components because of its excellent insulation, chemical stability, high thermal conductivity and good high-frequency performance. It not only plays the role of support and heat dissipation, but also ensures the insulation performance of electronic components. Alumina casting slurr...

Technological Advancements To Improve Silicon Carbide Substrate CMP Efficiency

With the continuous progress of semiconductor technology, silicon carbide (SiC), as a high-performance material, has shown great application potential in the field of power electronic devices. However, in the preparation process of silicon carbide substrate, surface quality control is particularly critical, especially after thinning, grinding and polishing and other processes to obtain ultra-...

Alumina Ceramic Cylinder Sleeve Aluminum Oxide Cylinder Liner

Alumina Ceramic Laser Reflector Ceramic Reflector

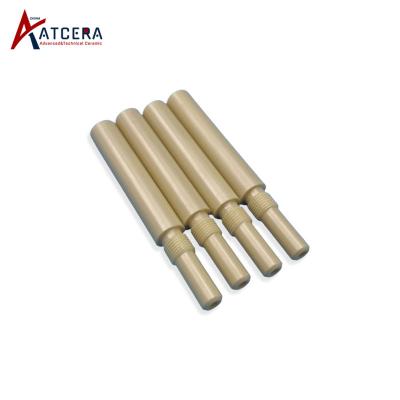

Magnesia Stablized Zirconia Ceramic Pin

Magnesia Stablized Zirconia Ceramic Ring

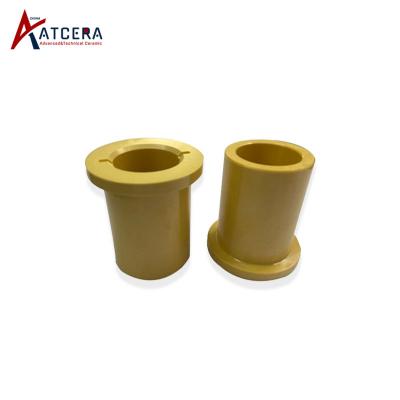

Magnesia Stablized Zirconia Ceramic Sleeve MSZ Sleeve

Magnesia Stablized Zirconia Ceramic Gauge Block

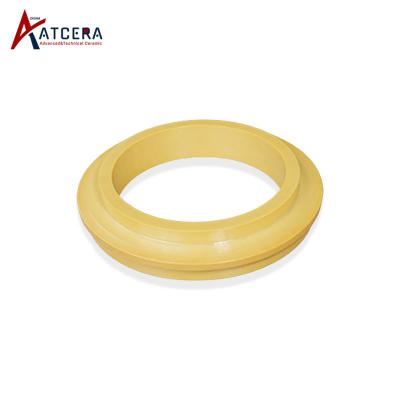

Magnesia Stablized Zirconia Ceramic Seal Ring
