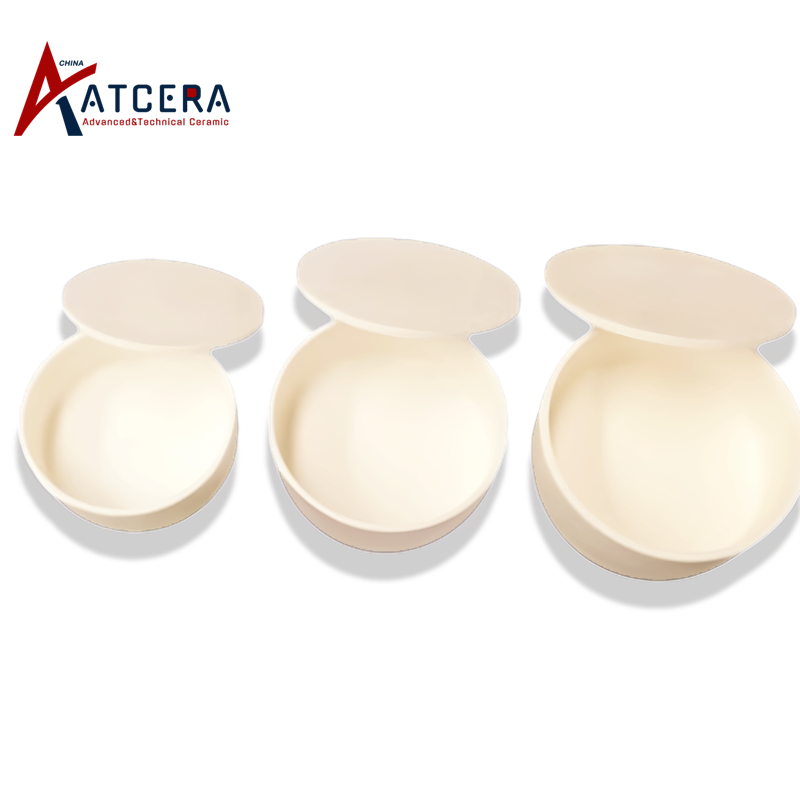

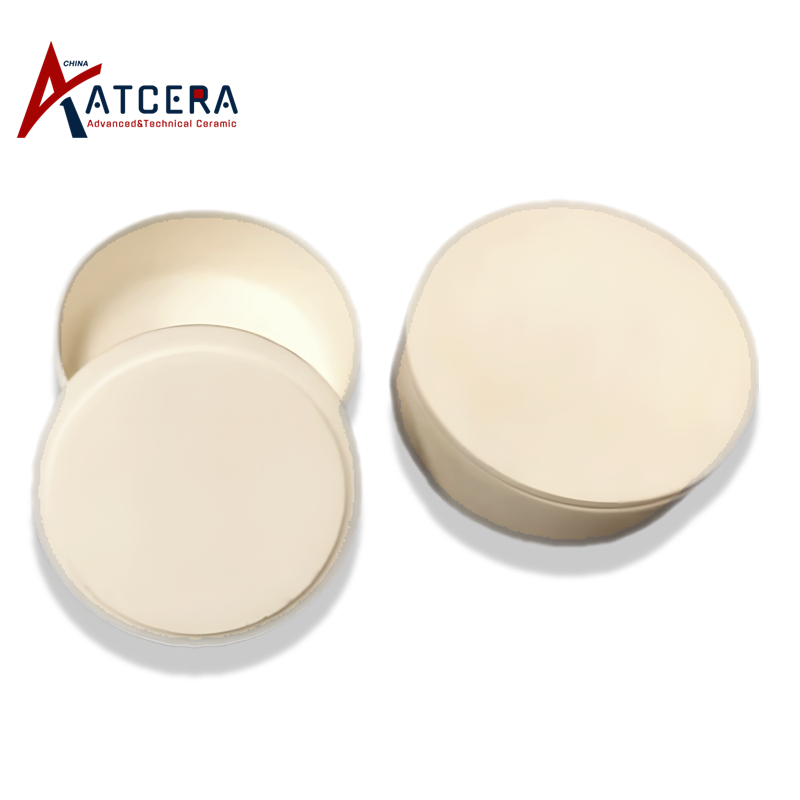

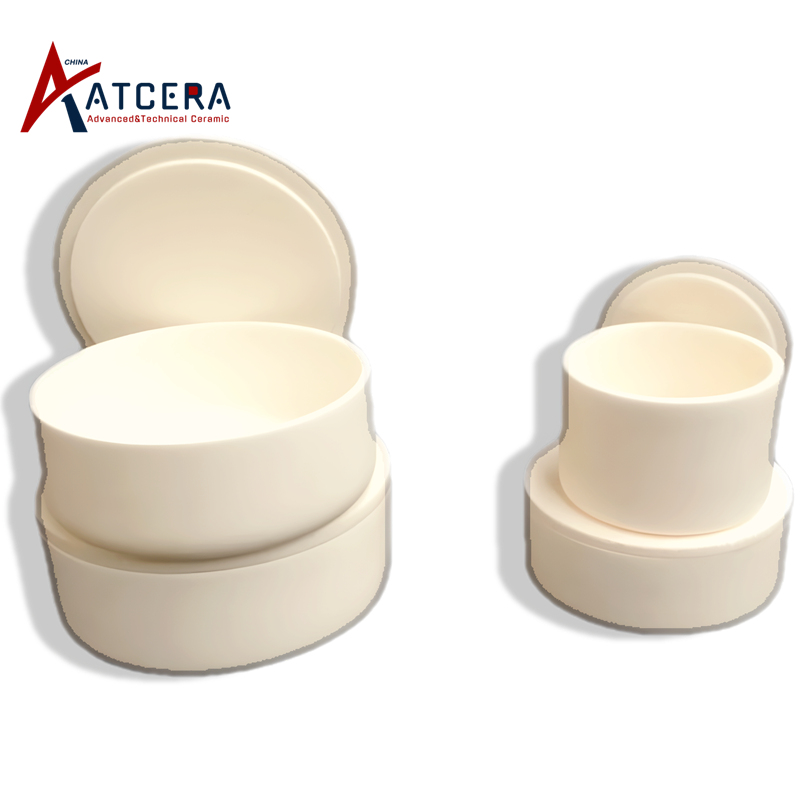

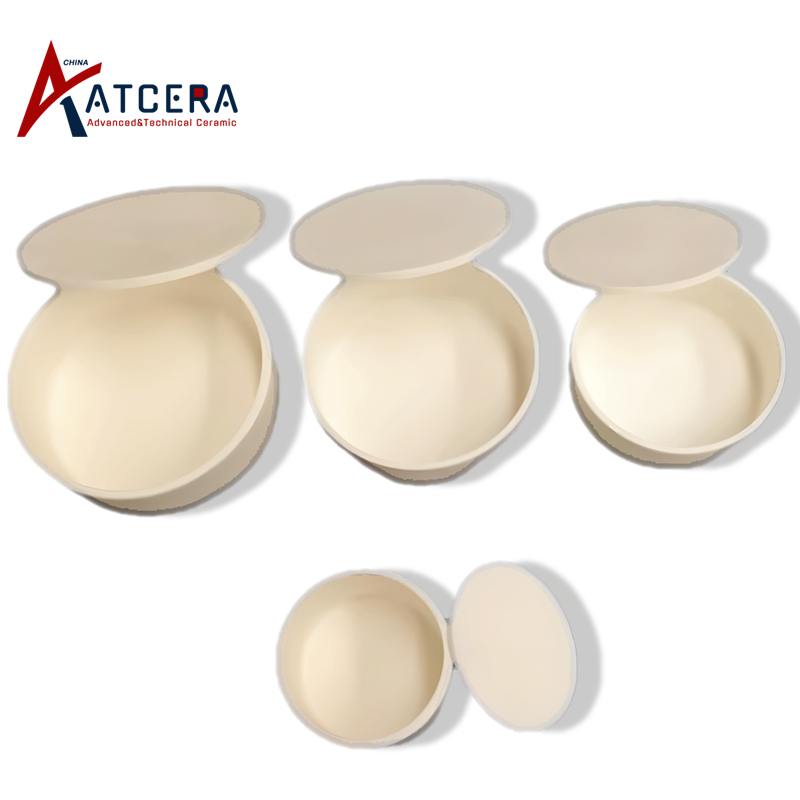

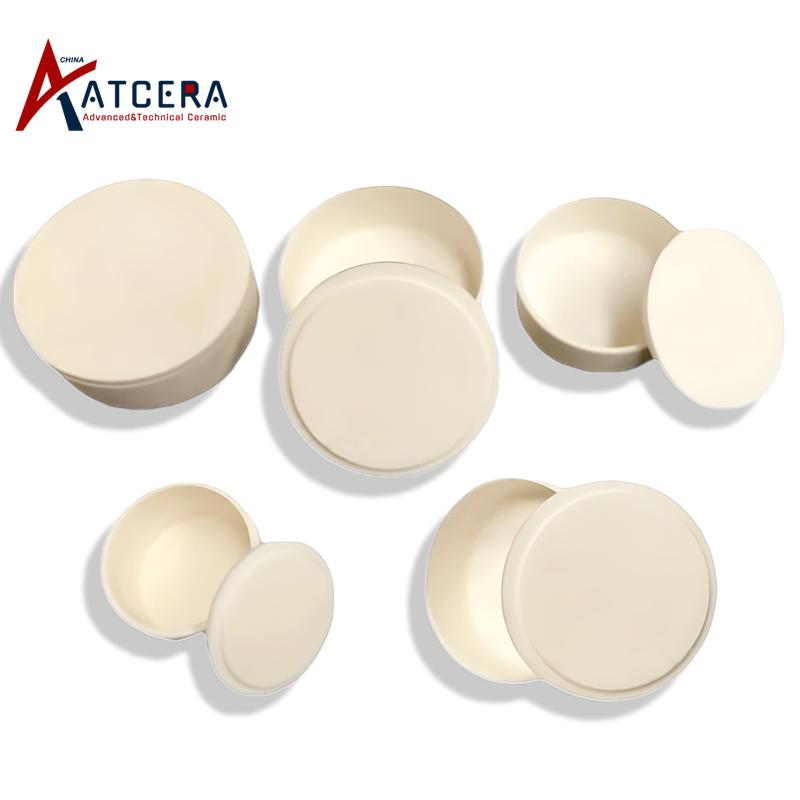

Alumina Crucible Tray Aluminum Oxide Ceramic Low Form

The alumina crucible boasts exceptional resistance to high temperatures, acids, and alkalis, offering superior corrosion resistance and thermal shock tolerance. It is frequently employed in both high-temperature chemical analysis experiments as well as industrial material testing and analysis, utilized to heat and melt various materials for the purpose of analyzing their physical and chemical properties.

Brand:
ATCERA
Item NO.:
TE-AK-119

Materials
Alumina
Shapes
Crucible
Applications
Petrochemical Industry , Metallurgy Industry , Laboratory Equipment and Instruments

Inquire Now

Advantages of Aluminum Oxide Ceramic Low Form

1. Good corrosion resistance: alumina crucible has good corrosion resistance to most acids, bases and solvents, and is suitable for various chemical tests.

2. Long life: alumina crucible has a long service life, with proper use and maintenance, it can be used repeatedly.

3. The melting material has large heating surface in shallow form crucibles, with rapid and uniform heating, good fluidity, fast solidification and uniform grain during casting.

Applications of Alumina Ceramic Crucible Low Form

1. Through the use of alumina crucible, can prepare a variety of high-performance materials, such as metal alloys, ceramics, glass and so on. By controlling the composition and process conditions of materials, materials with excellent properties can be obtained.

2. In industrial production, alumina crucible can be used to analyze and test raw materials, intermediates and final products. By using alumina crucible for high temperature analysis, the properties and characteristics of the product can be better understood, so as to optimize the production process and improve product quality.

3. Shallow form crucible is mainly used for melting and production of metal materials, it can effectively guarantee the performance and quality of products.

Size Chart of Alumina Ceramic Crucible Low Form

We are committed to delivering prime alumina crucible low form tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Requirements for Custom Design

1. Drawing (can attach material requirements, purity, size, tolerance standard)

2. High temperature resistance requirements

3. Application scenario

Send Requirements for Custom Design

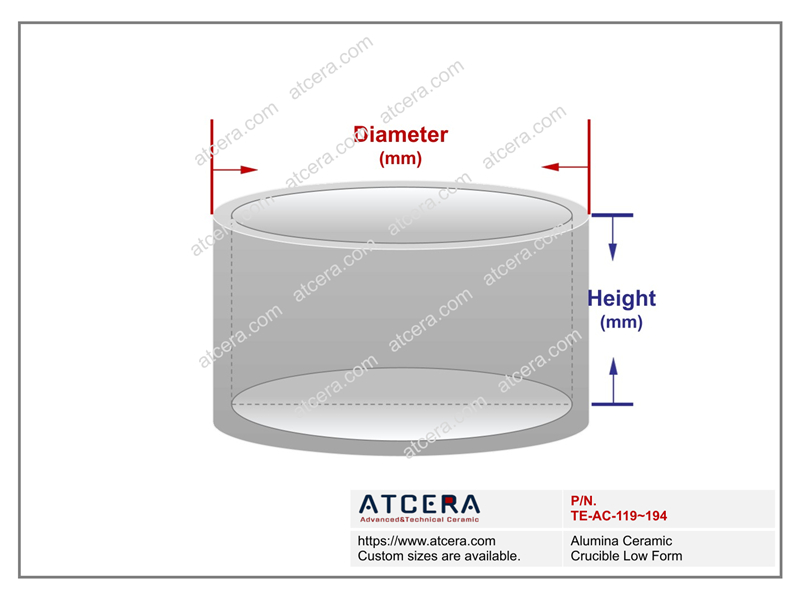

Drawing of Alumina Ceramic Crucible Low Form

Alumina Ceramic Crucible Low Form
Item No.	Volume (ml)	Outer Diameter (mm)	Height (mm)
TE-AK-119	25	35	35
TE-AK-121	30	36	45
TE-AK-123	30	40	35
TE-AK-124	225	90	45
TE-AK-125	240	90	45
TE-AK-126	300	100	50
TE-AK-127	300	100	50
TE-AK-128	250	80	65
TE-AK-129	325	100	50
TE-AK-130	400	115	55
TE-AK-131	440	110	55
TE-AK-132	570	120	60
TE-AK-133	600	135	15
TE-AK-134	600	135	55
TE-AK-195	500	150	40
TE-AK-136	80	75	27
TE-AK-137	80	60	40
TE-AK-141	120	90	35
TE-AK-151	200	100	35
TE-AK-152	200	100	40
TE-AK-193	130	65	45
TE-AK-194	200	100	40

Specification of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Handling Precautions: Exercise care and caution when handling the alumina crucible, particularly when hot. Use appropriate tools and protective gear to avoid accidental burns or injuries during manipulation.

2. Avoid Thermal Shock: Sudden temperature changes can lead to thermal shock, affecting the integrity of the crucible. Gradual heating and cooling processes are recommended to prevent thermal stress and potential damage.

3. Chemical Compatibility: Be mindful of the chemical compatibility of materials used in conjunction with the alumina crucible. Ensure that substances in contact with the crucible are compatible to maintain its structural and chemical stability.

4. Refrain from Overloading: Adhere to the recommended capacity limits of the crucible to prevent overloading, which could compromise its structural integrity and overall performance.

5. Regular Inspection: Periodically inspect the alumina crucible for any signs of wear, cracks, or damage. Replace the crucible if any defects are detected to ensure optimal performance and safety.

6. Proper Installation: When placing the crucible in the furnace, ensure a proper and secure installation. Follow manufacturer guidelines for furnace loading to prevent any misplacement or instability during operation.

7. Cooling Protocol: After use, allow the alumina crucible to cool gradually inside the furnace. Avoid rapid cooling methods, such as quenching in water, to prevent thermal stress and potential fractures.

8. Environmental Considerations: Be aware of the surrounding environment, ensuring that the work area is free from excessive dust, moisture, or corrosive elements that could impact the performance and longevity of the alumina crucible.

9. Refrain from Modifying: Avoid making any modifications or alterations to the alumina crucible, as this could compromise its structural integrity and safety features. Use the crucible in its original, unaltered state.

10. Dispose Responsibly: When the alumina crucible reaches the end of its service life, dispose of it responsibly according to local regulations. Consider recycling options to minimize environmental impact.

Valuable Information

Production Process Flow

1. Raw material processing

2. Compression mouduling

3. High temperature sintering

4. Primary grinding

5. CNC processing

6. Product inspection

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
