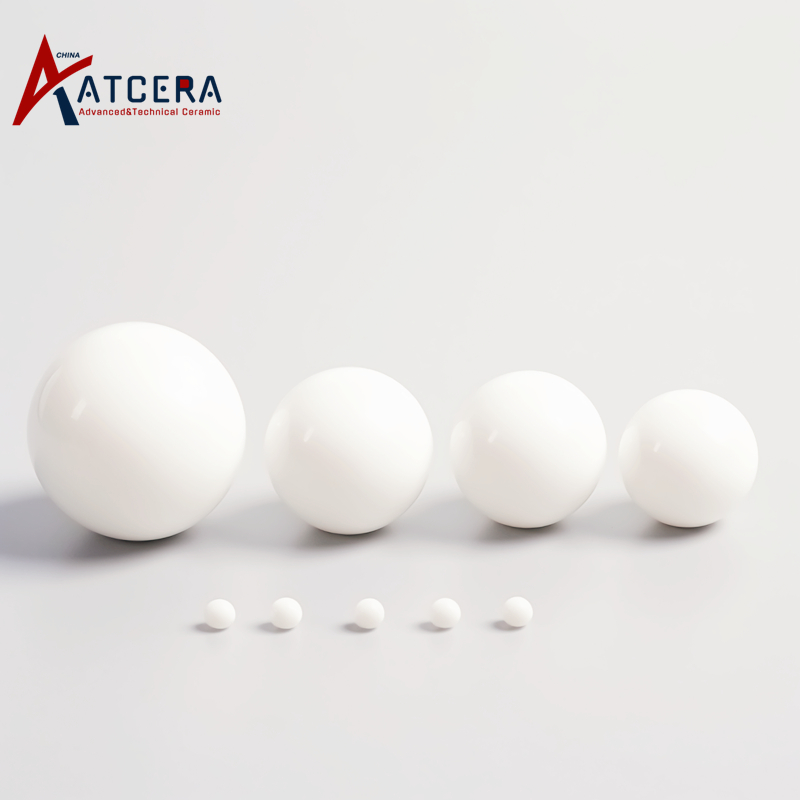

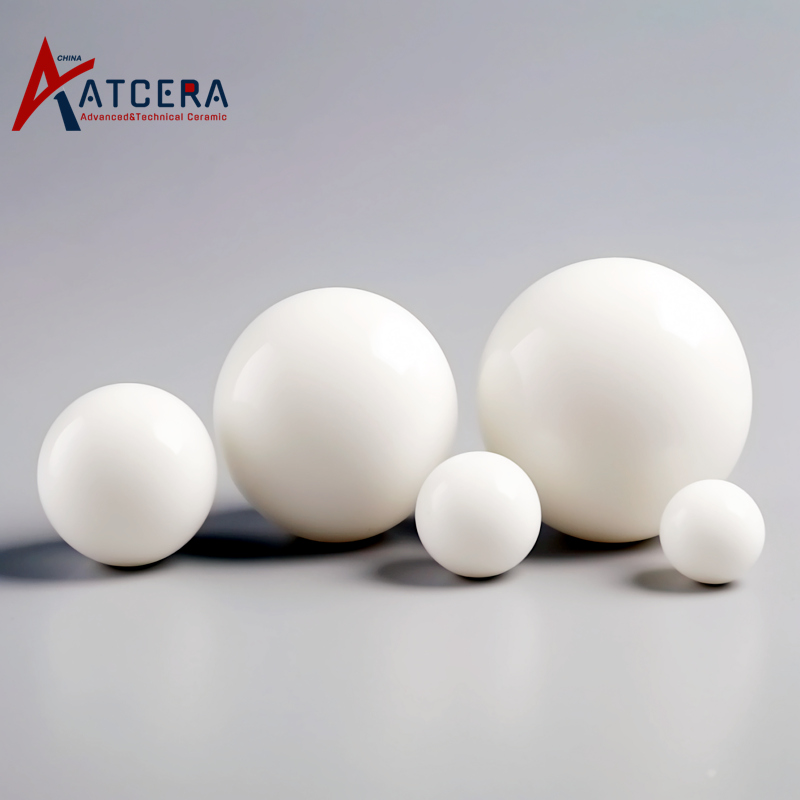

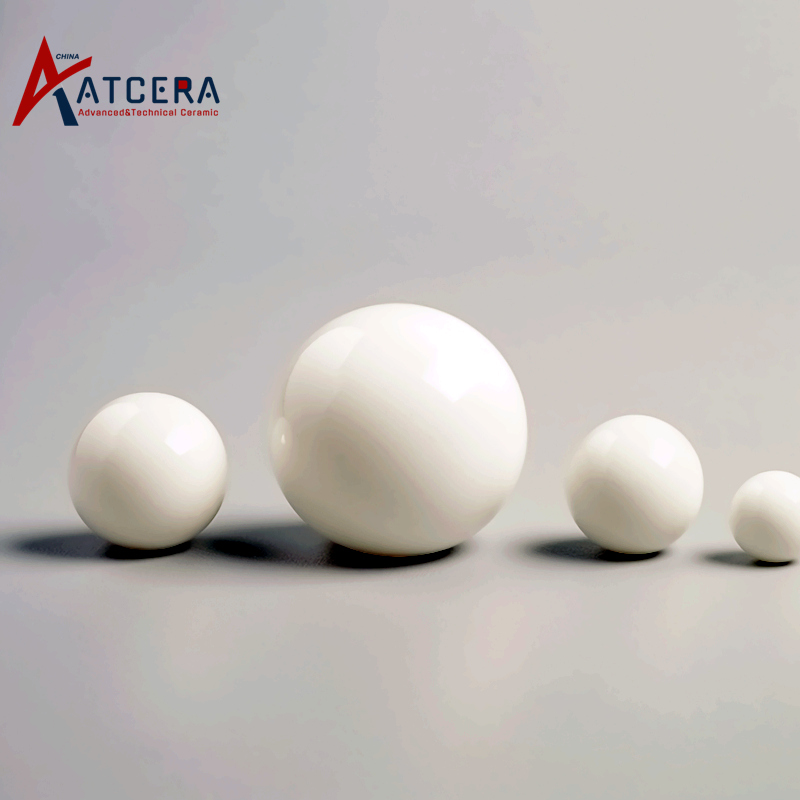

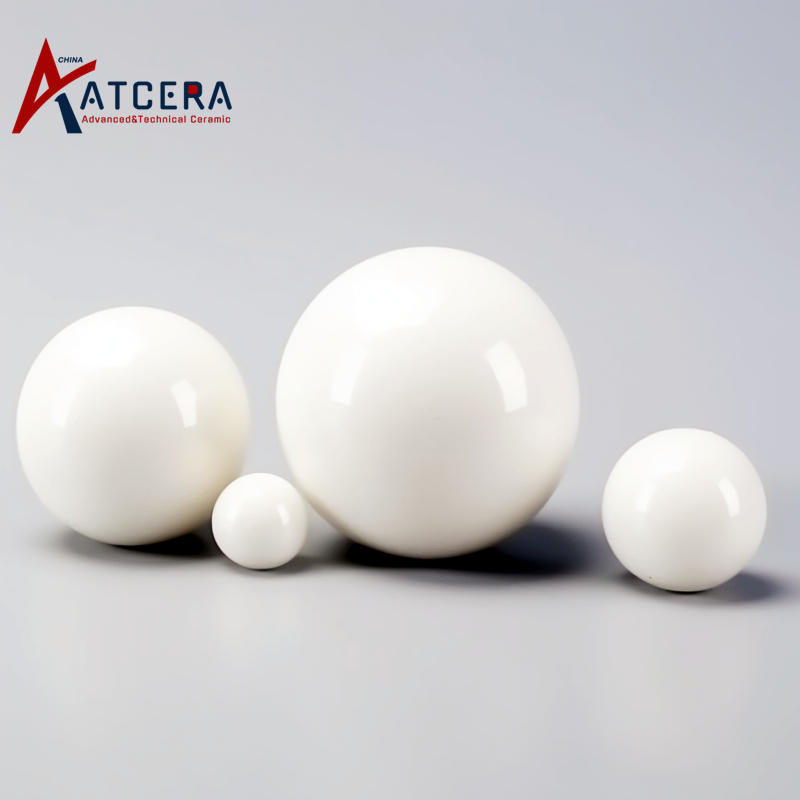

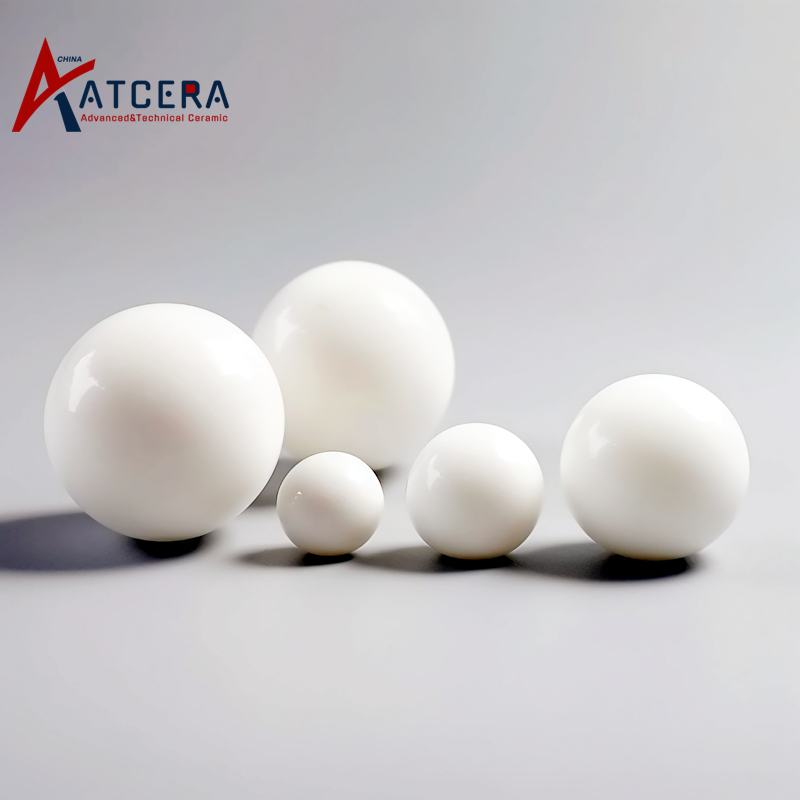

Alumina Milling Balls Ceramic Grinding Media Alumina Cylinder

High purity alumina grinding ball and cylinder have high hardness, good wear resistance, high temperature resistance, also with characteristics of high mechanical strength and corrosion resistance, they are used in various grinding equipment, and applied in mineral processing, coal power, cement manufacturing, metallurgy and other industries.

Brand:
ATCERA
Item NO.:
AT-YM-001

Materials
Alumina
Shapes
Ball
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Alumina Milling Balls

High purity aluminum grinding balls and grinding columns can be used as grinding media for various grinding equipment, especially fine grinding equipment, including ball grinder, pot grinder, vibration grinder, etc. thanks to its features as follow:

⩟ With characteristics of high hardness, high strength and low wear, therefore they have no effect on the quality of grinding materials, and the problem of polluting raw materials by grinding media is solved.

⩟ Compared with normal alumina grinding medias, high purity alumina grinding ball and cylinder has large density, which can greatly improve the grinding efficiency, reduce the grinding time:

⩟ The wear resistance is good, so can greatly extend the service life of the grinding media.

⩟ The density is less than half of the steel ball, which can reduce the noise and power consumption of the grinding equipment, and reduce over-grinding under fine grinding conditions, saving grinding time and power consumption.

⩟ With high temperature resistance, corrosion resistance, they are suitable for all kinds of grinding materials.

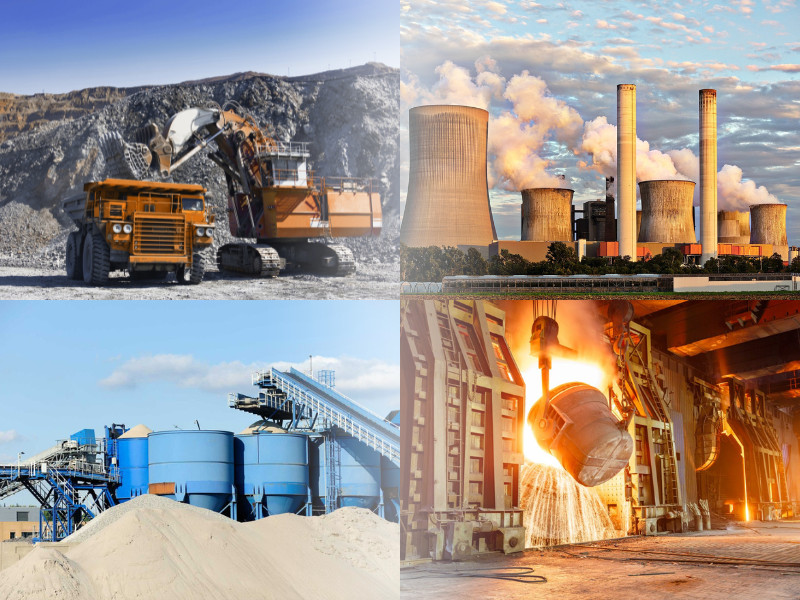

Applications of Alumina Grinding Media

1. Mineral processing industry

High purity alumina grinding ball and grinding cylinder have high hardness, good wear resistance, in the mineral processing industry for the production of small and uniform particles of mineral powder, the service life is long, and can effectively reduce the overall cost of grinding;

2. Coal power industry

High purity alumina grinding ball and grinding cylinder have high hardness, good wear resistance, they can be used to grind pulverized coal for power generation, which can effectively reduce the noise and operation costs of grinding equipment;

3. Cement industry

Alumina ceramic has high hardness, good corrosion resistance, as a grinding medium in the cement industry, the extracted raw material powder particles are uniform, improve production efficiency;

4. Metallurgical industry

Alumina ceramic has high hardness, high temperature resistance, and can adapt to harsh working environment in the metallurgical industry, and are used as grinding media to grind various raw materials.

Size Chart of Alumina Ball

We are committed to delivering high-quality alumina ceramic grinding media balls or cylinders tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Required information for customized request:

1. Device name or device model

2. Feed size and discharge size of abrasive material (mesh)

3. Abrasive mode: wet grinding, dry grinding

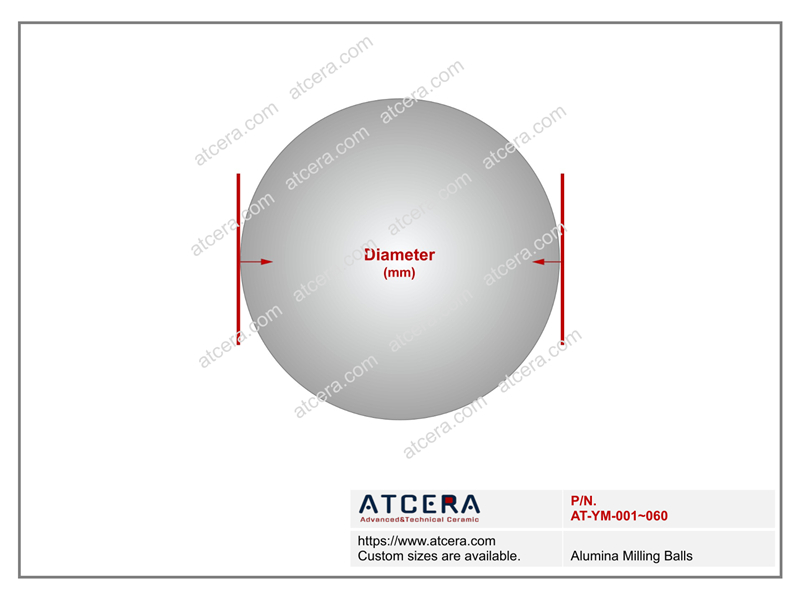

Drawing of Alumina Milling Balls

Alumina Milling Balls
Item No.	Diameter (mm)	Al2O3's Purity (%)
AT-YM-001	0.5	25
AT-YM-002	1	25
AT-YM-003	2	25
AT-YM-004	3	25
AT-YM-005	3.5	25
AT-YM-006	4	25
AT-YM-007	5	25
AT-YM-008	6	25
AT-YM-009	8	25
AT-YM-010	10	25
AT-YM-011	12	25
AT-YM-012	15	25
AT-YM-013	20	25
AT-YM-014	25	25
AT-YM-015	0.2	95
AT-YM-016	0.3	95
AT-YM-017	0.4	95
AT-YM-018	0.5	95
AT-YM-019	1	95
AT-YM-020	2	95
AT-YM-021	3	95
AT-YM-022	3.5	95
AT-YM-023	4	95
AT-YM-024	5	95
AT-YM-025	6	95
AT-YM-026	8	95
AT-YM-027	10	95
AT-YM-028	12	95
AT-YM-029	15	95
AT-YM-030	20	95
AT-YM-031	25	95
AT-YM-032	30	95
AT-YM-033	35	95
AT-YM-034	45	95
AT-YM-035	50	95
AT-YM-036	60	95
AT-YM-037	0.2	99
AT-YM-038	0.3	99
AT-YM-039	0.4	99
AT-YM-040	0.5	99
AT-YM-041	1	99
AT-YM-042	2	99
AT-YM-043	3	99
AT-YM-044	3.5	99
AT-YM-045	4	99
AT-YM-046	5	99
AT-YM-047	6	99
AT-YM-048	8	99
AT-YM-049	10	99
AT-YM-050	12	99
AT-YM-051	15	99
AT-YM-052	20	99
AT-YM-053	25	99
AT-YM-054	30	99
AT-YM-055	35	99
AT-YM-056	45	99
AT-YM-057	50	99
AT-YM-058	60	99
AT-YM-059	70	99
AT-YM-060	80	99

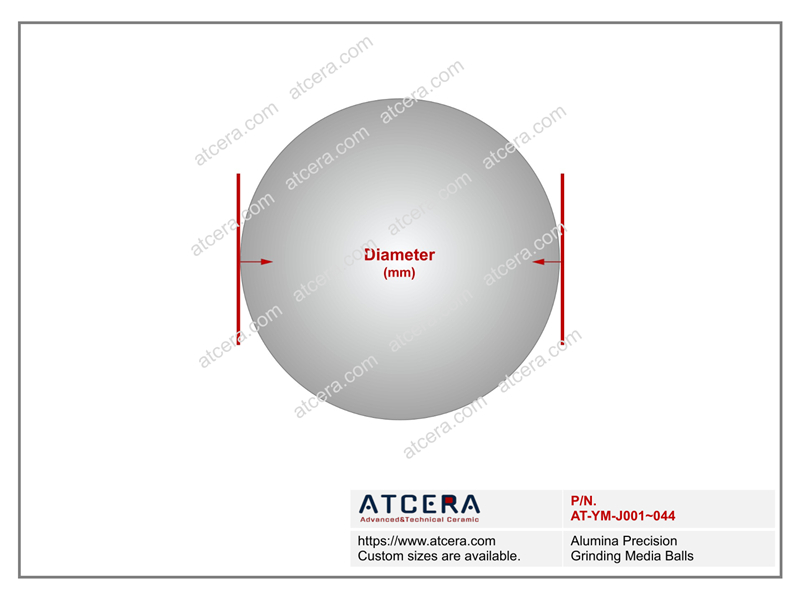

Drawing of Alumina Precision Grinding Media Balls

Alumina Precision Grinding Media Balls
Item No.	Diameter (mm)	Al2O3's Purity (%)
AT-YM-J001	9.525	92
AT-YM-J002	10	92
AT-YM-J003	12.7	92
AT-YM-J004	15.875	92
AT-YM-J005	16	92
AT-YM-J006	20	92
AT-YM-J007	25	92
AT-YM-J008	25.4	92
AT-YM-J009	38.1	92
AT-YM-J010	15	92
AT-YM-J011	9.525	92
AT-YM-J012	10	95
AT-YM-J013	12.7	95
AT-YM-J014	15.875	95
AT-YM-J015	16	95
AT-YM-J016	20	95
AT-YM-J017	25	95
AT-YM-J018	25.4	95
AT-YM-J019	38.1	95
AT-YM-J020	15	95
AT-YM-J021	1.588	99
AT-YM-J022	2.381	99
AT-YM-J023	2.5	99
AT-YM-J024	2.778	99
AT-YM-J025	3	99
AT-YM-J026	3.175	99
AT-YM-J027	3.5	99
AT-YM-J028	3.969	99
AT-YM-J029	4	99
AT-YM-J030	4.763	99
AT-YM-J031	5	99
AT-YM-J032	5.556	99
AT-YM-J033	5.953	99
AT-YM-J034	6.35	99
AT-YM-J035	7.144	99
AT-YM-J036	7.938	99
AT-YM-J037	8.731	99
AT-YM-J038	9.525	99
AT-YM-J039	10.319	99
AT-YM-J040	11.1125	99
AT-YM-J041	11.906	99
AT-YM-J042	12.7	99
AT-YM-J043	13.494	99
AT-YM-J044	14.288	99

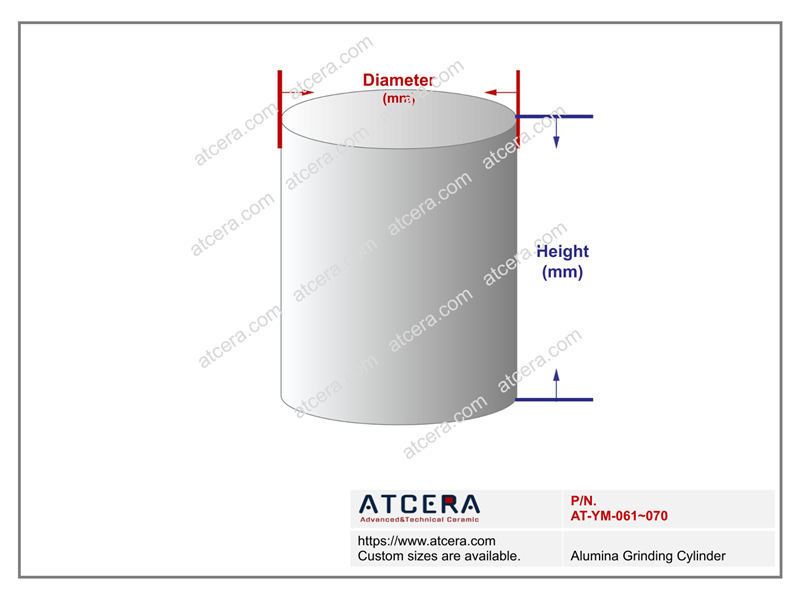

Drawing of Alumina Grinding Cylinder

Alumina Grinding Cylinder
Item No.	Diameter (mm)	Height (mm)	Al2O3's Purity (%)
AT-YM-061	12.7	12.7	99.5
AT-YM-062	13	8	99.5
AT-YM-063	13	10	99.5
AT-YM-064	13	11	92-95
AT-YM-065	20	20	92-95
AT-YM-066	25	25	92-95
AT-YM-067	30	30	92-95
AT-YM-068	40	40	92-95
AT-YM-069	50	50	92-95
AT-YM-070	60	60	92-95

Specification of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. grinding ball filling amount and ratio shall be selected according to grinding equipment parameters and grinding material. Filling amount of the alumina ball is generally about 50% of the grinding cylinder, and proportion of large sized alumina ball is generally not more than 30%, also need to leave enough space to make the grinding ball have movement space;

2. When fill the alumina grinding ball, should load some material first to have buffer effect, and then fill alumina grinding ball;

3. Long time empty grinding operation and excessive grinding shall be avoided, so as not to damage the grinding ball;

4. Regularly check the alumina grinding ball status, timely replacement of damaged or cracked grinding balls;

5. Regular maintenance of grinding equipment is necessary, clean up grinding ball residue inside.

Valuable Information

Packaging of Alumina Grinding Media

1. Jumbo bag

2. Metal barrel

3. Plastic barrel

4. Paper barrel

5. Paper box

6. Aluminum foil bag vacuum packing

7. Paper bag

8. Textile bag

9. Barrel package for export

10. Jumbo bag on pallet

11. Textile on pallet

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
