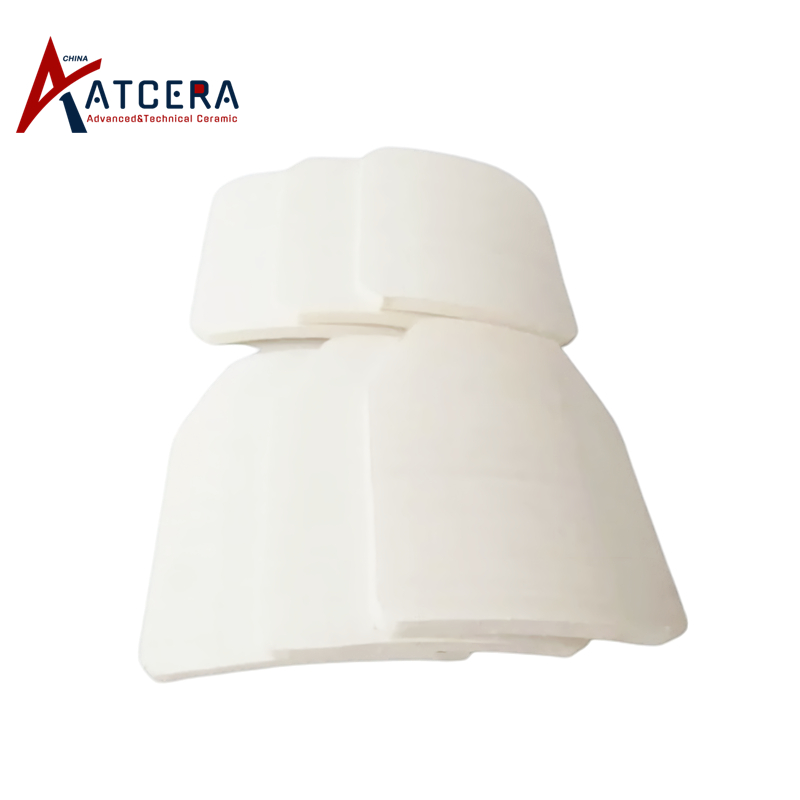

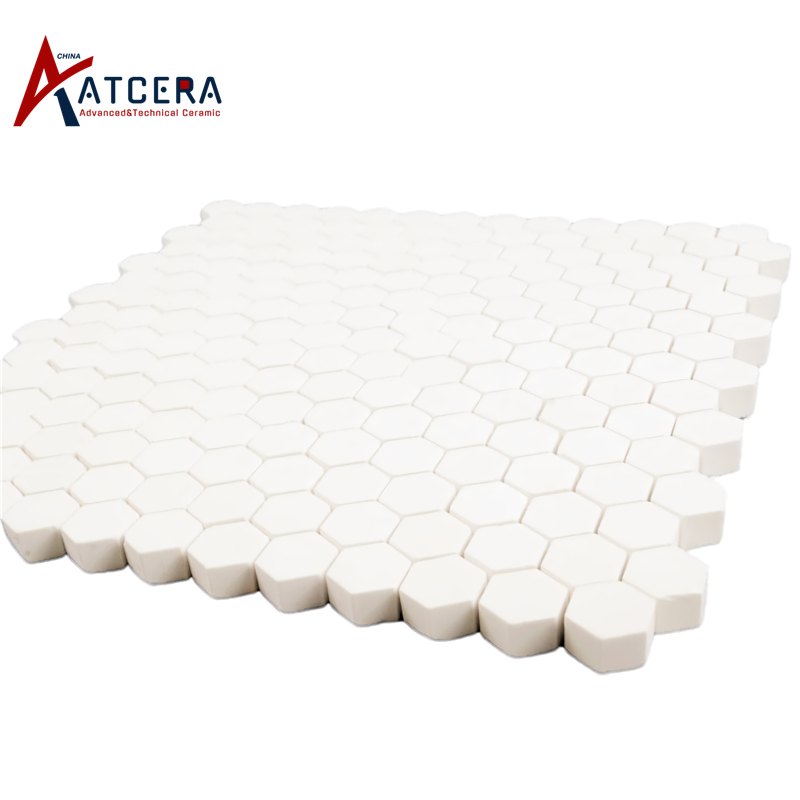

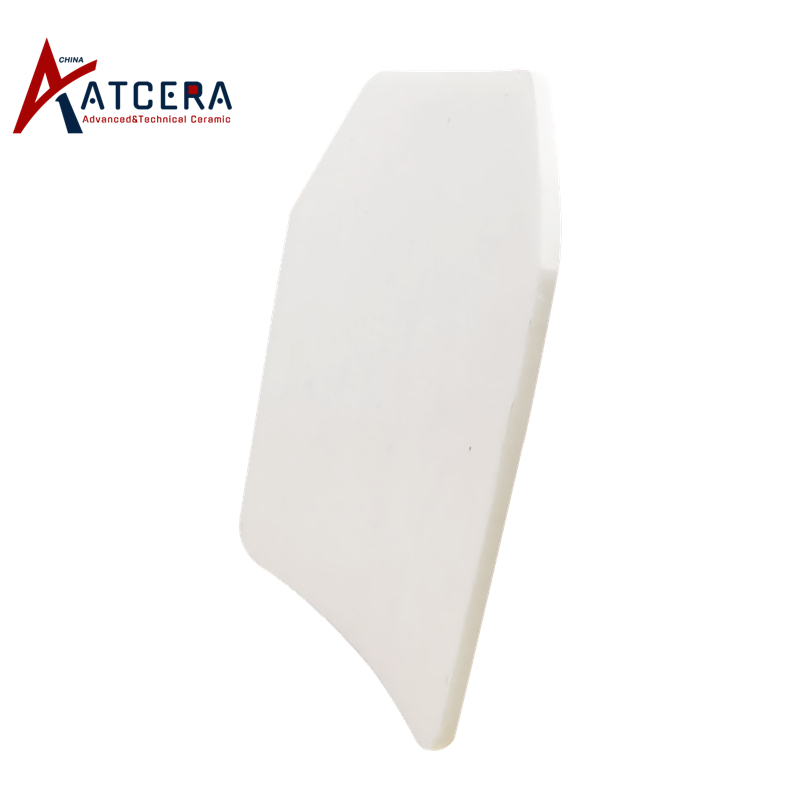

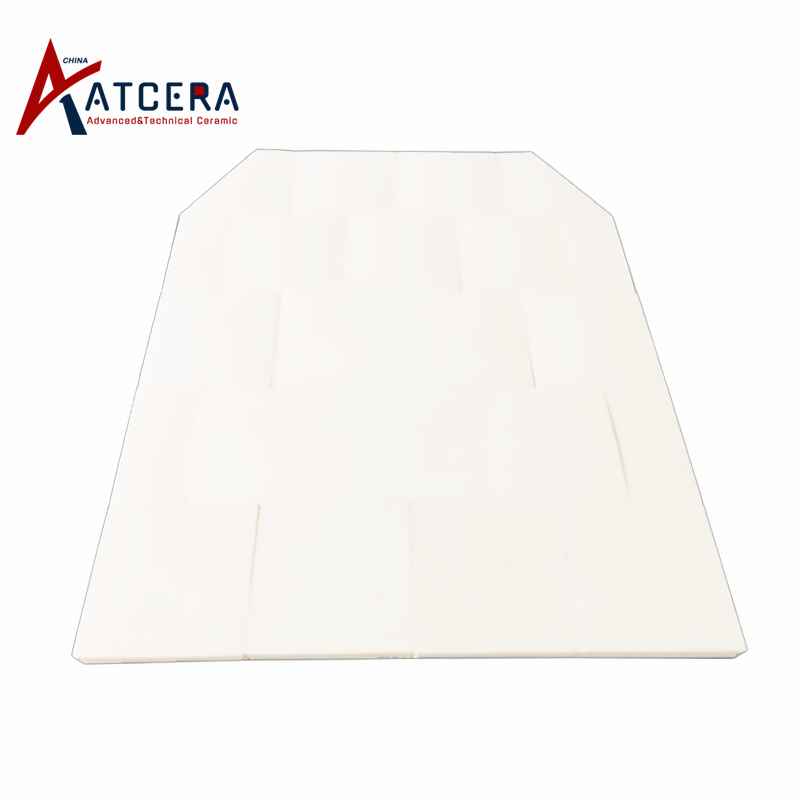

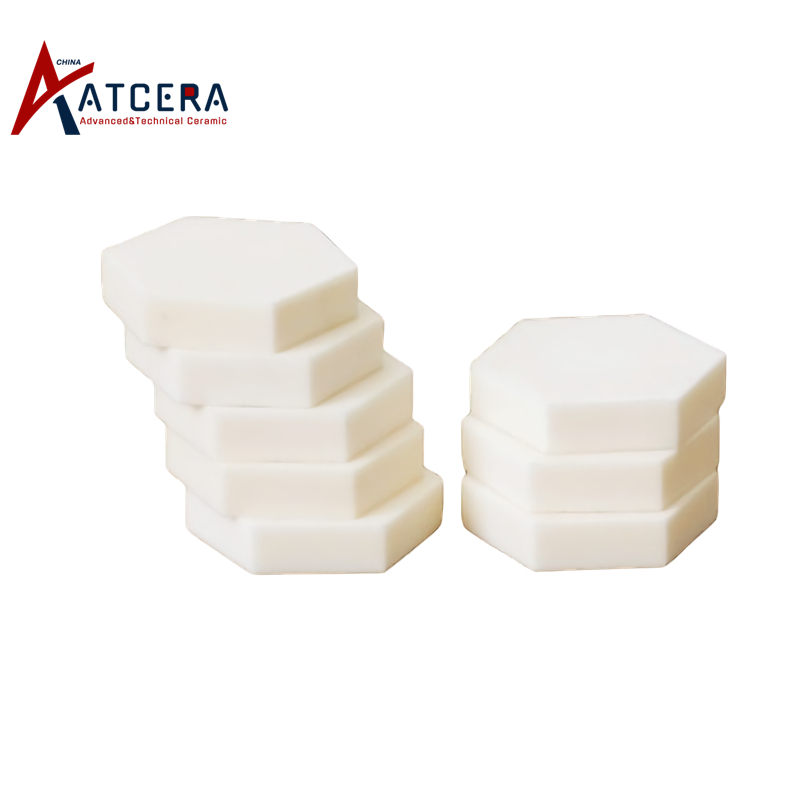

Alumina Plate for Bulletproof Alumina Plate for Armor

The bulletproof alumina ceramic plate is made of 99% pure alumina, achieving a Rockwell hardness of over 88. It meets the lining requirements for bulletproof vests rated from Level 3 to Level 6 and can also be utilized in the manufacturing of protective devices for tanks and armored vehicles.

  • Brand:

    ATCERA
  • Item NO.:

    AT-YHL-FD001
  • Materials

    Alumina
  • Shapes

    Plate
  • Applications

    Military Industry
ceramic plate for armor

Advantages of Alumina Plate for Bulletproof



1. The alumina plate boasts a low density and lightweight, reducing the overall weight of the bulletproof assembly.



2. With its high hardness, strength, and excellent wear resistance, the alumina plate demonstrates robust protective capabilities, effectively resisting the kinetic energy of bullets or shells, ensuring superior protective effects.



3. The alumina plate exhibits excellent corrosion resistance, resisting chemical erosion and enduring prolonged use in harsh environments.

alumina plate for bulletproof

Applications of Alumina Bulletproof Plate



Bulletproof alumina plates are primarily used in the manufacturing of bulletproof vests and protective armor.



1. Military Applications

The alumina plates are utilized as lining for individual bulletproof vests and protective armor for military vehicles, aircraft, and ships.



2. Civilian Industrial Applications

The alumina plates are commonly employed as bulletproof materials for armored cash transport vehicles and bulletproof cars.

Size Chart of Alumina Bulletproof Plate



We are committed to delivering well-performed alumina bulletproof plates tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Please provide drawings and specific parameter requirements.



Alumina Plate for Bulletproof
Item NO. Dimension (mm) Opposite Sides (mm) Thickness (mm) Al2O3's Purity (%)
AT-YHL-FD001 20*20*3 20*20 3 99%
AT-YHL-FD002 20*20*10 20*20 10 99%
AT-YHL-FD003 20*20*20 20*20 20 99%
AT-YHL-FD004 30*30*3 30*30 3 99%
AT-YHL-FD005 30*30*4 30*30 4 99%
AT-YHL-FD006 30*30*5 30*30 5 99%
AT-YHL-FD007 30*30*6 30*30 6 99%
AT-YHL-FD008 30*30*7 30*30 7 99%
AT-YHL-FD009 30*30*8 30*30 8 99%
AT-YHL-FD010 30*30*10 30*30 10 99%
AT-YHL-FD011 30*30*20 30*30 20 99%
AT-YHL-FD012 40*40*10 40*40 10 99%
AT-YHL-FD013 47.6*47.6*3 47.6*47.6 3 99%
AT-YHL-FD014 50*50*3 50*50 3 99%
AT-YHL-FD015 50*50*10 50*50 10 99%
AT-YHL-FD016 50*50*20 50*50 20 99%
AT-YHL-FD017 50*50*22 50*50 22 99%
AT-YHL-FD018 50*50*23 50*50 23 99%
AT-YHL-FD019 50*50*25 50*50 25 99%
AT-YHL-FD020 50*50*26 50*50 26 99%
AT-YHL-FD021 50*50*30 50*50 30 99%
AT-YHL-FD022 100*100*10 100*100 10 99%
AT-YHL-FD023 100*100*20 100*100 20 99%
AT-YHL-FD024 100*100*25 100*100 25 99%
AT-YHL-FD025 100*100*30 100*100 30 99%



Alumina Plate for Bulletproof
Item NO. Material Size (mm) Protective Area (m²) Thickness (mm) Weight (kg) Bulletproof Rating Remarks
AT-YHL-FD1001 10mmPE+10mmAl2O3 250X300mm 0.072m² 22mm 2.9kg NIJ IV/GA-6 7.62*63mm M2 Armor-Piercing Bullet (AP)

7.62*51mm M80 Full Metal Jacket Bullet (FMJ)

7.62*39mm AK47 Lead Core Bullet (LC)

5.56*45mm M193 Lead Core Bullet (LC)
AT-YHL-FD1002 8mmPE+8mmAl2O3 250X300mm 0.072m² 20mm 2.3kg NIJ III/GA-5 7.62*51mm M80 Full Metal Jacket Bullet (FMJ)

7.62*39mm AK47 Lead Core Bullet (LC)

5.56*45mm M193 Lead Core Bullet (LC)
AT-YHL-FD1003 PE+Al2O3 250X300mm 0.072m² 22mm 2.50kg NIJ III/GA-5 Customizable
AT-YHL-FD1004 PE+Al2O3 250X300mm 0.072m² 25mm 2.95kg NIJ IV/GA-6 Customizable
AT-YHL-FD1005 PE+Al2O3 250X300mm 0.072m² 24mm 2.75kg NIJ III+ Customizable
AT-YHL-FD1006 PE+Al2O3 250X300mm 0.072m² 24mm 2.75kg NIJ III++ Customizable
AT-YHL-FD1007 PE+Al2O3 250X300mm 0.072m² 25mm 3.35kg NIJ IV+ Customizable
AT-YHL-FD1008 PE+Al2O3 250X300mm 0.072m² 26mm 3.35kg NIJ IV++ Customizable





Technical Data of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.




Usage Instructions



1. The alumina plates should be stored in a dry, dust-free, and shaded area, and care should be taken to avoid mixing them with other materials.

2. During handling, avoid friction or severe impacts to prevent cracks and damage.

3. Prior to use, it is necessary to carefully inspect the plates to ensure the surface is smooth and free from cracks, peeling, or other defects.

Valuable Information



Armor Plate Packing

Alumina Bulletproof Plate Packing





Alumina bulletproof plates are carefully packaged in appropriate containers to avoid any potential damage.









Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
