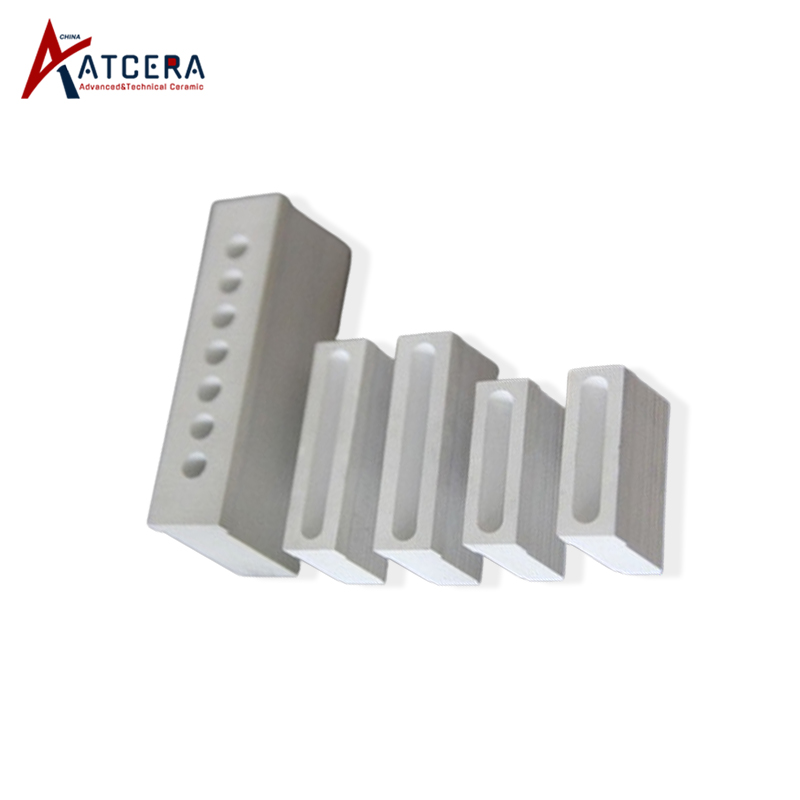

BN ceramic nozzle

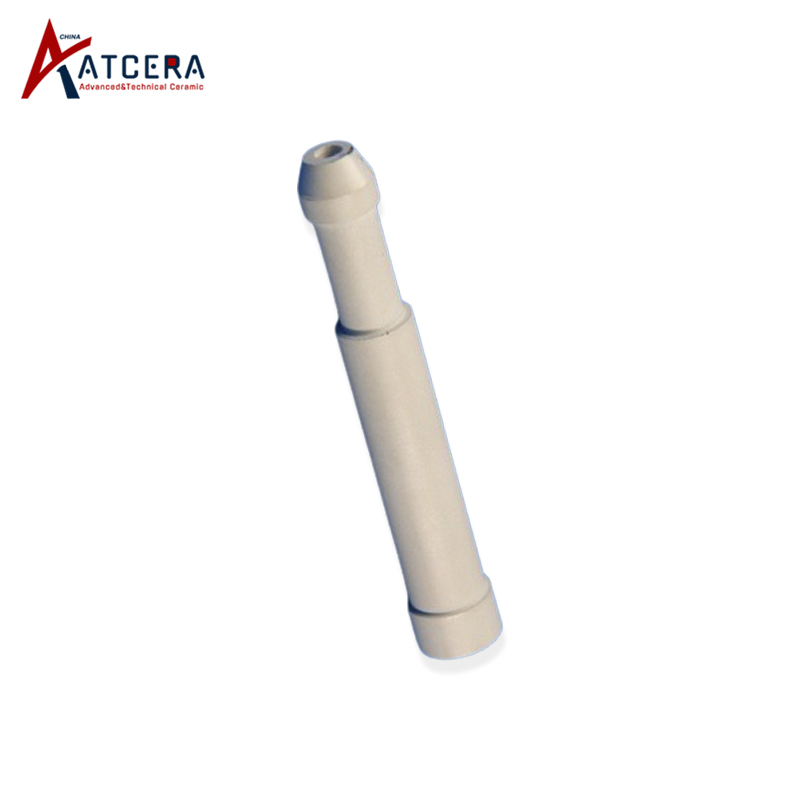

BN ceramic nozzle

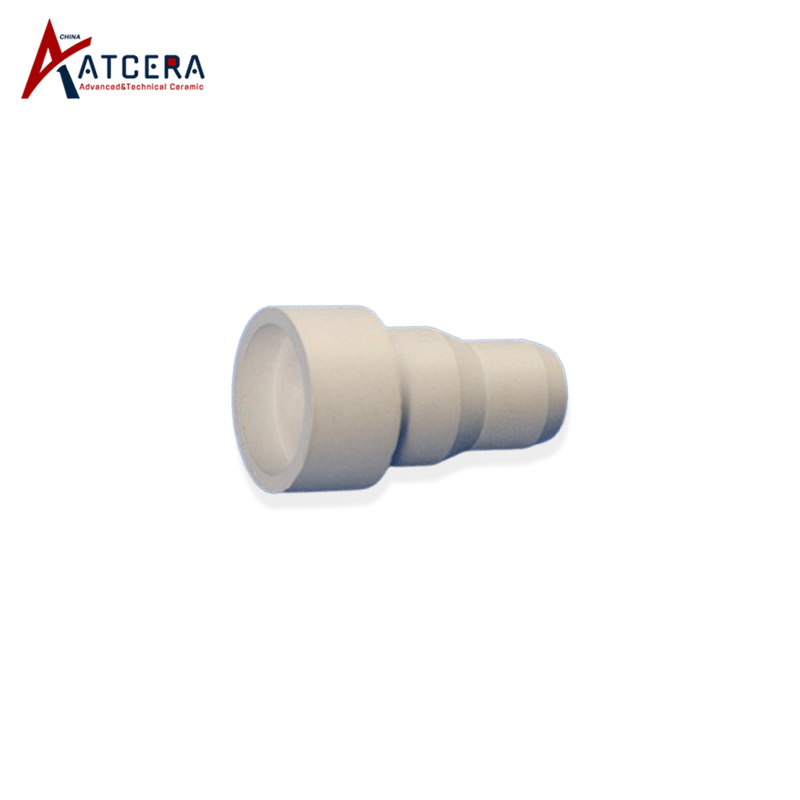

BN ceramic nozzle

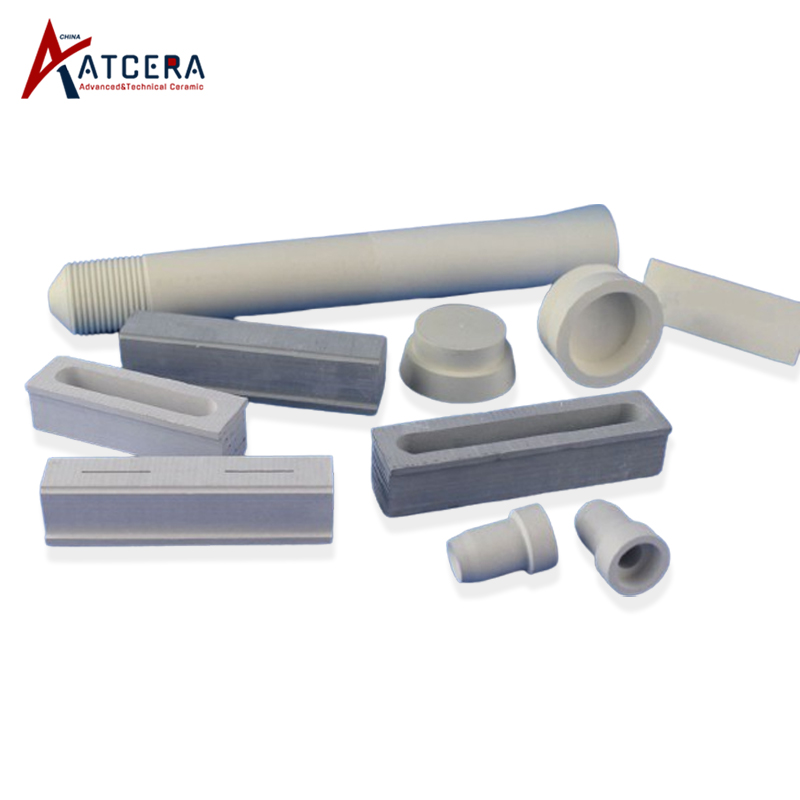

BN ceramic nozzle

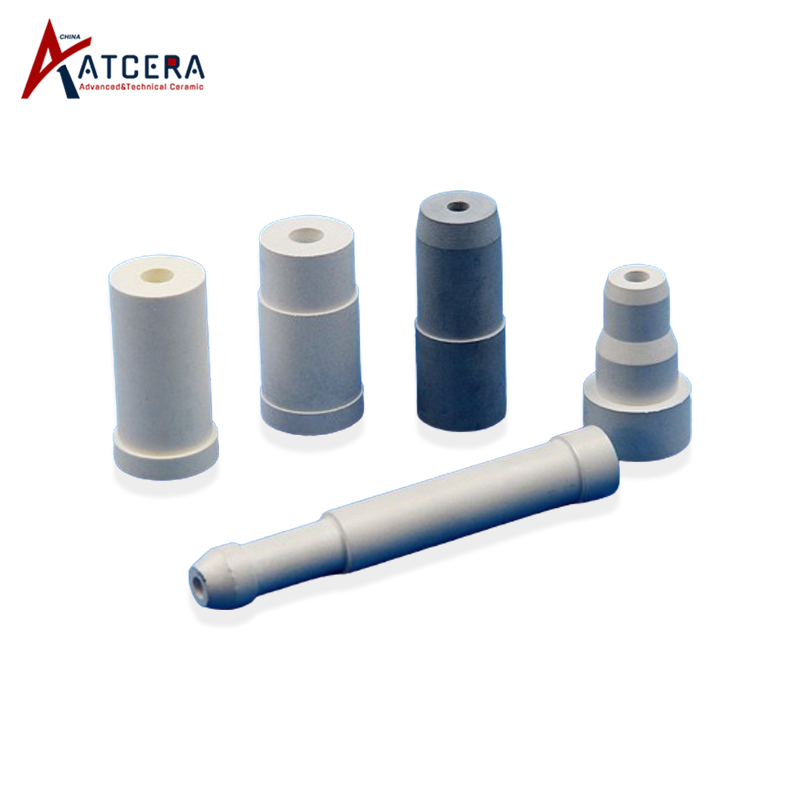

BN ceramic nozzle

Boron Nitride Ceramic Nozzle BN Nozzles

Boron nitride nozzle is made by hot pressing sintering, with high temperature resistance, resistance to metal melt and slag erosion, thermal shock resistance and good thermal conductivity, also has high electrical insulation, the processing accuracy is high and friction coefficient is small. It can be used in powder metallurgy industry and 3D printing industry to spray metal powder, can also be used to spray molten metal to produce metal strip and foil.

  • Brand:

    ATCERA
  • Item NO.:

    AT-BNC-PZ1001
  • Materials

    BN
  • Shapes

    Mechanical Parts
  • Applications

    Mechanical Parts , Petrochemical Industry , Metallurgy Industry
Boron nitride ceramic nozzle

Advantages of Boron Nitride Ceramic Nozzle





Boron nitride nozzle has high temperature resistance, resistance to metal melt and slag erosion, thermal shock resistance and good thermal conductivity, also has high electrical insulation, the processing accuracy is high and friction coefficient is small.



application of BN nozzles

Applications of BN Ceramic Nozzle





Boron nitride nozzle can be used in powder metallurgy industry and 3D printing industry to spray metal powder, can also be used to spray molten metal to produce metal strip and foil.











Size Chart of Boron Nitride Ceramic Nozzles



Committed to providing boron nitride ceramic nozzles customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.





Drawing and parameter requirements shall be provided if customized design request.



BN Amorphous and Nanocrystalline Ceramic Nozzle
Item NO. Specifications
AT-BNC-PZ1001 Customized





BN Powder Metallurgy Nozzle
Item NO. Specifications
AT-BN-PZ1001 Customized





Technical Data of Boron Nitride Materials



Items Pyrolytic Boron Nitride Hot Pressed Boron Nitride
Purity (%) 99.99% 99.5%
Density (g/cm3) 2.15-2.19 1.96-2
Bending strength (MPa) 173 (A direction) 310
Tensile strength (MPa) 112 (A direction) 110
Compressive strength (MPa) 154 (A direction) 120
Hardness (HV0.5) 651 62
Maximum working temperature (℃) 1000(air), 2300(vacuum) 900(air), 1850(vacuum)
Thermal conductivity (W/m*K) 60 (A direction) 55
Thermal expansion coefficient (/℃) 6*10-7 1.8*10-6
Volume resistivity (Ohm*cm) 2*1014 1.2*1014
Dielectric strength (kV/mm) 55 76



*This chart illustrates the standard characteristics of the boron nitride materials commonly employed in the manufacturing of our boron nitride products and parts. Please be aware that the attributes of customized boron nitride products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.











Valuable Information



BN ceramic nozzles

BN Ceramic Nozzles Packing



BN ceramic nozzles are carefully packaged in appropriate containers to avoid any potential damage.



Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
