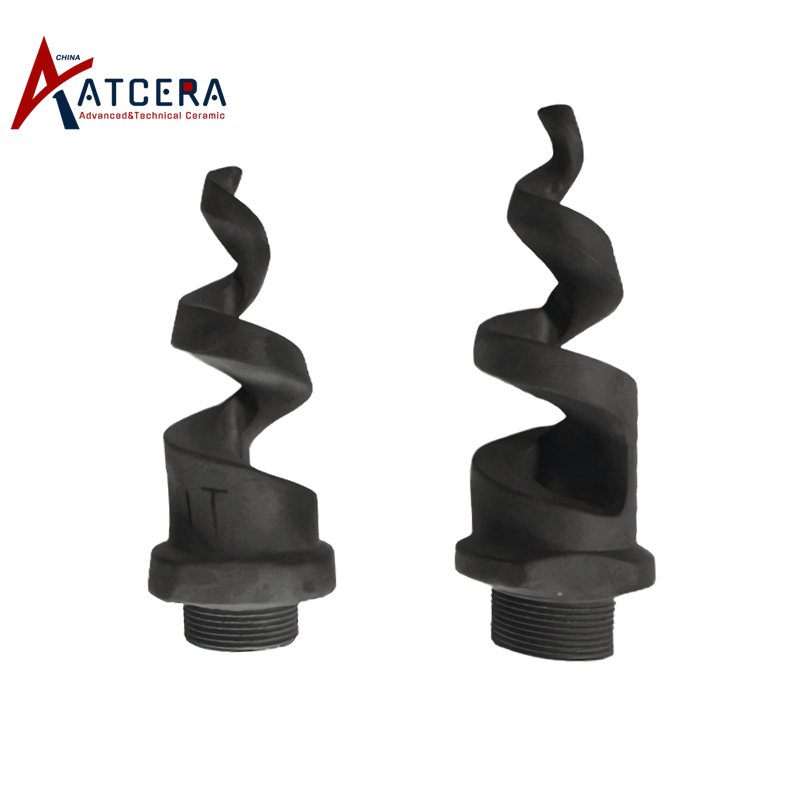

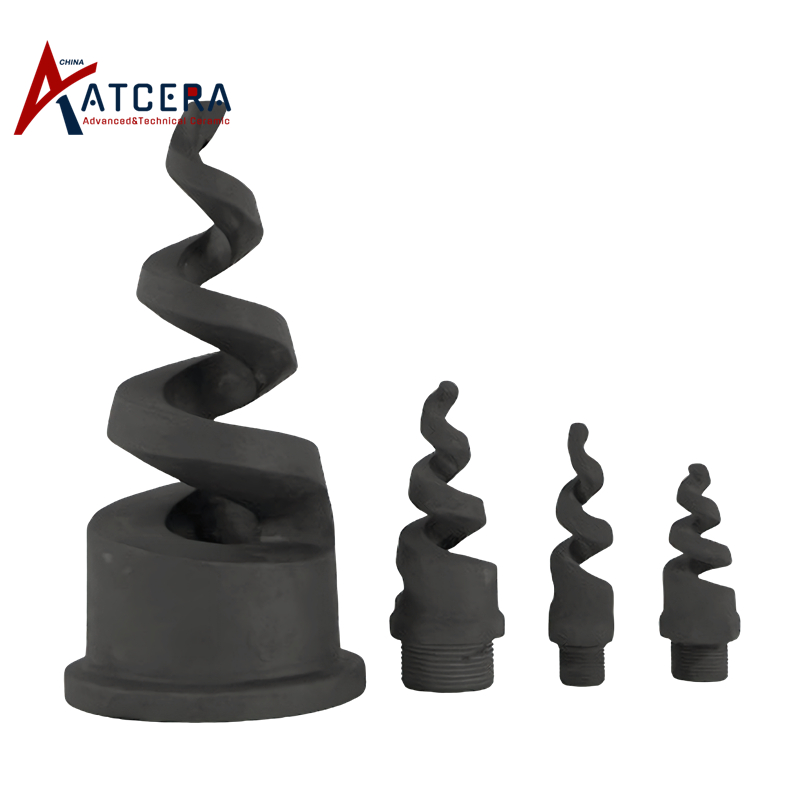

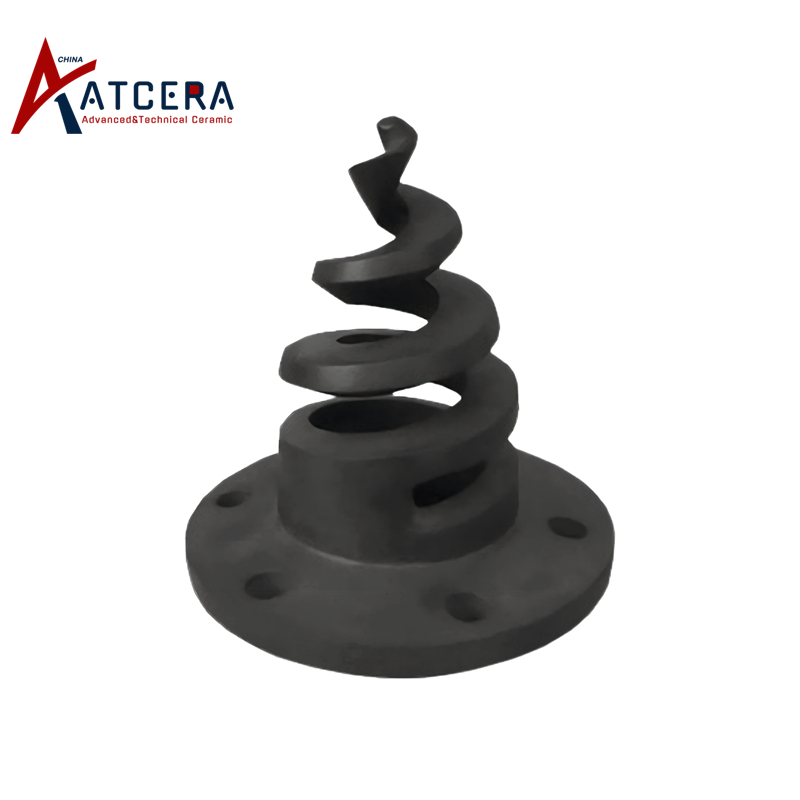

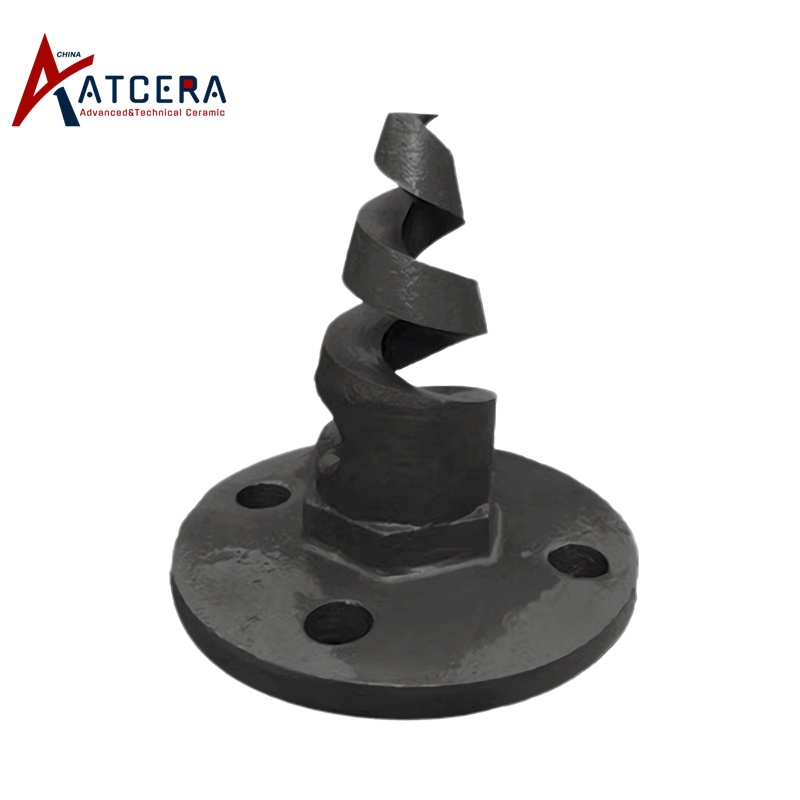

Silicon Carbide Ceramic Spiral Nozzle

Silicon carbide spiral nozzle is made of silicon carbide powder as raw material, through forming and high temperature sintering processes, its shape is a spiral body with reducing diamter, liquid can be sprayed into a cone shape through it. It can be used in industrial production, fire safety, agricultural planting and other industries, to achieve purpose of spraying, cleaning, cooling, humidification, dust removal, desulfurization, irrigation, etc.

Brand:
ATCERA
Item NO.:
AT-THG-LW001

Materials
SiC
Shapes
Mechanical Parts
Applications
Mechanical Parts , Petrochemical Industry , Food Processing , Metallurgy Industry

Inquire Now

Properties of Silicon Carbide Ceramic Spiral Nozzle

1. Good corrosion resistance

Silicon carbide spiral nozzle has good corrosion resistance, can directly spray acid, alkali and other chemicals, generally do not produce chemical reactions, can be applied to various liquid spraying and corrosive working environment.

2. Good wear resistance

Silicon carbide hardness is high, compared with metal or plastic nozzles, silicon carbide nozzle has better wear resistance, wear during use is very small, so the service life is long.

3. No rust or aging

Compared with metal nozzles, silicon carbide nozzle is not easy to rust during long term contact with water, and there is no need to consider maintenance problems in humid environments.

4. Good high temperature resistance

The silicon carbide nozzle has good high temperature resistance, can work continuouslly for a long time in the environment of higher than 1500℃, and has good thermal shock resistance, not easy to crack due to hot and cold alternately.

Applications of SiC Spiral Nozzle

1. Spray coating

In the automotive, shipbuilding industry, construction and other industries, silicon carbide nozzle can be used to form a film by spraying paint evenly onto the surface of the coated material. The quality and efficiency of the coating are high, and the waste of the coating can be reduced.

2. Washing and cleaning

Silicon carbide nozzle can be used for washing and cleaning purpose, by spraying water or detergent at high pressure and high speed to the surface of the object, to remove stains and dirt.

3. Cooling and humidification

Silicon carbide nozzles can be used for humidification or cooling by spraying water mist or steam onto the object surface or to the air.

4. Fuel combustion

Silicon carbide nozzles can be used in combustion engineering to spit out gas or liquid fuel at a certain pressure, mix with air and ignite, and improve fuel combustion efficiency.

Size Chart for Silicon Carbide Spiral Nozzle

We are committed to delivering optimal silicon carbide spiral nozzles tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Send Requirements for Custom Design

1. Nozzle application

2. Drawing and specification, shall be provided if customized design request.

Silicon Carbide Spiral Nozzle
Item NO.	Inches	Thread Size (mm)	Atomization Angle	Flow Rate Range (m³/h)	Coverage Diameter (m)	Connection Type
AT-THG-LW001	3/8	18	120°	2.5	0.8	Threaded Connection
AT-THG-LW002	1/2	20	120°	4	1	Threaded Connection
AT-THG-LW003	3/4	25	120°	6	1.2	Threaded Connection
AT-THG-LW004	1	32	120°	12	1.4	Adhesive/Threaded Connection
AT-THG-LW005	1.2	40	120°	15	1.6	Adhesive/Threaded Connection
AT-THG-LW006	1.5	46	120°	20	1.8	Adhesive/Threaded Connection
AT-THG-LW007	2	58	120°	30	2.3	Adhesive/Threaded Connection
AT-THG-LW008	2.5	73	120°	45	2.3	Adhesive/Threaded Connection
AT-THG-LW009	3	Adhesive	120°	70	2.8	Adhesive Connection
AT-THG-LW010	4	Adhesive	120°	100	3	Adhesive Connection

Technical Data of Silicon Carbide Materials

Item		Unit	Index Data
Item		Unit	Reaction-sintered SiC (SiSiC)	Silicon Nitride Bonded With SiC (NBSiC)	Sintered SiCn Without Pressure (SSiC)
SiC Content		%	85	80	99
Free Silicon Content		%	15	0	0
Max. Service Temp.		℃	1380	1550	1600
Density		g/cm3	3.02	2.72	3.1
Porosity		%	0	12	0
Bending Strength	20℃	Mpa	250	160	380
Bending Strength	1200℃	Mpa	280	180	400
Modulus of Elasticity	20℃	Gpa	330	220	420
Modulus of Elasticity	1200℃	Gpa	300	/	/
Thermal Conductivity	1200℃	W/m.k	45	15	74
Coefficient of Thermal Expansion		K-1×10-6	4.5	5	4.1
Vickers Hardness	HV	kg/mm2	2500	2500	2800

*This chart illustrates the standard characteristics of the silicon carbide materials commonly employed in the manufacturing of our SiC products and parts. Please be aware that the attributes of customized silicon carbide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Nozzle selection

Select appropriate size nozzle according to the application, for instance, large diameter nozzles can be used to spray viscous liquids, and when spray small objests small diameter nozzle shall be selected.

2. Adjust the spray angle and distance

The injection angle and distance will affect the use efficiency and need to be adjusted according to the application and use requirements.

3. Keep the nozzle clean

Silicon carbide nozzle is easily to be polluted by dust, oil and other substances during use, so it need to be cleaned regularly. Special cleaning agents should be used when clean it, and metal tools shall not be used to not scratch the nozzle.

4. Avoid collision:

During the transportation and installation of silicon carbide nozzles, collisions and falls should be avoided.

5. Use temperature and pressure

Silicon carbide nozzle can not be used at too high temperature condition to avoid bursting, and the working pressure can not exceed its specified range, to not affect the service life.

Valuable Information

Silicon Carbide Ceramic Spiral Nozzle Packing

Silicon carbide spiral nozzles are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
