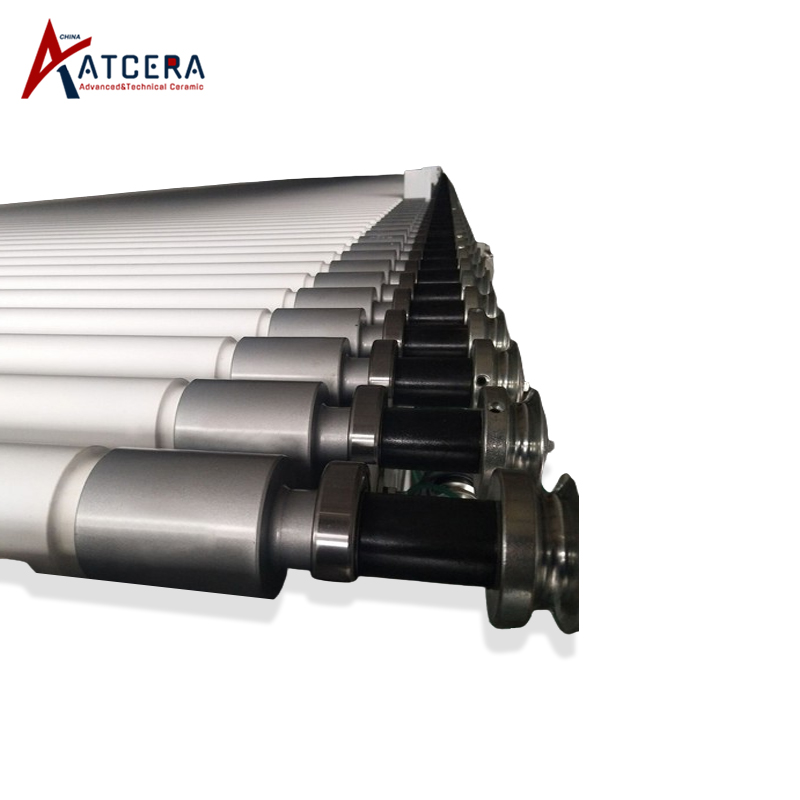

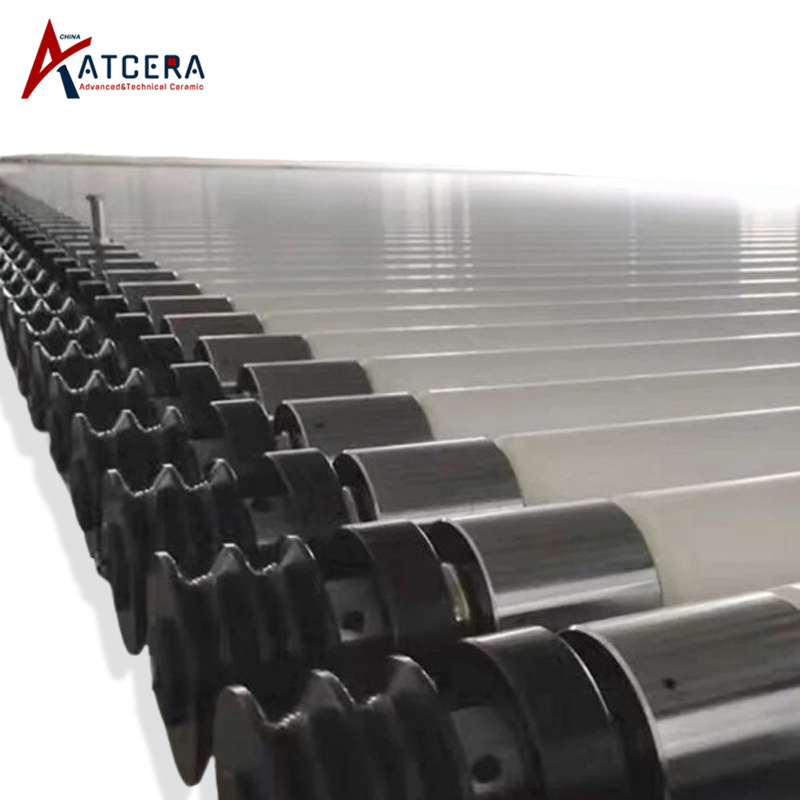

Quartz Ceramic Roller With Metal Head for Heating and Processing

Quartz ceramic roller is a combination of ceramic body, bearing, shaft and sealing ring, with high temperature resistance, good thermal shock resistance, small thermal expansion coefficient, no deformation at high temperature, long service life. It is the key component in the glass horizontal tempering furnace, mainly used for carrying and transmitting glass in the furnace, with smooth surface and no damage to the glass. It can also be used in annealing furnaces to carry and transmit solar cells.

Brand:
ATCERA
Item NO.:
AT-SYT-G1001

Materials
Quartz Ceramics
Shapes
Mechanical Parts
Applications
Metallurgy Industry , Photovoltaic Cell Industry

Inquire Now

Advantages of Quartz Ceramic Roller With Metal Head

Quartz ceramic roller has high temperature resistance, good thermal shock resistance, small thermal expansion coefficient, no deformation at high temperature, long service life.

application of Fused Silica Ceramic Rollers

Applications of Quartz Ceramic Roller

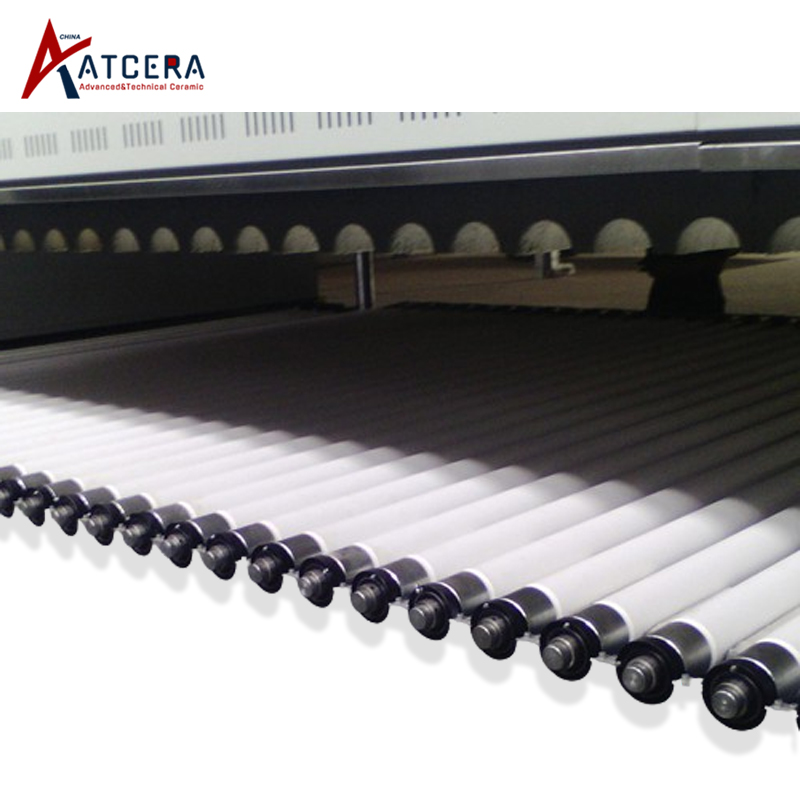

Quartz ceramic roller is the key component in the glass horizontal tempering furnace, mainly used for carrying and transmitting glass in the furnace, with smooth surface and no damage to the glass. It can also be used in annealing furnaces to carry and transmit solar cells.

Product Parameters
Material Parameters

Size Chart of Fused Silica Quartz Ceramic Roller

Committed to providing optimal fused silica quartz ceramic roller customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.

Send Requirements for Custom Design

Please provide drawing and parameter requirements for customization.

Quartz Ceramic Roller
Item NO.	Specifications	Diameter(mm)	Length(mm)	SiO2(%)
AT-SYT-G1001	15*600	15	600	99.8
AT-SYT-G1002	20*800	20	800	99.8
AT-SYT-G1003	25*1000	25	1000	99.8
AT-SYT-G1004	30*1200	30	1200	99.8
AT-SYT-G1005	35*1250	35	1250	99.8
AT-SYT-G1006	40*1600	40	1600	99.8
AT-SYT-G1007	45*1800	45	1800	99.8
AT-SYT-G1008	50*2000	50	2000	99.8
AT-SYT-G1009	55*2280	55	2280	99.8
AT-SYT-G1010	60*2571	60	2571	99.8
AT-SYT-G1011	35*1230	35	1230	99.8
AT-SYT-G1012	70*2714	70	2714	99.8
AT-SYT-G1013	75*2987	75	2987	99.8
AT-SYT-G1014	85×3360	85	3360	99.8
AT-SYT-G1015	95×3805	95	3805	99.8
AT-SYT-G1016	Customized	20-31	1600-3100	99.8
AT-SYT-G1017	Customized	32	1800-3100	99.8
AT-SYT-G1018	Customized	33.7	1800-3100	99.8
AT-SYT-G1019	Customized	35	2000-3200	99.8
AT-SYT-G1020	Customized	36	2000-3300	99.8
AT-SYT-G1021	Customized	40	2000-3500	99.8
AT-SYT-G1022	Customized	42	2200-3800	99.8
AT-SYT-G1023	Customized	45	2200-3800	99.8
AT-SYT-G1024	Customized	50	2400-4600	99.8
AT-SYT-G1025	Customized	55	2700-5000	99.8
AT-SYT-G1026	Customized	60	2700-5000	99.8
AT-SYT-G1027	Customized	65-120	3000-5000	99.8
AT-SYT-G1028	Customized	150	1800-2600	99.8
AT-SYT-G1029	Customized	180	1800-2600	99.8
AT-SYT-G1030	Customized	300	2000-3800	99.8

Technical Data of Quartz Ceramic Materials

Purity (%)	>99.8	>99.5
Density (g/cm3)	1.9-1.95	1.9-1.95
Flexture strength (MPa)	28	28
Compressive strength (MPa)	>50	>50
Bending strength (MPa)	25	25
Maximum working temperature (℃)	1650	1650
*Thermal conductivity (W/mK)**	<1	<1
Thermal expansion coefficient (/℃)	8.5*10-7	8.5*10-7
number of use	≥10	≥10

*This chart illustrates the standard characteristics of the quartz ceramic materials commonly employed in the manufacturing of our quartz ceramic products and parts. Please be aware that the attributes of customized quartz ceramic products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Valuable Information

Fused Silica Quartz Ceramic Roller Packing

Fused silica quartz ceramic rollers are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
