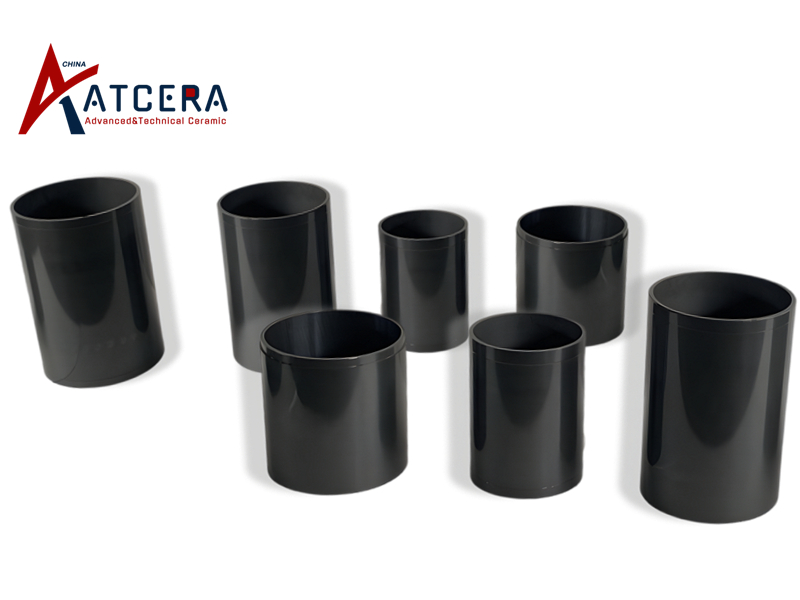

Silicon carbide sleeve

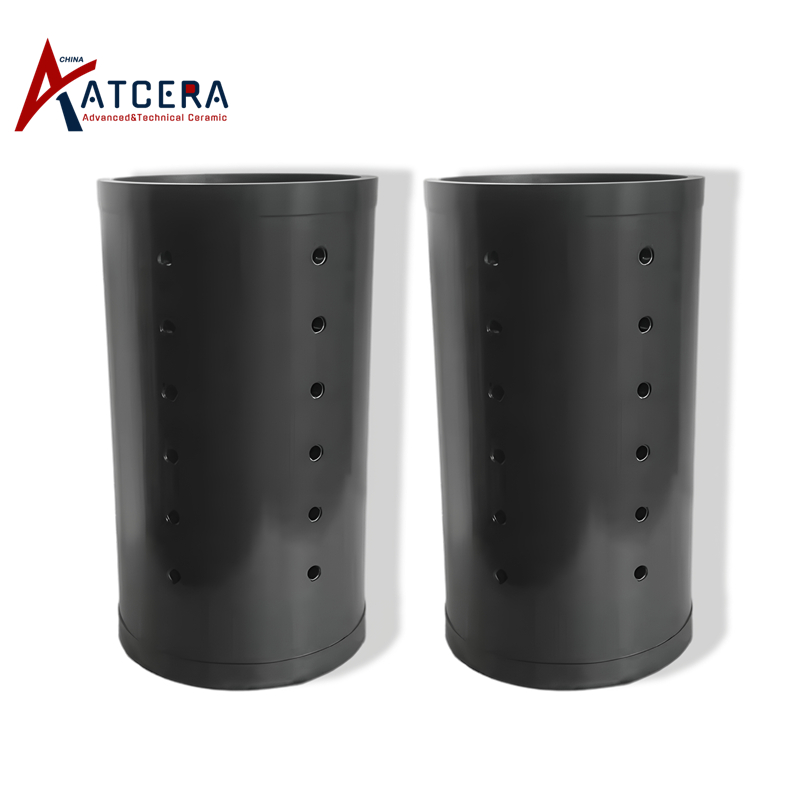

Silicon carbide sleeve

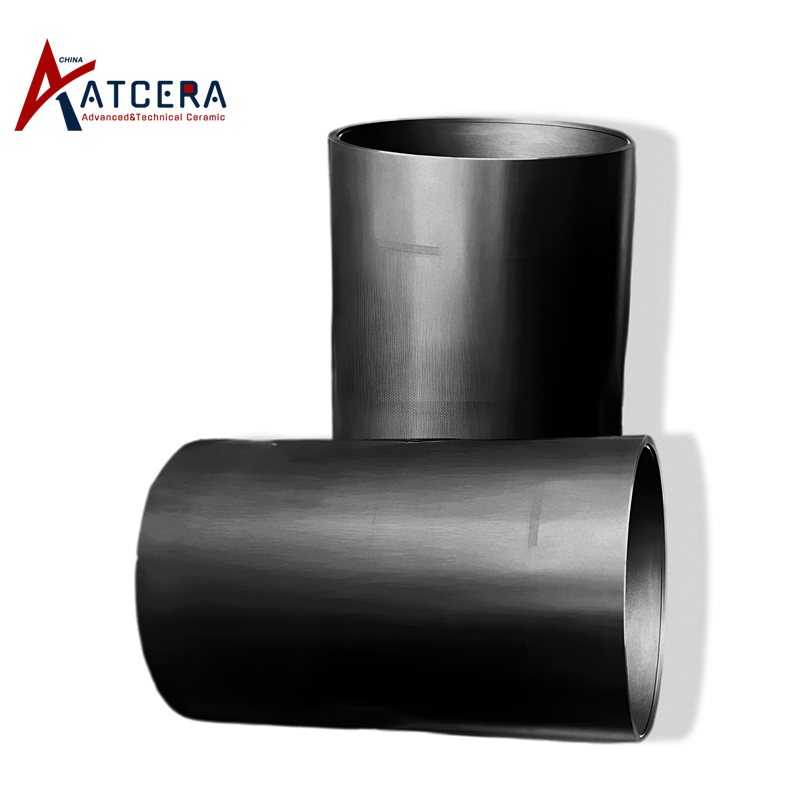

Silicon carbide sleeve

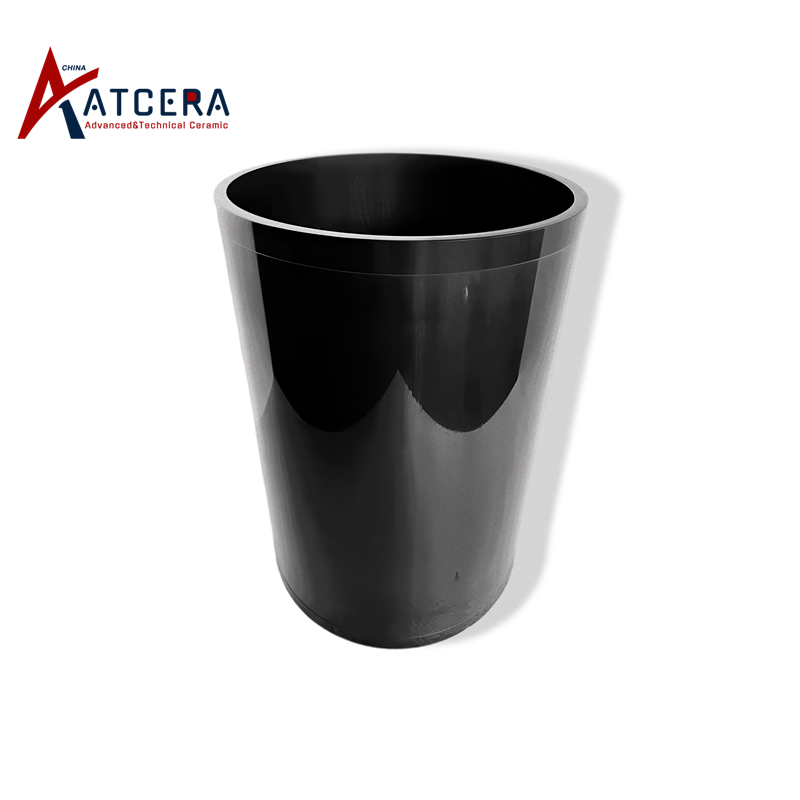

Silicon carbide sleeve

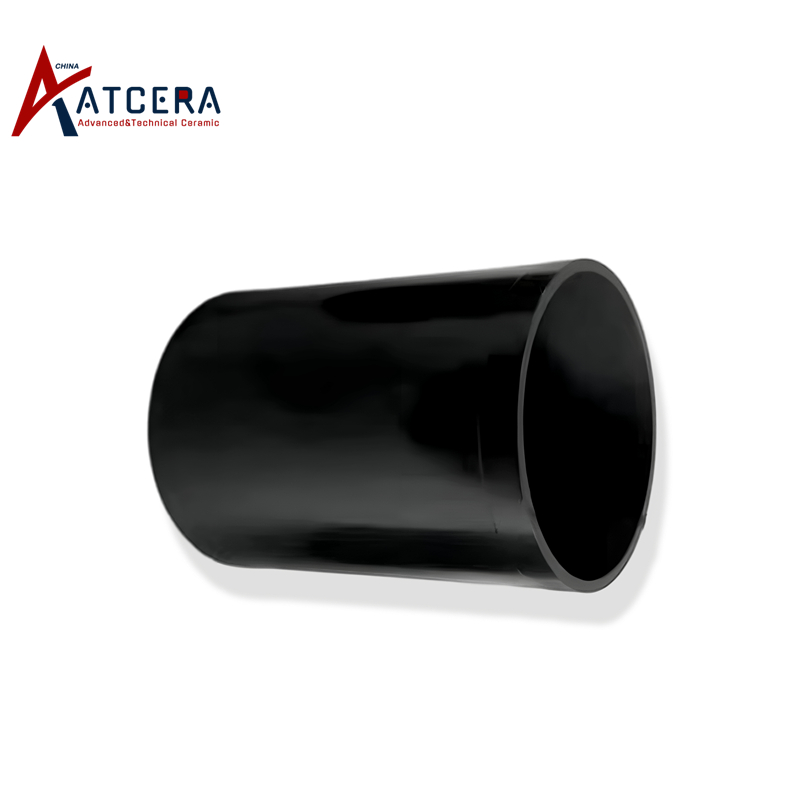

Silicon carbide sleeve

Silicon Carbide Sleeve SiC Ceramic Liner

Silicon carbide ceramic sleeve is used as wear resistant and corrosion resistant liner for cylinder, pump, valve, sliding bearing, grinder drum and other equipment, can be replaced regularly, to avoid excessive wear of metal structure resulting in equipment failure, greatly extend the service life of equipment.

  • Brand:

    ATCERA
  • Item NO.:

    AT-THG-YMT
  • Materials

    SiC
  • Shapes

    Mechanical Parts
  • Applications

    Mechanical Parts , Petrochemical Industry , Metallurgy Industry

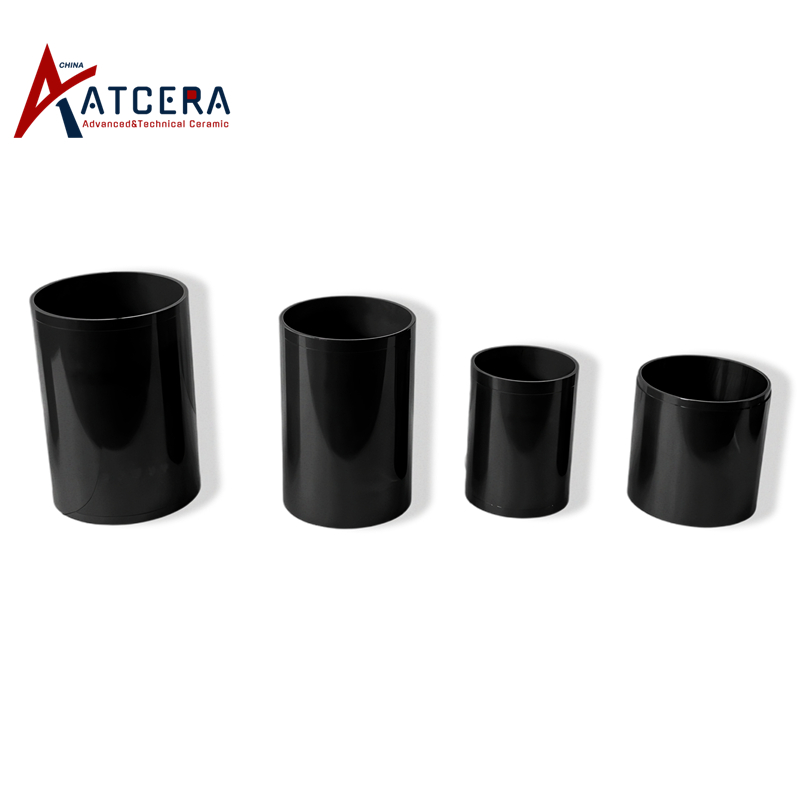

Silicon carbide sleeve

Properties of Silicon Carbide Sleeve



Silicon carbide sleeve has high hardness, small friction coefficient, good wear resistance, high temperature resistance, corrosion resistance, high strength, good thermal shock resistance, and small thermal expansion coefficient.



1. Silicon carbide ceramic sleeve high hardness, Vickers hardness is higher than 23GPa, with very good wear resistance, long service life, the sleeve replacement frequency can be reduced;



2. Silicon carbide has high temperature resistance, good thermal shock resistance, small thermal expansion coefficient, corrosion resistance, it is suitable for a variety of harsh working environment;



3. Silicon carbide ceramic material is non-toxic or harmless, the material can pass the FDA certification, no pollution to the material, and can meet the requirements of food-grade media transportation;



4. Silicon carbide sleeve surface roughness is small, with self-lubricating effect and small friction coefficient;



5. With high mechanical strength, strong bearing capacity, available to meet the requirements of high pressure and high load.

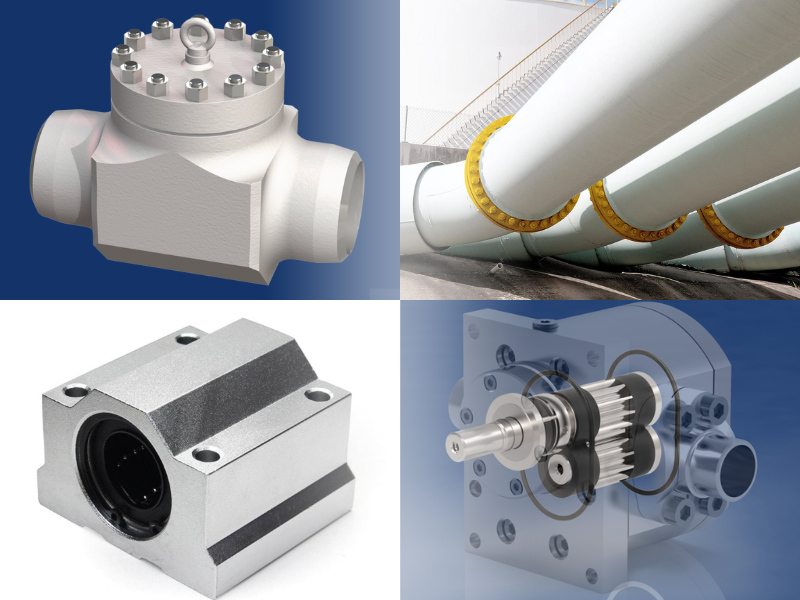

Applications of SiC Ceramic Liner

Applications of SiC Ceramic Liner



As a wear-resistant and corrosion-resistant liner, it is widely used in strong corrosion, particle erosion, high temperature conditions of the conveying pipe, cylinder, bearing sleeve or grinder drum.



1. Machinery industry

Silicon carbide sleeve has high hardness, good wear resistance, high surface finish and small friction coefficient, which can be used as the liner of sliding bearing, cylinder and other parts, to reduce friction loss and extend service life;





2. Chemical industry

Silicon carbide sleeve has good corrosion resistance, does not react with a variety of strong acids and alkalis and other chemicals, can be used as the liner of chemical pumps, valves, pipelines and other components to avoid chemical corrosion of the components;





3. Metallurgy, ceramics and other industries

The silicon carbide sleeve has good wear resistance and no pollution to grinding materials, and can be used as the liner of the grinder drum to extend the drum replacement cycle of the grinder.



Customized Design for SiC Ceramic Liner

We are committed to delivering optimal silicon carbide sleeve tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.



Drawing and specification requirement shall be provided if customized design request.(Diameter≤350mm, Length≤2000mm)



Machining Tolerance:
1. Diameter: ±0.05mm
2. Surfance Roughness: Ra0.8







Customized Design for SiC Ceramic Liner





Technical Data of Silicon Carbide Materials



Item Unit Index Data
Reaction-sintered SiC
(SiSiC)
Silicon Nitride Bonded With SiC
(NBSiC)
Sintered SiCn Without Pressure
(SSiC)
SiC Content % 85 80 99
Free  Silicon Content % 15 0 0
Max. Service Temp. 1380 1550 1600
Density g/cm3 3.02 2.72 3.1
Porosity % 0 12 0
Bending Strength 20℃ Mpa 250 160 380
1200℃ Mpa 280 180 400
Modulus of Elasticity 20℃ Gpa 330 220 420
1200℃ Gpa 300 / /
Thermal Conductivity 1200℃ W/m.k 45 15 74
Coefficient of Thermal Expansion K-1×10-6 4.5 5 4.1
Vickers Hardness HV kg/mm2 2500 2500 2800



*This chart illustrates the standard characteristics of the silicon carbide materials commonly employed in the manufacturing of our SiC products and parts. Please be aware that the attributes of customized silicon carbide products and parts may vary depending on the specific processes involved.



Usage Instructions




1. Select the appropriate silicon carbide sleeve according to the design size and working environment, so as to avoid premature aging of the sleeve and reduce its service life;


2. Clean the dust and impurities of the silicon carbide sleeve and the mating surface before installation, to ensure the service life of the silicon carbide seal;


3. Install the silicon carbide sleeve in the correct direction, so as not to cause the fitting is not tight with gaps, or the extrusion pressure is too large to cause damage;


4. The ambient temperature of the silicon carbide seal ring should not exceed the maximum use temperature;


5. The status of silicon carbide sleeve should be checked regularly, should be replaced in time if any cracks or damage.


Valuable Information



SiC Ceramic Liner Packing

SiC Ceramic Liner Packing



Silicon carbide liners are carefully packaged in appropriate containers to avoid any potential damage.



















Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
