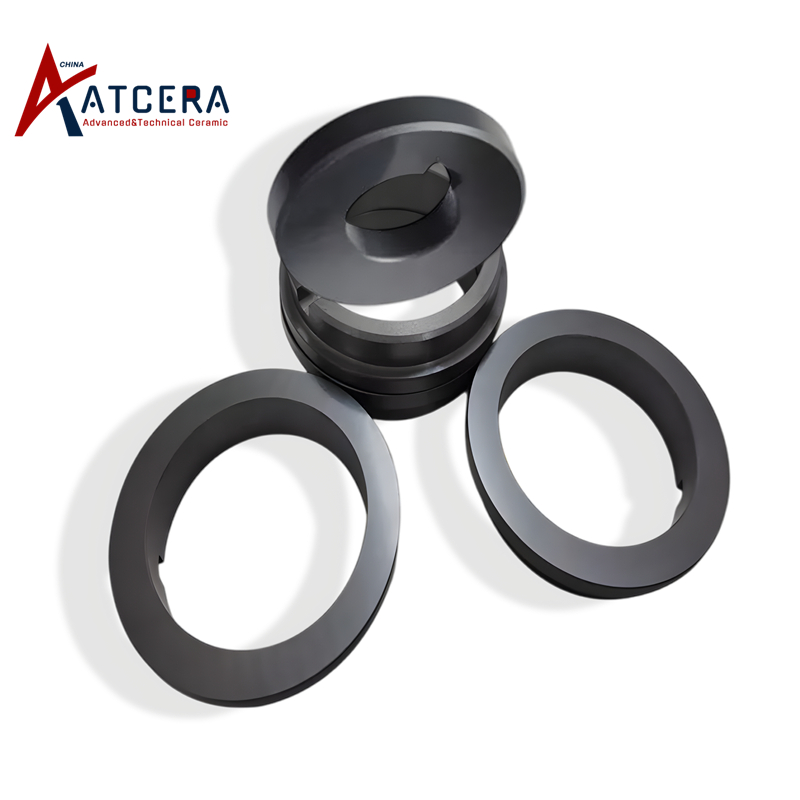

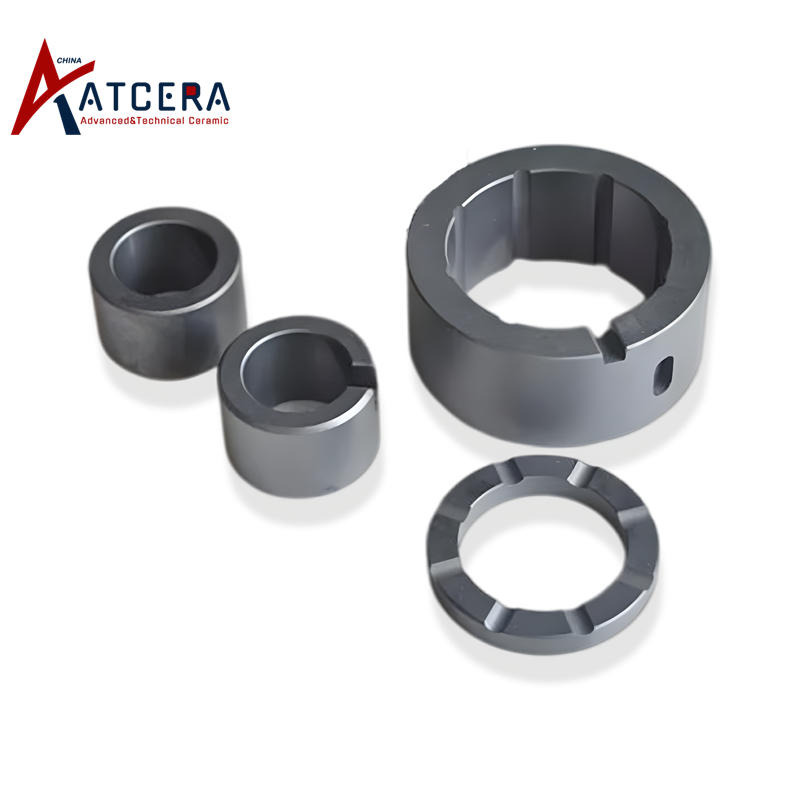

Silicon Carbide Sealing Ring SiC Seal Ring

Silicon carbide sealing ring is a kind of seal made of silicon carbide ceramic, which is widely used in the connection part of various mechanical equipment to prevent gas or liquid leakage.

  • Brand:

    ATCERA
  • Item NO.:

    AT-SC-H001
  • Materials

    SiC
  • Shapes

    Ring , Mechanical Parts
  • Applications

    Mechanical Parts , Petrochemical Industry , Metallurgy Industry

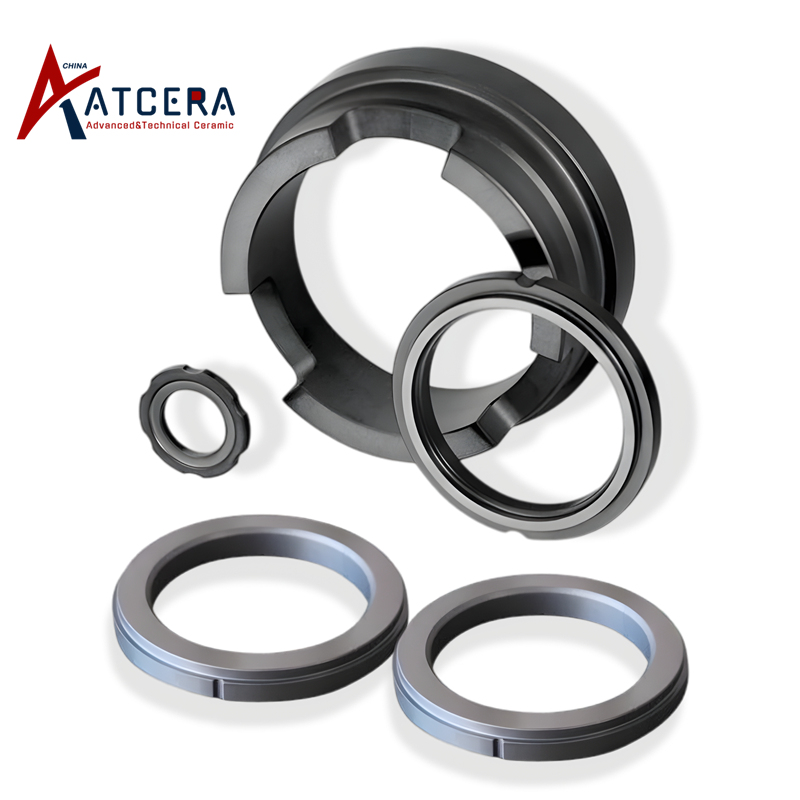

SiC mechanical rings

Properties of Silicon Carbide Sealing Ring



1. Good corrosion resistance

The silicon carbide seal ring is resistant to acid, alkali and other chemicals, and can be applied to a variety of corrosive media in the environment;



2. Good wear resistance

Silicon carbide seal ring material has high hardness, wear resistance is good, and service life is long;



3. High temperature resistance

Silicon carbide seal ring has good high temperature resistance, the highest use temperature can reach up to 1600℃;



4. Low thermal expansion coefficient

Thermal expansion coefficient of silicon carbide is small, and SiC sealing ring can adapt to a very wide operating temperature range, low temperature does not affect the sealing effect, and expansion stress under high temperature is small.

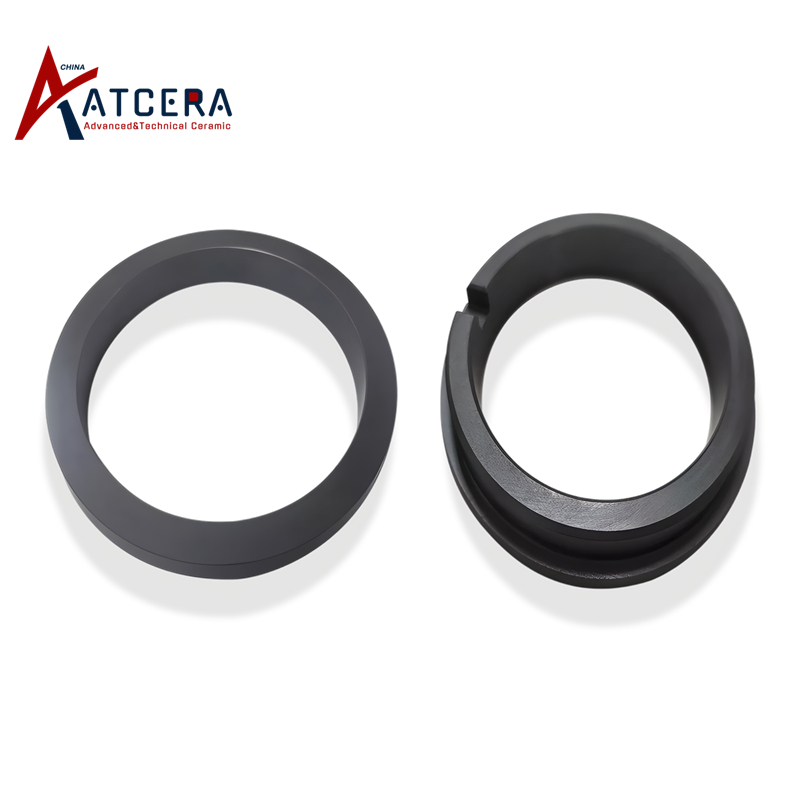

Applications of SiC Seal Ring

Applications of SiC Seal Ring



Silicon carbide sealing ring is mainly used to prevent water, oil, chemicals or gas leakage, or dust, air and other matters getting inside to the equipment. It's widely used in connection part of pipelines, pumps, valves and other equipment, end face or entrance of sealing containers or equipment, as well as the bearing sides of the drive shaft, the sealing effect is good, and replacement cycle is long.

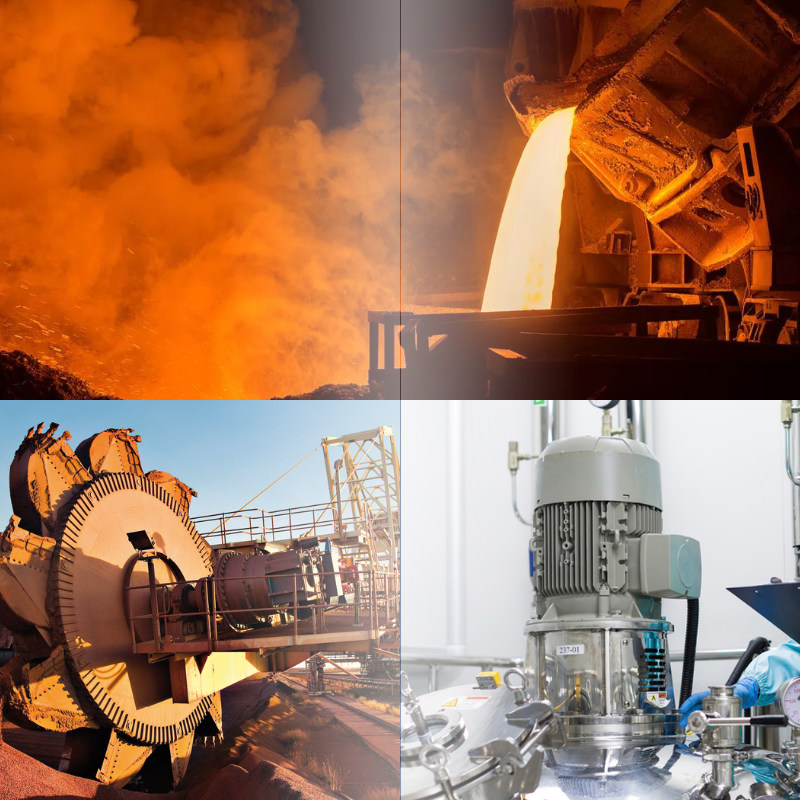

1. Chemical equipment

Silicon carbide seal ring has good corrosion resistance, performance is not affected by acid, alkali and other chemicals, can be used in a variety of chemical equipment;



2. Mining and engineering machinery

Silicon carbide sealing ring material high hardness, good wear resistance, and high compressive strength, can be used for high load, high dust environment, replacement cycle is long;



3. Metal smelting furnace and other high temperature equipment

The silicon carbide sealing ring has good high temperature resistance, thermal expansion is small and thermal stress to equipment is small, which can effectively ensure the reliability of the equipment.



Size Chart for Silicon Carbide Sealing Ring

We are committed to delivering optimal silicon carbide seal ring tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.



The requirements below shall be provided if customized design request.
1. Use environment and working temperature;
2. Size and tolerance requirements of outer diameter, inner diameter and thickness;
3. Drawings and specifications requirements.

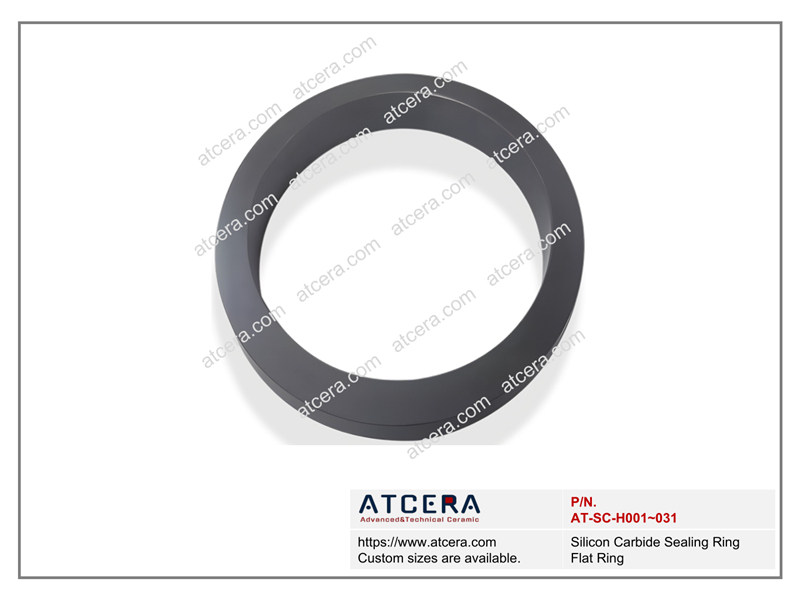

Drawing of Silicon Carbide Sealing Ring Flat Ring

Silicon Carbide Sealing Ring Flat Ring
Item NO. Outer Diameter
(mm)
Inner Diameter
(mm)
Height
(mm)
SiC’s Purity
AT-SC-H001 10.0  5.0  2.1  99
AT-SC-H002 10.0  6.0  3.5  99
AT-SC-H003 11.0  6.0  3.0  99
AT-SC-H004 11.5  4.0  3.5  99
AT-SC-H005 11.9  6.0  4.5  99
AT-SC-H006 12.0  6.0  4.0  99
AT-SC-H007 12.9  8.5  3.0  99
AT-SC-H008 14.5  8.5  3.5  99
AT-SC-H009 14.5  8.0  4.0  99
AT-SC-H010 14.5  9.0  3.5  99
AT-SC-H011 14.5  9.0  4.0  99
AT-SC-H012 14.5  10.0  4.0  99
AT-SC-H013 14.5  8.5  3.5  99
AT-SC-H014 18.0  12.0  4.0  99
AT-SC-H015 20.0  6.0  4.0  99
AT-SC-H016 22.3  15.2  11.0  99
AT-SC-H017 25.0  16.0  6.0  99
AT-SC-H018 25.0  18.0  6.0  99
AT-SC-H019 26.0  14.0  4.0  99
AT-SC-H020 26.0  20.0  5.0  99
AT-SC-H021 28.0  12.0  4.0  99
AT-SC-H022 28.0  22.0  7.0  99
AT-SC-H023 28.0  21.0  4.0  99
AT-SC-H024 31.0  18.0  10.0  99
AT-SC-H025 32.0  20.0  3.0  99
AT-SC-H026 32.8  22.6  11.0  99
AT-SC-H027 34.0  23.0  4.5  99
AT-SC-H028 34.5  28.0  5.0  99
AT-SC-H029 36.0  20.0  10.0  99
AT-SC-H030 36.0  26.0  14.0  99
AT-SC-H031 37.0  30.0  7.0  99

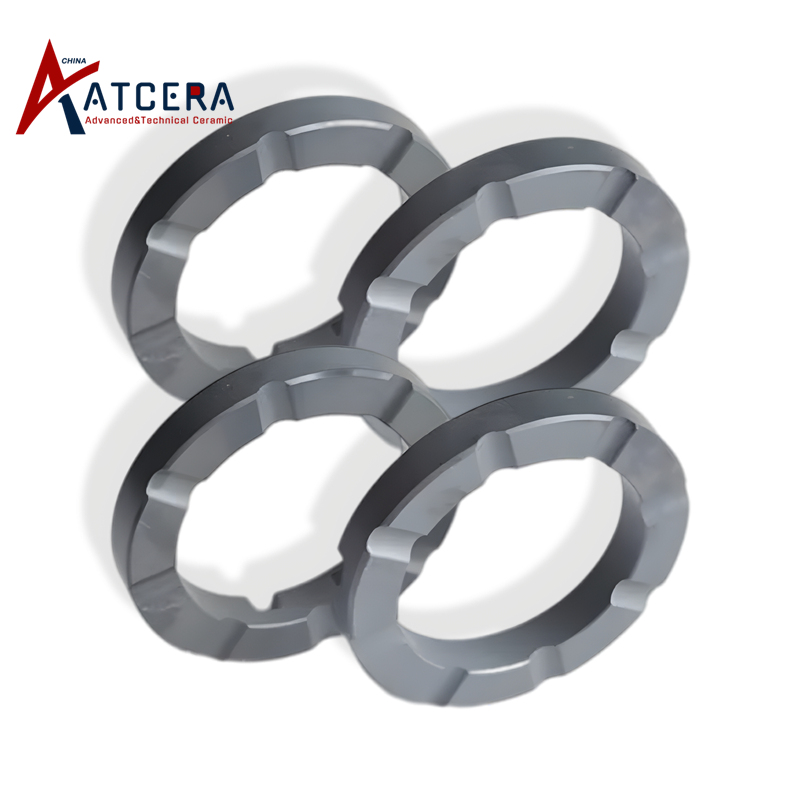

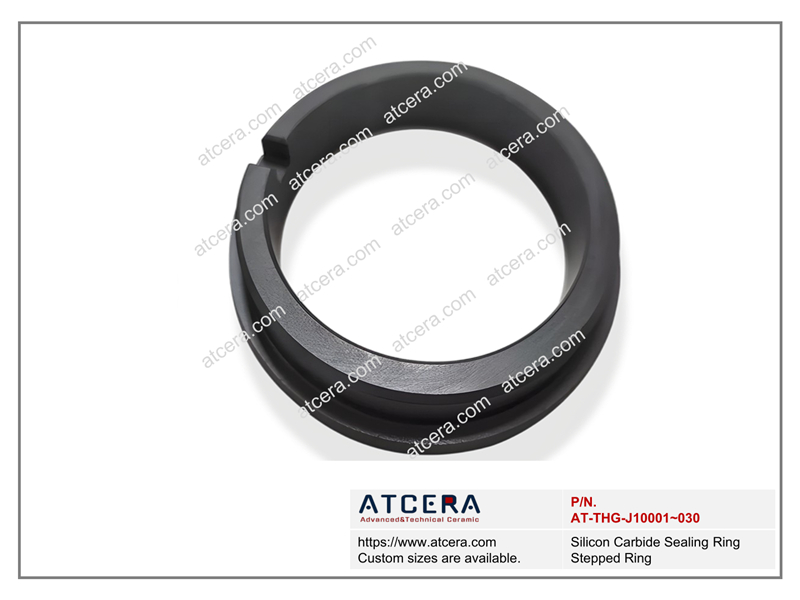

Drawing of Silicon Carbide Sealing Ring Stepped Ring

Silicon Carbide Sealing Ring Stepped Ring
Item NO. Outer Diameter
(mm)
Inner Diameter
(mm)
Thickness
(mm)
Height
(mm)
SiC’s Purity
AT-THG-J10001 1-150 0.5-140 0.25-50 1-50 98.5
AT-THG-J10002 25 15 5 15 98.5
AT-THG-J10003 26 12 2 4 98.5
AT-THG-J10004 31.60  20.49  5.56  11.11  98.5
AT-THG-J10005 34.77  23.66  5.56  11.11  98.5
AT-THG-J10006 37.95  26.95  5.50  12.70  98.5
AT-THG-J10007 41.12  29.92  5.60  12.70  98.5
AT-THG-J10008 47.47  33.30  7.09  12.70  98.5
AT-THG-J10009 50.65  36.40  7.13  12.70  98.5
AT-THG-J10010 53.82  39.57  7.13  12.70  98.5
AT-THG-J10011 57.00  42.66  7.17  12.70  98.5
AT-THG-J10012 60.17  46.03  7.07  12.70  98.5
AT-THG-J10013 63.35  49.20  7.08  12.70  98.5
AT-THG-J10014 66.52  52.38  7.07  12.70  98.5
AT-THG-J10015 69.70  55.86  6.92  14.90  98.5
AT-THG-J10016 72.87  59.03  6.92  14.90  98.5
AT-THG-J10017 76.05  62.21  6.92  14.90  98.5
AT-THG-J10018 79.22  65.38  6.92  15.88  98.5
AT-THG-J10019 82.40  68.63  6.89  15.88  98.5
AT-THG-J10020 85.57  71.81  6.88  15.88  98.5
AT-THG-J10021 88.75  74.98  6.89  15.88  98.5
AT-THG-J10022 91.92  78.16  6.88  15.88  98.5
AT-THG-J10023 95.10  81.30  6.90  15.88  98.5
AT-THG-J10024 98.27  84.51  6.88  15.88  98.5
AT-THG-J10025 101.45  87.68  6.89  15.88  98.5
AT-THG-J10026 104.62  90.86  6.88  17.46  98.5
AT-THG-J10027 107.80  94.16  6.82  17.46  98.5
AT-THG-J10028 114.15  97.33  8.41  17.46  98.5
AT-THG-J10029 117.32  100.21  8.56  17.46  98.5
AT-THG-J10030 120.20  103.68  8.26  17.46  98.5

Technical Data of Silicon Carbide Materials



Item Unit Index Data
Reaction-sintered SiC
(SiSiC)
Silicon Nitride Bonded With SiC
(NBSiC)
Sintered SiCn Without Pressure
(SSiC)
SiC Content % 85 80 99
Free  Silicon Content % 15 0 0
Max. Service Temp. 1380 1550 1600
Density g/cm3 3.02 2.72 3.1
Porosity % 0 12 0
Bending Strength 20℃ Mpa 250 160 380
1200℃ Mpa 280 180 400
Modulus of Elasticity 20℃ Gpa 330 220 420
1200℃ Gpa 300 / /
Thermal Conductivity 1200℃ W/m.k 45 15 74
Coefficient of Thermal Expansion K-1×10-6 4.5 5 4.1
Vickers Hardness HV kg/mm2 2500 2500 2800



*This chart illustrates the standard characteristics of the silicon carbide materials commonly employed in the manufacturing of our SiC products and parts. Please be aware that the attributes of customized silicon carbide products and parts may vary depending on the specific processes involved.



Usage Instructions




1. Select the appropriate silicon carbide seal ring according to the design size and working environment, so as to avoid premature aging of the seal ring and reduce the service life of the seal ring;

2. Clean the dust and impurities of the silicon carbide seal ring and the mating surface before installation, to ensure the service life of the silicon carbide seal;

3. Install the sealing ring in the correct direction, so as not to cause poor sealing effect;

4. The ambient temperature of the silicon carbide seal ring should not exceed the maximum use temperature, if the temperature is too high, it will cause the aging of the seal and reduce the service life of the seal ring.


Valuable Information

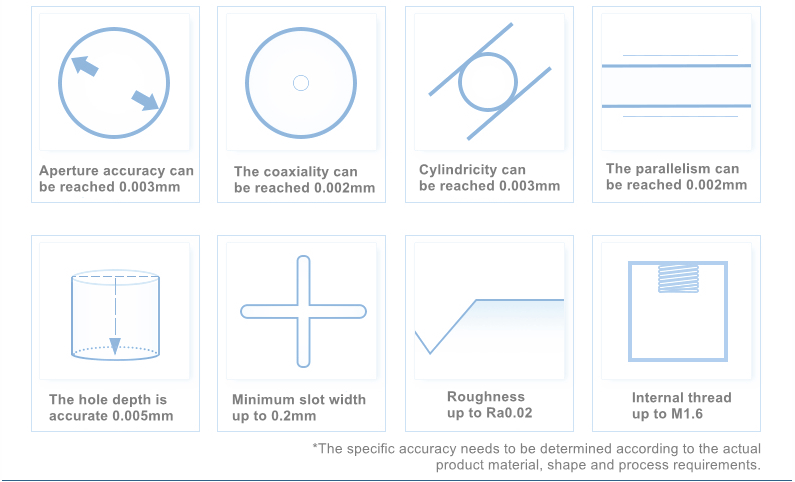

Machining Precision

Machining Precision of SiC Seal Ring



1. Diameter Tolerance: ±0.003mm

2. Surfance Roughness: Ra0.02

3. Cylindricity: ±0.003mm

4. Concentricity: ±0.002mm

5. Parallelism: ±0.002mm



Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
