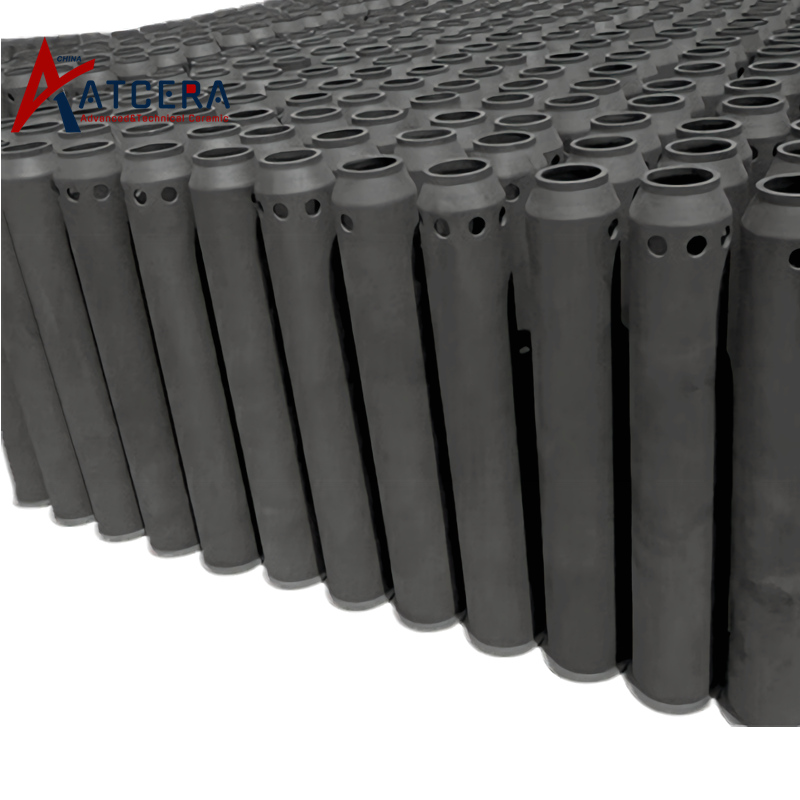

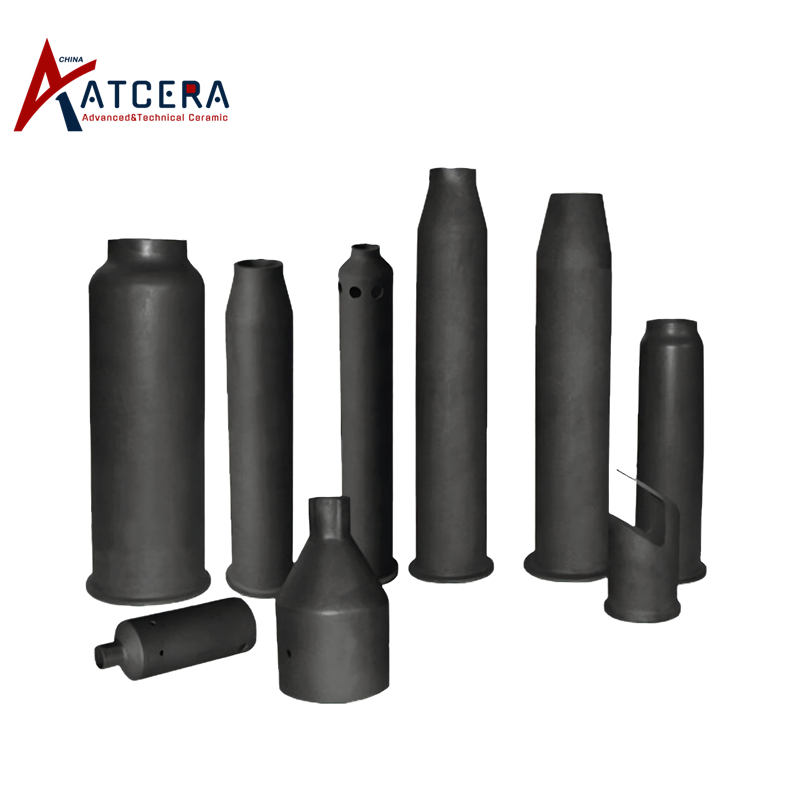

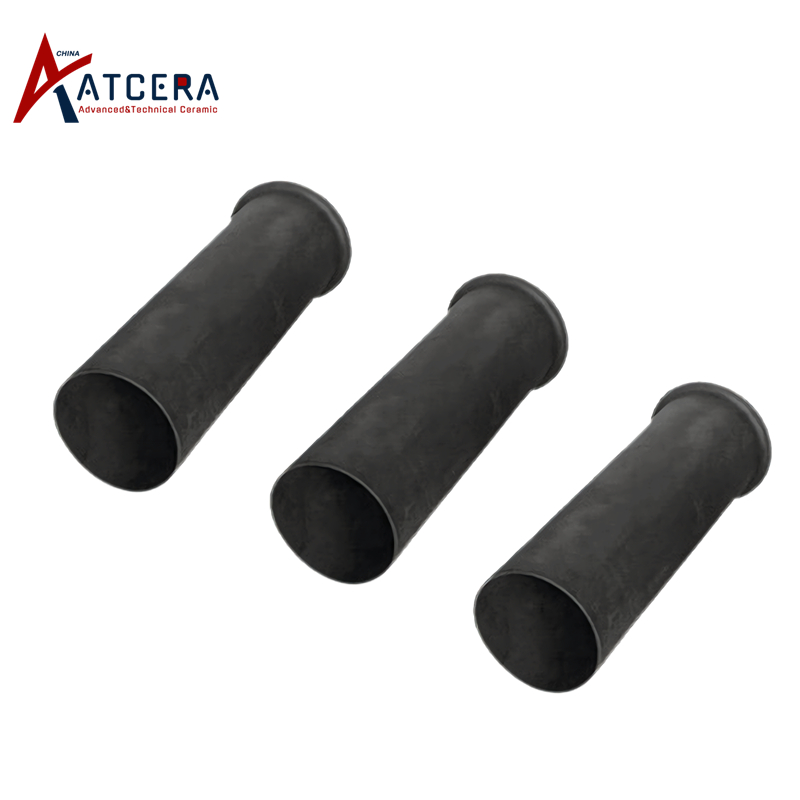

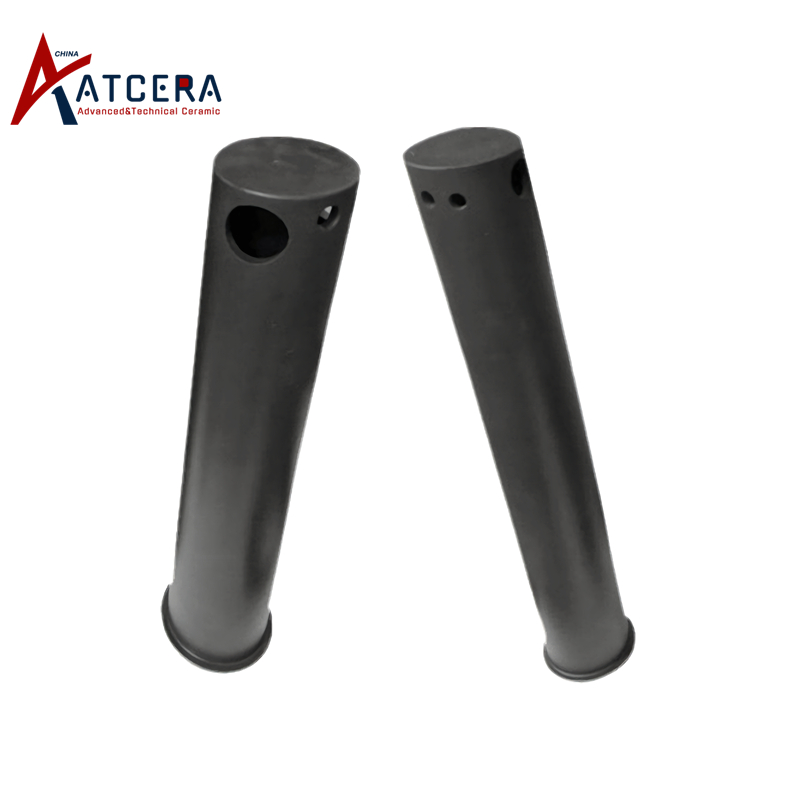

Silicon Carbide Burner Nozzle Ceramic Kiln Burner Nozzle

Silicon carbide burner nozzle has high temperature and corrosion resistance, oxidation resistance and thermal shock resistance are excellent, also has fast thermal conductivity and long service life, it is widely used in industrial burners, kilns, furnaces and other equipment. The main function is that mixing fuel and air, spraying through the nozzle, forming a high-speed, high-energy flame, to heat or burn the material in the furnace.

Brand:
ATCERA
Item NO.:
AT-THG-P1001

Materials
SiC
Shapes
Mechanical Parts
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Silicon Carbide Ceramic Burner Nozzle

1. Silicon carbide burner nozzle has high temperature resistance, the highest working temperature can reach to 1600℃, high temperature oxidation resistance and corrosion resistance are good, can effectively resist exhaust condensate water erosion.

2. Silicon carbide burner nozzle has fast heat conduction, good thermal shock resistance, it can adapt to rapid change of temperature, no cracking or aging risk.

3. Silicon carbide burner nozzle conducts heat quickly, fuel combustion is stable, which is conducive to maintaining a stable temperature in the furnace and improving combustion efficiency.

Applications of SiC Kiln Burner Nozzle

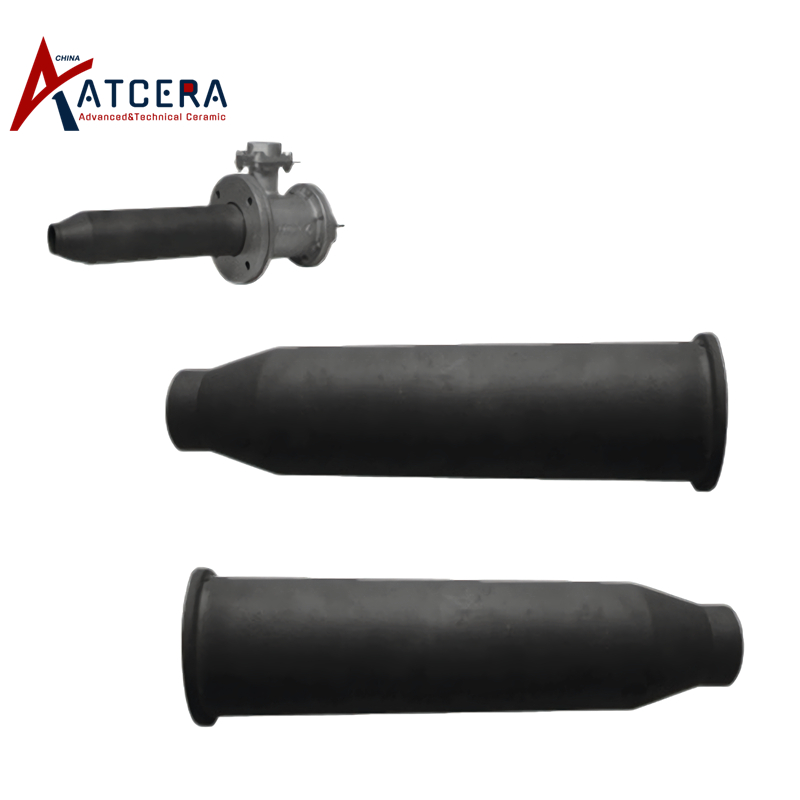

Silicon carbide burner nozzle is widely used in industrial burners, kilns, furnaces and other equipment. The main function is that mixing fuel and air, spraying through the nozzle, forming a high-speed, high-energy flame, to heat or burn the material in the furnace.

Size Chart for Silicon Carbide Burner Nozzle

We are committed to delivering optimal silicon carbide burner nozzles tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Drawing and parameter requirements shall be provided if customized design request.

Dimension Tolerance: ±1.5mm for length 100-500mm, and ±3mm for length 500-2000mm.

Silicon Carbide Burner Nozzle
Item NO.	Inner Diameter of Outlet (mm)	Outer Diameter of Outlet (mm)	Length (mm)
AT-THG-P1001	30	50	100-2000
AT-THG-P1002	35	55	100-2000
AT-THG-P1003	40	65	100-2000
AT-THG-P1004	45	70	100-2000
AT-THG-P1005	50	70	100-2000
AT-THG-P1006	55	75	100-2000
AT-THG-P1007	60	78	100-2000
AT-THG-P1008	65	80	100-2000
AT-THG-P1009	70	80	100-2000
AT-THG-P1010	80	105	100-2000

Technical Data of Silicon Carbide Materials

Item		Unit	Index Data
Item		Unit	Reaction-sintered SiC (SiSiC)	Silicon Nitride Bonded With SiC (NBSiC)	Sintered SiCn Without Pressure (SSiC)
SiC Content		%	85	80	99
Free Silicon Content		%	15	0	0
Max. Service Temp.		℃	1380	1550	1600
Density		g/cm3	3.02	2.72	3.1
Porosity		%	0	12	0
Bending Strength	20℃	Mpa	250	160	380
Bending Strength	1200℃	Mpa	280	180	400
Modulus of Elasticity	20℃	Gpa	330	220	420
Modulus of Elasticity	1200℃	Gpa	300	/	/
Thermal Conductivity	1200℃	W/m.k	45	15	74
Coefficient of Thermal Expansion		K-1×10-6	4.5	5	4.1
Vickers Hardness	HV	kg/mm2	2500	2500	2800

*This chart illustrates the standard characteristics of the silicon carbide materials commonly employed in the manufacturing of our SiC products and parts. Please be aware that the attributes of customized silicon carbide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. According to parameters of the combustion equipment, select appropriate silicon carbide burner nozzle to ensure that the combustion power and the temperature in the furnace can meet the design requirements.

2. Silicon carbide burner nozzle is easily polluted by dust, flue gas or other substances during use, it needs to be cleaned regularly. Special cleaning agents should be used when cleaning, hard items like metal brush should not be used to scratch nozzles.

3. The nozzle needs to be checked regularly. If cracks or damage are found, it needs to be replaced in time.

Valuable Information

Silicon Carbide Ceramic Burner Nozzle Packing

Silicon Carbide Burner Nozzle Packing

Silicon carbide burner nozzles are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
