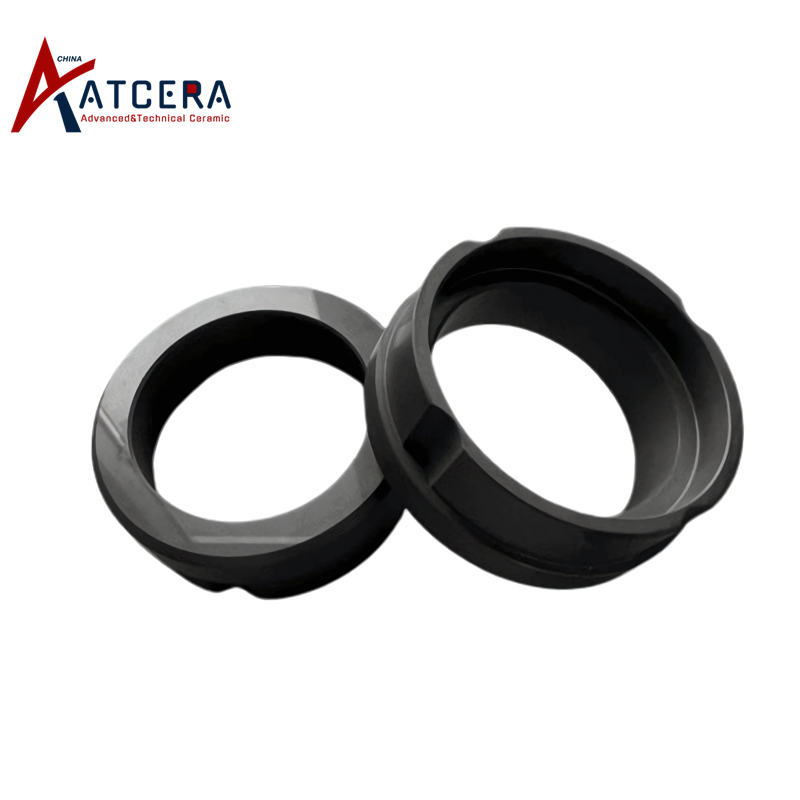

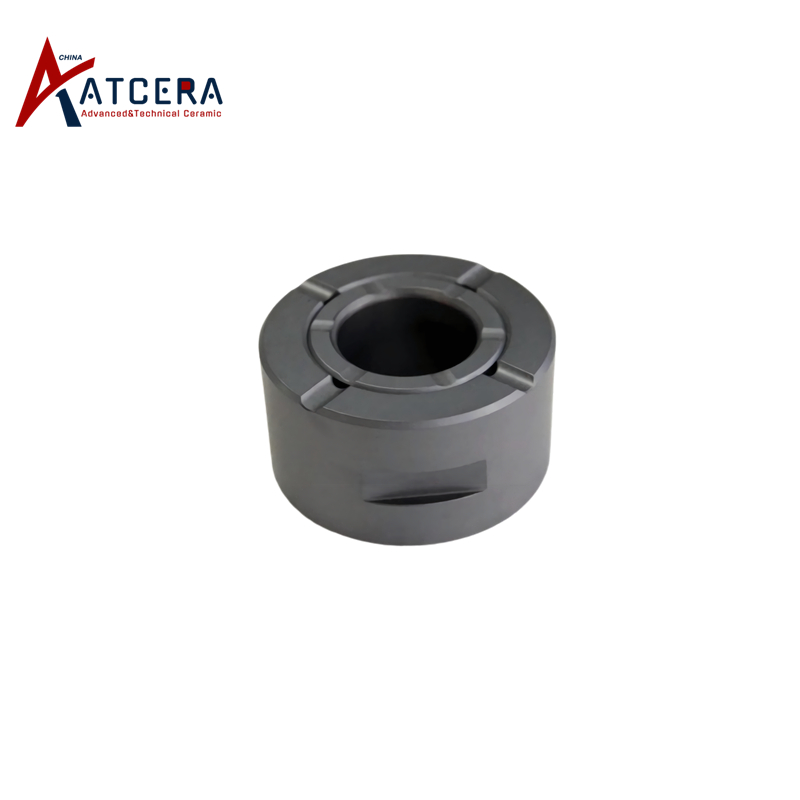

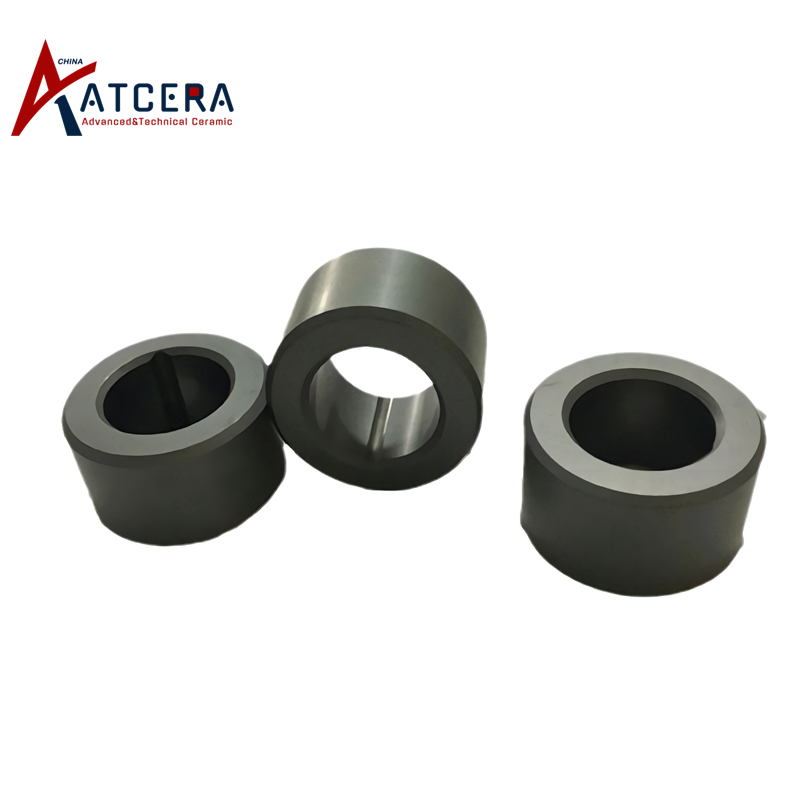

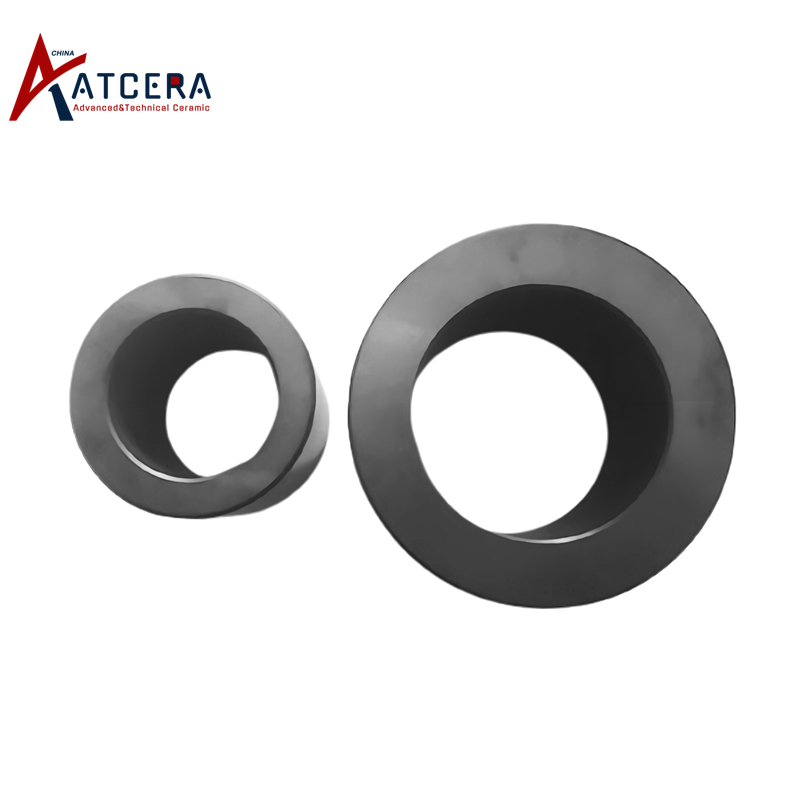

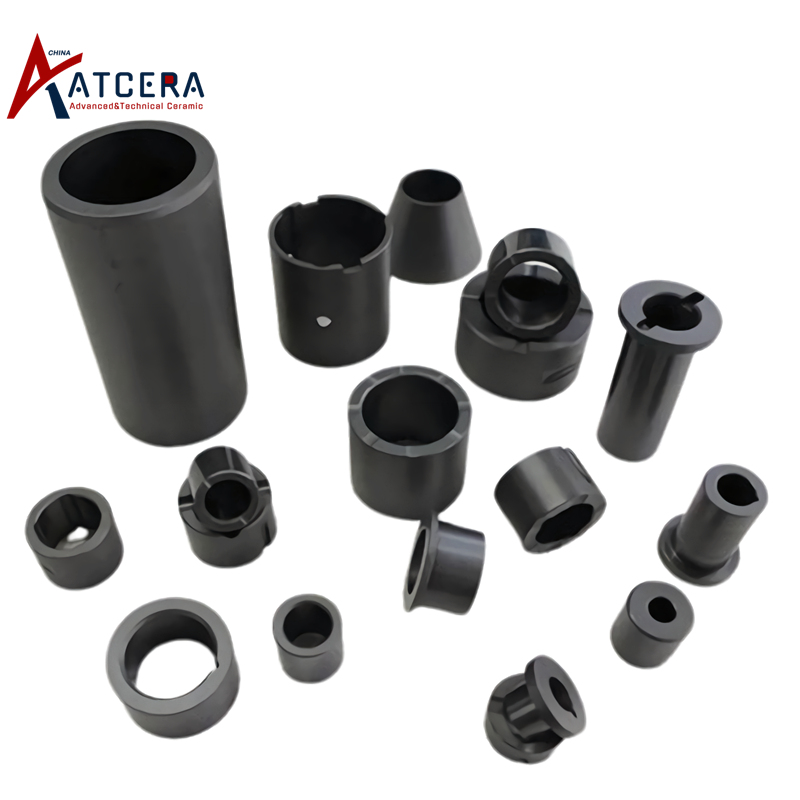

Silicon Carbide Shaft Sleeve

Silicon carbide shaft sleeve is made of silicon carbide powder as raw material, sintered at high temperature after forming, as an important part of the mechanical device, it is installed between bearing and shaft, plays a protective and buffer role, also to reduce friction and wear, extend the service life of the shaft and bearing. Silicon carbide shaft sleeve is mainly used in rotating mechanical devices, such as engines, motors, reducers, pumps, etc.

Brand:
ATCERA
Item NO.:
AT-SCS-001

Materials
SiC
Shapes
Mechanical Parts
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Properties of Silicon Carbide Ceramic Shaft Sleeve

1. Silicon carbide shaft sleeve has high mechanical strength, good toughness and wear resistance, which can provide support and protection for the shaft to avoid direct wear and failure of the shaft.

2. Silicon carbide sleeve has high temperature resistance, good corrosion resistance, it can separate shaft and bearing, to avoid bearing direct contact with high temperature environment or corrosive media.

3. Silicon carbide ceramic sleeve has self-lubrication, low noise, easy assembly, can be used for occasions that can not be lubricated or lubricated more difficult, such as vacuum, high temperature and other environments.

4. Silicon carbide sleeve has high thermal conductivity, small thermal expansion coefficient, also with large elastic modulus, so the deformation under high temperature or heavy load is very small, which is conductive to high precision operation.

Applications of SiC Shaft Sleeve

Silicon carbide sleeve is installed between bearing and shaft, which can provide support for the shaft, prevent wear of the shaft, reduce friction between the shaft and the bearing so to reduce the operating resistance and extend service life of the equipment. It is widely used in machinery manufacturing, aerospace, automobile manufacturing and medical equipment and other industries.

Size Chart for Silicon Carbide Shaft Sleeve

We are committed to delivering optimal silicon carbide shaft sleeves tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Drawing and parameter requirements shall be provided if customized design request.

Silicon Carbide Shaft Sleeve
Item NO.	Outer Dia. (mm)	Inner Dia. (mm)	Length (mm)	SiC's Purity (%)
AT-SCS-001	19	8	42	99
AT-SCS-002	16	10	42	99
AT-SCS-003	14	8	42	99
AT-SCS-004	18	8	45	99
AT-SCS-005	22	14	51	99
AT-SCS-006	23	11	51	99
AT-SCS-007	26	12	51	99
AT-SCS-008	29	20	56	99
AT-SCS-009	28	14	60	99
AT-SCS-010	35	20	70	99
AT-SCS-011	45	34	85	99
AT-SCS-012	44	25	108	99
AT-SCS-013	57	30	108	99
AT-SCS-014	68	42	108	99
AT-SCS-015	49	28	108	99
AT-SCS-016	80	60	108	99
AT-SCS-017	110	88	108	99
AT-SCS-018	130	110	108	99
AT-SCS-019	140	123	108	99
AT-SCS-020	175	140	140	99

Technical Data of Silicon Carbide Materials

Item		Unit	Index Data
Item		Unit	Reaction-sintered SiC (SiSiC)	Silicon Nitride Bonded With SiC (NBSiC)	Sintered SiCn Without Pressure (SSiC)
SiC Content		%	85	80	99
Free Silicon Content		%	15	0	0
Max. Service Temp.		℃	1380	1550	1600
Density		g/cm3	3.02	2.72	3.1
Porosity		%	0	12	0
Bending Strength	20℃	Mpa	250	160	380
Bending Strength	1200℃	Mpa	280	180	400
Modulus of Elasticity	20℃	Gpa	330	220	420
Modulus of Elasticity	1200℃	Gpa	300	/	/
Thermal Conductivity	1200℃	W/m.k	45	15	74
Coefficient of Thermal Expansion		K-1×10-6	4.5	5	4.1
Vickers Hardness	HV	kg/mm2	2500	2500	2800

*This chart illustrates the standard characteristics of the silicon carbide materials commonly employed in the manufacturing of our SiC products and parts. Please be aware that the attributes of customized silicon carbide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Select appropriate sleeve

According to the working environment and equipment dimension, select the appropriate parameters and size of the silicon carbide shaft sleeve.

2. Install correctly

The silicon carbide ceramic shaft sleeve should be matched with the shaft and bearing inner ring to achieve a full range of uniform load.

3. Regular checkup

During operation of the equipment, the wear of the shaft sleeve should be checked regularly. If the wear is serious, or there are cracks or other defects, it needs to be replaced in time.

Valuable Information

Silicon Carbide Ceramic Shaft Sleeve Packing

Silicon carbide shaft sleeves are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
