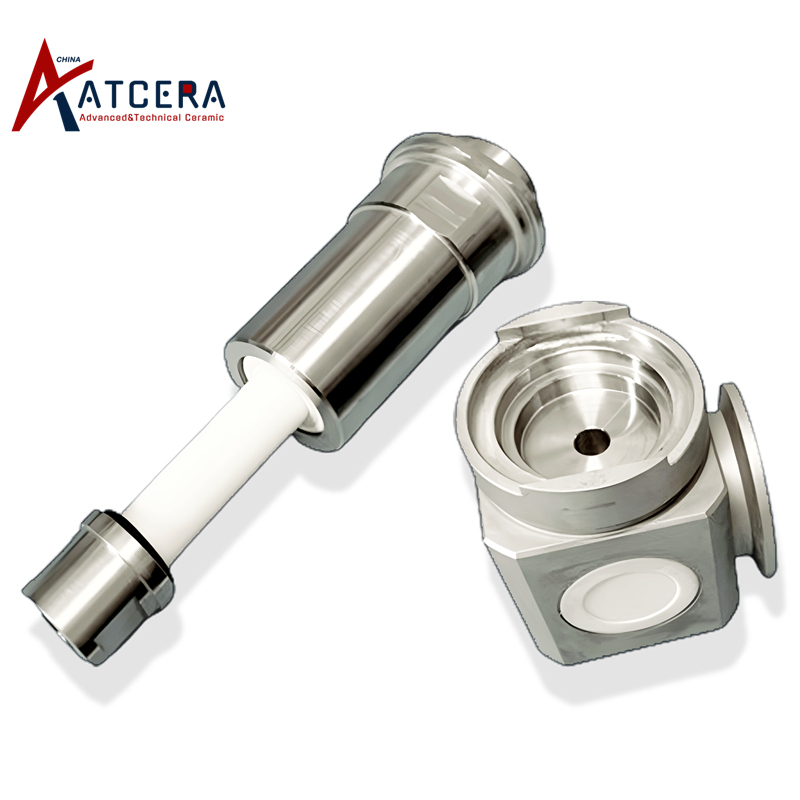

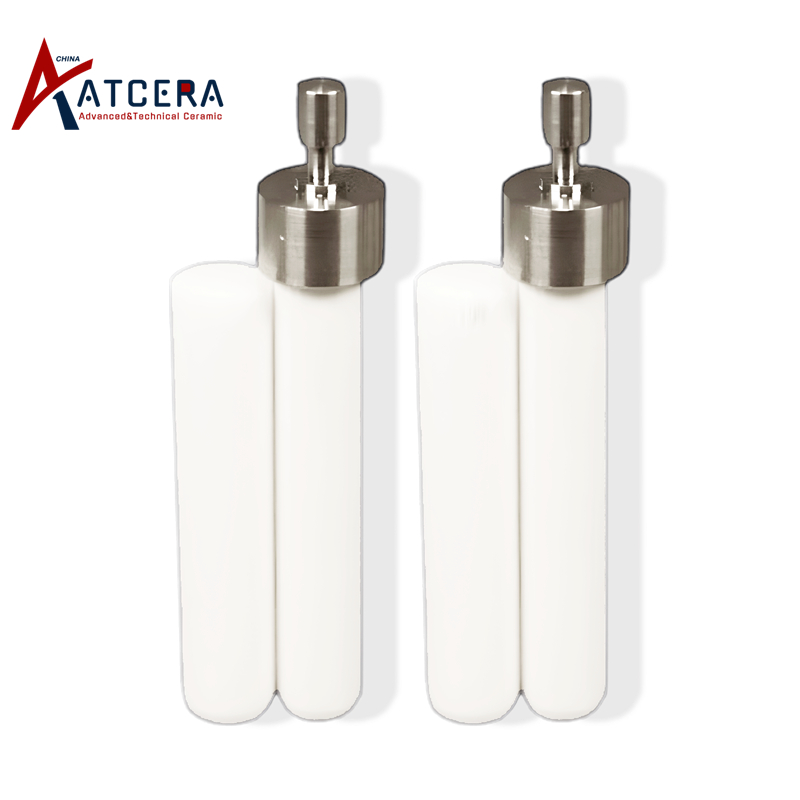

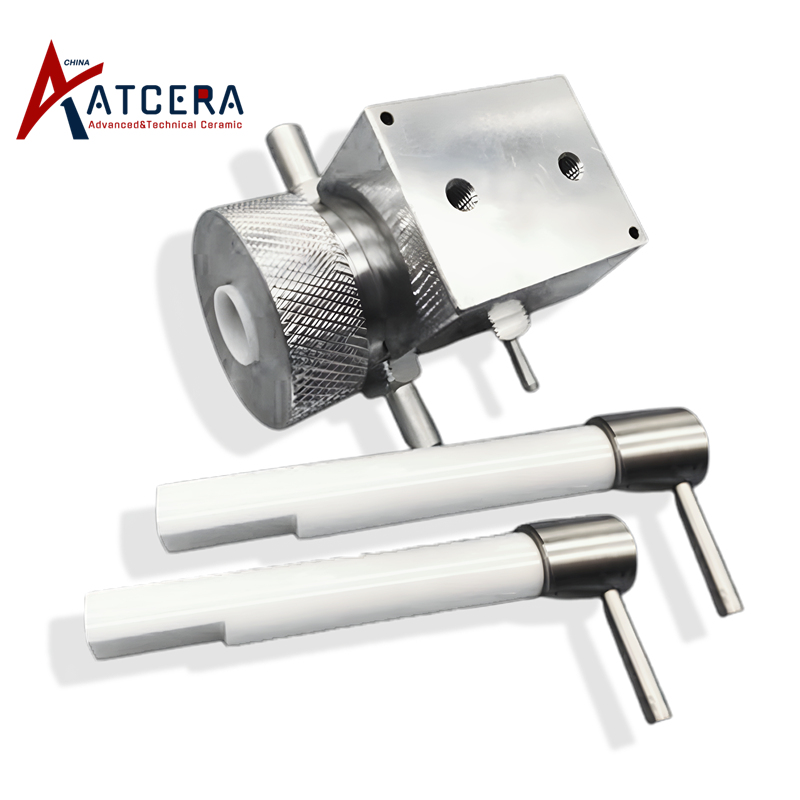

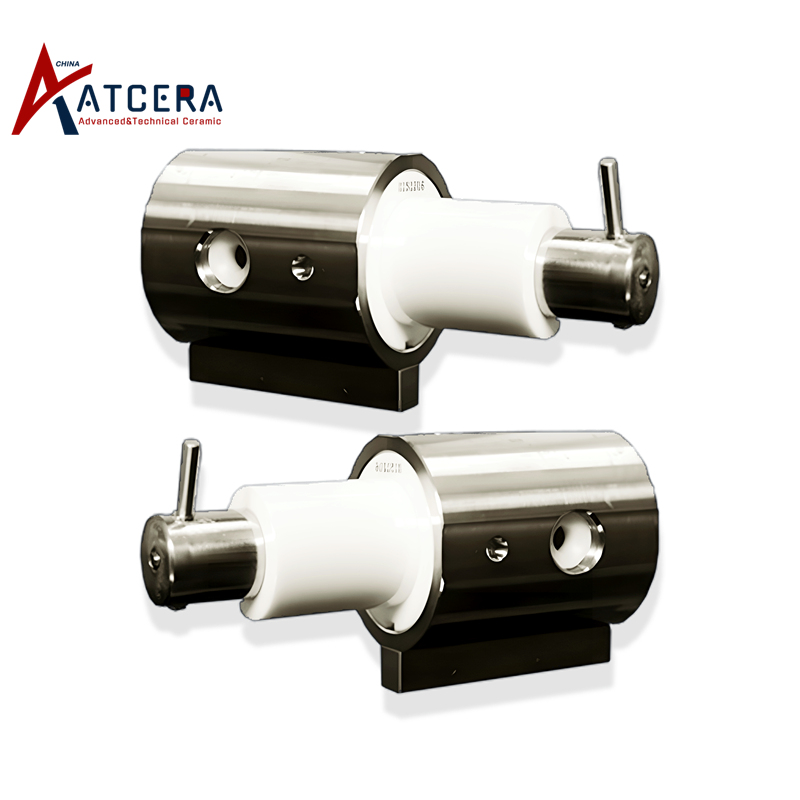

Zirconia Ceramic Filling Pump Plunger Pump Piston Pump

Zirconia ceramic filling pump is a type of high-precision liquid filling pump, usually constituted by the pump body, rotating body (there is a liquid inlet and outlet hole), plunger, sealing ring and other parts. Plunger in the ceramic pump body to do reciprocating linear movement, for liquid inhalation and discharge, rotary body can rotate to achieve the liquid inlet and outlet switch.

Brand:
ATCERA
Item NO.:
AT-ZP-2001

Materials
Zirconia
Shapes
Pump
Applications
Mechanical Parts , Petrochemical Industry , Food Processing

Inquire Now

Properties of ZrO2 Filling Pump

1. Strong corrosion resistance: zirconia ceramic material has good corrosion resistance, the pump can be used to transport a variety of corrosive liquids, no pollution to the liquid；

2. High precision: the processing precision of zirconia ceramic material is high, which can meet the high precision filling requirements;

3. Long life time: zirconia material hs high hardness and good wear resistance, so service life of zirconia filling pump is long;

4. Easy maintenance: the inner surface of zirconia ceramic filling pump is polished, liquid is not easy to remain on the pump surface and clean is very convenient, so maintenance costs can be reduced;

5. High safety: zirconia material itself is non-toxic and harmless, good biological compatibility, no stimulation and side effects to human body.

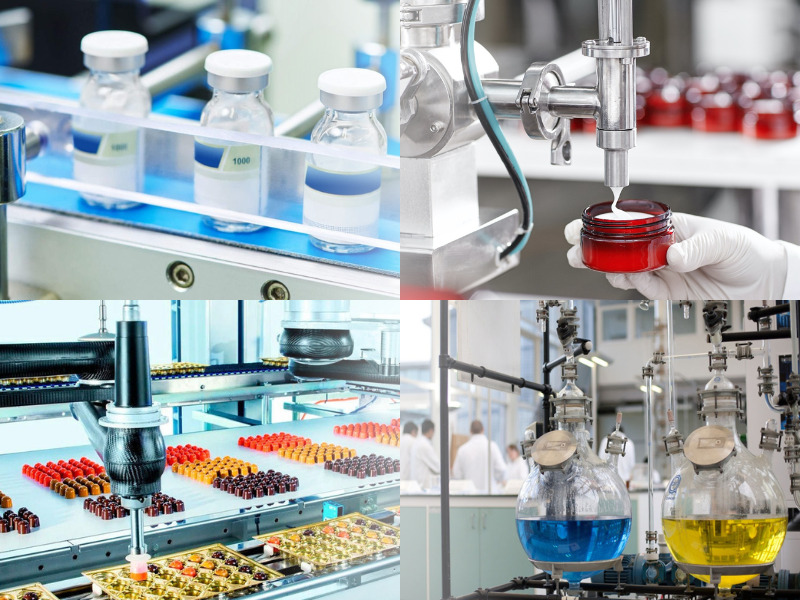

Applications of Ceramic Filling Pump

Zirconia ceramic filling pump is suitable for online filling machine, used to fill a variety of liquids, such as pharmaceutical liquid, beverage, cosmetics, electrolyte, liquid additives， etc.

1. Food industry

Used for beverage, dairy products, spices and other liquids quantitative filling, filling accuracy is high, meanwhile without any influence to the quality and taste.

2. Pharmaceutical industry

Owing to ZrO2's good biocompatibility, zirconia filling pump can be used for the filling and measurement of various liquid pharmaceutical and biological agents, to meet the high requirements for drug safety and stability in biomedicine field.

3. Cosmetics industry

Used in perfume, lotion and other liquid cosmetics filling, to achieve high precision and high efficiency.

4. Chemical industry

Zirconium oxide material is chemically inert and has good corrosion resistance, and can be used for precision filling of various chemical liquids, such as chemical agents, battery electrolytes, etc.

Size Chart of Zirconia Ceramic Filling Pump

We are committed to delivering optimal zirconia filling pump tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements. Drawing and specification requirement shall be provided if customized request.

Send Requirements for Custom Design

Machining Tolerance

1. Filling range: 0.2-50ML (please consult ATCERA for larger filling volume);

2. Use temperature: 10~40℃ (please consult ATCERA for other use temperature);

3. Filling accuracy: deviation withing ±0.5%, and the best accuracy can reach to ±0.3%.

Zirconia Filling Pump For Cosmetics
Item NO.	Volmue (ml)	ZrO₂'s Purity (%)	Filling Accuracy (%)
AT-ZP-2001	0.2	95	＜1%
AT-ZP-2002	0.5	95	＜1%
AT-ZP-2003	1	95	＜1%
AT-ZP-2004	2	95	＜1%
AT-ZP-2005	3	95	＜0.5%
AT-ZP-2006	5	95	＜0.5%
AT-ZP-2007	7	95	＜0.5%
AT-ZP-2008	10	95	＜0.5%
AT-ZP-2009	15	95	＜0.5%
AT-ZP-2010	16	95	＜0.5%
AT-ZP-2011	20	95	＜0.5%

Zirconia Filling Pump For Pharmaceutical and Biological Agents
Item NO.	Volmue (ml)	ZrO₂'s Purity (%)	Filling Accuracy (%)
AT-ZP-3001	0.5	95	＜1%
AT-ZP-3002	1	95	＜1%
AT-ZP-3003	2	95	＜1%
AT-ZP-3004	3	95	＜0.5%
AT-ZP-3005	5	95	＜0.5%
AT-ZP-3006	7	95	＜0.5%
AT-ZP-3007	10	95	＜0.5%
AT-ZP-3008	15	95	＜0.5%
AT-ZP-3009	16	95	＜0.5%
AT-ZP-3010	20	95	＜0.5%
AT-ZP-3011	30	95	＜0.5%
AT-ZP-3012	40	95	＜0.5%

Zirconia Filling Pump For Food
Item NO.	Volmue (ml)	ZrO₂'s Purity (%)	Filling Accuracy (%)
AT-ZP-4001	1	95	＜1%
AT-ZP-4002	2	95	＜1%
AT-ZP-4003	3	95	＜0.5%
AT-ZP-4004	5	95	＜0.5%
AT-ZP-4005	7	95	＜0.5%
AT-ZP-4006	10	95	＜0.5%
AT-ZP-4007	15	95	＜0.5%
AT-ZP-4008	16	95	＜0.5%
AT-ZP-4009	20	95	＜0.5%
AT-ZP-4010	30	95	＜0.5%
AT-ZP-4011	40	95	＜0.5%
AT-ZP-4012	40-220	95	＜0.5%

Zirconia Filling Pump For Battery Electrolytes
Item NO.	Volmue (ml)	ZrO₂'s Purity (%)	Volume of Battery Electrolytes (g)	Filling Accuracy (%)
AT-ZP-5001	0.5	95	0.5g	＜0.3%
AT-ZP-5002	1	95	1g	＜0.3%
AT-ZP-5003	2	95	3g	＜0.3%
AT-ZP-5004	3	95	8g	＜0.3%
AT-ZP-5005	4	95	18g	＜0.3%
AT-ZP-5006	5	95	40g	＜0.3%

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Installation requirements

When install the zirconia metering pump, ensure that it's firmly fixed to avoid axial and radial movement;

2. Liquid temperature

The liquid temperature should be within the use temperature range to ensure the normal operation and accuracy of the metering pump;

3. Liquid properties

For liquid containing solid particles or high viscosity, it is necessary to pre-treat or select appropriate pump head;

4. Pump cleaning

Before or after each use, the pump body and related components should be cleaned in time to prevent residue deterioration in the pump body;

5. Regular maintenance

It is recommended to regularly check the pump plunger, seals and other parts wear, and timely replacement or adjustment if any wear that may affect the pump performance;

6. Pump storage

In the case that zirconia metering pump is not used for a long time, the pump should be cleaned and stored in a dry and cool environment.
