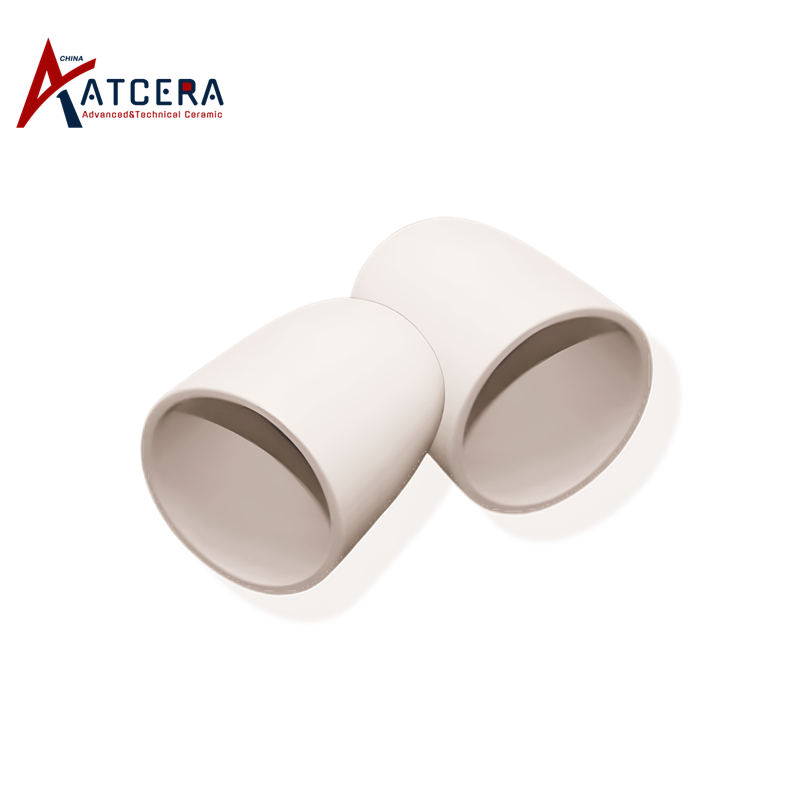

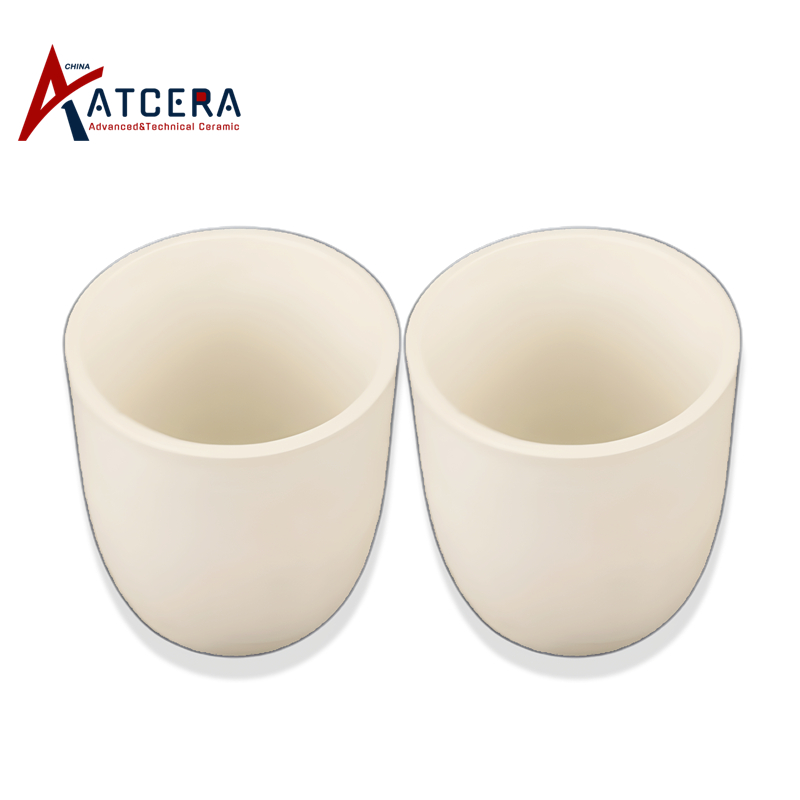

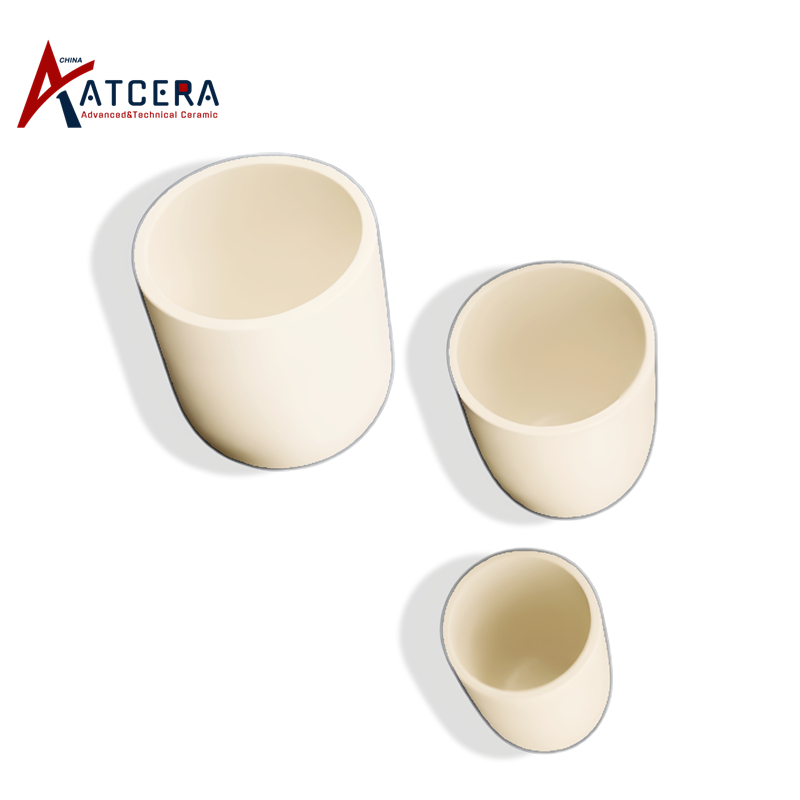

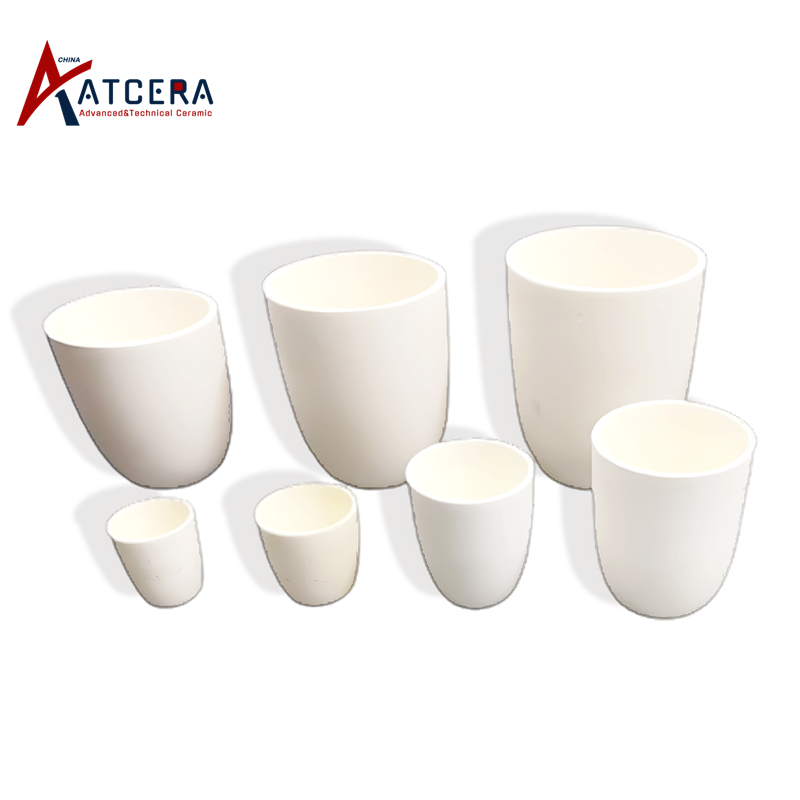

Zirconia Crucible Zirconium Oxide Ceramic Crucible Conical

The highest working temperature of zirconia crucible can reach 2200℃, also with good thermal stability and wear resistance, good acid and alkali corrosion resistance, mainly used for melting precious metals like platinum and high temperature calcination test.

Brand:
ATCERA
Item NO.:
AT-YHG-H001

Materials
Zirconia
Shapes
Crucible
Applications
Mechanical Parts , Petrochemical Industry , Metallurgy Industry , Lithium Battery Production

Inquire Now

Advantages of Zirconium Oxide Ceramic Crucible Conical

1. Good thermal shock resistance, can maintain good thermal stability at high temperature.

2. High hardness, good wear resistance and acid and alkali corrosion resistance.

3. Conical crucible can be made into a large volume, with high space utilization rate, good safety and stability during use.

Applications of Yttria Stabilized Zirconia (YSZ) Crucible

Applications of Zirconia Ceramic Crucible Conical

1. Zirconia crucible can be used in metallurgical, chemical and material science experiments.

2. Zirconia crucible can be used in various industrial thermal analysis, melting metal and non-metallic material samples.

3. Conical crucible can be used for various laboratory or industrial production in the need for high temperature melting occasions.

Size Chart of Zirconia Ceramic Crucible Conical

We are committed to delivering high-quality zirconium oxide ceramic crucibles customized to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Requirements for Custom Design

1. Drawing (requirements of material, size, tolerance standard, etc. could be attached) and other specification requirements.

2. Application scenario

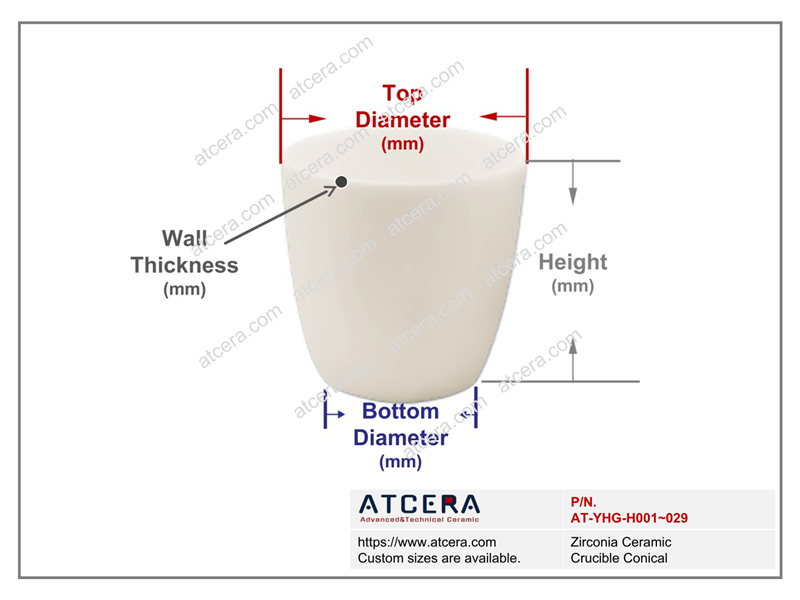

Drawing of Zirconia Ceramic Crucible Conical

Zirconia Ceramic Crucible Conical
Item No.	Top Diamete (mm)	Bottom Diameter (mm)	Height (mm)	Wall Thickness (mm)	Volume (ml)	ZrO₂'s Purity (%)
AT-YHG-H001	27	14	22	1.5	5	95
AT-YHG-H002	36	20	42	3	60	95
AT-YHG-H003	57	30	45	3	60	95
AT-YHG-H004	59	45	52	2.5	80	95
AT-YHG-H005	62	34	50	3	80	95
AT-YHG-H006	82	58	80	4.2	300	95
AT-YHG-H007	80	70	115	4.8	400	95
AT-YHG-H008	100	65	110	5.5	500	95
AT-YHG-H009	25	15	28	1.3	5	95
AT-YHG-H010	29	18	34	1.5	10	95
AT-YHG-H011	32	23	33	1.5	15	95
AT-YHG-H012	36	23	41	1.7	20	95
AT-YHG-H013	36	25	42	1.7	25	95
AT-YHG-H014	38	25	45	1.7	30	95
AT-YHG-H015	45	30	46	2	40	95
AT-YHG-H016	48	30	52	2	50	95
AT-YHG-H017	58	33	66	2	70	95
AT-YHG-H018	58	35	68	2	100	95
AT-YHG-H019	67	42	78	2.5	150	95
AT-YHG-H020	73	44	86	2.5	200	95
AT-YHG-H021	79	46	96	2.5	250	95
AT-YHG-H022	83	50	106	2.5	300	95
AT-YHG-H023	91	56	108	2.5	400	95
AT-YHG-H024	100	60	118	3	500	95
AT-YHG-H025	59	35	71	2.8	100	95
AT-YHG-H026	49	30	54	2.7	50	95
AT-YHG-H027	38	25	45	2.7	30	95
AT-YHG-H028	75	46	78	3.5	250	95
AT-YHG-H029	100	60	70	4	375	95

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Can not use gasoline spray gun, acetylene gun, alcohol burner to heat the zirconia crucible directly.

2. Before using the zirconia crucible for the first time, put it in the oven at about 105℃ for 120 minutes to remove the water on crucible surface.

3. Heating/cooling speed should not be too fast, below 1200℃ shall not over 5℃/ min; and above 1200℃ shall be controlled within 4℃/ min, too fast heating or cooling may lead to crucible cracking.

4. The distance between the crucible and the heating body (silicon carbon heting tube, heating rod or heating wire) should be no less than 2cm.

5. The bottom should not be in direct contact with the bottom of the furnace. It is recommended to use corundum pieces and other temperature resistant substances to lift the crucible to form air convection.

6. The material should be added according to the volume of the crucible, and should not be squeezed too tightly to avoid the metal thermal expansion and cause crack of the crucible.

7. When taking out the metal molten liquid, scoop it out with a spoon, in the case that caliper need to be used, avoid excessive force on the crucible which may shorten the service life.

8. Safety during use: zirconia crucible works at high temperature, and personal protective equipment such as heat-releasing gloves and protective glasses should be worn when using to avoid burns or eye injuries.

9. Storage: when store zirconia crucible, it should be placed in a dry and ventilated place to avoid friction or collision with other items, so as not to scratch or damage the surface of the crucible.

Valuable Information

Production Process Flow

1. Dry pressing forming

2. Hot pressing casting

3. Medium temperature dewaxing

4. High temperature sintering

5. Centerless grinding

6. Internal grinding

7. External grinding

8. Plane grinding

9. Honing and polishing

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
