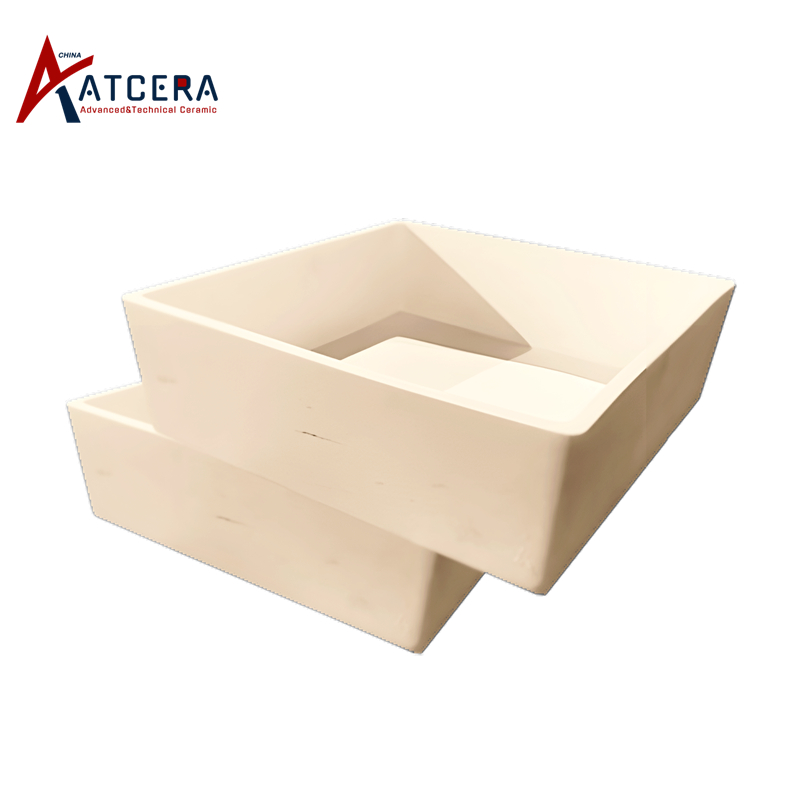

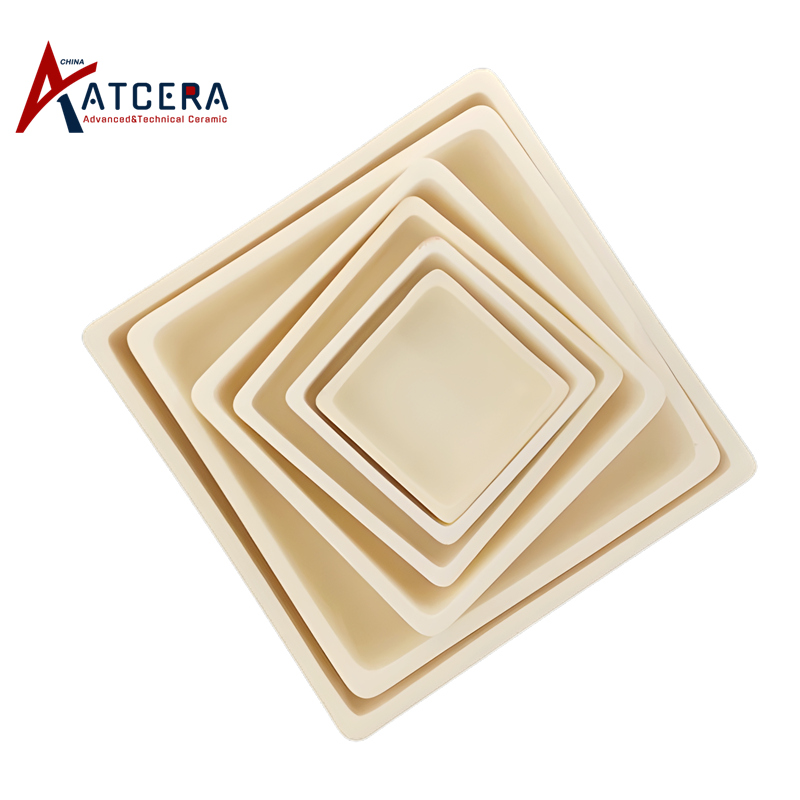

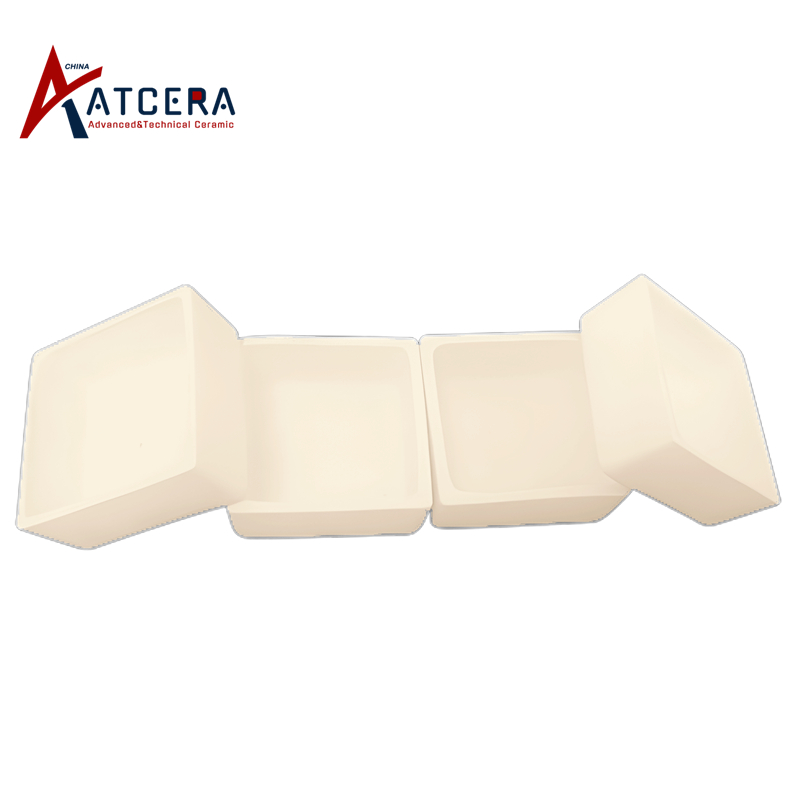

Alumina Crucible Tray Aluminum Oxide Ceramic Rectangular Crucible With Cover

The alumina crucible can withstand high temperatures, acids, and alkalis, offering superior corrosion resistance and thermal shock resistance. It is frequently utilized in chemical analysis experiments at high temperatures and industrial material testing and analysis, utilized to heat and melt various materials for the evaluation of their physical and chemical properties.

Brand:
ATCERA
Item NO.:
TE-ASJ-93

Materials
Alumina
Shapes
Crucible
Applications
Petrochemical Industry , Metallurgy Industry , Laboratory Equipment and Instruments

Inquire Now

Advantages of Alumina Crucible Tray

1. Using grouting molding process, so the product compactness is quite good;

2. Good thermal shock resistance, not easy to burst or crack under rapid heating or cooling.

3. Rectangular crucible has large heating surface, stable and uniform heating, and easy to carry and move.

Applications of Aluminum Oxide Ceramic Crucible Rectangular

1. In the laboratory, alumina crucible can be used to heat and melt various materials, including metal and non-metal material. By observing the changes and behavior of materials at high temperatures, their physical and chemical properties can be studied and identified.

2. In industrial production, alumina ceramic crucible can be used to analyze and test raw materials, intermediates and final products. By using alumina crucible for high temperature analysis, the properties and characteristics of the product can be better understood, so as to optimize the production process and improve product quality.

3. Rectangular crucible is used for rapid material melting, heating, sintering and other experiments, as well as factory mass production or processing.

Size Chart of Aluminum Oxide Ceramic Crucible Rectangular

We are committed to delivering prime alumina crucible tray(with cover) tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Requirements for Custom Design

1. Drawing (can attach material requirements, purity, size, tolerance standard)

2. High temperature resistance requirements

3. Application scenario

Send Requirements for Custom Design

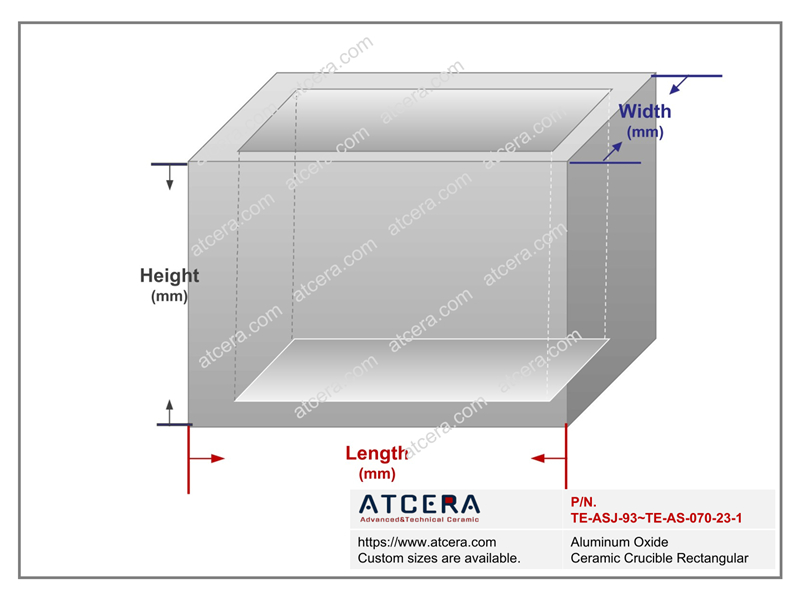

Drawing of Aluminum Oxide Ceramic Crucible Rectangular

Aluminum Oxide Ceramic Crucible Rectangular
Item No.	Volume (ml)	Length (mm)	Width (mm)	Height (mm)	Item No.	Volume (ml)	Length (mm)	Width (mm)	Height (mm)	Item No.	Volume (ml)	Length (mm)	Width (mm)	Height (mm)
TE-ASJ-93	0.9	45	8	6	TE-ASJ-68	84	65	65	30	TE-ASJ-35	424	100	100	50
TE-AS-018	2.6	70	12	7	TE-AS-031	86.7	90	60	20	TE-ASJ-34	470	100	100	55
TE-AS-005	2.8	50	10	10	TE-ASJ-67	91.7	90	60	20	TE-AS-064-3	488	145	145	30
TE-ASJ-92	3	25	15	15	TE-AS-061-3	92	120	60	18	TE-AS-051-8	488.4	100	100	55
TE-AS-006	3.6	50	12	10	TE-ASJ-63	100	65	65	35	TE-ASJ-33	516	100	100	60
TE-AS-027	3.6	80	10	10	TE-ASJ-64	100	100	50	30	TE-ASJ-32	520	140	140	38
TE-AS-001	4.2	27.5	23	10	TE-ASJ-65	100	120	60	20	TE-AS-064-7	524	150	150	30
TE-AS-001-1	4.5	20	20	17	TE-AS-011	101.6	50	50	50	TE-AS-067-2	528	160	120	35
TE-AS-005-9	4.5	20	20	17	TE-AS-016-11	104.2	65	65	30	TE-ASJ-31	530	145	145	30
TE-ASJ-91	4.5	20	20	17	TE-AS-061-4	105	120	60	20	TE-AS-051-9	534.5	100	100	60
TE-AS-036	5.8	100	10	10	TE-AS-016-7	108.5	62	38	57	TE-ASJ-29	550	120	120	50
TE-AS-020	6.2	75	15	10	TE-AS-029-6	111	95	65	22	TE-ASJ-30	550	140	140	37
TE-AS-002	6.7	30	20	16	TE-AS-062-5	117	120	60	22	TE-ASJ-28	554	150	150	30
TE-AS-002-1	7.1	30	20	17	TE-AS-064-4	118	150	40	30	TE-ASJ-27	561	160	120	35
TE-ASJ-90	7.1	30	20	17	TE-AS-019-1	122	70	70	30	TE-AS-064-1	575	140	140	35
TE-AS-008	7.7	50	25	10	TE-AS-021-1	122.8	65	65	35	TE-AS-062-10	611	140	140	37
TE-AS-005-2	8.5	42	22	13	TE-AS-051-4	123.6	100	50	30	TE-AS-062-9	611	120	120	50
TE-ASJ-89	8.8	50	25	10	TE-AS-054-4	126	118	100	15	TE-AS-064-8	625	150	150	35
TE-AS-005-1	9.2	45	22	13	TE-AS-062-7	129	120	100	15	TE-AS-064	664	140	140	40
TE-AS-021	11.9	75	18	14	TE-ASJ-62	136	120	100	15	TE-ASJ-26	700	200	100	50
TE-AS-035-6	13.2	98	18	12	TE-AS-029	138.3	85	65	30	TE-AS-062-3	718	120	100	70
TE-AS-005-4	13.2	50	20	20	TE-AS-064-5	141	150	40	35	TE-ASJ-25	730	260	75	50
TE-AS-005-5	13.2	50	28	14	TE-ASJ-61	141	150	40	30	TE-AS-064-14	732	150	120	50
TE-AS-043-4	14	100	35	6	TE-AS-025	141.1	75	75	30	TE-AS-062-11	754	140	140	45
TE-AS-016-6	14.7	61	47	8	TE-AS-019	143.7	70	70	35	TE-AS-070-15	777	260	75	50
TE-ASJ-88	14.8	50	20	20	TE-AS-034	146.9	90	65	30	TE-AS-050-1	791	155	120	50
TE-AS-016-2	15.3	60	25	15	TE-ASJ-60	150	70	70	30	TE-AS-050	811	100	100	90
TE-AS-016-9	17.5	60	30	14	TE-AS-045	150.5	100	60	30	TE-AS-069-6	813	200	100	50
TE-ASJ-86	18	60	30	15	TE-AS-070-32	152	800	20	20	TE-ASJ-23	850	150	150	50
TE-ASJ-87	18	70	30	15	TE-AS-032	158.9	90	60	35	TE-AS-064-2	988	150	150	53
TE-AS-017	18.5	65	23	18	TE-ASJ-59	160	100	100	20	TE-ASJ-22	996.1	160	160	45
TE-AS-016-3	18.9	60	30	15	TE-AS-029-1	161.7	80	80	30	TE-ASJ-20	1000	150	110	80
TE-AS-029-2	19.4	85	34	10	TE-AS-023	163.6	75	52	50	TE-ASJ-21	1000	160	160	50
TE-AS-039	20	100	20	15	TE-AS-043-2	165.9	100	100	20	TE-AS-070-30	1025	360	120	30
TE-AS-022	20.4	75	20	20	TE-AS-035-4	166.2	98	72	28	TE-AS-067-1	1063	160	160	50
TE-AS-016-13	20.6	65	30	15	TE-ASJ-58	168	150	40	35	TE-AS-064-9	1101	150	110	80
TE-AS-005-8	20.8	30	30	30	TE-ASJ-57	173	90	60	40	TE-AS-064-11	1129	150	150	60
TE-AS-013	21.2	52	25	23	TE-AS-046	177.4	100	70	30	TE-ASJ-19	1150	305	90	57
TE-AS-019-5	22.3	70	30	15	TE-ASJ-55	180	80	80	40	TE-ASJ-18	1175	150	150	60
TE-ASJ-85	26	50	25	35	TE-ASJ-56	180	90	90	30	TE-AS-062-12	1203	140	140	70
TE-AS-052	26	110	24	17	TE-AS-034-3	183	90	60	40	TE-AS-070-20	1227	305	90	57
TE-AS-015	26.2	60	30	20	TE-AS-027-4	183.7	85	85	30	TE-ASJ-16	1273	120	120	100
TE-AS-016	26.2	60	40	15	TE-ASJ-51	197	90	60	45	TE-AS-070-13	1324	250	160	40
TE-AS-016-10	26.2	60	30	20	TE-ASJ-50	200	80	85	40	TE-AS-067-6	1361	180	180	50
TE-AS-039-1	26.2	100	25	15	TE-AS-067-5	204	175	55	30	TE-AS-059-2	1371	130	120	100
TE-AS-035-5	26.8	95	25	16	TE-ASJ-49	207	100	100	25	TE-ASJ-15	1430	160	120	85
TE-AS-065	27	150	20	20	TE-AS-034-1	207.1	90	90	30	TE-ASJ-13	1500	180	180	60
TE-AS-070	27	200	150	5	TE-AS-034-5	207.1	90	60	45	TE-ASJ-14	1500	200	200	50
TE-ASJ-84	28	100	20	20	TE-AS-051-5	212	100	100	25	TE-AS-064-13	1532	150	150	80
TE-ASJ-83	28.5	60	30	20	TE-AS-026	216.8	75	75	45	TE-AS-069-7	1634	200	120	80
TE-AS-051-10	29.2	100	20	21	TE-AS-026-2	219.5	80	80	40	TE-ASJ-11	1650	240	170	50
TE-AS-005-6	29.8	50	40	20	TE-ASJ-48	220	85	85	40	TE-AS-067-7	1657	180	180	60
TE-ASJ-81	31	110	24	17	TE-AS-062-2	221	120	120	20	TE-ASJ-10	1680	200	120	80
TE-AS-012	31.9	50	25	35	TE-ASJ-47	223	92	63	47	TE-AS-069-9	1696	200	200	50
TE-ASJ-80	32	100	50	10	TE-AS-061-5	228	120	60	40	TE-AS-070-7	1729	240	170	50
TE-ASJ-79	32.2	50	40	20	TE-AS-061-6	228	120	80	30	TE-AS-067	1756	160	160	80
TE-AS-061-2	33	120	30	15	TE-ASJ-46	233	120	60	40	TE-AS-043-3	1824.8	100	400	50
TE-AS-011-4	33	55	40	20	TE-AS-034-6	233.6	92	63	47	TE-AS-064-6	1907	150	100	150
TE-ASJ-78	34	55	40	20	TE-AS-026-3	233.9	80	85	40	TE-AS-070-21	2079	340	220	35
TE-AS-016-8	34	65	35	20	TE-ASJ-45	234	175	55	30	TE-AS-067-4	2327	160	140	120
TE-AS-051-1	35.3	100	50	10	TE-ASJ-44	243	120	80	30	TE-AS-070-24	2473	224	224	57
TE-ASJ-77	38	120	30	15	TE-AS-054-7	247	115	90	30	TE-ASJ-7	2500	250	155	80
TE-AS-054-3	39	113	30	18	TE-AS-030	249.3	85	85	40	TE-ASJ-6	2600	200	200	80
TE-AS-019-3	39.2	70	37	20	TE-AS-054-6	250	115	115	24	TE-AS-070-9	2612	250	150	80
TE-AS-003	39.4	35	35	40	TE-ASJ-43	255	115	90	30	TE-AS-070-11	2704	250	155	80
TE-AS-027-3	41	80	40	17	TE-ASJ-42	260	100	100	35	TE-AS-070-2	2802	200	200	80
TE-ASJ-76	43.9	60	30	30	TE-AS-054-2	270	115	65	45	TE-ASJ-5	3000	300	180	70
TE-ASJ-74	44	70	30	30	TE-ASJ-40	280	90	90	45	TE-ASJ-4	3200	220	220	80
TE-AS-041	44.9	100	30	20	TE-ASJ-41	280	120	80	40	TE-AS-070-17	3205	300	180	70
TE-AS-019-2	48	70	30	30	TE-AS-034-2	281	90	90	40	TE-ASJ-3	3300	200	200	100
TE-AS-005-7	48.7	50	50	25	TE-ASJ-39	284	115	65	45	TE-AS-070-29	3362	300	210	61
TE-ASJ-73	50	50	50	25	TE-AS-055	285	110	80	40	TE-AS-070-6	3416	220	220	80
TE-AS-004	52.7	40	40	40	TE-AS-057	291	120	75	40	TE-AS-070-16	3451	300	150	90
TE-AS-051	54.9	100	48	15	TE-ASJ-38	300	100	100	40	TE-AS-070-3	3539	200	200	100
TE-AS-038-4	57.4	100	30	25	TE-AS-048	304.1	100	100	35	TE-ASJ-2	3566	300	150	90
TE-ASJ-72	61	100	40	20	TE-AS-061	312	120	80	40	TE-AS-070-18	4133	300	200	80
TE-AS-024	65.5	75	75	15	TE-AS-029-4	318	90	90	45	TE-AS-070-8	4451	250	250	80
TE-AS-051-12	65.7	100	40	21	TE-AS-053-1	346	110	110	35	TE-AS-069-11	5000	250	250	100
TE-AS-051-2	69.9	100	30	30	TE-ASJ-37	350	115	115	35	TE-AS-069-10	5100	340	220	35
TE-ASJ-71	70	75	75	15	TE-AS-051-6	350.2	100	100	40	TE-AS-069-91	5250	250	200	125
TE-ASJ-70	70	100	30	30	TE-AS-062	351	120	120	30	TE-AS-069-8	5344	200	150	200
TE-AS-044	70.7	100	50	18	TE-AS-069-5	371	200	100	25	TE-AS-070-25-1	5400	200	150	200
TE-AS-070-26	72	250	35	15	TE-AS-061-1	380	115	115	35	TE-AS-070-12	5622	250	200	125
TE-AS-034-4	72.2	90	60	17	TE-AS-049	396.3	100	100	45	TE-AS-070-14	5622	250	250	100
TE-AS-070-31	75	400	20	20	TE-AS-070-27	406	178	85	35	TE-AS-070-22-1	7465	330	330	80
TE-ASJ-69	78	65	65	25	TE-ASJ-36	407	200	100	25	TE-AS-070-23-1	15760	330	330	160

Specification of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. Handling Precautions: Exercise care and caution when handling the alumina crucible, particularly when hot. Use appropriate tools and protective gear to avoid accidental burns or injuries during manipulation.

2. Avoid Thermal Shock: Sudden temperature changes can lead to thermal shock, affecting the integrity of the crucible. Gradual heating and cooling processes are recommended to prevent thermal stress and potential damage.

3. Chemical Compatibility: Be mindful of the chemical compatibility of materials used in conjunction with the alumina crucible. Ensure that substances in contact with the crucible are compatible to maintain its structural and chemical stability.

4. Refrain from Overloading: Adhere to the recommended capacity limits of the crucible to prevent overloading, which could compromise its structural integrity and overall performance.

5. Regular Inspection: Periodically inspect the alumina crucible for any signs of wear, cracks, or damage. Replace the crucible if any defects are detected to ensure optimal performance and safety.

6. Proper Installation: When placing the crucible in the furnace, ensure a proper and secure installation. Follow manufacturer guidelines for furnace loading to prevent any misplacement or instability during operation.

7. Cooling Protocol: After use, allow the alumina crucible to cool gradually inside the furnace. Avoid rapid cooling methods, such as quenching in water, to prevent thermal stress and potential fractures.

8. Environmental Considerations: Be aware of the surrounding environment, ensuring that the work area is free from excessive dust, moisture, or corrosive elements that could impact the performance and longevity of the alumina crucible.

9. Refrain from Modifying: Avoid making any modifications or alterations to the alumina crucible, as this could compromise its structural integrity and safety features. Use the crucible in its original, unaltered state.

10. Dispose Responsibly: When the alumina crucible reaches the end of its service life, dispose of it responsibly according to local regulations. Consider recycling options to minimize environmental impact.

Valuable Information

Production Process Flow

1. Raw material processing

2. Compression mouduling

3. High temperature sintering

4. Primary grinding

5. CNC processing

6. Product inspection

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Preparation Of Aluminum Nitride Substrate And Selection Of Sintering Additives

In the field of high-tech materials, aluminum nitride (AlN) ceramics, with its excellent thermal conductivity, excellent electrical insulation properties and excellent mechanical strength, have become the core material in key fields such as electronic packaging, power electronics and microwave communication equipment. However, the preparation of aluminum nitride substrate is a complex process...

Application Requirements Of Aluminum Nitride Substrate

Aluminum nitride (AlN) as an advanced ceramic material, because of its unique physical and chemical properties, has shown great application potential in electronic packaging, power electronics, high frequency communication and other fields. As a core component in these fields, aluminum nitride substrates not only have to meet the basic physical performance requirements, but also need to ...

Effect Of Bulk Density Of Granulated Powder On Sintering Densification Of Silicon Nitride Balls

Si3N4 powder is the main raw material for the preparation of silicon nitride balls. Selecting the appropriate treatment method to obtain the powder with regular shape and uniform particle size distribution is the basis for the stable implementation of Si3N4 ceramic ball forming, sintering, processing and other processes. According to the different atomization methods, the spray gr...

Optimizing The Spray Granulation Process To Improve The Performance Of Si3N4 balls

Silicon nitride (Si3N4) balls show great potential in the field of high-speed, high-precision, long-life bearings due to their excellent properties, such as lightweight, self-lubricating, high insulation, non-magnetic, high elastic modulus and excellent corrosion resistance. This paper aims to discuss the optimization of the spray granulation process of Si3N4 powder, especially the press...

Silicon Nitride Ball: A New Choice For High-Tech Powder Grinding Media

With the rapid development of high-tech industry, the requirements for fineness, purity and consistency of powder materials are increasing. As a key component in the powder preparation process, the performance of grinding medium directly determines the quality of the final product. Traditionally, zirconia ceramic balls are widely used in the field of ultra-fine grinding because of their high bendi...

Application Performance And Advantage Analysis Of Silicon Nitride Ball In Ultrafine Grinding Field

With the rapid development of nanotechnology and ultrafine material science, the demand for high-purity and ultrafine powder is increasing day by day. Silicon nitride ball, with its excellent hardness, very low wear rate and good chemical stability, has gradually become the key grinding medium in the field of ultrafine grinding. The purpose of this paper is to systematically describe the performan...

Study On Performance Characteristics And Application Of Silicon Nitride Ball In Mechanical Engineering Field

With the rapid development of modern mechanical engineering technology, the requirements for material properties are increasingly stringent, especially under extreme conditions such as high temperature, high speed, strong corrosion, etc., traditional metal materials and polymer materials have been difficult to meet the needs. Silicon nitride (Si ₄) As an advanced ceramic material with excellent ov...

Sol-gel Polishing Technology: Challenges And Opportunities To Innovate Silicon Carbide Substrate Polishing

Silicon carbide, the emerging star of the semiconductor material industry, is gradually leading the innovation trend of microelectronics technology with its excellent performance indicators. Its unique thermal conductivity, far superior to traditional semiconductor materials, provides the possibility for efficient heat dissipation, especially in high-power electronic devices show unparalleled adva...

Application And Advantages Of Plasma Assisted Polishing In AlN Substrate Processing

Aluminum nitride (AlN) ceramics, as a material with excellent thermal conductivity, mechanical properties and electrical properties, have been widely used in large-scale integrated circuits and electronic packages in recent years. Its excellent properties make it an ideal cooling substrate and packaging material. However, due to the high hardness, high brittleness and low fracture toughness of alu...

Silicon Carbide Substrate Processing Challenges with Innovative Applications Of Metal Friction-induced Reaction Grinding Technology

In the field of semiconductor materials, silicon carbide (SiC) with its excellent thermal conductivity, wide band gap characteristics, high breakdown electric field strength and high electron mobility, is gradually becoming a research and development hotspot, leading the innovation of a new generation of electronic devices. As a substrate material for key components, the broad application prospect...

Alumina Crucible Aluminum Oxide Ceramic Crucible Conical

Alumina Crucible Aluminum Oxide Ceramic Crucible Cylindrical

Alumina Tray Aluminum Oxide Ceramic Crucible Trapezoid

Alumina Combustion Crucible Boat Aluminum Oxide Ceramic Crucible Flat Bottom

Alumina Combustion Crucible Boat Aluminum Oxide Ceramic Furnace Crucible

Alumina Combustion Crucible Boat Aluminum Oxide Ceramic Crucible Round Bottom

Alumina Crucible Aluminum Oxide Ceramic Crucible Point Bottom

Alumina Crucible Aluminum Oxide Ceramic Crucible With Nozzle

FAQ

Do you supply the materials unlisted on your website?

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Can you aid in material selection & ceramic product design?

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

Do you have a minimum order value requirement?

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

What services beyond ceramic products do you offer?

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Do you offer international shipping services?

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.

All FAQs

Send Your inquiry

Contact With Us

Contact With Us

Looking for Video?

Office Hours

Monday to Friday: 9:00 AM - 12:00 PM, 2:00 PM - 5:30 PM

Please note that our office hours are based on Beijing Time, which is eight hours ahead of Greenwich Mean Time (GMT). We appreciate your understanding and cooperation in scheduling your inquiries and meetings accordingly. For any urgent matters or queries outside our regular hours, feel free to contact us via email, and we will get back to you as soon as possible. Thank you for your business, and we look forward to serving you.

Home

Products

contact
