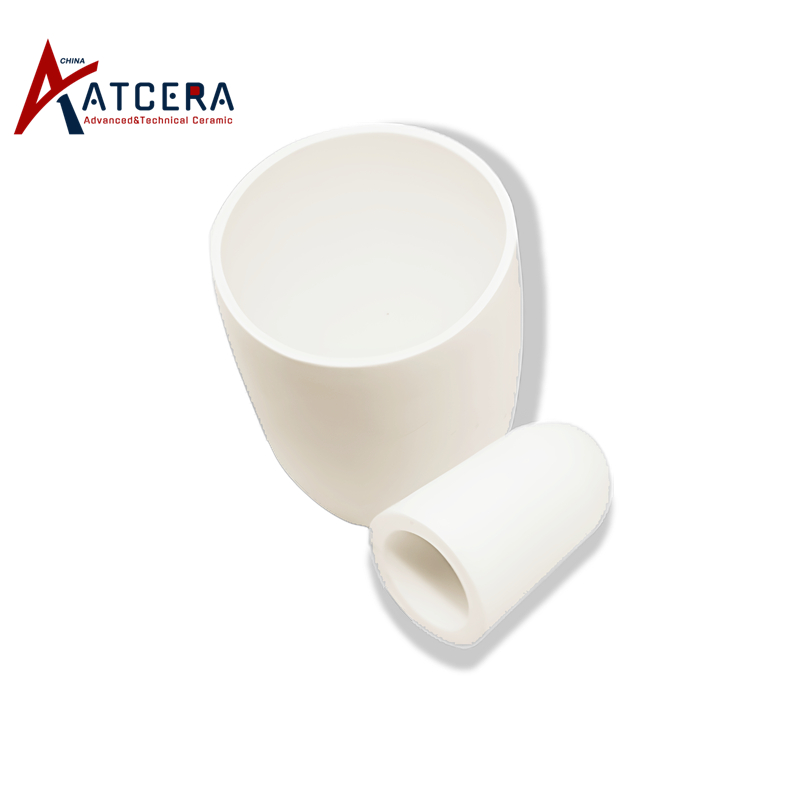

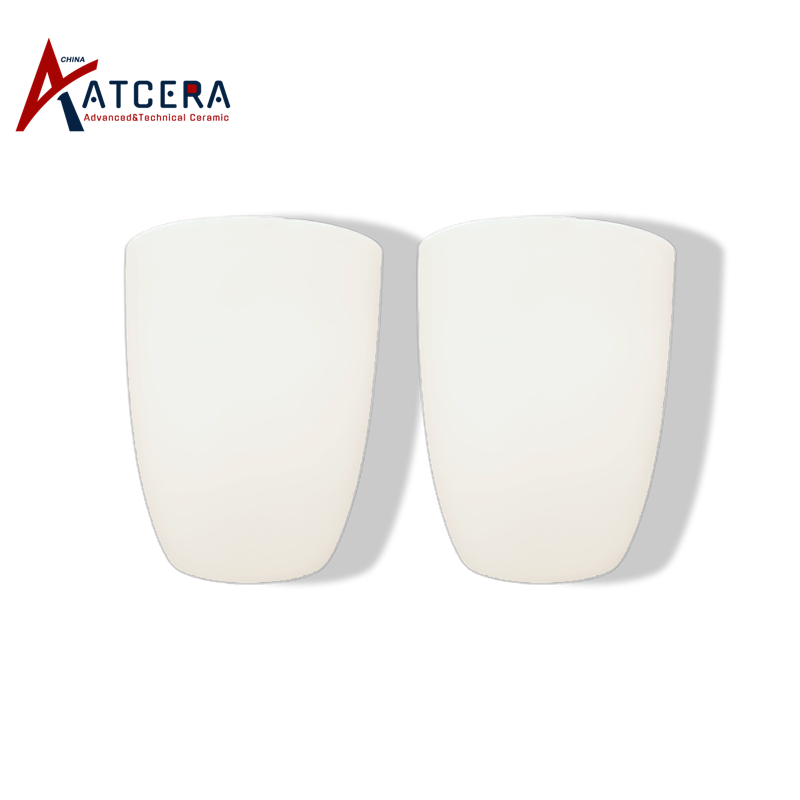

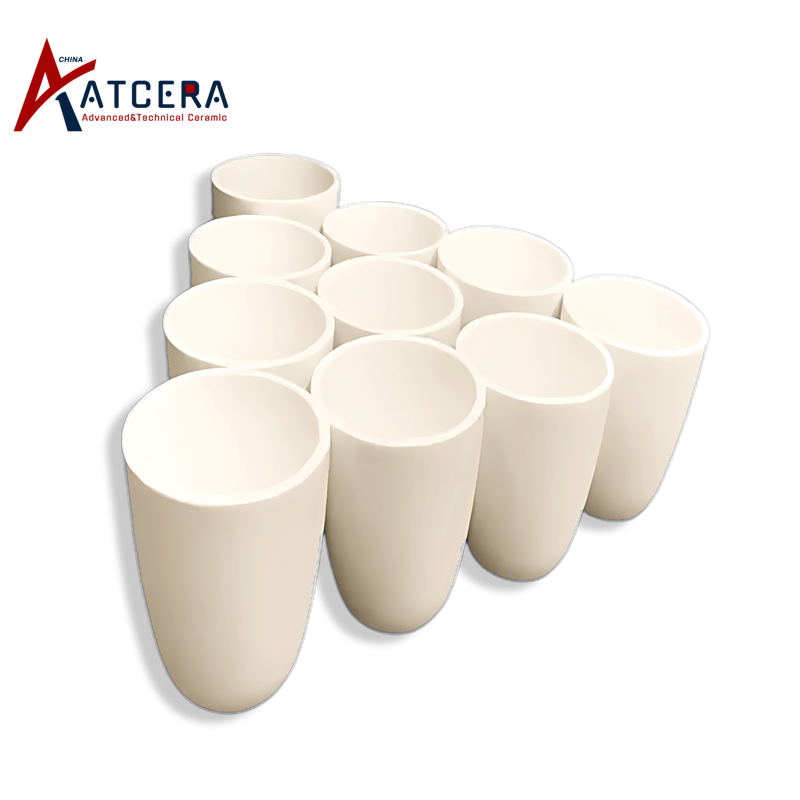

Alumina Crucible Aluminum Oxide Ceramic Crucible Conical

Alumina crucible is resistant to high temperature, acid and alkali, and has good corrosion resistance and thermal shock, which is widely used in chemical analysis experiments at high temperatures and industrial material testing and analysis, used to heat and melt various materials to analyze their physical and chemical properties.

  • Brand:

    ATCERA
  • Item NO.:

    TE-AC-001
  • Materials

    Alumina
  • Shapes

    Crucible
  • Applications

    Petrochemical Industry , Metallurgy Industry , Laboratory Equipment and Instruments
ceramic crucibles

Properties of Aluminum Oxide Ceramic Crucible Conical



1. High temperature resistance, long-term use temperature of higher than 1600℃, and short-term right can be up to 1800℃;



2. Good thermal shock resistance, not easy to burst or crack under rapid heating or cooling.



3. Conical crucible can be made into a large volume, with high space utilization rate, good safety and stability during use.

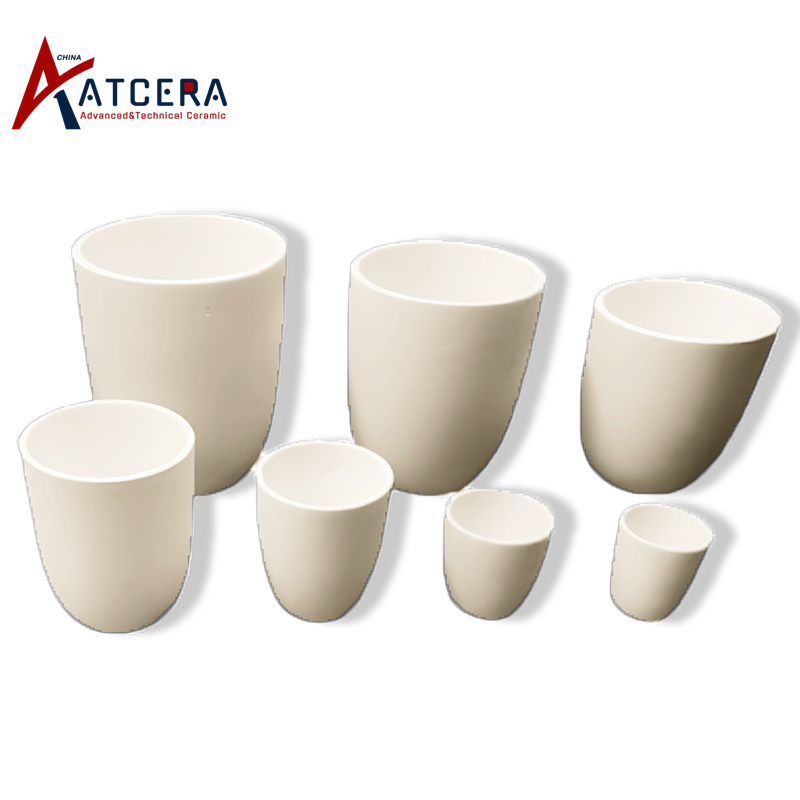

alumina conical crucible

Applications of Alumina Ceramic Crucible Conical



1. Widely used in metal processing, glass melting, jewelry industry gem purification and other high temperature applications.



2. Widely used in metallurgical, chemical and material science experiments.



3. Conical crucible can be used for various laboratory or industrial production in the need for high temperature melting occasions.





Size Chart of Alumina Ceramic Crucible Conical



We are committed to delivering high-quality alumina conical crucible tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Requirements for Custom Design
1. Drawing (can attach material requirements, purity, size, tolerance standard)
2. High temperature resistance requirements
3. Application scenario

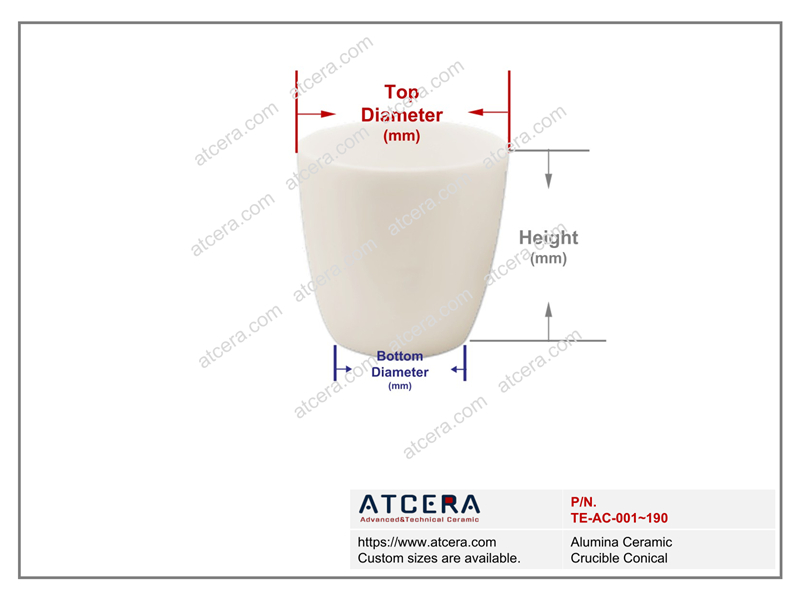

Drawing of Alumina Ceramic Crucible Conical

Alumina Ceramic Crucible Conical
Item No.

Volume

(ml)

Top

Diameter
(mm)

Bottom

Diameter
(mm)

Height

(mm)

Item No.

Volume

(ml)

Top

Diameter
(mm)

Bottom

Diameter
(mm)

Height

(mm)

TE-AC-001 1 15 10 7 TE-AC-040-2 100 61 31 60
TE-AC-002 1.5 20 15 9 TE-AC-040-3 100 58 35 68
TE-AC-003 2.5 37 35 5.5 TE-AC-041 120 63 33 73
TE-AC-003-1 3 20 16 17 TE-AC-042 140 55 48 72
TE-AC-004 3 17 11 25 TE-AC-043 150 68 42 80
TE-AC-005 3 20 16 17 TE-AC-043-1 150 67 42 78
TE-AC-006 4 25 14 20 TE-AC-043-2 150 67 41 80
TE-AC-006-1 4 22 14 24 TE-AC-043-3 150 67 42 78
TE-AC-006-2 4 25 19 18 TE-AC-044 150 73 43 67
TE-AC-007 4 22 14 24 TE-AC-044-1 150 73 43 67
TE-AC-008 4 25 19 18 TE-AC-045 200 70 44 85
TE-AC-008-1 5 26 18 21 TE-AC-046 200 82 43 70
TE-AC-009 5 25 18 22 TE-AC-046-1 200 73 48 86
TE-AC-009-1 5 26 18 21 TE-AC-046-2 200 82 43 70
TE-AC-010 7 28 21 13 TE-AC-046-3 250 90 53 76
TE-AC-010-1 8 24 16 32 TE-AC-047 200 83 48 86
TE-AC-011 10 28 20 27 TE-AC-048 250 75 51 93
TE-AC-011-1 10 30 20 28 TE-AC-049 250 90 53 76
TE-AC-011-2 10 29 18 34 TE-AC-049-1 200 73 48 86
TE-AC-012 10 30 18 30 TE-AC-049-2 300 83 52 106
TE-AC-013 9 38 28 17 TE-AC-050 300 83 52 106
TE-AC-013-1 10 28 20 32 TE-AC-051 300 88 53 85
TE-AC-013-2 15 31 21 35 TE-AC-051-1 350 82 56 112
TE-AC-014 10 30 20 28 TE-AC-051-2 350 99 50 82
TE-AC-015 15 32 21 35 TE-AC-051-3 300 83 52 106
TE-AC-016 15 35 21 30 TE-AC-052 400 75 56 122
TE-AC-016-1 10 29 18 34 TE-AC-053 400 80 58 108
TE-AC-016-2 20 36 23 41 TE-AC-054 400 86 49 135
TE-AC-017 19 34 20 38 TE-AC-055 500 86 50 140
TE-AC-017-1 20 36 23 41 TE-AC-055-1 500 100 60 118
TE-AC-018 20 34 24 39 TE-AC-055-2 500 108 62 108
TE-AC-018-1 20 38 24 35 TE-AC-055-3 800 113 83 150
TE-AC-019 20 35 18 35 TE-AC-056 500 100 60 118
TE-AC-020 20 38 20 29 TE-AC-057 500 108 62 108
TE-AC-021 20 38 24 35 TE-AC-057-1 350 87 54 102
TE-AC-022 25 36 22 42 TE-AC-058 600 88 54 145
TE-AC-023 25 39 24 38 TE-AC-059 600 100 68 118
TE-AC-023-1 30 38 25 45 TE-AC-060 600 100 65 128
TE-AC-023-2 25 39 24 35 TE-AC-060-1 750 112 70 132
TE-AC-023-3 30 45 27 39 TE-AC-061 750 112 70 132
TE-AC-023-4 40 46 30 40 TE-AC-062 800 113 62 140
TE-AC-023-5 30 38 25 45 TE-AC-063 850 100 68 150
TE-AC-024 30 37 24 45 TE-AC-063-1 750 112 70 132
TE-AC-025 30 39 24 49 TE-AC-063-2 1000 125 80 146
TE-AC-026 30 45 27 39 TE-AC-063-3 1500 140 90 170
TE-AC-027 30 46 25 40 TE-AC-063-4 1000 125 80 146
TE-AC-027-1 40 45 30 46 TE-AC-064 1000 120 75 143
TE-AC-028 40 46 30 40 TE-AC-064-1 1000 135 83 150
TE-AC-029 50 52 30 50 TE-AC-065 1250 112 75 160
TE-AC-029-1 50 48 30 52 TE-AC-066 1300 135 83 150
TE-AC-030 50 52 32 50 TE-AC-067 1350 120 80 155
TE-AC-030-1 50 50 30 48 TE-AC-068 1500 140 90 170
TE-AC-030-2 70 56 35 56 TE-AC-068-1 1500 140 90 170
TE-AC-030-3 50 48 30 52 TE-AC-068-2 3300 140 90 170
TE-AC-031 50 50 30 54 TE-AC-069 2000 150 93 200
TE-AC-032 50 50 30 48 TE-AC-070-1 2000 155 95 200
TE-AC-033 50 56 30 45 TE-AC-182 10 30 32 14
TE-AC-034 70 56 35 56 TE-AC-183 20 39 35 21
TE-AC-035 90 55 48 53 TE-AC-184 30 45 38 23
TE-AC-036 100 57 37 68 TE-AC-185 50 57 44 28
TE-AC-037 100 61 36 54 TE-AC-186 100 67 53 34
TE-AC-037-1 100 58 35 68 TE-AC-187 150 73 58 42
TE-AC-038 100 61 36 60 TE-AC-188 250 84 66 48
TE-AC-039 100 62 40 53 TE-AC-189 500 108 108 58
TE-AC-040 120 66 30 55 TE-AC-190 1200 140 116 90



Specification of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.




Usage Instructions

1. Cleaning
The alumina crucible should be cleaned before use to remove impurities and dust on the surface. The user can use a soft cloth or brush to gently wipe, do not use a hard object or metal brush to clean, to not scratch the crucible surface.

2. Avoid violent vibration
During the use of crucible, severe vibration or collision should be avoided to not cause damage to the crucible structure.

3. Avoid contact with strong acid and alkali
Alumina crucible has good corrosion resistance to strong acid and alkali, but long-term contact with strong acid and alkali may cause chemical reactions on its surface and affect its service life. During use, contact with strong acids and bases should be avoided as much as possible, and relatively mild reagents should be selected.

4. The preheating temperature is about 105℃, the heating should be slow and uniform, the heating rate should be controlled well, and the furnace door should not be opened often, below 1200℃ should be <5℃/min, above 1200℃ should be<4℃/min.

5. Can not use gasoline spray gun, acetylene gun, alcohol spray burner direct heating to avoid explosive cracking due to uneven heat. The distance between the crucible and the heating body (such as carbon tube, silicon molybdenum rod, heating wire, etc.) should be no less than 2cm, and it's better to not let the bottom of large sized crucible contact with the bottom of furnace directly. It is recommended to use corundum sheet or other temperature resistant substances to lift the crucible to form air convection to extend the service life.

6. It's fine to remove residue on crucible surface when it is still hot, do not clean with acid and alkali substances.
7. Suitable for using anhydrous Na2CO3 and other weakly alkaline substances as molten samples, not suitable for using Na2O2, NaOH and other strongly alkaline substances and acidic substances as molten samples (such as potassium pyrosulfate K2S2O7, etc.).

8. Safety during use: alumina crucible works at high temperature, and personal protective equipment such as heat-releasing gloves and protective glasses should be worn when using to avoid burns or eye injuries.

9. Storage
When store alumina crucible, it should be placed in a dry and ventilated place to avoid friction or collision with other items, so as not to scratch or damage the surface of the crucible.

Valuable Information

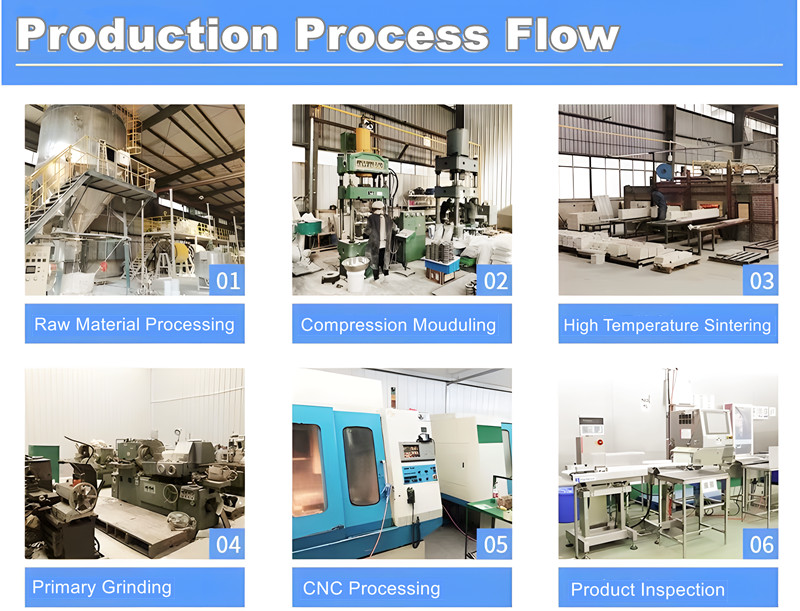

Production Process Flow

Production Process Flow



1. Raw material processing



2. Compression mouduling



3. High temperature sintering



4. Primary grinding



5. CNC processing



6. Product inspection

Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
