Alumina Crucible Aluminum Oxide Ceramic Crucible Point Bottom

The alumina crucible can withstand high temperatures, acids, and alkalis, offering excellent corrosion resistance and thermal shock resistance. It is frequently utilized in both high-temperature chemical analysis experiments as well as industrial material testing and analysis, utilized to heat and melt various materials for the purpose of analyzing their physical and chemical properties.

  • Brand:

    ATCERA
  • Item NO.:

    TE-SS-001
  • Materials

    Alumina
  • Shapes

    Crucible
  • Applications

    Petrochemical Industry , Metallurgy Industry , Laboratory Equipment and Instruments
aluminum oxide crucible point bottom

Advantages of Aluminum Oxide Ceramic Crucible Point Bottom



1. High temperature resistance, long-term use temperature of higher than 1600℃, and short-term right can be up to 1800℃;



2. Good thermal shock resistance, not easy to burst or crack under rapid heating or cooling.



3. Crucbible with point bottom has fast heat conductivity, the material is heated quickly and the fluidity is good.

alumina al2o3 ceramic crucible

Applications of Alumina Ceramic Crucible Point Bottom



1. In the laboratory, alumina crucible can be used to heat and melt various materials, including metal and non-metal material. By observing the changes and behavior of materials at high temperatures, their physical and chemical properties can be studied and identified.



2. Crucbible with point bottom is suitable for thermal analysis test of small amount of material sample.



3. In industrial production, alumina crucible can be used to analyze and test raw materials, intermediates and final products. By using alumina crucible for high temperature analysis, the properties and characteristics of the product can be better understood, so as to optimize the production process and improve product quality.



Size Chart of Alumina Ceramic Crucible Point Bottom



We are committed to delivering high-quality aluminum oxide crucible point bottom tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Requirements for Custom Design
1. Drawing (can attach material requirements, purity, size, tolerance standard)
2. High temperature resistance requirements
3. Application scenario

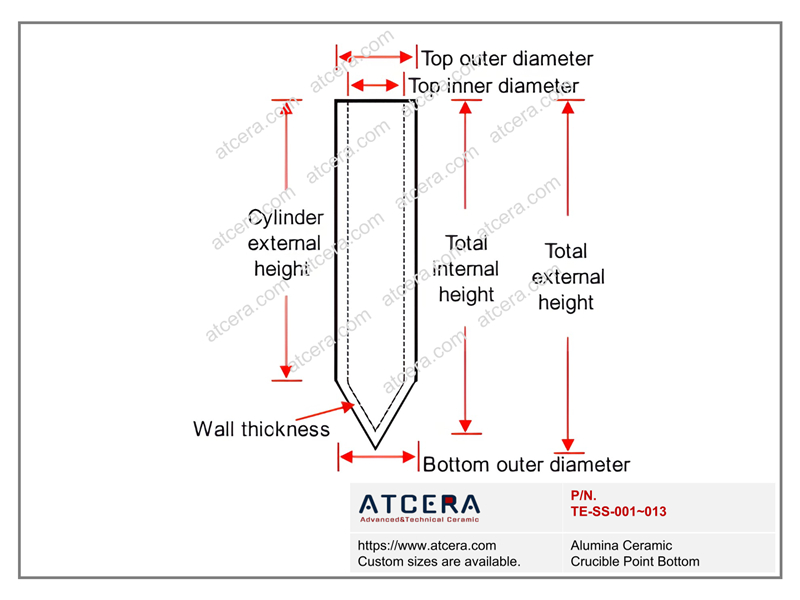

Drawing of Alumina Ceramic Crucible Point Bottom

Alumina Ceramic Crucible Point Bottom
Item No. Cylinder External Height (mm) Total External Height (mm) Total Internal
Height (mm)
Bottom Outer Diameter (mm) Top Inner
Diameter (mm)
Top Outer
Diameter (mm)
Wall thickness (mm)
TE-SS-001 70 81.3 69.5 10.4 7.7 10.9 1.6
TE-SS-002 122 138 131 13.1 10.3 13.6 1.5
TE-SS-003 63.5 77.6 62.8 18 14.3 18.2 1.8
TE-SS-004 90 104 89 14.2 11 14.5 1.6
TE-SS-005 76.6 97.8 76.3 24 20.7 24.4 1.8
TE-SS-006 124 138 124 17.8 13.1 17.8 2.2
TE-SS-007 113.5 129.5 112.3 24.5 20.7 25.2 2.1
TE-SS-008 24 34 23 10 6 10 2
TE-SS-009 70 85 69.5 15 12 15 1.5
TE-SS-010 66 77 66 12 9 12 1.5
TE-SS-011 80 94 79.5 9.5 7.5 9.5 1
TE-SS-012 72 102 71 10 7.2 10 1.4
TE-SS-013 45 60 45 12.5 9.7 12.5 1.4



Specification of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.




Usage Instructions

1. Cleaning
The alumina crucible should be cleaned before use to remove impurities and dust on the surface. The user can use a soft cloth or brush to gently wipe, do not use a hard object or metal brush to clean, to not scratch the crucible surface.
2. Avoid violent vibration
During the use of crucible, severe vibration or collision should be avoided to not cause damage to the crucible structure.
3. Avoid contact with strong acid and alkali
Alumina crucible has good corrosion resistance to strong acid and alkali, but long-term contact with strong acid and alkali may cause chemical reactions on its surface and affect its service life. During use, contact with strong acids and bases should be avoided as much as possible, and relatively mild reagents should be selected.
4. The preheating temperature is about 105℃, the heating should be slow and uniform, the heating rate should be controlled well, and the furnace door should not be opened often, below 1200℃ should be <5℃/min, above 1200℃ should be<4℃/min.
5. Can not use gasoline spray gun, acetylene gun, alcohol spray burner direct heating to avoid explosive cracking due to uneven heat. The distance between the crucible and the heating body (such as carbon tube, silicon molybdenum rod, heating wire, etc.) should be no less than 2cm, and it's better to not let the bottom of large sized crucible contact with the bottom of furnace directly. It is recommended to use corundum sheet or other temperature resistant substances to lift the crucible to form air convection to extend the service life.
6. It's fine to remove residue on crucible surface when it is still hot, do not clean with acid and alkali substances.
7. Suitable for using anhydrous Na2CO3 and other weakly alkaline substances as molten samples, not suitable for using Na2O2, NaOH and other strongly alkaline substances and acidic substances as molten samples (such as potassium pyrosulfate K2S2O7, etc.).
8. Safety during use: alumina crucible works at high temperature, and personal protective equipment such as heat-releasing gloves and protective glasses should be worn when using to avoid burns or eye injuries.
9. Storage
When store alumina crucible, it should be placed in a dry and ventilated place to avoid friction or collision with other items, so as not to scratch or damage the surface of the crucible.

Valuable Information



Production Process Flow

Production Process Flow



1. Raw material processing



2. Compression mouduling



3. High temperature sintering



4. Primary grinding



5. CNC processing



6. Product inspection

Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
