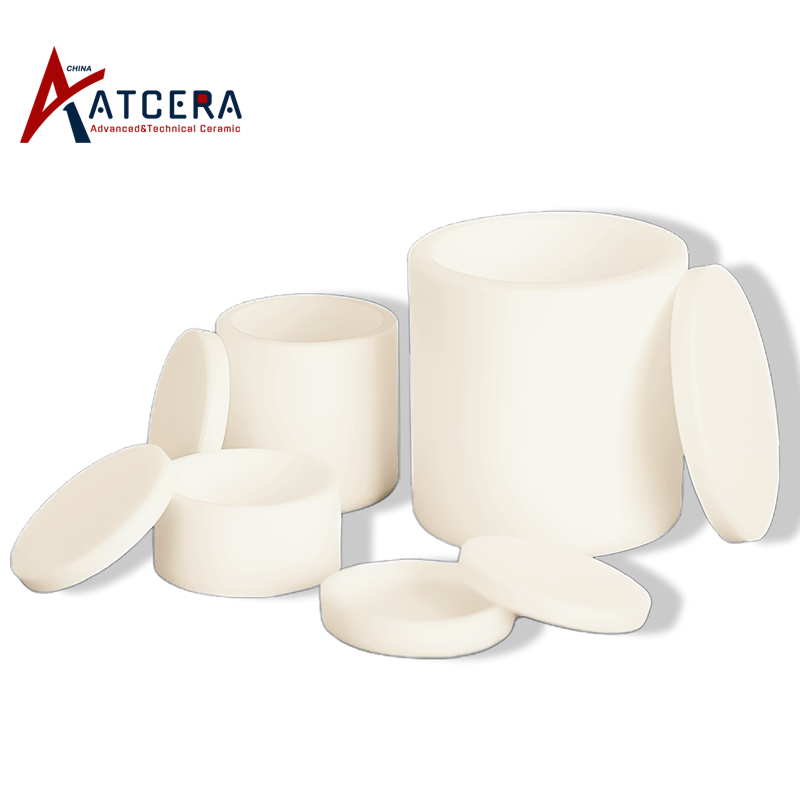

Alumina Crucible Aluminum Oxide Ceramic Crucible Cylindrical

The alumina crucible endures high temperatures, acids, and alkalis, exhibiting excellent corrosion resistance and thermal shock resistance. It is frequently employed in chemical analysis experiments conducted at elevated temperatures, as well as industrial material testing and analysis, used to heat and melt various materials for the examination of their physical and chemical properties.

  • Brand:

    ATCERA
  • Item NO.:

    TE-AC-070
  • Materials

    Alumina
  • Shapes

    Crucible
  • Applications

    Petrochemical Industry , Metallurgy Industry , Laboratory Equipment and Instruments

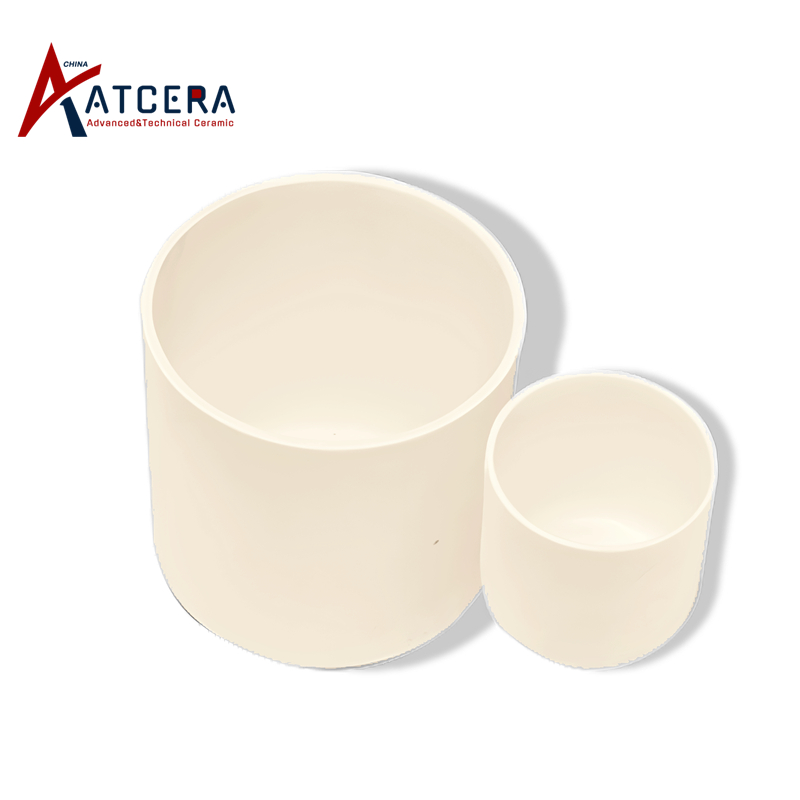

alumina crucible

Advantages of Aluminum Oxide Ceramic Crucible Cylindrical



1. Using high purity alumina as raw material, purity is higher than 99%;



2. Using grouting molding process, so the product compactness is quite good;



3. Cylindrical crucible can be made into large volume and easy to operate.

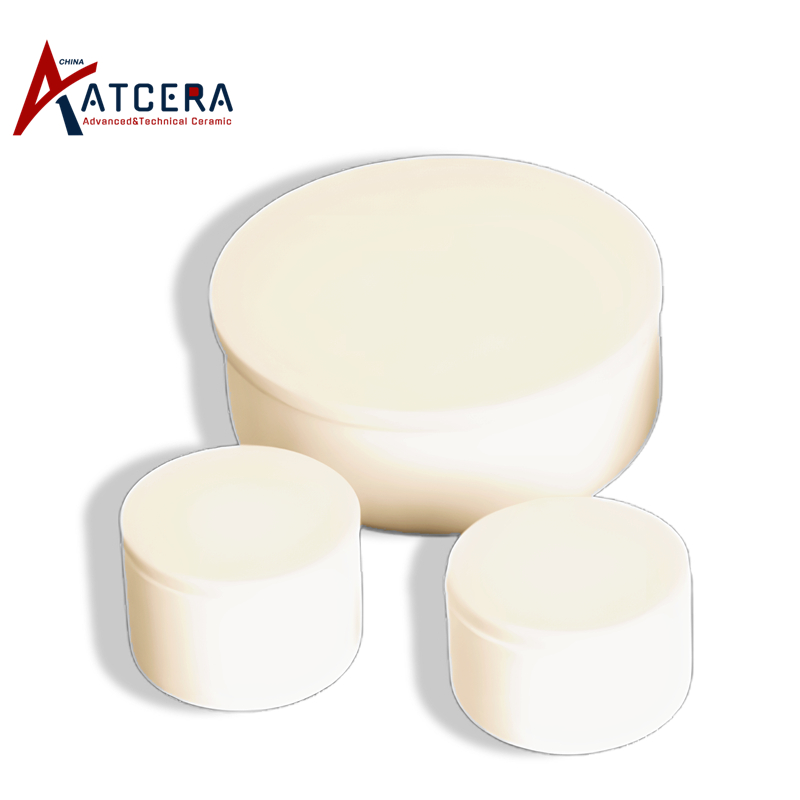

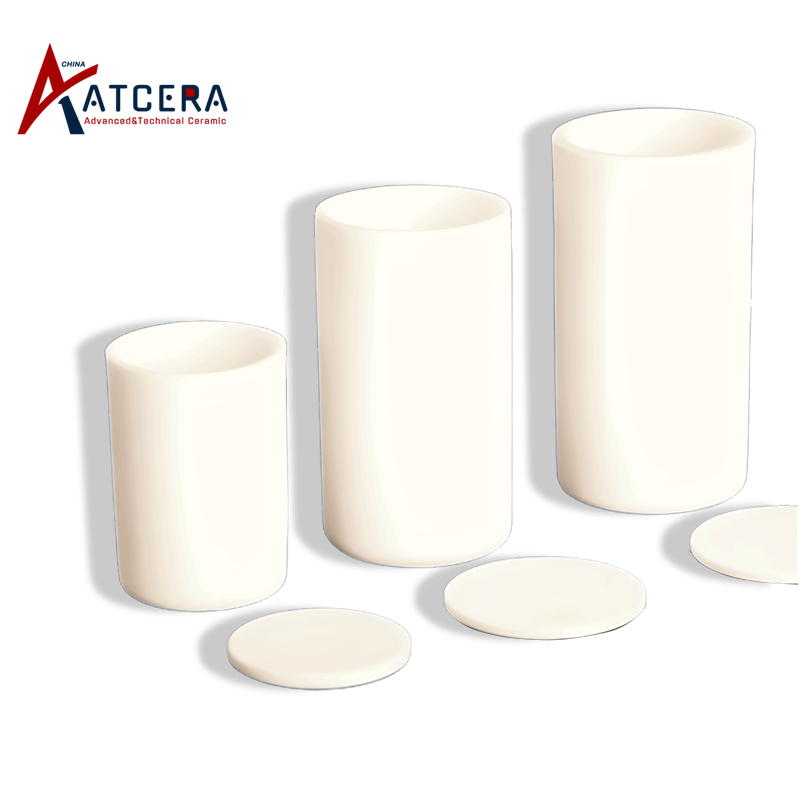

alumina cylindrical crucible

Applications of Alumina Ceramic Crucible Cylindrical



1. Widely used in various industrial analysis, melting metal and non-metallic material samples.



2. Widely used in metal processing, glass melting, jewelry industry gem purification and other high temperature applications.



3. Cylindrical crucible is suitable for melting and processing of various materials, good consistency, to meet the needs of batch analysis or production.





Size Chart of Alumina Ceramic Crucible Cylindrical



We are committed to delivering optimal alumina cylindrical crucible tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Requirements for Custom Design
1. Drawing (can attach material requirements, purity, size, tolerance standard)
2. High temperature resistance requirements
3. Application scenario

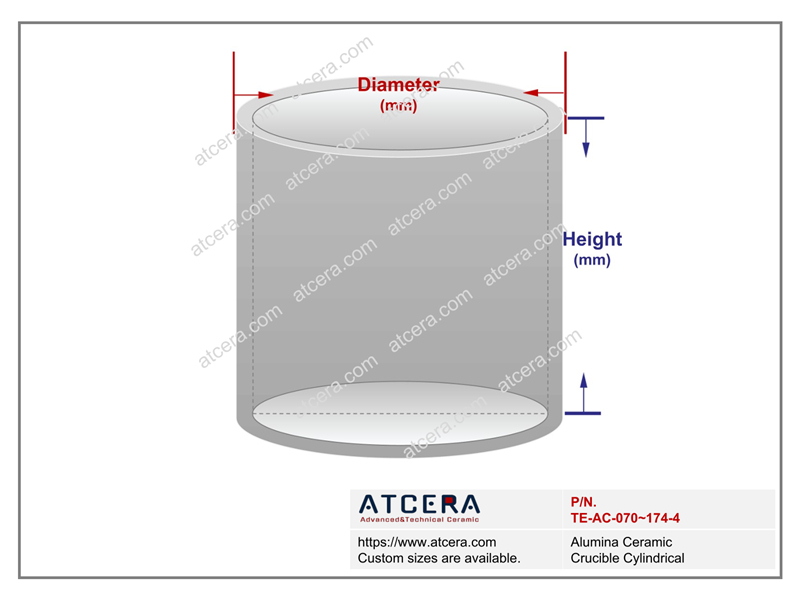

Drawing of Alumina Ceramic Crucible Cylindrical

Alumina Ceramic Crucible Cylindrical
Item No. Volume
(ml)
Diameter
(mm)
Height
(mm)
Item No. Volume
(ml)
Diameter
(mm)
Height
(mm)
Item No. Volume
(ml)
Diameter
(mm)
Height
(mm)
TE-AC-070 0.5 20 4 TE-AC-126 40 35 58 TE-AC-124-16 330 75 95
TE-AC-071 0.7 12 8 TE-AC-126-1 40 50 30 TE-AC-135-1 330 80 80
TE-AC-071-1 0.8 12 12 TE-AC-110 45 40 50 TE-AC-158 330 80 80
TE-AC-072 0.9 12 10 TE-AC-127 45 42 45 TE-AC-120 350 80 80
TE-AC-073 1 20 5 TE-AC-127-2 45 35 65 TE-AC-159 350 80 80
TE-AC-074 1 12 10 TE-AC-127-3 45 40 50 TE-AC-159-1 350 90 30
TE-AC-075 1 18 5 TE-AC-128 45 35 70 TE-AC-159-2 350 70 120
TE-AC-076 1 18 8 TE-AC-131-2 45 50 100 TE-AC-154-4 370 65 150
TE-AC-077 1 10 15 TE-AC-128-1 50 40 60 TE-AC-160-5 380 80 100
TE-AC-078 1 11 20 TE-AC-129 50 30 100 TE-AC-119-6 400 85 85
TE-AC-079 1.5 12 20 TE-AC-107 55 40 60 TE-AC-160 400 70 120
TE-AC-080 1.5 12 25 TE-AC-130 60 40 70 TE-AC-160-1 400 66 150
TE-AC-081 1.5 9 40 TE-AC-131 60 50 50 TE-AC-160-4 400 85 85
TE-AC-082 1.5 13 25 TE-AC-132 65 35 100 TE-AC-161 400 85 85
TE-AC-083 2 10 25 TE-AC-134 75 45 65 TE-AC-160-2 450 90 90
TE-AC-083-1 2 20 20 TE-AC-136 80 75 27 TE-AC-160-3 450 90 90
TE-AC-085 2 30 5 TE-AC-134-1 80 75 27 TE-AC-135-2 480 90 90
TE-AC-086 2 12 39 TE-AC-135 80 37 69 TE-AC-162 480 90 90
TE-AC-083-2 2.5 22 20 TE-AC-137 80 60 40 TE-AC-124-8 500 95 90
TE-AC-087 3 18 18 TE-AC-135-4 85 50 60 TE-AC-160-10 500 95 90
TE-AC-088 3 16 28 TE-AC-138 85 50 60 TE-AC-164-1 500 80 130
TE-AC-088-1 3 12.7 25 TE-AC-135-5 90 35 120 TE-AC-174-10 500 80 120
TE-AC-088-2 3 14 31 TE-AC-131-3 110 50 120 TE-AC-165-10 510 95 95
TE-AC-088-3 3 15 5 TE-AC-138-1 110 60 60 TE-AC-124-9 550 95 95
TE-AC-088-5 3 15 20 TE-AC-138-2 110 40 120 TE-AC-160-11 550 95 95
TE-AC-089 3 15 75 TE-AC-119-4 115 40 120 TE-AC-163 600 100 100
TE-AC-090 3 10 30 TE-AC-119-5 115 47 85 TE-AC-164 600 100 100
TE-AC-091 3.4 17 21 TE-AC-141 120 90 35 TE-AC-124-15 630 70 210
TE-AC-091-1 4 14 44 TE-AC-139 120 50 80 TE-AC-165-11 630 100 100
TE-AC-092 4 20 20 TE-AC-140 120 60 60 TE-AC-165 650 100 100
TE-AC-093 5 32 10 TE-AC-141 120 90 35 TE-AC-165-2 650 100 100
TE-AC-094 5 12 60 TE-AC-142 125 41 137 TE-AC-165-12 750 88 150
TE-AC-094-1 5 10 40 TE-AC-124-10 130 60 60 TE-AC-165-5 800 110 100
TE-AC-094-3 5 11.5 50 TE-AC-131-6 130 60 60 TE-AC-166 800 115 110
TE-AC-094-4 5 11.5 15 TE-AC-143 130 60 60 TE-AC-167 800 80 200
TE-AC-095 5 11 20 TE-AC-143-1 130 65 45 TE-AC-135-3 880 100 100
TE-AC-096 5 10.5 20 TE-AC-143-2 130 75 30 TE-AC-168 880 110 110
TE-AC-097 5 20 30 TE-AC-144 130 45 110 TE-AC-160-6 950 80 250
TE-AC-098 5 15 50 TE-AC-145 130 60 60 TE-AC-123-2 1000 80 250
TE-AC-099 5 28 17 TE-AC-145-1 130 45 110 TE-AC-168-1 1000 115 155
TE-AC-099-1 5 35 8.5 TE-AC-084 150 37 175 TE-AC-169-5 1080 120 120
TE-AC-100 5 16 50 TE-AC-146 150 50 100 TE-AC-165-7 1100 120 120
TE-AC-101 5 54 8 TE-AC-146-1 160 90 35 TE-AC-169-1 1100 120 120
TE-AC-102 5.4 17 37 TE-AC-124-5 170 90 35 TE-AC-160-7 1140 80 300
TE-AC-103 6 16 60 TE-AC-146-2 170 70 70 TE-AC-169 1140 120 120
TE-AC-104 6 17 40 TE-AC-146-3 170 48 120 TE-AC-124-2 1200 80 300
TE-AC-104-1 6 16 56 TE-AC-147 170 65 65 TE-AC-169-6 1200 110 150
TE-AC-105 6 19 35 TE-AC-160-8 175 90 35 TE-AC-169-7 1200 135 30
TE-AC-105-1 6 16 80 TE-AC-148 180 59 87 TE-AC-169-8 1200 135 110
TE-AC-105-2 6 20 30 TE-AC-124-11 195 60 90 TE-AC-165-3 1300 100 200
TE-AC-108 7 22 25 TE-AC-151 200 100 35 TE-AC-170 1300 115 155
TE-AC-106 8 25 25 TE-AC-152 200 100 40 TE-AC-178 1300 100 200
TE-AC-109 9 20 40 TE-AC-149 200 55 90 TE-AC-170-1 1400 130 130
TE-AC-109-1 10 19 58 TE-AC-149-1 200 100 40 TE-AC-169-2 1450 130 130
TE-AC-109-2 10 20 50 TE-AC-149-2 200 45 150 TE-AC-170-2 1450 130 130
TE-AC-110-1 10 25 30 TE-AC-150 200 60 100 TE-AC-165-6 1500 110 195
TE-AC-110-2 10 30 28 TE-AC-151 200 100 35 TE-AC-171 1500 125 150
TE-AC-112 10 19 100 TE-AC-152 200 100 40 TE-AC-165-8 1800 120 200
TE-AC-113 10.2 22 36 TE-AC-154-2 200 70 70 TE-AC-171-1 1800 140 140
TE-AC-083-3 15 30 30 TE-AC-124-12 215 60 100 TE-AC-169-3 1850 140 140
TE-AC-114 15 47 13 TE-AC-132-1 215 70 70 TE-AC-172 1850 140 140
TE-AC-114-1 15 23 60 TE-AC-153 215 70 70 TE-AC-173 2000 135 160
TE-AC-115 15 30 30 TE-AC-124-6 220 95 40 TE-AC-174 2000 135 200
TE-AC-115-1 15 47 13 TE-AC-152-1 220 50 150 TE-AC-174-1 2000 150 80
TE-AC-115-2 15 30 30 TE-AC-152-2 220 60 120 TE-AC-174-2 2000 170 165
TE-AC-115-3 15 30 30 TE-AC-152-3 220 55 120 TE-AC-180 2200 100 210
TE-AC-116 20 35 35 TE-AC-131-4 225 55 120 TE-AC-169-4 2250 150 150
TE-AC-117 20 25 60 TE-AC-160-9 230 95 40 TE-AC-173-1 2250 160 160
TE-AC-118 20 25 60 TE-AC-119-1 250 60 115 TE-AC-174-11 2250 150 150
TE-AC-118-1 20 35 30 TE-AC-154 250 60 120 TE-AC-181 2600 140 200
TE-AC-119 20 28 58 TE-AC-154-1 250 90 60 TE-AC-174-3 2700 150 180
TE-AC-119-2 25 35 35 TE-AC-124-13 260 60 120 TE-AC-165-9 3300 130 300
TE-AC-121 25 28 58 TE-AC-165-1 260 100 40 TE-AC-175 3350 170 170
TE-AC-122 30 30 60 TE-AC-165-4 260 105 40 TE-AC-176 4000 180 180
TE-AC-123 30 36 45 TE-AC-174-6 260 60 120 TE-AC-174-8 5400 185 240
TE-AC-123-1 30 40 32 TE-AC-124-14 270 70 90 TE-AC-174-9 5500 200 200
TE-AC-124 30 40 35 TE-AC-119-3 300 90 60 TE-AC-177 5500 200 200
TE-AC-124-1 30 30 60 TE-AC-131-5 300 55 170 TE-AC-174-5 5700 120 600
TE-AC-124-3 34 26 82 TE-AC-155 300 95 60 TE-AC-174-7 6000 176 280
TE-AC-124-4 35 40 40 TE-AC-156 300 70 100 TE-AC-173-2 7400 220 220
TE-AC-125 35 40 40 TE-AC-156-1 300 80 80 TE-AC-178-1 7400 220 220
TE-AC-111 36 40 40 TE-AC-157 300 80 80 TE-AC-179 9700 240 240
TE-AC-124-7 40 40 50 TE-AC-154-3 320 60 170 TE-AC-174-4 23000 315 315



Specification of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.




Usage Instructions

1. Cleansing Procedure: Before utilizing the alumina crucible, ensure to perform a thorough cleaning to eliminate impurities and dust from its surface. Use a soft cloth or brush for gentle wiping; refrain from employing hard objects or metal brushes to prevent any scratches on the crucible surface.

2. Minimize Vibrations: While employing the crucible, steer clear of intense vibrations or collisions to prevent any potential damage to its structural integrity.

3. Chemical Interaction Caution: Although alumina crucibles exhibit excellent resistance to strong acids and alkalis, prolonged exposure to these substances may trigger chemical reactions on the surface, impacting its overall lifespan. Exercise caution during use, minimizing contact with strong acids and bases and opting for milder reagents.

4. Optimal Preheating: Set the preheating temperature at approximately 105℃, ensuring a slow and uniform heating process. Control the heating rate meticulously, and refrain from frequently opening the furnace door. For temperatures below 1200℃, maintain a rate of <5℃/min, and for temperatures above 1200℃, keep it <4℃/min.

5. Heating Guidelines: Avoid using a gasoline spray gun, acetylene gun, or alcohol spray burner for direct heating to prevent explosive cracking due to uneven heat. Maintain a distance of no less than 2cm between the crucible and the heating body, employing materials like corundum sheet to lift the crucible and facilitate air convection, thereby extending its service life.

6. Residue Removal: It is permissible to clean residue from the crucible surface while it is still hot, but refrain from using acid and alkali substances for cleaning.

7. Molten Sample Suitability: Alumina crucibles are suitable for molten samples containing weakly alkaline substances like anhydrous Na2CO3, but unsuitable for strongly alkaline substances such as Na2O2, NaOH, and acidic substances like potassium pyrosulfate K2S2O7.

8. Safety Measures: Due to the high temperatures involved, ensure personal safety during use by donning heat-releasing gloves and protective glasses to prevent burns or eye injuries.

9. Storage Guidelines: When storing alumina crucibles, place them in a dry and well-ventilated environment to prevent friction or collisions with other items, thereby avoiding potential scratches or damage to the crucible surface.

Valuable Information



Production Process Flow

Production Process Flow



1. Raw material processing



2. Compression mouduling



3. High temperature sintering



4. Primary grinding



5. CNC processing



6. Product inspection

Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
