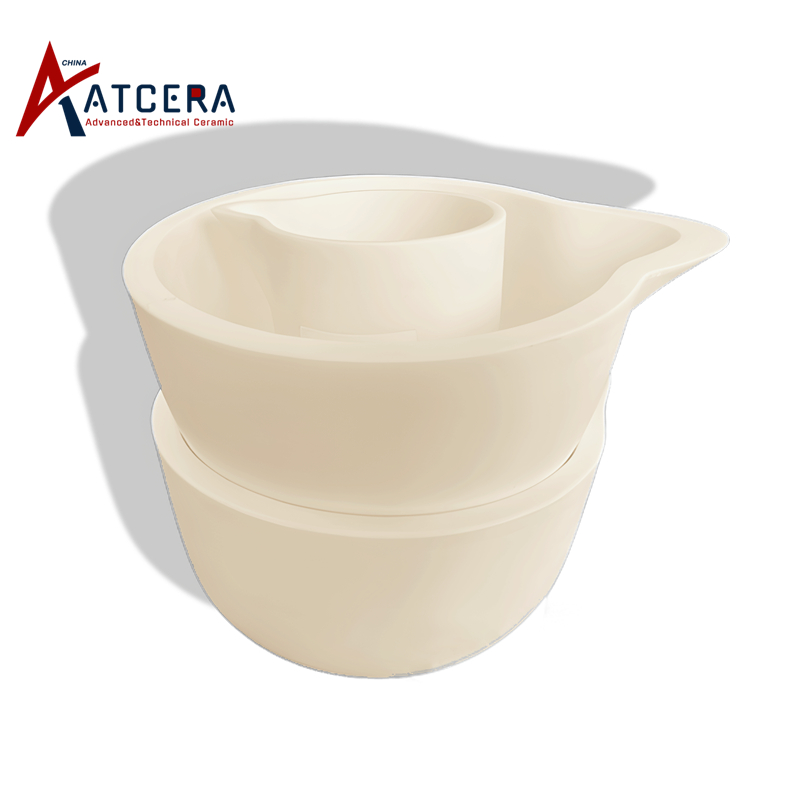

Alumina Crucible Aluminum Oxide Ceramic Crucible With Nozzle

The alumina crucible is capable of enduring high temperatures, acids, and alkalis, featuring remarkable corrosion resistance and thermal shock resistance. It is commonly utilized in both high-temperature chemical analysis experiments as well as industrial material testing and analysis, used to heat and melt various materials for the purpose of analyzing their physical and chemical properties.

  • Brand:

    ATCERA
  • Item NO.:

    TE-OEM-124
  • Materials

    Alumina
  • Shapes

    Crucible
  • Applications

    Petrochemical Industry , Metallurgy Industry , Laboratory Equipment and Instruments

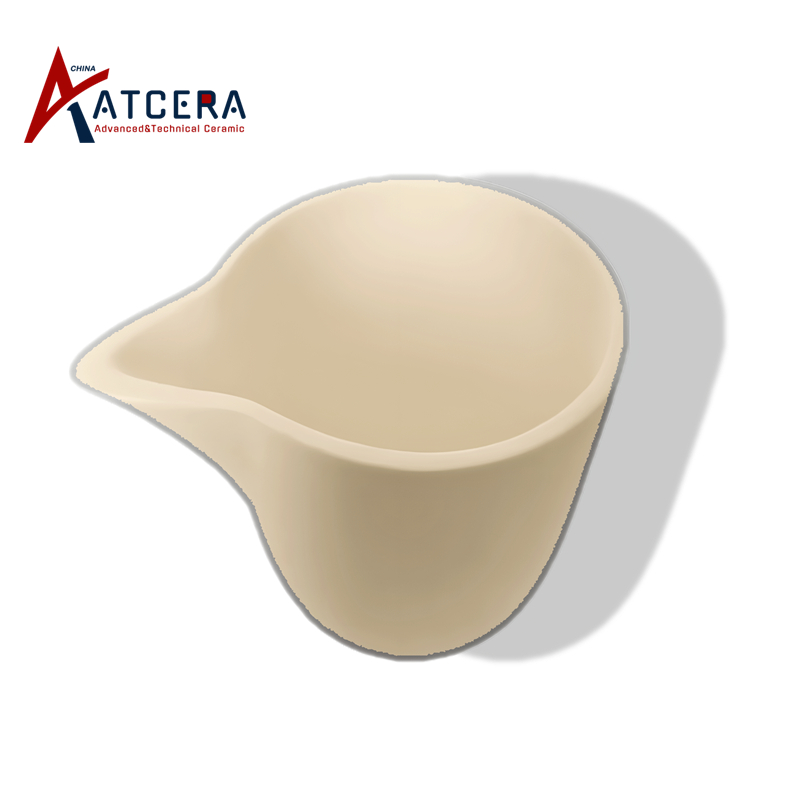

aluminum oxide crucible with nozzle

Advantages of Aluminum Oxide Ceramic Crucible With Nozzle



1. Using high purity alumina as raw material, purity is higher than 99%.



2. Using grouting molding process, so the product compactness is quite good.



3. The smelting material is easy to pour out for crucible with spout.

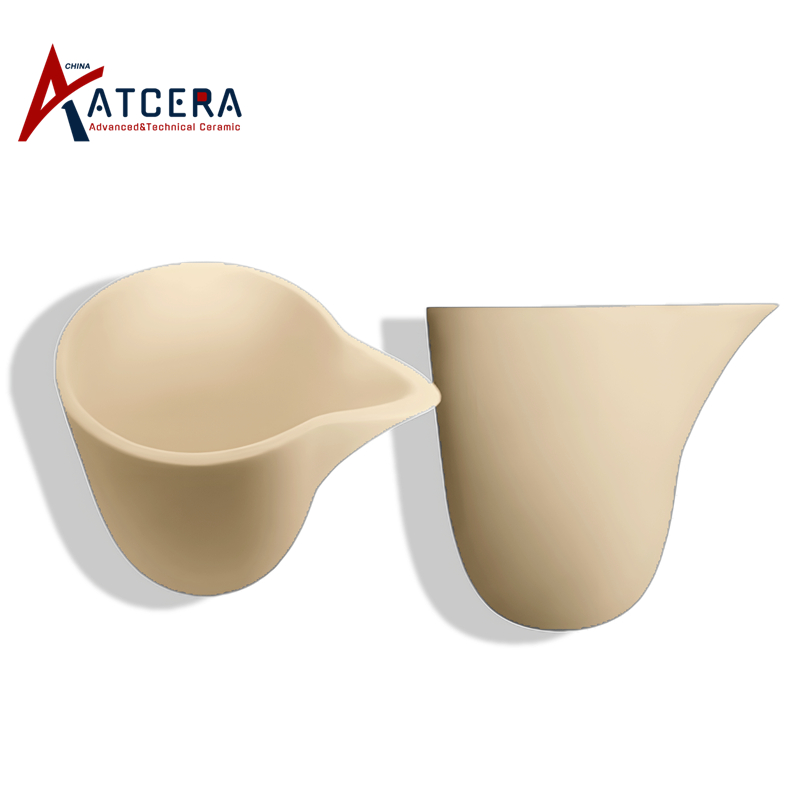

ceramic crucible

Applications of Alumina Ceramic Crucible With Nozzle



1. Widely used in metal processing, glass melting, jewelry industry gem purification and other high temperature applications.



2. Widely used in metallurgical, chemical and material science experiments.



3. Crucible with spout is mainly used for high temperature melting test and thermal analysis of materials.



Size Chart of Alumina Ceramic Crucible With Nozzle



We are committed to delivering optimal aluminum oxide crucible with nozzle tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Requirements for Custom Design
1. Drawing (can attach material requirements, purity, size, tolerance standard)
2. High temperature resistance requirements
3. Application scenario

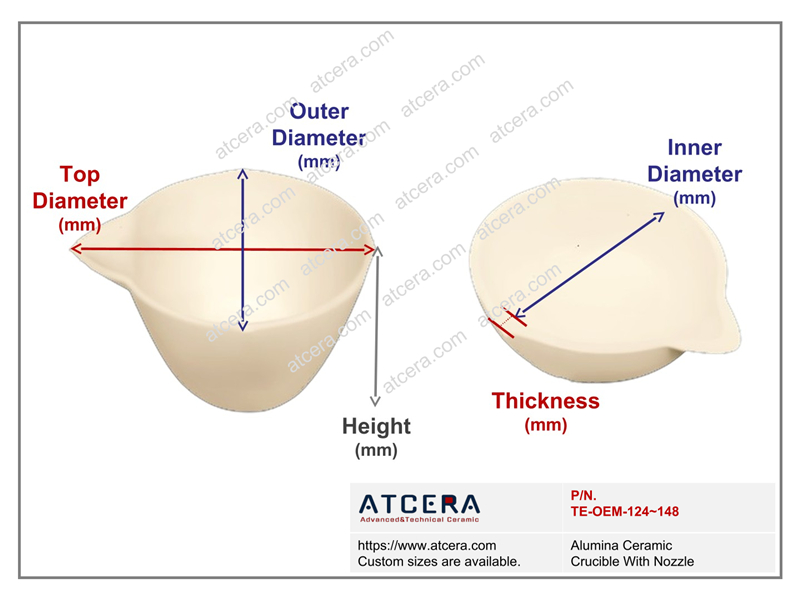

Drawing of Alumina Ceramic Crucible With Nozzle

Alumina Ceramic Crucible With Nozzle
Item NO. Outer Diameter Thickness Inner diameter (mm) Inner diameter (mm) TOP diameter Height Al2O3's Purity
(mm) (mm) (4mm Thickness) (8mm Thickness) (mm) (mm) (%)
TE-OEM-124 30 4-8 22 14 40 15 99-99.6
TE-OEM-125 30 4-8 22 14 40 28 99-99.6
TE-OEM-126 30 4-8 22 14 40 35 99-99.6
TE-OEM-127 40 4-8 32 24 50 30 99-99.6
TE-OEM-128 44 4-8 36 28 54 27 99-99.6
TE-OEM-129 50 4-8 42 34 60 35 99-99.6
TE-OEM-130 50 4-8 42 34 60 47 99-99.6
TE-OEM-131 50 4-8 42 34 60 60 99-99.6
TE-OEM-132 50 4-8 42 34 60 75 99-99.6
TE-OEM-133 60 4-8 52 44 70 80 99-99.6
TE-OEM-134 68 4-8 60 52 78 92 99-99.6
TE-OEM-135 75 4-8 67 59 85 46 99-99.6
TE-OEM-136 80 4-8 72 64 90 75 99-99.6
TE-OEM-137 85 4-8 77 69 95 90 99-99.6
TE-OEM-138 90 4-8 82 74 100 80 99-99.6
TE-OEM-139 94 4-8 86 78 104 76 99-99.6
TE-OEM-140 100 4-8 92 84 110 65 99-99.6
TE-OEM-141 190 4-8 182 174 200 70 99-99.6
TE-OEM-142 190 4-8 182 174 200 65 99-99.6
TE-OEM-143 100 4-8 92 84 110 70 99-99.6
TE-OEM-144 150 4-8 142 134 160 80 99-99.6
TE-OEM-145 270 8 / 254 280 55 99-99.6
TE-OEM-146 340 8 / 324 350 120 99-99.6
TE-OEM-147 400 8 / 384 410 90 99-99.6
TE-OEM-148 450 8 / 434 460 85 99-99.6

Specification of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.




Usage Instructions

1. Cleansing Procedure: Before utilizing the alumina crucible, ensure to perform a thorough cleaning to eliminate impurities and dust from its surface. Use a soft cloth or brush for gentle wiping; refrain from employing hard objects or metal brushes to prevent any scratches on the crucible surface.

2. Minimize Vibrations: While employing the crucible, steer clear of intense vibrations or collisions to prevent any potential damage to its structural integrity.

3. Chemical Interaction Caution: Although alumina crucibles exhibit excellent resistance to strong acids and alkalis, prolonged exposure to these substances may trigger chemical reactions on the surface, impacting its overall lifespan. Exercise caution during use, minimizing contact with strong acids and bases and opting for milder reagents.

4. Optimal Preheating: Set the preheating temperature at approximately 105℃, ensuring a slow and uniform heating process. Control the heating rate meticulously, and refrain from frequently opening the furnace door. For temperatures below 1200℃, maintain a rate of <5℃/min, and for temperatures above 1200℃, keep it <4℃/min.

5. Heating Guidelines: Avoid using a gasoline spray gun, acetylene gun, or alcohol spray burner for direct heating to prevent explosive cracking due to uneven heat. Maintain a distance of no less than 2cm between the crucible and the heating body, employing materials like corundum sheet to lift the crucible and facilitate air convection, thereby extending its service life.

6. Residue Removal: It is permissible to clean residue from the crucible surface while it is still hot, but refrain from using acid and alkali substances for cleaning.

7. Molten Sample Suitability: Alumina crucibles are suitable for molten samples containing weakly alkaline substances like anhydrous Na2CO3, but unsuitable for strongly alkaline substances such as Na2O2, NaOH, and acidic substances like potassium pyrosulfate K2S2O7.

8. Safety Measures: Due to the high temperatures involved, ensure personal safety during use by donning heat-releasing gloves and protective glasses to prevent burns or eye injuries.

9. Storage Guidelines: When storing alumina crucibles, place them in a dry and well-ventilated environment to prevent friction or collisions with other items, thereby avoiding potential scratches or damage to the crucible surface.

Valuable Information



Production Process Flow

Production Process Flow



1. Raw material processing



2. Compression mouduling



3. High temperature sintering



4. Primary grinding



5. CNC processing



6. Product inspection

Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
