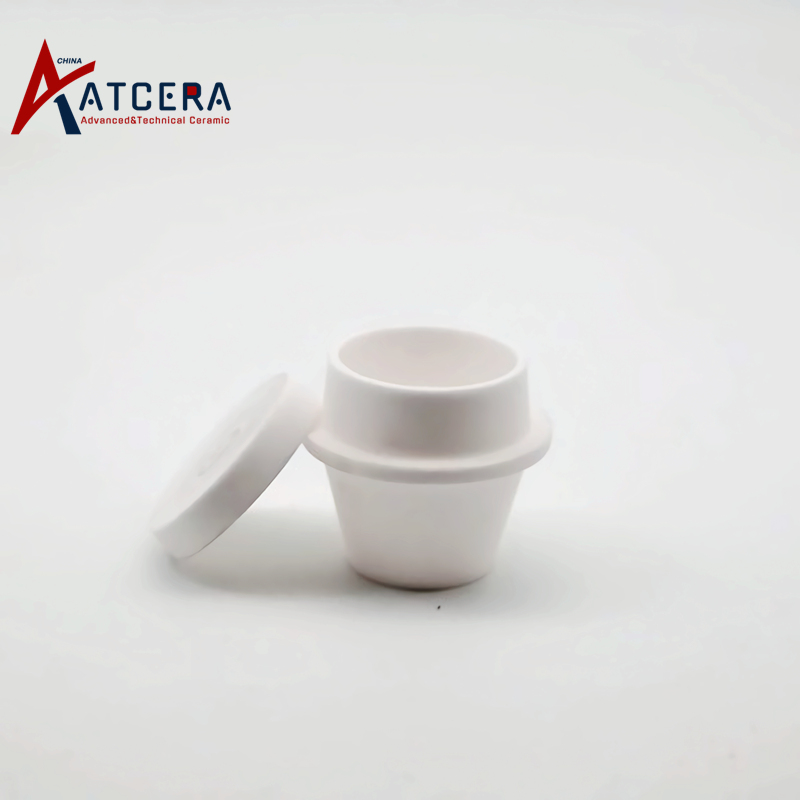

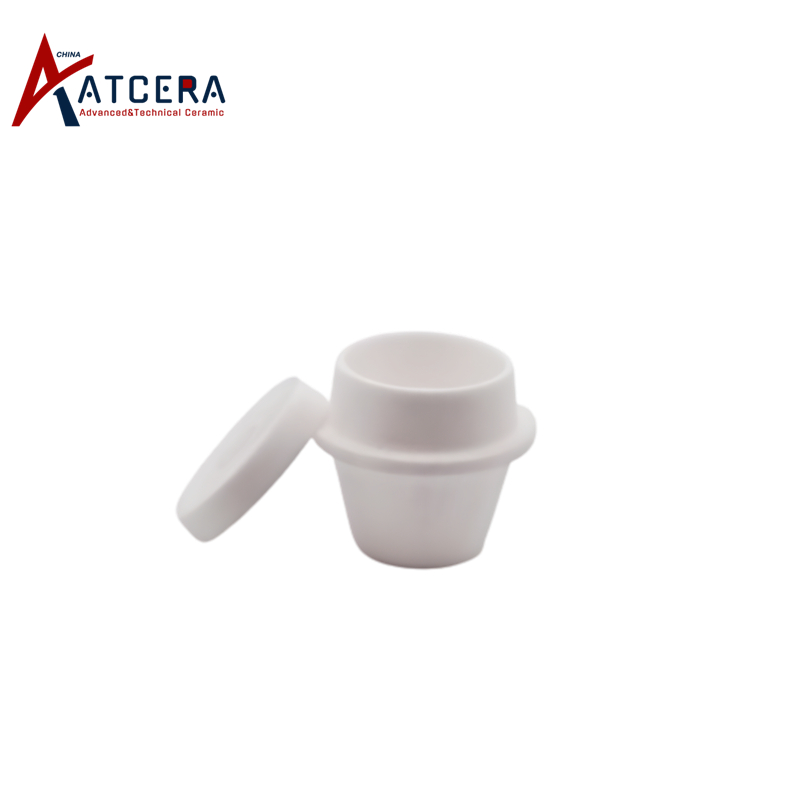

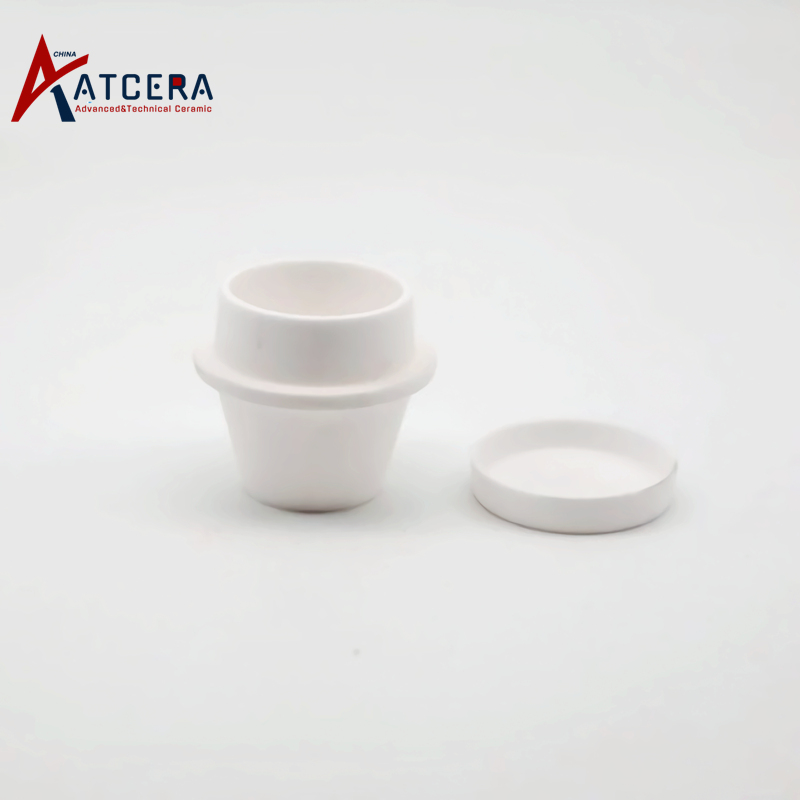

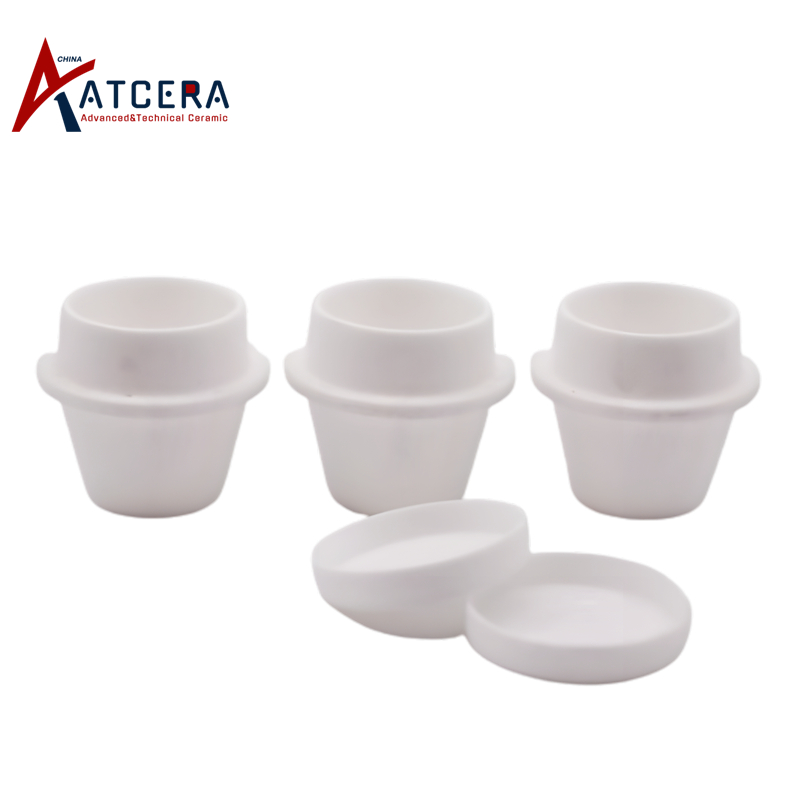

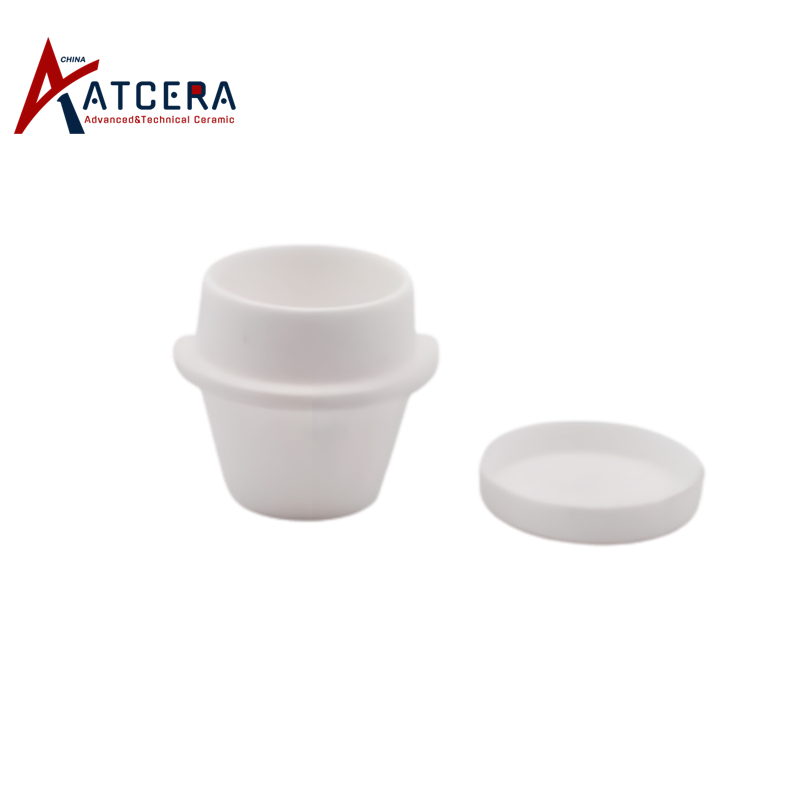

Alumina TGA Crucible

The alumina TGA crucible is crafted from high-purity alumina, formed and sintered at high temperatures, ensuring its excellent resistance to extreme heat. Its maximum operating temperature exceeds 1600℃, while also boasting remarkable corrosion resistance, allowing it to withstand the assault of various chemical substances. Primarily used for melting and heating both metal and non-metal samples, the alumina crucible exhibits uniform heat distribution, resilience against rapid temperature changes, and resistance to cracking, thereby guaranteeing the accuracy and reliability of experimental results.

  • Brand:

    ATCERA
  • Item NO.:

    AT-ALG-001-1
  • Materials

    Alumina
  • Shapes

    Crucible
  • Applications

    Metallurgy Industry , Laboratory Equipment and Instruments
alumina tga crucible for leco

Properties of Alumina TGA Crucible



1. The alumina TGA crucible demonstrates superior heat resistance, with a maximum operating temperature exceeding 1600℃, and excellent thermal stability.



2. The crucible's excellent thermal conductivity and uniform heat distribution ensure the precision of experimental outcomes.



3. With its corrosion resistance and chemical stability, the alumina TGA crucible can withstand the erosion of chemicals, making it suitable for melting samples of various materials.







alumina tga crucible

Applications of Alumina TGA Crucible



1. High-temperature Experiments

Due to its heat resistance, the alumina TGA crucible is widely used in high-temperature experiments across various industries, such as coal mining, ceramics, metallurgy, and materials science, serving as a container for sample melting, heating, and sintering.



2. Chemical Analysis

With its remarkable resistance to acid and alkali corrosion, the alumina TGA crucible maintains stability under the influence of chemical reagents. It finds application in chemical analysis, serving as a container for sample heating, combustion, melting, and other processes, ensuring the accuracy and reliability of analytical data.



3. Metal Melting

Thanks to its high-temperature stability and excellent thermal conductivity, the alumina TGA crucible provides a stable high-temperature environment, suitable for metal melting, casting, and heat treatment.

Size Chart of Alumina TGA Crucible



We are committed to delivering optimal alumina TGA crucibles tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.



Provide drawings, including dimensions and specifications if customization requirements needed.



Alumina TGA Crucible
Item NO. Prod. Name Specification MOQ/pc Unite Part No. Compatible with Note
AT-ALG-001-1 Alumina Crucible (Glazed Inside) 14cc; Al2O3 99.5% 20 piece / AR9047 For LECO 701
AT-ALG-001 Alumina Crucible (Glazed Inside) 14cc; Al2O3 99.5% 20 piece / AR9047 For LECO 701
AT-ALG-002 Alumina Crucible (Unglazed) 14cc; Al2O3 99.5% 20 piece / AR9047 For LECO 701
AT-018 LECO Large Corundum Crucible (Glazed Inside) 20cc; Al2O3 99.5% 20 piece 621-331 /529-047 AR9047 For LECO 701
AT-018-1 ELTRA Corundum Crucible 18cc; Al2O3 99.5% 20 piece Eltra 26063 /
AT-018-4 LECO Large Corundum Crucible (Yellow Glazed Inside) 20cc; Al2O3  99.5% 20 set 621-331 /529-047 AR9047 For LECO 701
AT-018-2 LECO Large Corundum Crucible (Unglazed) 20cc; Al2O3 99.5% 20 piece 621-331 /529-047 AR9047 For LECO 701
AT-MY-17 LECO Small Corundum Crucible (Glazed Inside) 16cc; Al2O3 99.5% 20 piece 529-042 529-402 AR9042 For LECO TGA 500/501/601/701; MAC 400/500
AT-MY-17-5 LECO Small Corundum Crucible (Unglazed) 16cc; Al2O3 99.5% 20 piece 529-042 529-402 AR9042 For LECO TGA 500/501/601/701; MAC 400/500
AT-020 LECO Large Corundum Crucible (Fully Glazed) 37cc; Al2O3 99.5% 20 piece / / Customized
AT-021 LECO Small Corundum Crucible (Unglazed) 10cc; Al2O3 99.5% 20 piece / / Customized
AT-019 LECO Large Corundum Crucible Lid OD36.5*H6.5*T1.0mm, Al2O3 99.5% 20 piece 529-048 Alpha AR9043 For TGA 20cc
AT-MY-18 LECO Corundum Crucible Lid OD34.5*H6.5*T1.0mm, Al2O3 99.5% 20 piece 529-043 Alpha AR9043 For TGA 16cc





Technical Data of Aluminium Oxide Materials

Material 99% Alumina (AL2O3)
Thermal Conductivity 24.0w/m.k
Electrical Insulation ≤22.5KV, temperature resistance up to 1600℃
Density 3.83g/cm3
Thermal Expansion Coefficient 7*10-6/℃
Bending Strength (at room temperature) 310MPa
Compressive Strength (at room temperature) 2200MPa
Hardness (Hv) 1650
Fracture Toughness 4.2MPa*m1/2



*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.




Usage Instructions



1. Before use, scrub the alumina TGA crucible with a stiff brush to remove surface dust and stains. Rinse the crucible with warm water and thoroughly dry it with a soft cloth.

2. For more stubborn stains, use a mild cleaner and a soft brush to scrub the crucible. Rinse it with warm water and thoroughly dry it with a soft cloth.

Valuable Information

Specifications of Alumina TGA Crucible



Density: 3.75-3.85 (g/cm³)



Hardness: Rockwell hardness of HRA89 (comparable to a steel blade with a hardness of HRC60);



Mohs hardness rating of 9;



Vickers hardness of HV1500-1700



Elastic Modulus: 380GPa



Flexural Strength: 300MPa



Compressive Strength: 2500MPa



Melting Point: 2550℃



High Temperature Resistance: Up to 1600℃



Thermal Conductivity: 39W/(m.K)



Coefficient of Linear Expansion: 8.6X10-6/℃



Breakdown Strength (Insulation Strength): 15KV/mm



Electrical Resistivity: 10¹⁵ Ω·m

Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
