Ceramic Lined Knife Gate Valve Zirconia Gate Valve

The valve block (closing part) of the zirconia gate valve is an zirconia gate, which is driven by the valve stem for lifting movement, so as to connect or cut off the fluid channel, which is generally used to control the opening or closing of the flow.

Brand:
ATCERA
Item NO.:
AT-ZV2-S001

Materials
Zirconia
Shapes
Valve
Applications
Mechanical Parts , Petrochemical Industry , Food Processing

Inquire Now

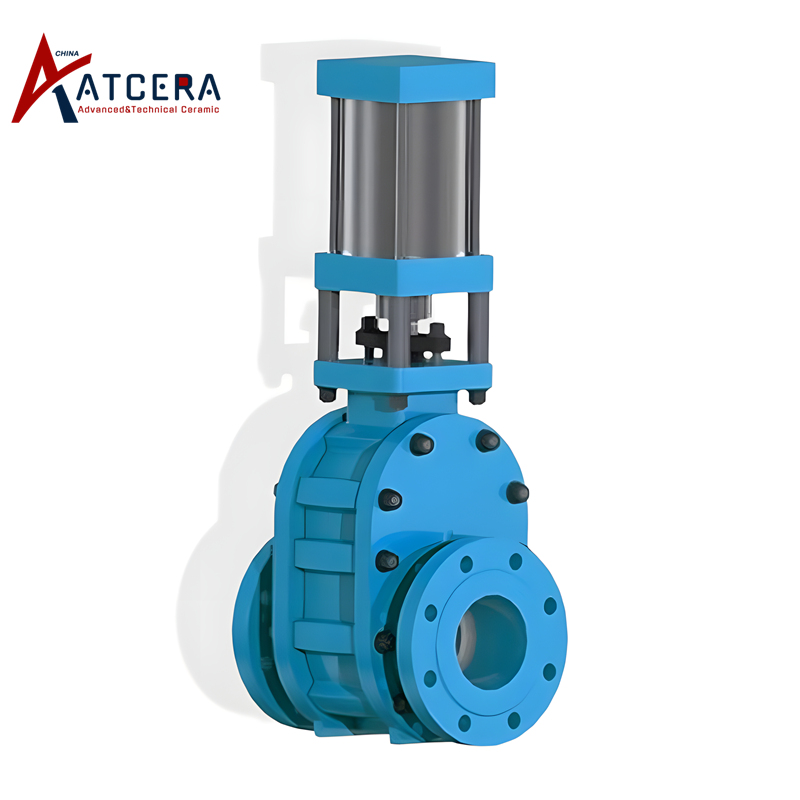

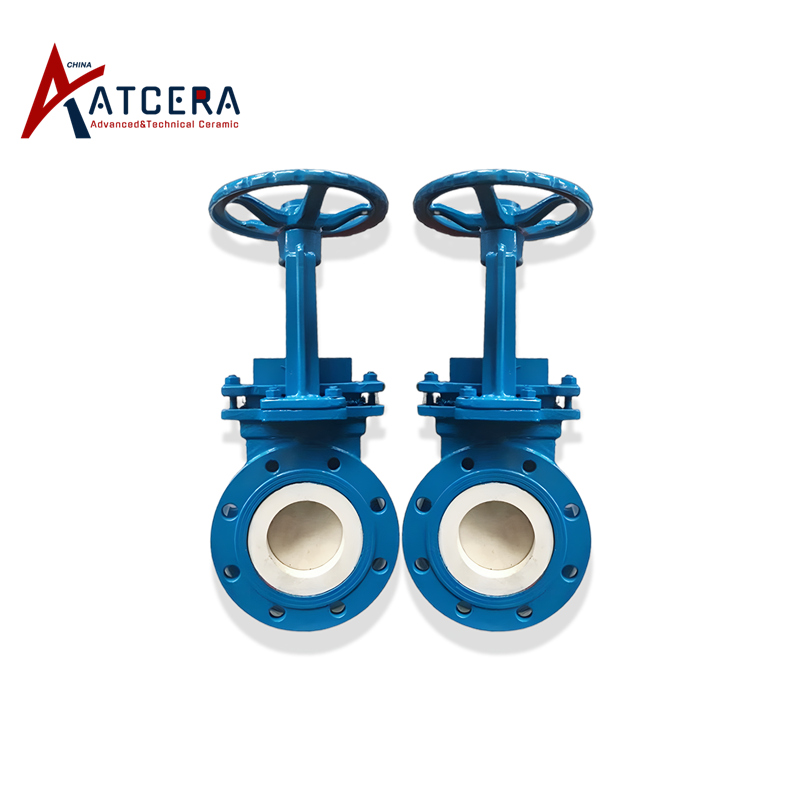

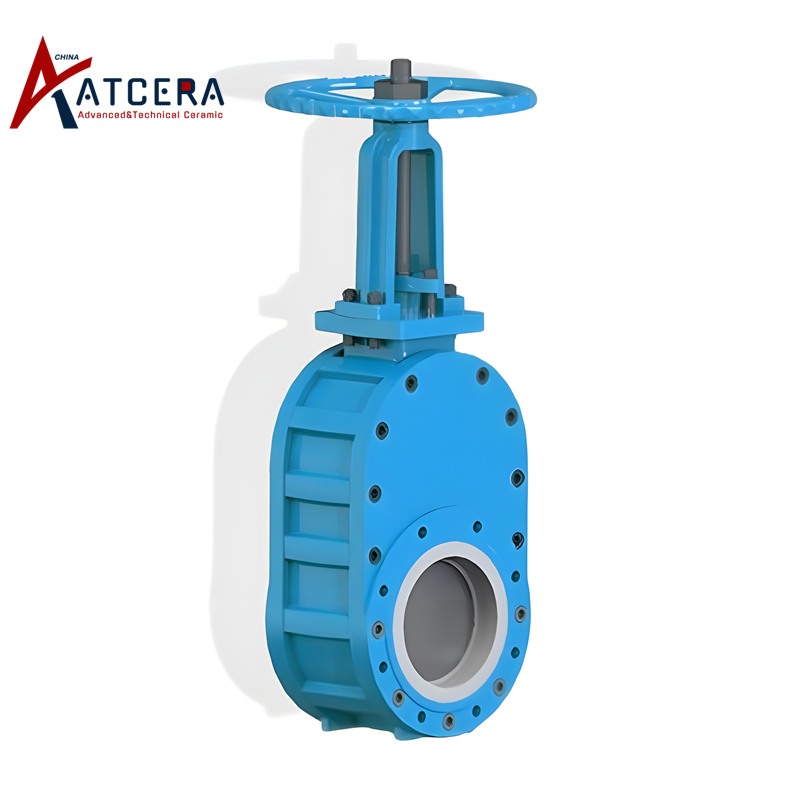

Zirconia ceramic lining knife gate valve

Properties of Zirconia Ceramaic Lining Gate Valve

1.High hardness (up to more than HRA88, 8 times of ordinary steel), good wear resistance, high mechanical strength;

2. Good chemical stability, can resist most acid and alkali medium corrosion;

3. Reliable shut-off performance, no risk of leakage;

4. Compact structure, easy installation, can be installed at any angle;

5. Small switch torque, easy to operate;

6. Both sides of the valve are provided with cleaning holes and blowdown holes, maintenance is easy.

Applications of zirconia Ceramic Gate Valve

Applications of Zirconium Oxide Ceramic Lined Gate Valve

zirconia ceramic gate valves are widely used in machinery equipment, petrochemical, pharmaceutical and biological, food processing, power plants, water supply, metal smelting, etc.

1. Mechanical engineering: zirconia ceramic gate valve has high strength, good wear resistance, long life time, can be used in hydraulic system, lubricating oil system, fuel system and air conditioning refrigerant system to control flow or shut off;

2. Petrochemical: zirconia ceramic gate valve has good corrosion resistance and can be used to control transportation and flow of crude oil, refined oil, chemical liquids etc.;

3. Pharmaceutical biology: biological inertia of zirconia gate valve is good, no pollution to liquid, can be used to control the liquid flow in the production of drugs and biological agents;

4. Power station: zirconia ceramic gate valve has long life, high temperature resistance, and can be used for steam flow control in power generation and other industries;

5. Water supply and HVAC: zirconia gate valve has good wear resistance and long life, and are widely used in urban water supply, air conditioning water and cooling water systems.

Size Chart of Zirconia Ceramic Lined Gate Valve

Dedicated to delivering prime zirconia ceramic lining gate valve customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of tailor-made sizes to meet your unique requirements.

Drawing and specification(including materials, etc.) requirement shall be provided if customized request.

Custom Design of Zirconium Oxide Lined Gate Valve and Knife Gate Valve

1. Blocking ball material: Zirconia ceramic

2. Valve size: DN50-DN500

3. Working temperature: -40~400℃

4. Max. working pressure: 1.6MPa

5. Connection: Flange

6. Driving force: Pneumatic, motor or manual driving

*Note: For more information please contact ATCERA

Send Requirements for Custom Design

Specification of Zirconia Ceramic Lined Gate Valve

1. Blocking ball material: Zirconia ceramic

2. Valve size: DN50-DN250

3. Working temperature: -20℃-180℃

4. Pressure Range: 1.0MPa~1.6MPa

5. Connection: Flanged, Wafer

6. Driving force: Manual, Pneumatic

*Note: For more information please contact ATCERA

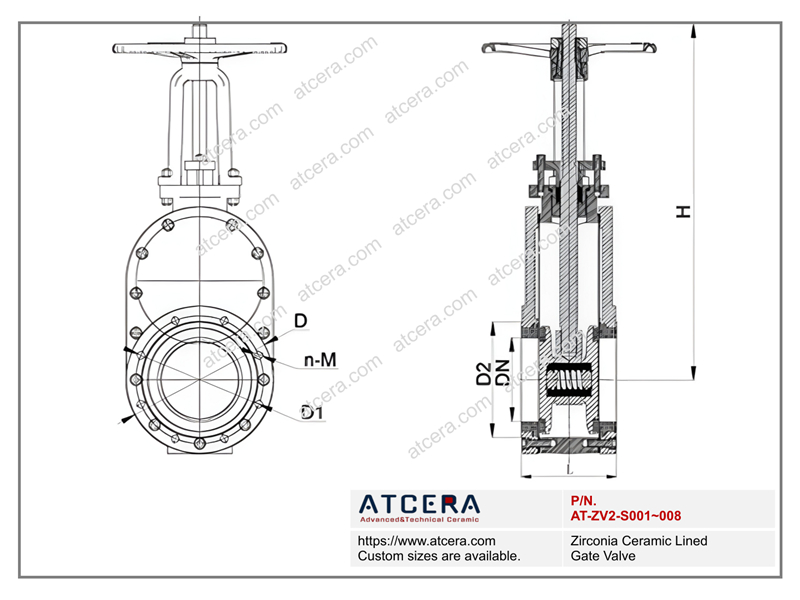

Drawing of Zirconia Ceramic Lined Gate Valve

Zirconia Ceramic Lined Gate Valve
Item NO.	inch	DN(mm)	L	D	D1	D2	n-M	H	Note
AT-ZV2-S001	2"	50	90	160	125	99	4-M16	380	Size Range	DN50-DN250
AT-ZV2-S002	2 1/2"	65	125	185	145	118	4-M16	485	Pressure Range	1.0MPa~1.6MPa
AT-ZV2-S003	3"	80	140	200	160	132	8-M16	490	Working Temperature	-220℃~180℃
AT-ZV2-S004	4"	100	170	220	180	156	8-M16	585	Connection Type	Flanged, Wafer
AT-ZV2-S005	5"	125	185	250	210	184	8-M16	630	Operating Design	Manual
AT-ZV2-S006	6"	150	200	280	240	211	8(12)-M20	750
AT-ZV2-S007	8"	200	220	340	295	266	8(12)-M20	830
AT-ZV2-S008	10"	250	220	395	350	320	12-M20	985

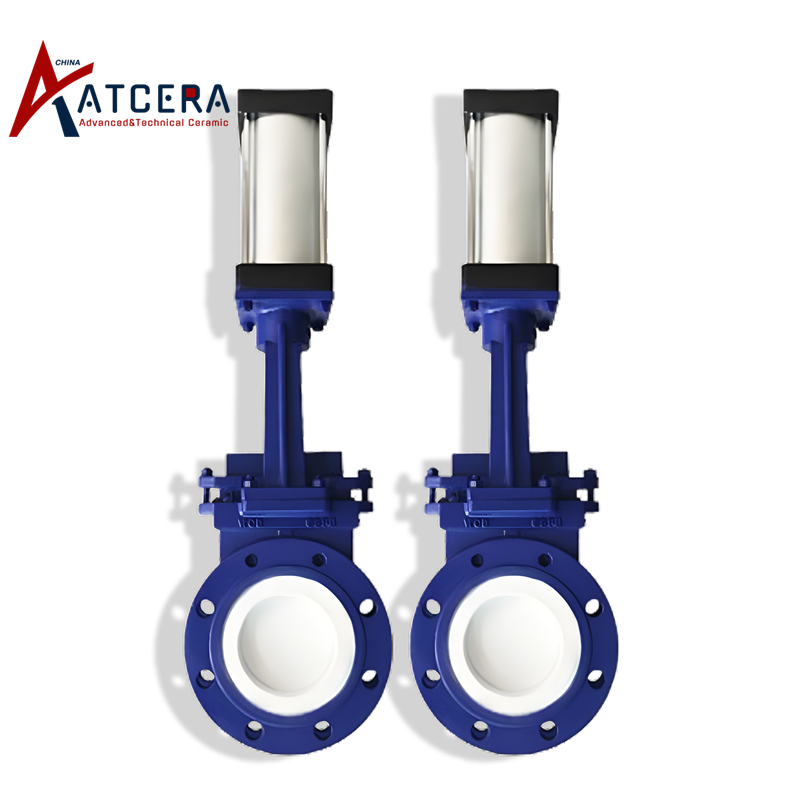

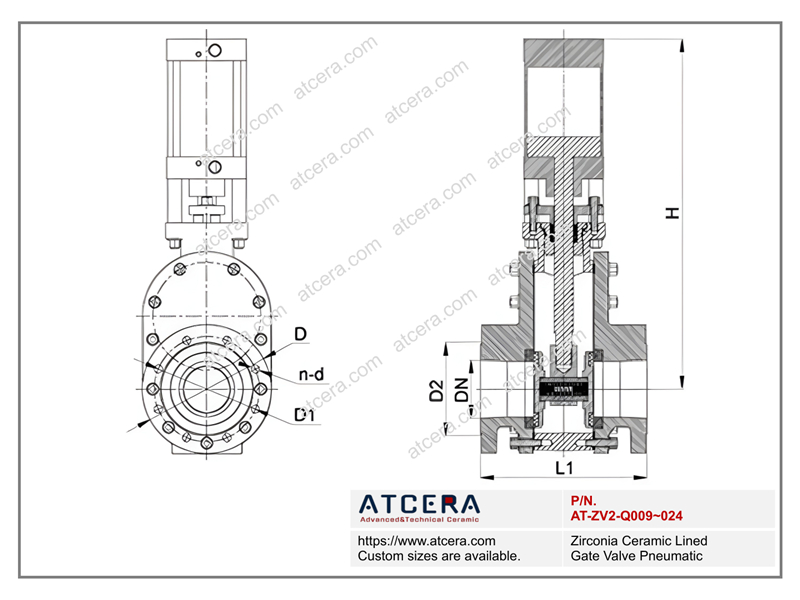

Drawing of Zirconia Ceramic Lined Gate Valve Pneumatic

Zirconia Ceramic Lined Gate Valve Pneumatic
Item NO.	inch	DN(mm)	L	D	D1	D2	n-M	H	Note
AT-ZV2-Q009	2"	50	90	160	125	99	4-M16	390	Size Range	DN50-DN250
AT-ZV2-Q010	2 1/2"	65	125	185	145	118	4-M16	500	Pressure Range	1.0MPa~1.6MPa
AT-ZV2-Q011	3"	80	140	200	160	132	8-M16	505	Working Temperature	-220℃~180℃
AT-ZV2-Q012	4"	100	170	220	180	156	8-M16	605	Connection Type	Flanged, Wafer
AT-ZV2-Q013	5"	125	185	250	210	184	8-M16	650	Operating Design	Pneumatic
AT-ZV2-Q014	6"	150	200	280	240	211	8(12)-M20	770
AT-ZV2-Q015	8"	200	220	340	295	266	8(12)-M20	850
AT-ZV2-Q016	10"	250	220	395	350	320	12-M20	1050
AT-ZV2-Q017	2"	50	200	160	125	99	4-M16	390
AT-ZV2-Q018	2 1/2"	65	220	185	145	118	4-M16	500
AT-ZV2-Q019	3"	80	265	200	160	132	8-M16	505
AT-ZV2-Q020	4"	100	285	220	180	156	8-M16	605
AT-ZV2-Q021	5"	125	300	250	210	184	8-M16	650
AT-ZV2-Q022	6"	150	365	280	240	211	8(12)-M22	770
AT-ZV2-Q023	8"	200	400	340	295	266	8(12)-M22	850
AT-ZV2-Q024	10"	250	450	395	350	320	12-M22	1050

Specification of Zirconia Ceramic Lined Knife Gate Valve

1. Blocking ball material: Zirconia ceramic

2. Valve size: DN50~DN500

3. Working temperature: -20℃-250℃

4. Pressure Range: 1.0MPa~1.6MPa

5. Connection: Wafer

6. Driving force: Manual, Pneumatic, Electric

*Note: For more information please contact ATCERA

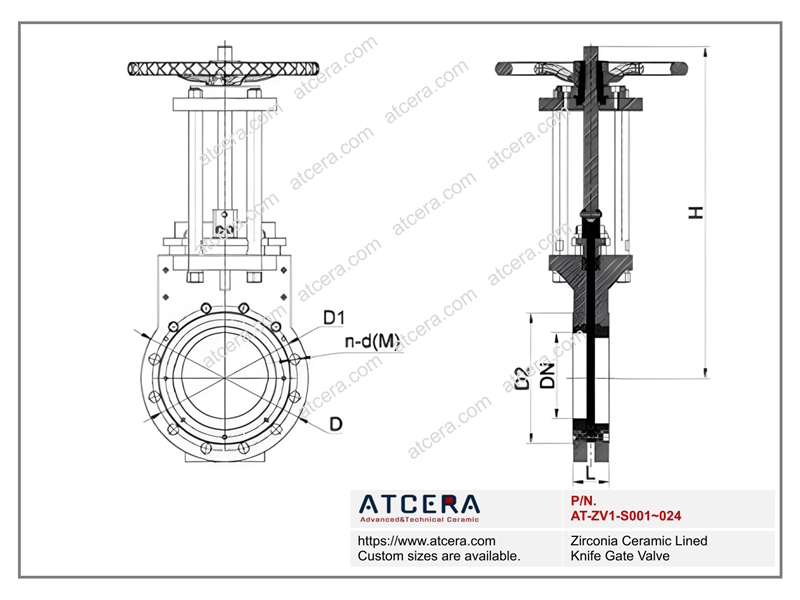

Drawing of Zirconia Ceramic Lined Knife Gate Valve

Zirconia Ceramic Lined Knife Gate Valve
Item NO.	DN(mm)	L	D	D1	D2	n-d(M)	H	Note
AT-ZV1-S001	50	60	165	125	100	4-18(16)	355	Size Range	DN50~DN500
AT-ZV1-S002	65	60	185	145	120	4-18(16)	393	Pressure Range	1.0MPa~1.6MPa
AT-ZV1-S003	80	65	200	160	135	8-18(16)	398	Working Temp.	-20℃~250℃
AT-ZV1-S004	100	65	220	180	135	8-18(16)	467	Connection Type	Wafer
AT-ZV1-S005	125	65	250	210	185	8-18(16)	479	Operating Design	Manual
AT-ZV1-S006	150	65	285	240	210	8-18(16)	545
AT-ZV1-S007	200	75	340	295	265	8-22(20)	676
AT-ZV1-S008	250	75	395	350	320	12-22(20)	782
AT-ZV1-S009	300	80	445	400	370	12-22(20)	894
AT-ZV1-S010	350	85	505	460	428	16-22(20)	999
AT-ZV1-S011	400	85	565	515	480	16-22(20)	1266
AT-ZV1-S012	450	95	615	565	530	20-26(22)	1350
AT-ZV1-S013	500	100	670	620	582	20-26(22)	1415
AT-ZV1-S014	50	60	165	125	100	4-18(16)	355
AT-ZV1-S015	65	60	185	145	120	4-18(16)	393
AT-ZV1-S016	80	65	200	160	135	8-18(16)	398
AT-ZV1-S017	100	65	220	180	135	8-18(16)	467
AT-ZV1-S018	125	65	250	210	185	8-18(16)	479
AT-ZV1-S019	150	65	285	240	210	8-22(20)	545
AT-ZV1-S020	200	75	340	295	265	12-22(20)	676
AT-ZV1-S021	250	75	405	355	320	12-26(22)	782
AT-ZV1-S022	300	80	460	410	370	12-26(22)	894
AT-ZV1-S023	350	85	520	470	428	12-26(22)	999
AT-ZV1-S024	400	85	580	525	480	16-30(27)	1266

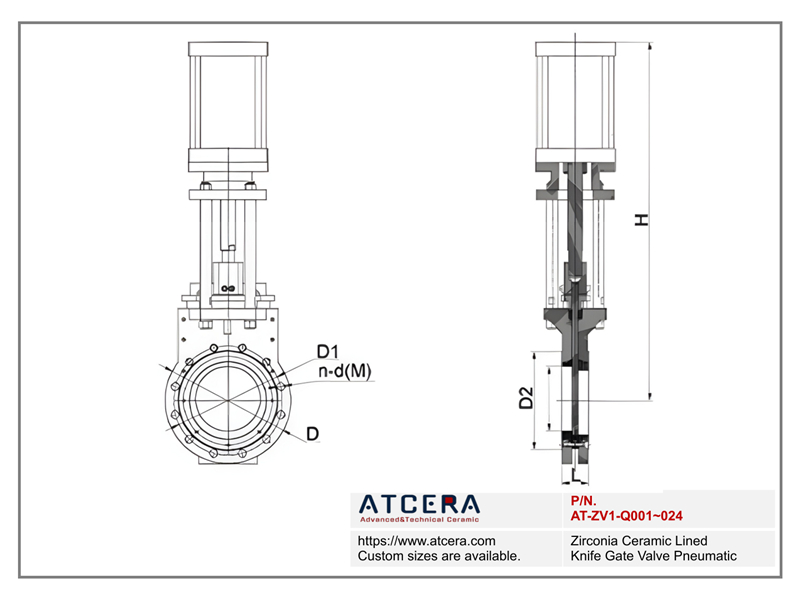

Drawing of Zirconia Ceramic Lined Knife Gate Valve Pneumatic

Zirconia Ceramic Lined Knife Gate Valve Pneumatic
Item NO.	DN(mm)	L	D	D1	D2	n-d(M)	H	Note
AT-ZV1-Q001	50	60	165	125	100	4-18(16)	463	Size Range	DN50~DN500
AT-ZV1-Q002	65	60	185	145	120	4-18(16)	488	Pressure Range	1.0MPa~1.6MPa
AT-ZV1-Q003	80	65	200	160	135	8-18(16)	523	Working Temp.	-20℃~250℃
AT-ZV1-Q004	100	65	220	180	135	8-18(16)	623	Connection Type	Wafer
AT-ZV1-Q005	125	65	250	210	185	8-18(16)	673	Operating Design	Pneumatic
AT-ZV1-Q006	150	65	285	240	210	8-22(20)	797
AT-ZV1-Q007	200	75	340	295	265	8-22(20)	976
AT-ZV1-Q008	250	75	395	350	320	12-22(20)	1175
AT-ZV1-Q009	300	80	445	400	370	12-22(20)	1349
AT-ZV1-Q010	350	85	505	460	428	16-22(20)	1508
AT-ZV1-Q011	400	85	565	515	480	16-26(22)	1668
AT-ZV1-Q012	450	95	615	565	530	20-26(22)	1870
AT-ZV1-Q013	500	100	670	620	582	20-26(22)	2075
AT-ZV1-Q014	50	60	165	125	100	4-18(16)	463
AT-ZV1-Q015	65	60	185	145	120	4-18(16)	488
AT-ZV1-Q016	80	65	200	160	135	8-18(16)	523
AT-ZV1-Q017	100	65	220	180	135	8-18(16)	623
AT-ZV1-Q018	125	65	250	210	185	8-18(16)	673
AT-ZV1-Q019	150	65	285	240	210	8-22(20)	797
AT-ZV1-Q020	200	75	340	295	265	12-22(20)	976
AT-ZV1-Q021	250	75	405	355	320	12-26(22)	1175
AT-ZV1-Q022	300	80	460	410	370	12-26(22)	1349
AT-ZV1-Q023	350	85	520	470	428	16-26(22)	1508
AT-ZV1-Q024	400	85	580	525	480	16-30(27)	1668

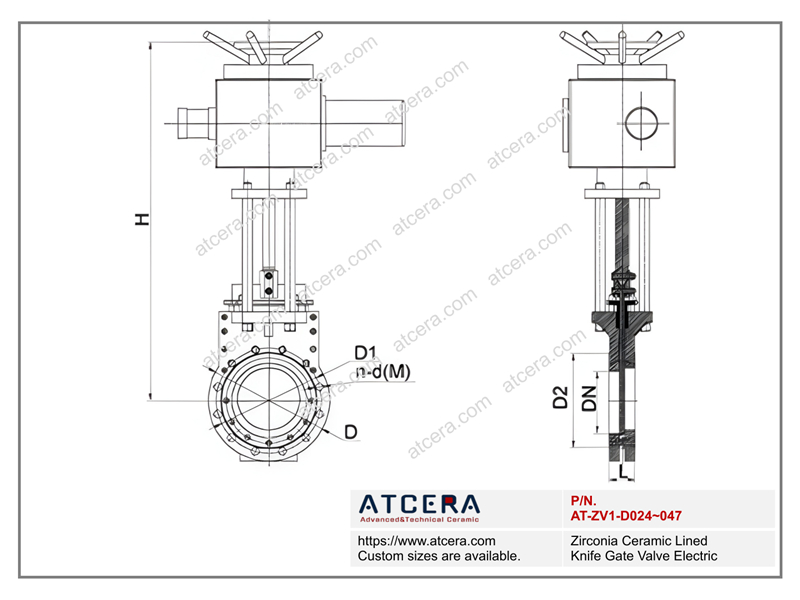

Drawing of Zirconia Ceramic Lined Knife Gate Valve Electric

Zirconia Ceramic Lined Knife Gate Valve Electric
Item NO.	DN(mm)	L	D	D1	D2	n-d(M)	H	Note
AT-ZV1-D024	50	60	165	125	100	4-18(16)	635	Size Range	DN50~DN500
AT-ZV1-D025	65	60	185	145	120	4-18(16)	655	Pressure Range	1.0MPa~1.6MPa
AT-ZV1-D026	80	65	200	160	135	8-18(16)	675	Working Temp.	-20℃~250℃
AT-ZV1-D027	100	65	220	180	135	8-18(16)	725	Connection Type	Wafer
AT-ZV1-D028	125	65	250	210	185	8-18(16)	760	Operating Design	Electric
AT-ZV1-D029	150	65	285	240	210	8-22(20)	780
AT-ZV1-D030	200	75	340	295	265	8-22(20)	910
AT-ZV1-D031	250	75	395	350	320	12-22(20)	1115
AT-ZV1-D032	300	80	445	400	370	12-22(20)	1230
AT-ZV1-D033	350	85	505	460	428	16-22(20)	1320
AT-ZV1-D034	400	85	565	515	480	16-26(22)	1410
AT-ZV1-D035	450	95	615	565	530	20-26(22)	1550
AT-ZV1-D036	500	100	670	620	582	20-26(22)	1700
AT-ZV1-D037	50	60	165	125	100	4-18(16)	635
AT-ZV1-D038	65	60	185	145	120	4-18(16)	655
AT-ZV1-D039	80	65	200	160	135	8-18(16)	675
AT-ZV1-D040	100	65	220	180	135	8-18(16)	725
AT-ZV1-D041	125	65	250	210	185	8-18(16)	760
AT-ZV1-D042	150	65	285	240	210	8-22(20)	780
AT-ZV1-D043	200	75	340	295	265	12-22(20)	910
AT-ZV1-D044	250	75	405	355	320	12-26(22)	1115
AT-ZV1-D045	300	80	460	410	370	12-26(22)	1230
AT-ZV1-D046	350	85	520	470	428	16-26(22)	1320
AT-ZV1-D047	400	85	580	525	480	16-30(27)	1410

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Select the appropriate valve type and specification according to the temperature, pressure, flow and other parameters of the fluid, to ensure that the selected valve meets the requirements of use.

2. Before installation, check whether the appearance of the valve is normal and confirm whether the components are intact.

3. During the installation process, it is necessary to ensure that the valve is installed in the correct direction and avoid severe impact and vibration of the valve.

4. The valve shall be checked regularly during operation, to ensure that sealing performance is normal and no leakage, to ensure the safety and reliability of the valve.

Valuable Information

Machining Precision

1. Diameter Tolerance: ±0.003mm

2. Hole Depth Tolerance: ±0.005mm

3. Surfance Roughness: Ra0.02

4. Cylindricity: ±0.003mm

5. Concentricity: ±0.002mm

6. Parallelism: ±0.002mm

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Could Hot Press Sintering Be the Future of High-Performance Transparent Ceramic Production?

As a new inorganic nonmetallic material with high performance and multiple functions, transparent ceramics show great application potential in optics, electronics, aerospace and other fields because of its excellent light transmission, high strength, high hardness and good thermal and chemical stability. Among the many methods to prepare transparent ceramics, hot pressing sintering has become one ...

How Does Vacuum Sintering Technology Facilitate the Preparation of Transparent Ceramics?

As a kind of high performance material, transparent ceramics show great application potential in the fields of optical window, laser medium and high temperature wave transmittance materials because of its unique optical transparency and excellent mechanical properties. Among the many methods of preparing transparent ceramics, vacuum sintering technology has become one of the most widely resea...

What Are The Advantages Of Cold Isostatic Pressing In The Preparation Of Transparent Ceramics?

As a kind of high performance material, transparent ceramics show great application potential in optics, electronics, aerospace and other fields because of its excellent light transmission, high hardness, high temperature resistance and other characteristics. However, the preparation process of transparent ceramics is complicated, and the molding technology is one of the key factors to determine i...

Transparent Ceramics: Basic Principle & Process of Dry Pressing Molding Technology

As a new material with excellent optical properties, transparent ceramics have shown great application potential in optical Windows, laser devices, high temperature sensors and other fields. In the process of its preparation, molding technology is one of the key links, which directly affects the performance and quality of the final product. Among the many molding methods, dry pressing has bec...

How Do Sintering Process Parameters Affect The Properties Of Alumina Substrate?

As a high-performance material, alumina substrate has been widely used in electronics, aerospace and new energy fields. The preparation process involves many complicated processes, in which casting and drying process are the key links to ensure the quality of the substrate. In this article, the effects of raw material formula, casting film thickness and sintering process parameters on th...

What Are Future Trends In Alumina Substrate Preparation Process For Enhanced Performance?

Because of its excellent mechanical properties, thermal stability and chemical inertness, alumina substrate has shown wide application potential in electronic packaging, thermal management and high-performance structural parts. The preparation process involves complex process steps, in which casting process, as the core link, plays a decisive role in the performance of the final product. This...

What Are The Key Factors Influencing Alumina Substrate Performance During Preparation?

In the rapidly developing electronics industry, alumina substrate has become an indispensable substrate for electronic components with its excellent insulation properties, chemical stability, high thermal conductivity and good high-frequency characteristics. It not only provides support for electronic components, but also plays a key role in heat dissipation and insulation. However, the prepa...

Why Is Process Optimization Crucial for High-Quality Alumina Substrate Preparation?

The preparation of alumina substrate is a multi-step process with high precision, in which the choice of solvent directly affects the homogeneity of slurry, drying efficiency and physical properties of the final product. The solvent must not only be able to quickly dissolve each component to form a stable slurry, but also need to have rapid volatilization characteristics to ensure efficient d...

How Do Alumina Powder Characteristics Affect Alumina Substrate Casting Process?

In the field of electronics industry, alumina substrate has become an indispensable base material for electronic components because of its excellent insulation, chemical stability, high thermal conductivity and good high-frequency performance. It not only plays the role of support and heat dissipation, but also ensures the insulation performance of electronic components. Alumina casting slurr...

Technological Advancements To Improve Silicon Carbide Substrate CMP Efficiency

With the continuous progress of semiconductor technology, silicon carbide (SiC), as a high-performance material, has shown great application potential in the field of power electronic devices. However, in the preparation process of silicon carbide substrate, surface quality control is particularly critical, especially after thinning, grinding and polishing and other processes to obtain ultra-...

Zirconia Ceramic Lining Ball Valve

Zirconia Ceramic Lined Butterfly Valve Ceramic Lining Valve

Zirconia Ceramic Dispensing Valve

Aluminum OxideTubes Closed One End Alumina Pipe

Alumina Pipes Single Bore One End Closed Tube

Zirconia Ceramic Lining Brick

Aluminum Nitride Ceramic Nozzle With Good Corrosion Resistance

Alumina Filtration Module Ceramic Filter Plate

Alumina Ceramic Metering Pump Al2O3 Dosing Pump

FAQ

Do you supply the materials unlisted on your website?

Although our primary focus is on advanced ceramic materials such as alumina, zirconia, silicon carbide, silicon nitride, aluminum nitride, and quartz ceramics, we are always exploring new materials and technologies. If you have a specific material requirement, please contact us, and we will do our best to fulfill your needs or find suitable partners.

Can you aid in material selection & ceramic product design?

Absolutely. Our technical team possesses profound knowledge of ceramic materials and extensive experience in product design. We are happy to provide you with material selection advice and product design support to ensure optimal performance for your products.

Do you have a minimum order value requirement?

We do not have a fixed minimum order value requirement. We always focus on meeting our customers' needs, and we strive to provide quality service and products regardless of the order size.

What services beyond ceramic products do you offer?

In addition to ceramic products, we also provide a range of additional services, including but not limited to: customized ceramic processing services based on your needs, using blanks or semi-finished blanks produced by yourself; if you are interested in outsourced ceramic packaging and metallization services, please contact us for further discussion. We are always committed to providing you with a one-stop solution to meet your various needs.

Do you offer international shipping services?

Yes, we do. No matter where you are located globally, we can ensure the safe and timely delivery of your order.

All FAQs

Send Your inquiry

Contact With Us

Contact With Us

Looking for Video?

Office Hours

Monday to Friday: 9:00 AM - 12:00 PM, 2:00 PM - 5:30 PM

Please note that our office hours are based on Beijing Time, which is eight hours ahead of Greenwich Mean Time (GMT). We appreciate your understanding and cooperation in scheduling your inquiries and meetings accordingly. For any urgent matters or queries outside our regular hours, feel free to contact us via email, and we will get back to you as soon as possible. Thank you for your business, and we look forward to serving you.

Home

Products

contact

Ceramic Lined Knife Gate Valve Zirconia Gate Valve

Properties of Zirconia Ceramaic Lining Gate Valve

Applications of Zirconium Oxide Ceramic Lined Gate Valve

Size Chart of Zirconia Ceramic Lined Gate Valve

Technical Data of Zirconium Oxide Materials

Usage Instructions

Valuable Information

Machining Precision

Related Products

FAQ

Do you supply the materials unlisted on your website?

Can you aid in material selection & ceramic product design?

Do you have a minimum order value requirement?

What services beyond ceramic products do you offer?

Do you offer international shipping services?

Send Your inquiry
