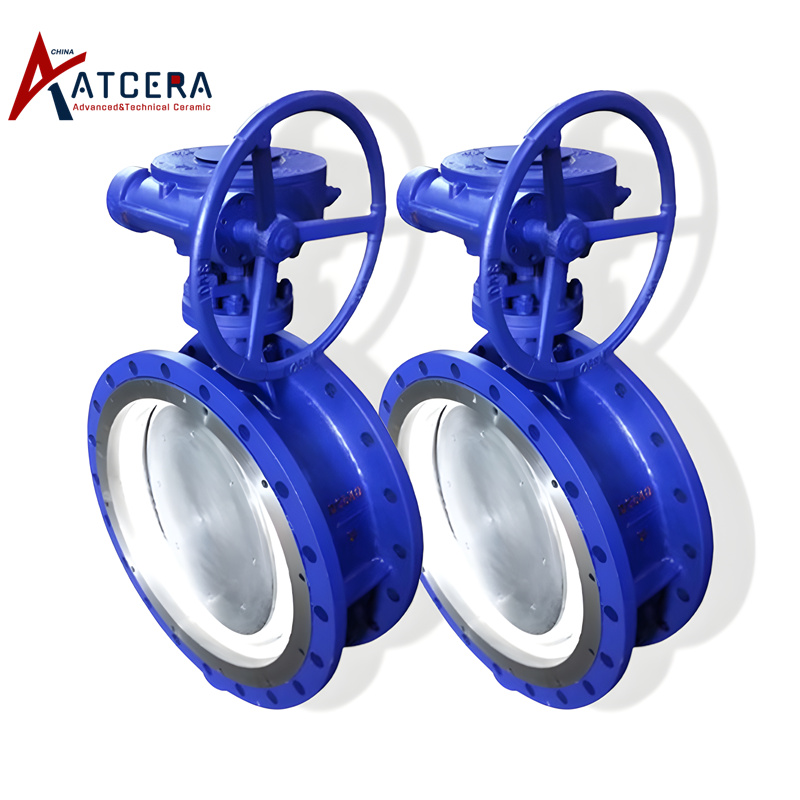

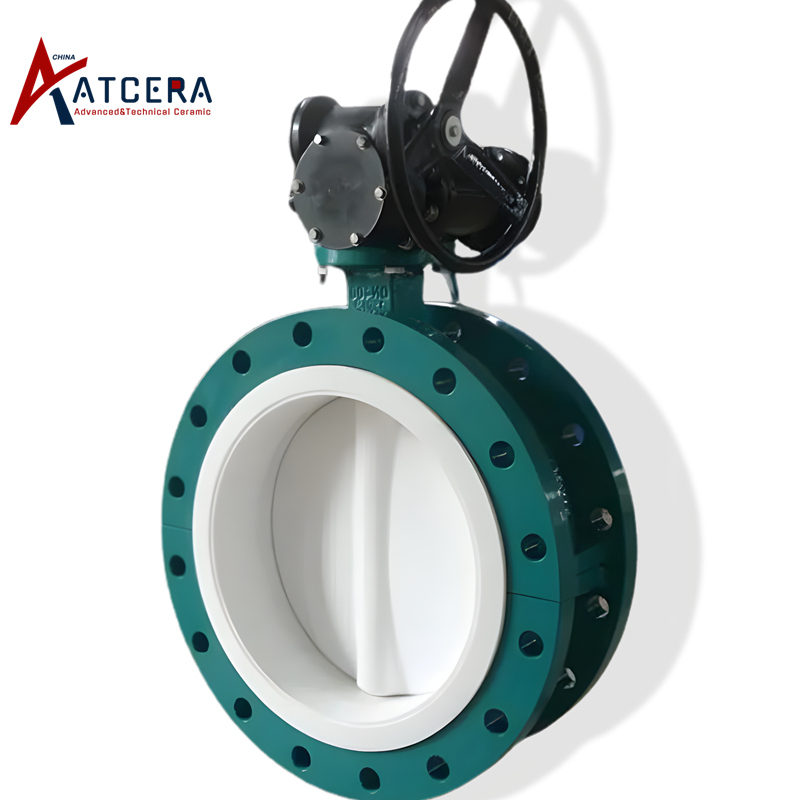

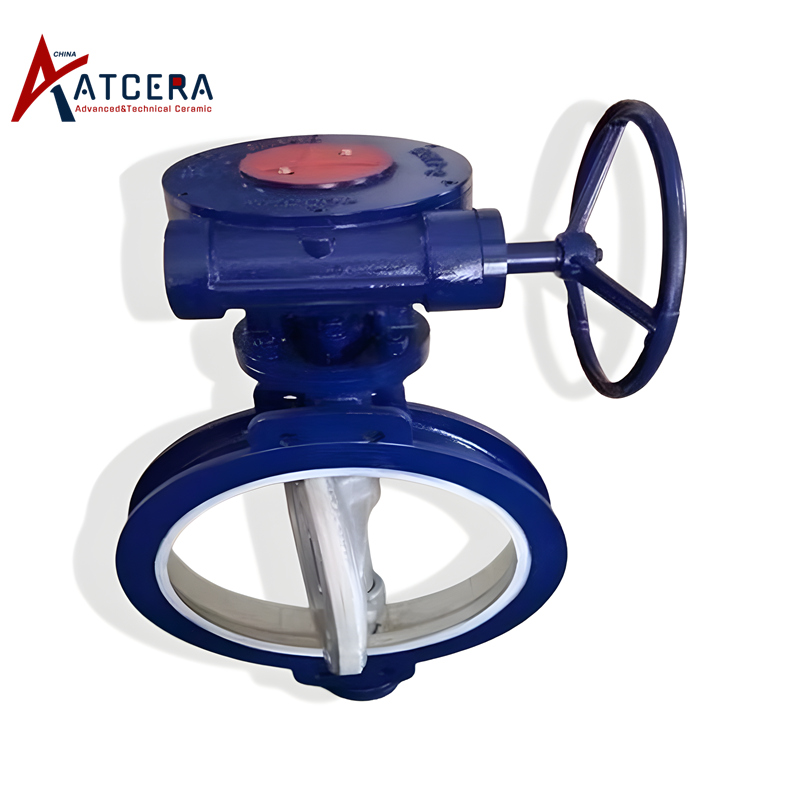

Zirconia Ceramic Lined Butterfly Valve Ceramic Lining Valve

Closing part of zirconia ceramic butterfly valve is a butterfly plate, which rotates with the valve stem. It is generally used for the switch control and flow rate ajustment of medium in low pressure fluid pipeline system.

Brand:
ATCERA
Item NO.:
AT-ZVD-001

Materials
Zirconia
Shapes
Valve
Applications
Mechanical Parts , Petrochemical Industry , Food Processing

Inquire Now

Advantages of ZrO2 Ceramic Lined Butterfly Valve

1. The sealing ring, sealing pair and butterfly plate are made of zirconia ceramic, corrosion resistance, high temperature resistance, wear resistance and erosion resistance are excellent, available for a variety of harsh conditions and with long service life;

2. Compact structure, easy installation, can be installed at any angle;

3. Zirconia ceramic butterfly valve sealing is good, can minimize leakage in pipeline system.

Applications of Zirconia Ceramic Lining Butterfly Valve

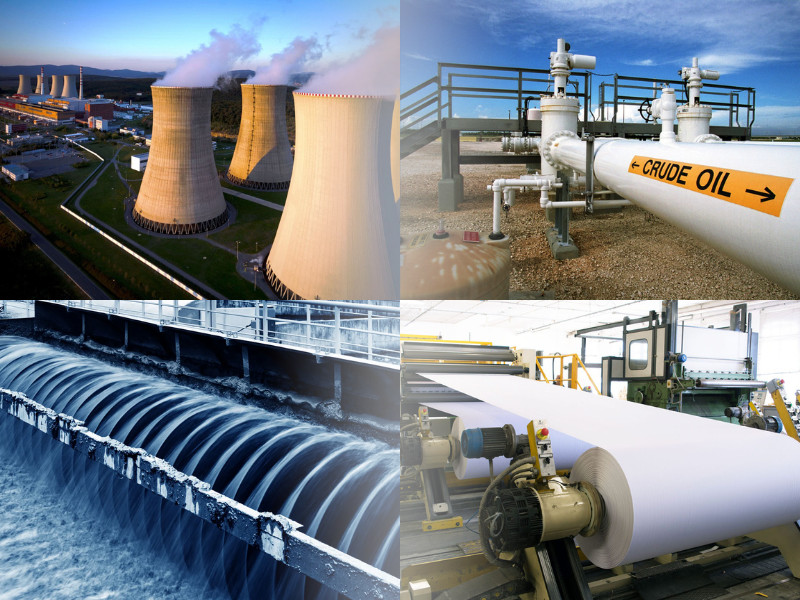

Zirconia ceramic butterfly valve can be widely used in petrochemical, metallurgy, paper making, power station, oil refining, coal and other industries of all kinds of acid, alkali and salt gas, liquid, high temperature steam, mud and ash conveying system to adjust the flow or cut off the medium.

1. Petrochemical: zirconia ceramic butterfly valve has good corrosion resistance, and can be used for flow control and regulation of crude oil, refined oil, chemical liquids and other fluids, as well as transportation of various powder and slurry;

2. Power station: zirconia butterfly valve has long life time, high temperature resistance, can be used for steam flow control in power generation and other industries, as well as transportation of solid powder and slurry, including pulverized coal, lime slurry, etc.

3. Paper industry: zirconia butterfly valve wear resistance and corrosion resistance is good, can be used for pulp, filtrate, powder, waste water and other materials transportation pipeline;

4. Water supply and HVAC: zirconia butterfly valve has good wear resistance and long life, and is widely used in urban water supply, air conditioning water and cooling water systems.

Size Chart of Zirconia Ceramic Lined Butterfly Valve

Dedicated to delivering well-performed zirconia ceramic lined butterfly valve customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of tailor-made sizes to meet your unique requirements.

Drawing and specification(including materials, etc.) requirement shall be provided if customized request.

Specification of Zirconia Ceramic Lined Butterfly Valve

1. Blocking ball material: Zirconia ceramic

2. Valve size: DN50-DN300

3. Working temperature: -40~400℃

4. Max. working pressure: 1.6MPa

5. Connection: Flange

6. Driving force: Manual driving

*Note: For more information please contact ATCERA

Send Requirements for Custom Design

Parts List of Zirconia Ceramic Lined Butterfly Valve
Part Name	Material of Part	Part Name	Material of Part
1. Valve Body:	WCB	7. Stem	2Cr13
2. Gasket:	Q235	8. Packing	Flexible Graphite
3. Valve Seat:	Engineering Ceramic	9. Packing Gland	WCB
4. Sealing Ring:	Engineering Ceramic	10. Support	WCB
5. Valve Plate:	WCB	11. Driving Device	Finished Piece
6. Gland Plate	Q235	12. Handwheel	Qt400
*Note: For more information please contact ATCERA

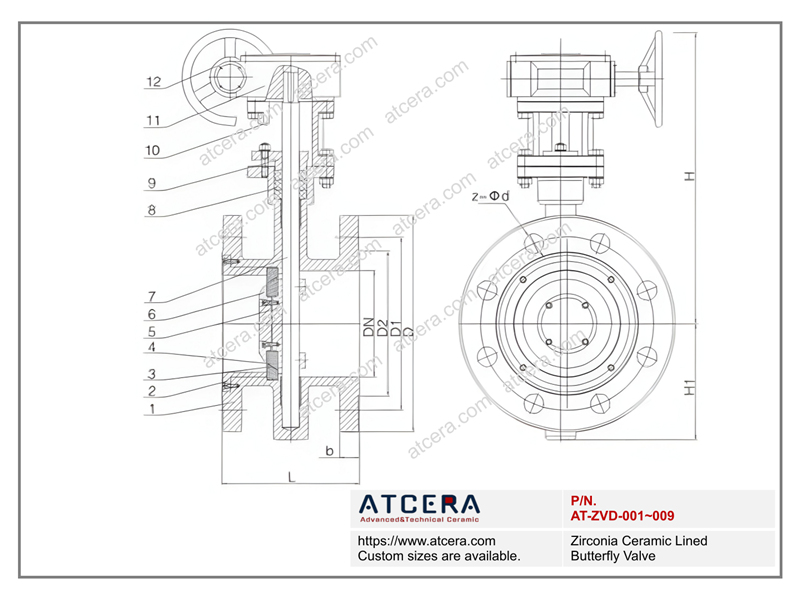

Drawing of Zirconia Ceramic Lined Butterfly Valve

Zirconia Ceramic Lined Butterfly Valve
Item NO.	DN	PN(MPa)	L	D	D1	D2	H	H1	z-d
AT-ZVD-001	50	1.0	108	140	125	100	254	85	4-∅18
AT-ZVD-002	65	1.0	112	160	145	120	278	95	4-∅18
AT-ZVD-003	80	1.0	114	185	160	135	312	106	4-∅18
AT-ZVD-004	100	1.0	127	205	180	155	330	114	8-∅18
AT-ZVD-005	125	1.0	140	235	210	185	365	130	8-∅18
AT-ZVD-006	150	1.0	140	260	240	210	404	148	8-∅23
AT-ZVD-007	200	1.0	152	315	295	265	496	176	8-∅23
AT-ZVD-008	250	1.0	165	370	350	320	538	210	8-∅23
AT-ZVD-009	300	1.0	178	435	400	368	632	238	8-∅23

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. According to the composition of the fluid, temperature, pressure, flow and other parameters to select the appropriate zirconiavalve type and specifications, to ensure that the selected valve meets the design parameters, to avoid overload operation;

2. The zirconia butterfly valve should be cleaned before installation, remove dirt and impurities. Check whether the appearance of the valve is normal, and confirm whether the components are intact;

3. During the installation process, to ensure the installation of the valve firmly, to avoid the valve by violent impact and vibration;

4. The valve should be regularly checked whether the valve parts loose, sealing performance is intact. If any abnormal situation occurs, it should be handled in time to ensure the safety and reliability of the valve.

Valuable Information

Machining Precision

1. Diameter Tolerance: ±0.003mm

2. Hole Depth Tolerance: ±0.005mm

3. Surfance Roughness: Ra0.02

4. Cylindricity: ±0.003mm

5. Concentricity: ±0.002mm

6. Parallelism: ±0.002mm

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Preparation Of Aluminum Nitride Substrate And Selection Of Sintering Additives

In the field of high-tech materials, aluminum nitride (AlN) ceramics, with its excellent thermal conductivity, excellent electrical insulation properties and excellent mechanical strength, have become the core material in key fields such as electronic packaging, power electronics and microwave communication equipment. However, the preparation of aluminum nitride substrate is a complex process...

Application Requirements Of Aluminum Nitride Substrate

Aluminum nitride (AlN) as an advanced ceramic material, because of its unique physical and chemical properties, has shown great application potential in electronic packaging, power electronics, high frequency communication and other fields. As a core component in these fields, aluminum nitride substrates not only have to meet the basic physical performance requirements, but also need to ...

Effect Of Bulk Density Of Granulated Powder On Sintering Densification Of Silicon Nitride Balls

Si3N4 powder is the main raw material for the preparation of silicon nitride balls. Selecting the appropriate treatment method to obtain the powder with regular shape and uniform particle size distribution is the basis for the stable implementation of Si3N4 ceramic ball forming, sintering, processing and other processes. According to the different atomization methods, the spray gr...

Optimizing The Spray Granulation Process To Improve The Performance Of Si3N4 balls

Silicon nitride (Si3N4) balls show great potential in the field of high-speed, high-precision, long-life bearings due to their excellent properties, such as lightweight, self-lubricating, high insulation, non-magnetic, high elastic modulus and excellent corrosion resistance. This paper aims to discuss the optimization of the spray granulation process of Si3N4 powder, especially the press...

Silicon Nitride Ball: A New Choice For High-Tech Powder Grinding Media

With the rapid development of high-tech industry, the requirements for fineness, purity and consistency of powder materials are increasing. As a key component in the powder preparation process, the performance of grinding medium directly determines the quality of the final product. Traditionally, zirconia ceramic balls are widely used in the field of ultra-fine grinding because of their high bendi...

Application Performance And Advantage Analysis Of Silicon Nitride Ball In Ultrafine Grinding Field

With the rapid development of nanotechnology and ultrafine material science, the demand for high-purity and ultrafine powder is increasing day by day. Silicon nitride ball, with its excellent hardness, very low wear rate and good chemical stability, has gradually become the key grinding medium in the field of ultrafine grinding. The purpose of this paper is to systematically describe the performan...

Study On Performance Characteristics And Application Of Silicon Nitride Ball In Mechanical Engineering Field

With the rapid development of modern mechanical engineering technology, the requirements for material properties are increasingly stringent, especially under extreme conditions such as high temperature, high speed, strong corrosion, etc., traditional metal materials and polymer materials have been difficult to meet the needs. Silicon nitride (Si ₄) As an advanced ceramic material with excellent ov...

Sol-gel Polishing Technology: Challenges And Opportunities To Innovate Silicon Carbide Substrate Polishing

Silicon carbide, the emerging star of the semiconductor material industry, is gradually leading the innovation trend of microelectronics technology with its excellent performance indicators. Its unique thermal conductivity, far superior to traditional semiconductor materials, provides the possibility for efficient heat dissipation, especially in high-power electronic devices show unparalleled adva...

Application And Advantages Of Plasma Assisted Polishing In AlN Substrate Processing

Aluminum nitride (AlN) ceramics, as a material with excellent thermal conductivity, mechanical properties and electrical properties, have been widely used in large-scale integrated circuits and electronic packages in recent years. Its excellent properties make it an ideal cooling substrate and packaging material. However, due to the high hardness, high brittleness and low fracture toughness of alu...

Silicon Carbide Substrate Processing Challenges with Innovative Applications Of Metal Friction-induced Reaction Grinding Technology

In the field of semiconductor materials, silicon carbide (SiC) with its excellent thermal conductivity, wide band gap characteristics, high breakdown electric field strength and high electron mobility, is gradually becoming a research and development hotspot, leading the innovation of a new generation of electronic devices. As a substrate material for key components, the broad application prospect...

Zirconia Ceramic Lining Ball Valve

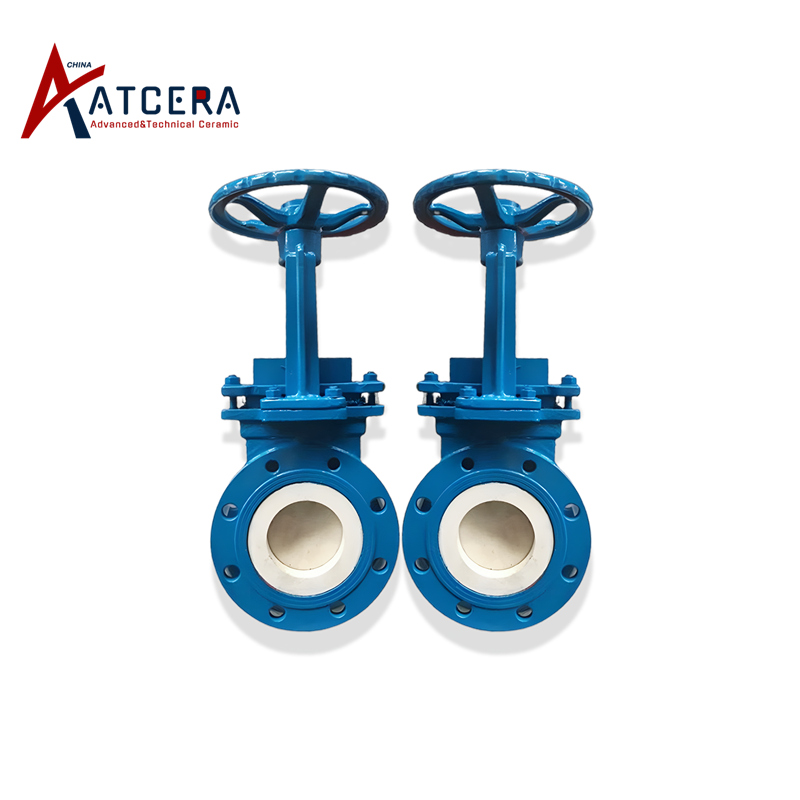

Ceramic Lined Knife Gate Valve Zirconia Gate Valve
