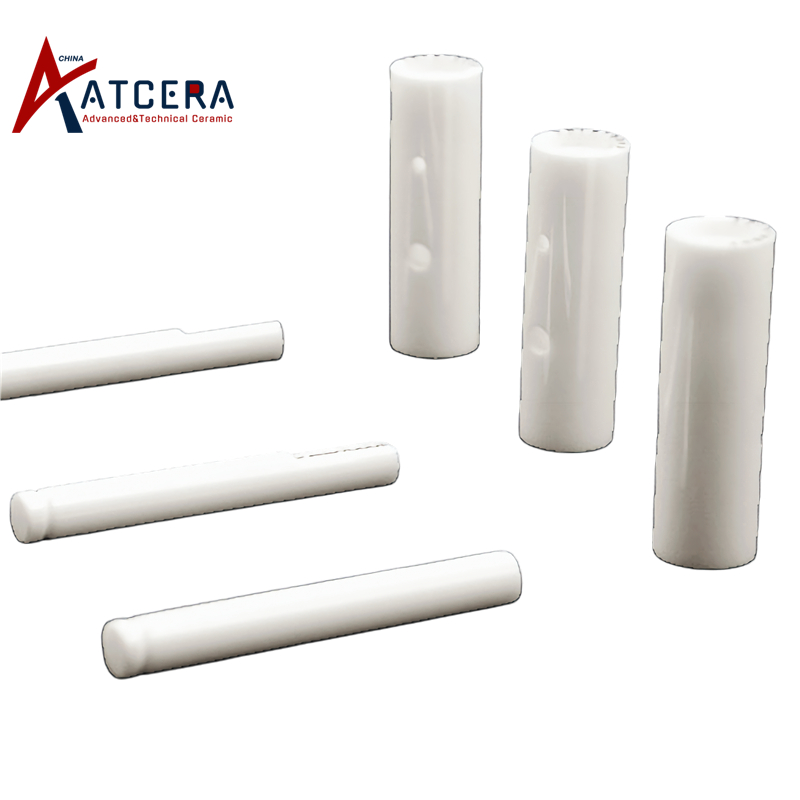

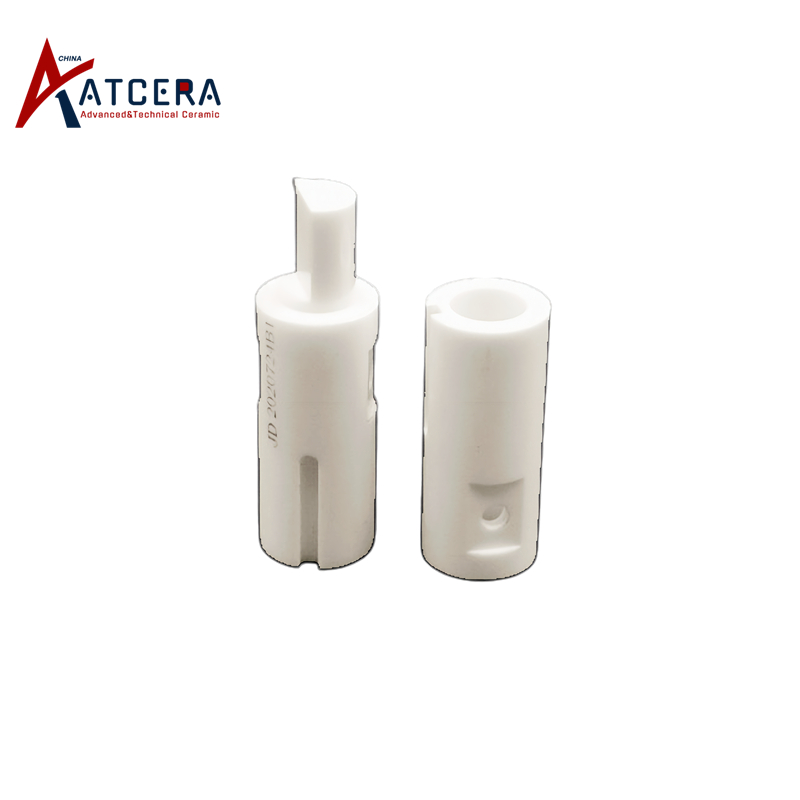

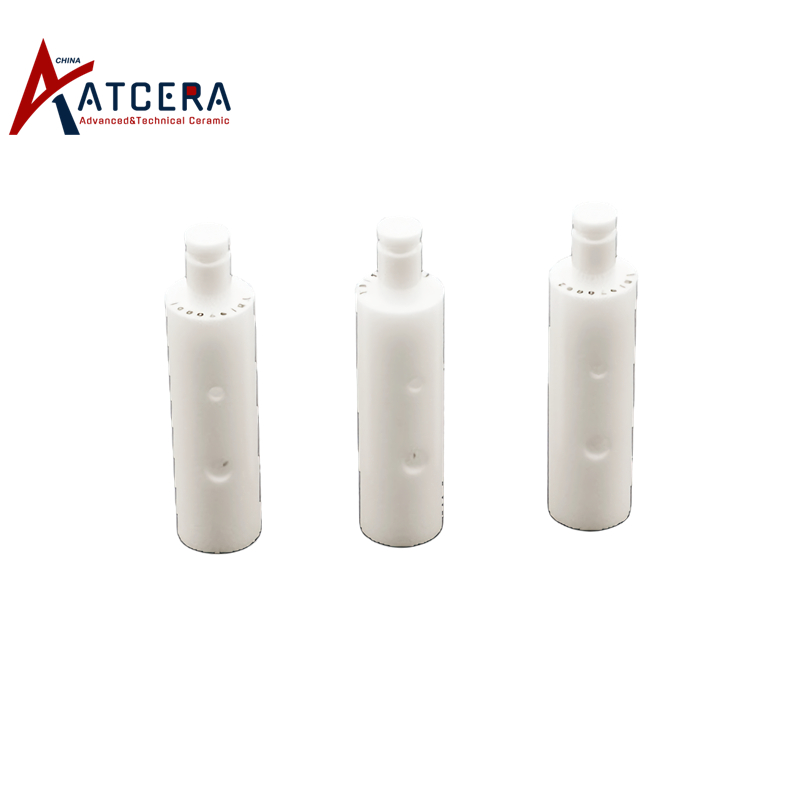

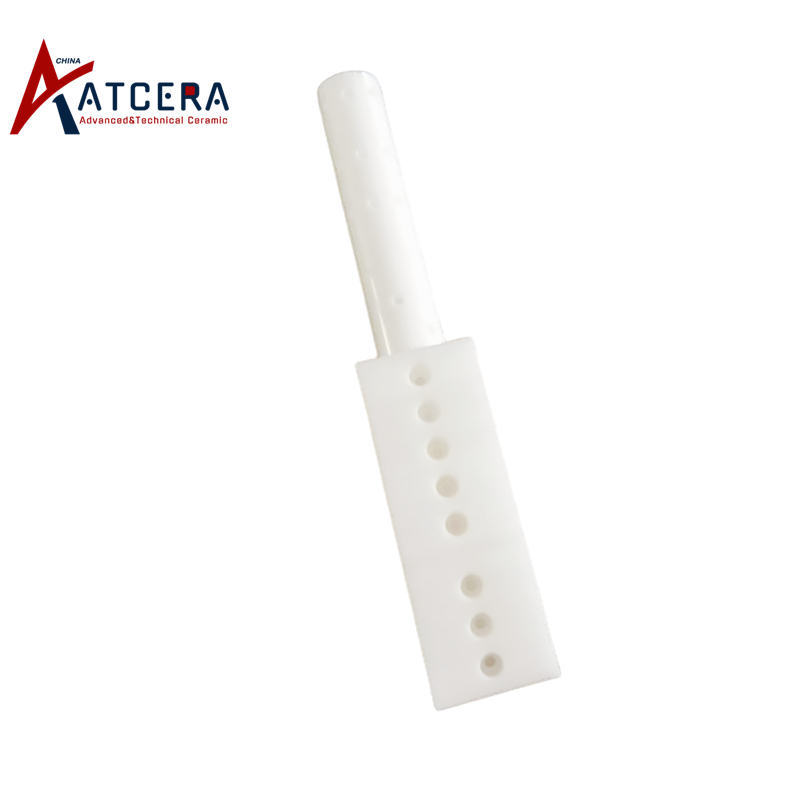

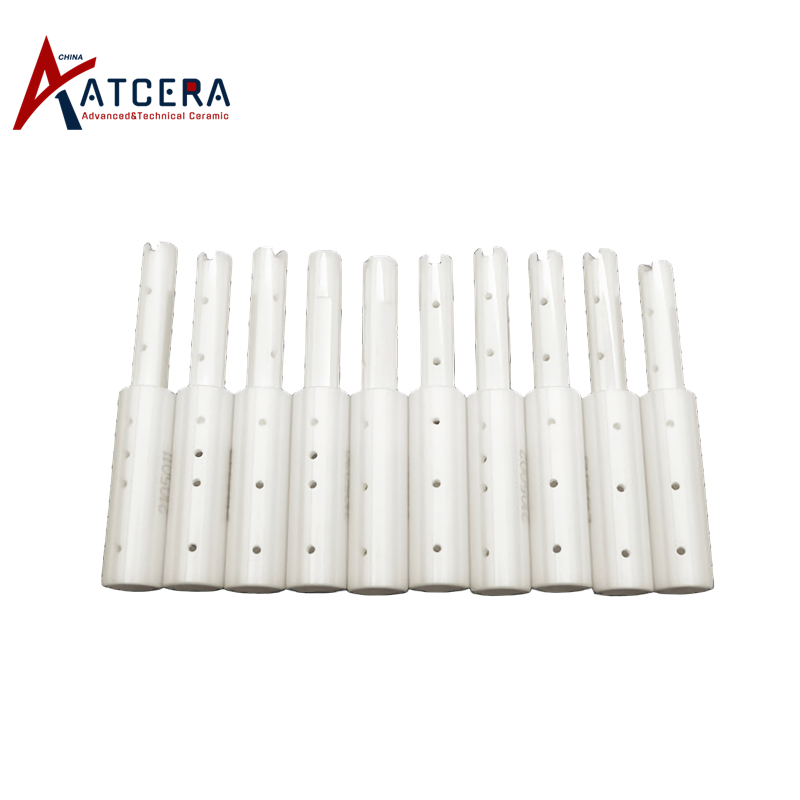

Zirconia Ceramic Dispensing Valve

Zirconia ceramic dispensing valves primarily consist of a valve body and a plunger, which are assembled on dispensing machines. By controlling the opening and closing of the valve, the flow rate and direction of glue or similar fluids can be regulated, allowing for precision dispensing and coating onto the surface or interior of products, thus achieving automated dispensing operations.

Brand:
ATCERA
Item NO.:
AT-YHG-DJF001

Materials
Zirconia
Shapes
Valve
Applications
Mechanical Parts , Petrochemical Industry , Food Processing , Biology and Medicine

Inquire Now

Properties of Zirconia Ceramic Dispensing Valve

1. The zirconia dispensing valve boasts high hardness, wear resistance, and corrosion resistance, suitable for various types of glue and paint with no contamination to the medium, resulting in a long service life.

2. With precise machining accuracy, self-lubricating properties, and excellent airtightness, the zirconia dispensing valve ensures zero leakage and precise control over the dispensed volume.

3. The zirconia dispensing valve is resistant to high temperatures, maintaining its airtightness under such conditions, enabling normal operation.

Applications of Zirconia Dispensing Valve

The zirconia ceramic dispensing valves are mounted on automatic dispensing machines, serving in dispensing and painting applications on production lines across various industries, including electronics, automotive, medical equipment, and home furnishing.

Customization Design for Zirconia Ceramic Dispensing Valve

We are committed to delivering optimal zirconia dispensing valves tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parametric specifications for customization.

Zirconia Ceramic Dispensing Valve
Item no.	Dimension (mm)	Diameter (mm)	Length (mm)
AT-YHG-DJF001	5*70	5	70
AT-YHG-DJF002	23*85	23	85
AT-YHG-DJF003	25*105	25	105
AT-YHG-DJF004	30*120	30	120
AT-YHG-DJF005	40*120	40	120
AT-YHG-DJF006	50*150	50	150
AT-YHG-DJF007	80*200	80	200
AT-YHG-DJF008	100*220	100	220

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Before use, ensure the zirconia ceramic dispensing valve is thoroughly cleaned to remove any impurities or residues.

2. Follow the manufacturer's installation instructions to correctly mount the zirconia dispensing valve on the equipment, ensuring fasteners are in their appropriate positions.

3. Regularly inspect the wear condition of the dispensing valve, promptly replace worn parts, and conduct periodic cleaning and maintenance to ensure its normal operation.

4. When not in use, the zirconia dispensing valve should be properly stored to prevent dust or impurities from entering, which may affect its performance and service life.

Valuable Information

Zirconia Ceramic Dispensing Valve Packing

Zirconia ceramic dispensing valves are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
