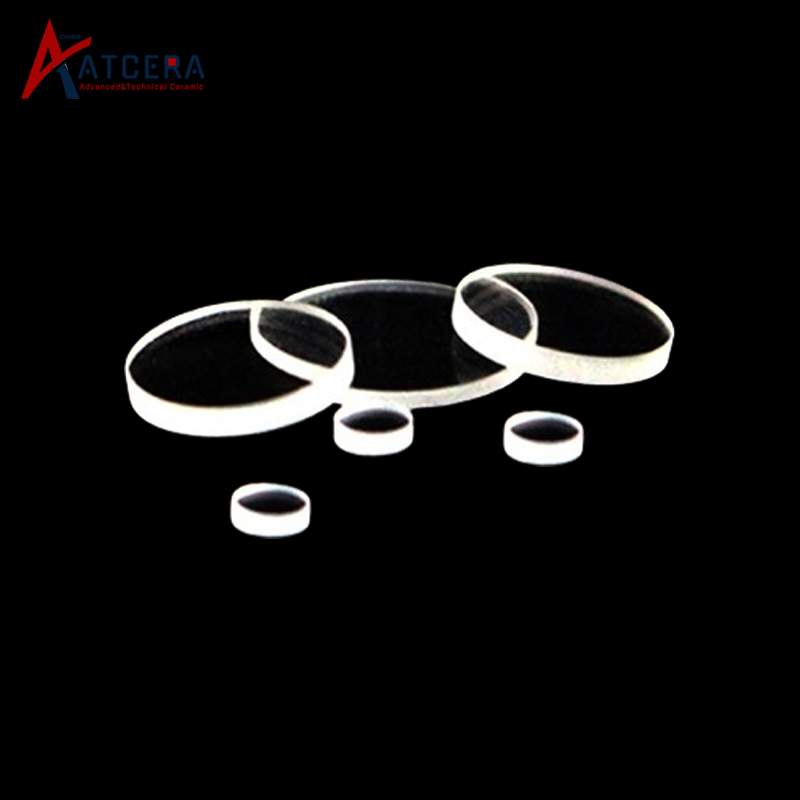

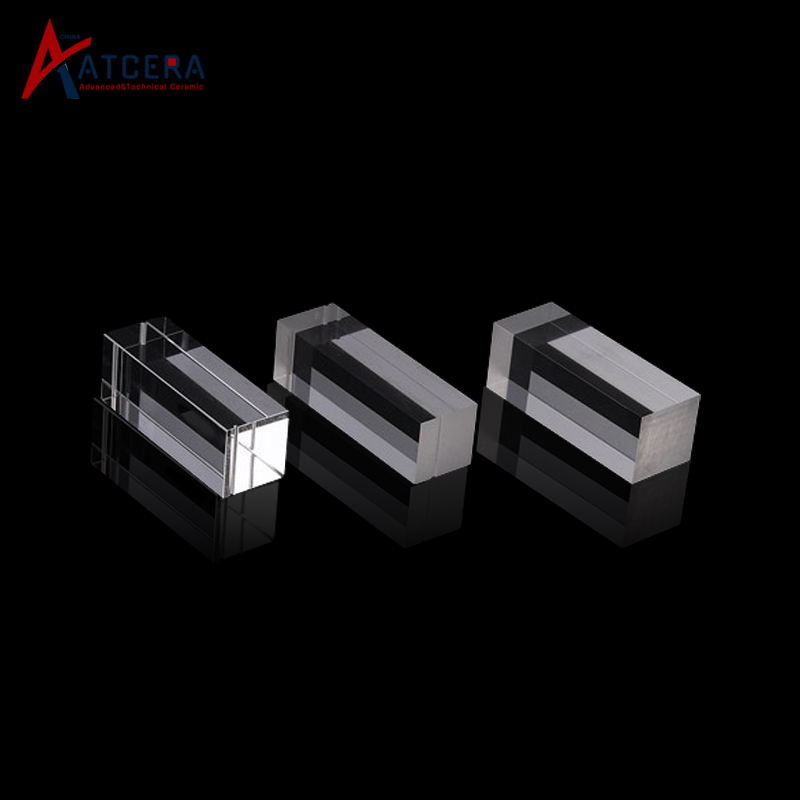

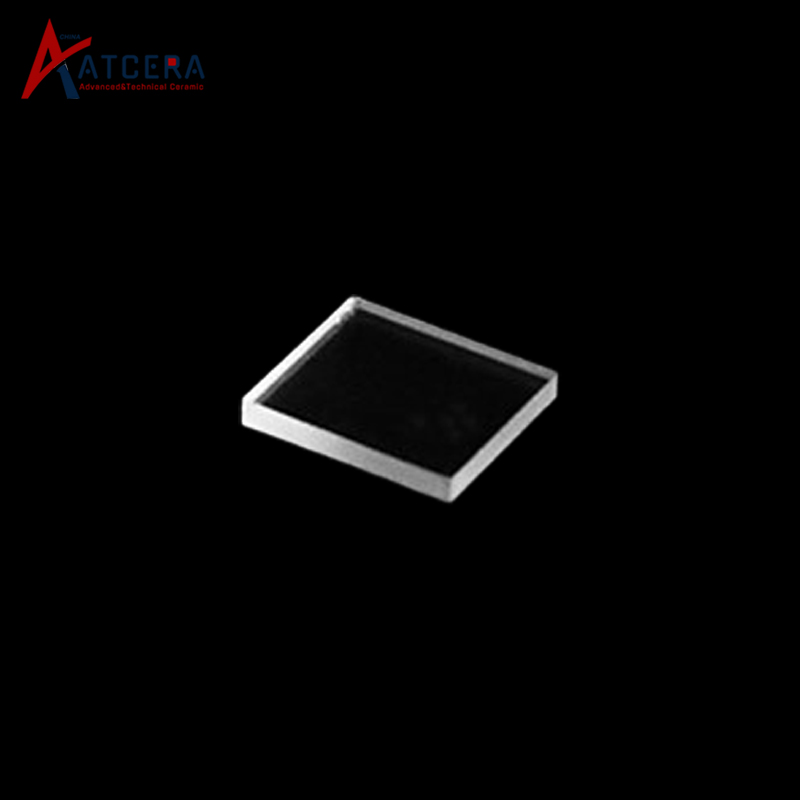

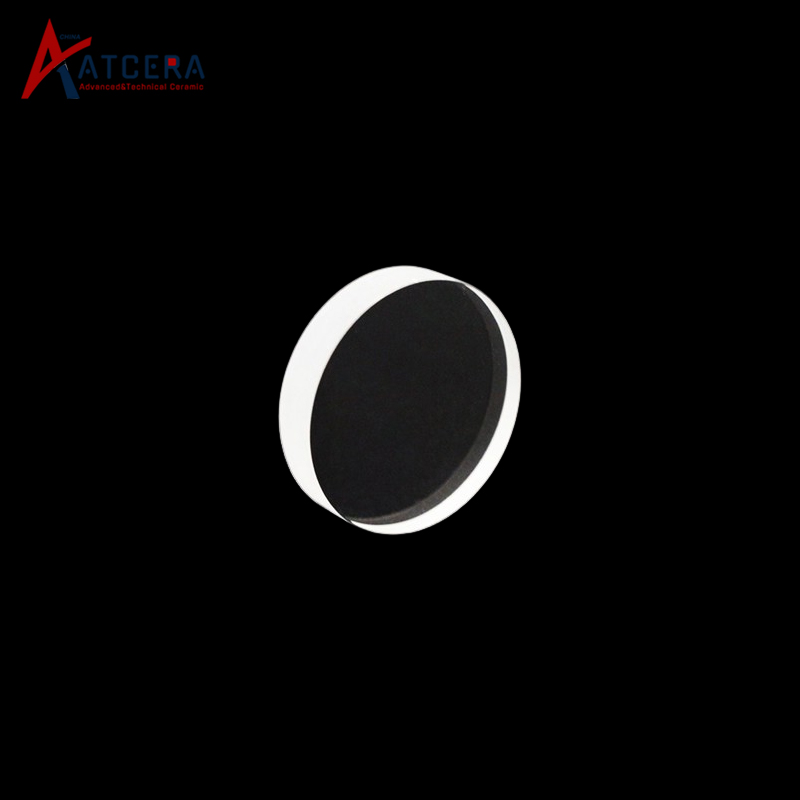

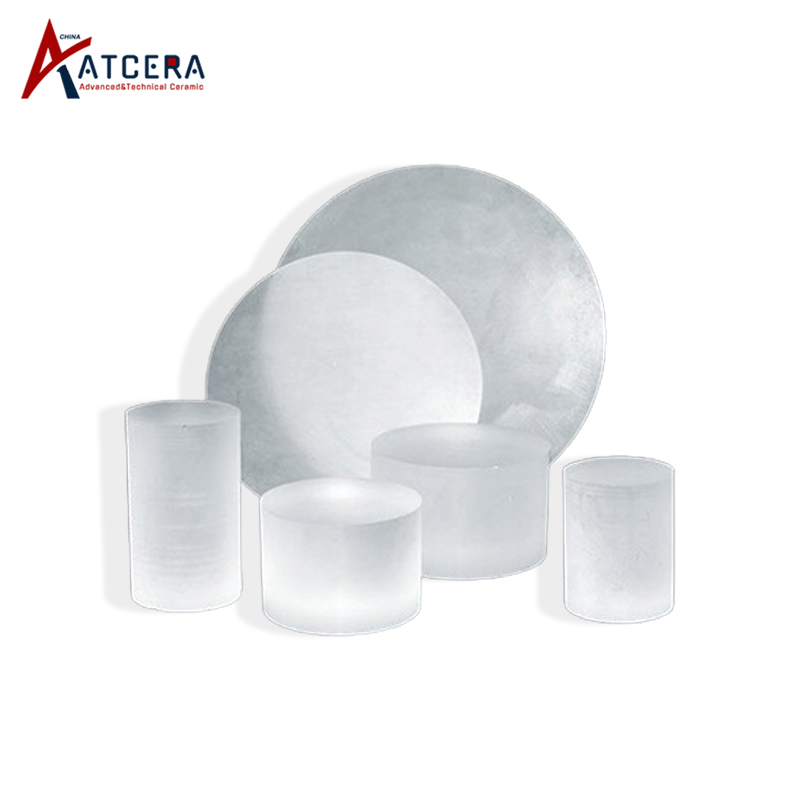

Sapphire Optical Glass Window Sapphire Sightglass

Sapphireoptical glass window is mainly composed of aluminum oxide (monocrystalline structure), purity can reach to 99.995% or higher, with high hardness, good wear resistance, corrosion resistance and high temperature, can be in direct contact with acid，alkali and various chemical substances, the highest working temperature can reach 1950℃, also has good light transmission performance and excellent air permeability. It is widely used in petrochemical equipment, optical components and instruments, Underwater exploration, laboratory equipment and other fields.

Brand:
ATCERA
Item NO.:
AT-CKP-001

Materials
Transparent Ceramics
Shapes
Plate
Applications
Semiconductor , Mechanical Parts , Petrochemical Industry , Metallurgy Industry

Inquire Now

Advantages of Sapphire Optical Glass Window

Sapphireoptical glass window purity can reach to 99.995% or higher, with high hardness, good wear resistance, corrosion resistance and high temperature, can be in direct contact with acid，alkali and various chemical substances, the highest working temperature can reach 1950℃, also has good light transmission performance and excellent air permeability.

Applications of Sapphire Glass Window

Sapphire optical glass window is widely used in petrochemical equipment, optical components and instruments, underwater exploration, laboratory equipment and other fields.

Product Parameters
Material Parameters

Size Chart of Sapphire Optical Glass Window

Committed to providing optimal sapphire optical glass window customized to your precise needs. Our devoted team guarantees careful adherence to your instructions, aiming to surpass customer expectations. Moreover, we provide the flexibility of customized sizes to meet your unique requirements.

Send Requirements for Custom Design

Please provide drawing and parameter requirements for customization.

Size (Diameter)	0.2-300mm
Thickness	0.1-100mm
Dimensional Tolerance	+/-0.02mm
Brightness	20/10 or better
Through-hole diameter	>90%
Surface type	λ/4 λ/8 λ/10
Parallelism	+/-30''
Chamfering	0.1-0.3mm x 45°
Coating	Transmission Enhancement Membrane or Customized

Sapphire Optical Glass Window
Item NO.	Specification（D×L）	Direction	Scope of Application
AT-CKP-001	10.0×2.0mm	Random	IR
AT-CKP-002	12.0×1.0mm	Random	IR
AT-CKP-003	12.0×2.0mm	Random	IR
AT-CKP-004	12.0×4.0mm	Random	IR
AT-CKP-005	15.0×2.0mm	Random	IR
AT-CKP-006	18.0×4.0mm	Random	IR
AT-CKP-007	20.0×2.0mm	Random	IR
AT-CKP-008	25.0×0.5mm	Random	IR
AT-CKP-009	25.0×1.0mm	Random	IR
AT-CKP-010	25.0×2.0mm	Random	IR
AT-CKP-011	25.4×1.0mm	Random	IR
AT-CKP-012	26.0×1.0mm	Random	IR
AT-CKP-013	35.0×2.0mm	Random	IR

Technical Data of Al2O3 (monocrystalline structure)

Content	Al2O3 (monocrystalline structure)
Purity	99.995
Density	3.98-4.1g/cm3
Hardness	1700Hv
Compressive strength	2100MPa
Bending strength	445MPa
Tensile strength	200MPa
Elasticity modulus	380GPa
Poisson's ratio	0.28
Max. working temperature	1950℃
Thermal conductivity	28-32W/m*K
Thermal expansion coefficient	6*10-6/K
Refractive index	1.76
Transmissivity	>86% (280-3500nm)
Volume resistivity	>1.51016Ohmcm
Dielectric strength	48KV/mm

*This chart illustrates the standard characteristics of the Al2O3 (monocrystalline structure) materials commonly employed in the manufacturing of our Al2O3 (monocrystalline structure) products and parts. Please be aware that the attributes of customized Al2O3 (monocrystalline structure) products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Valuable Information

Sapphire Glass Window Packing

Sapphire glass windows are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
