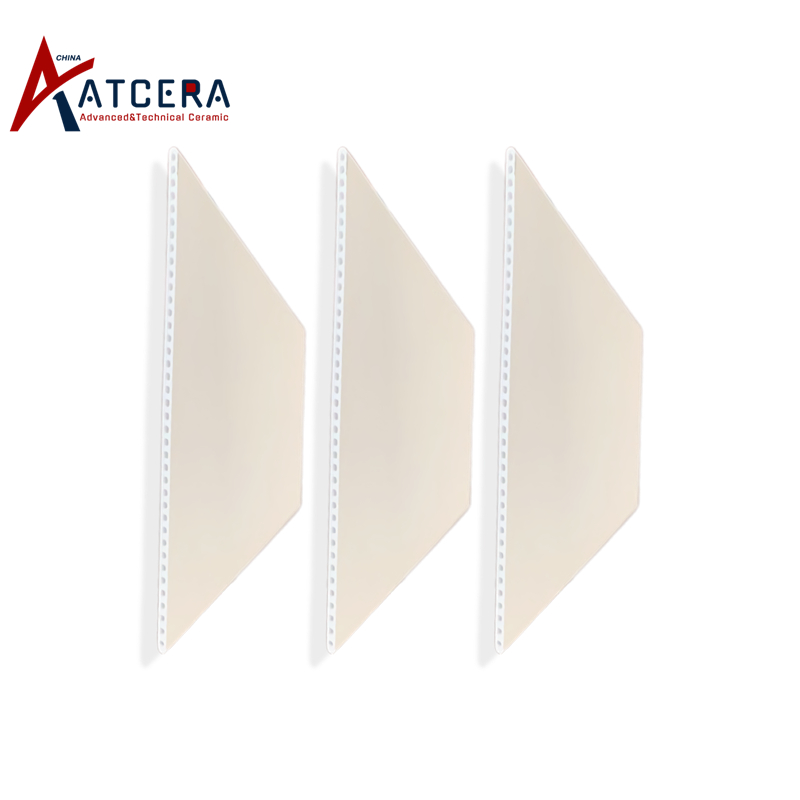

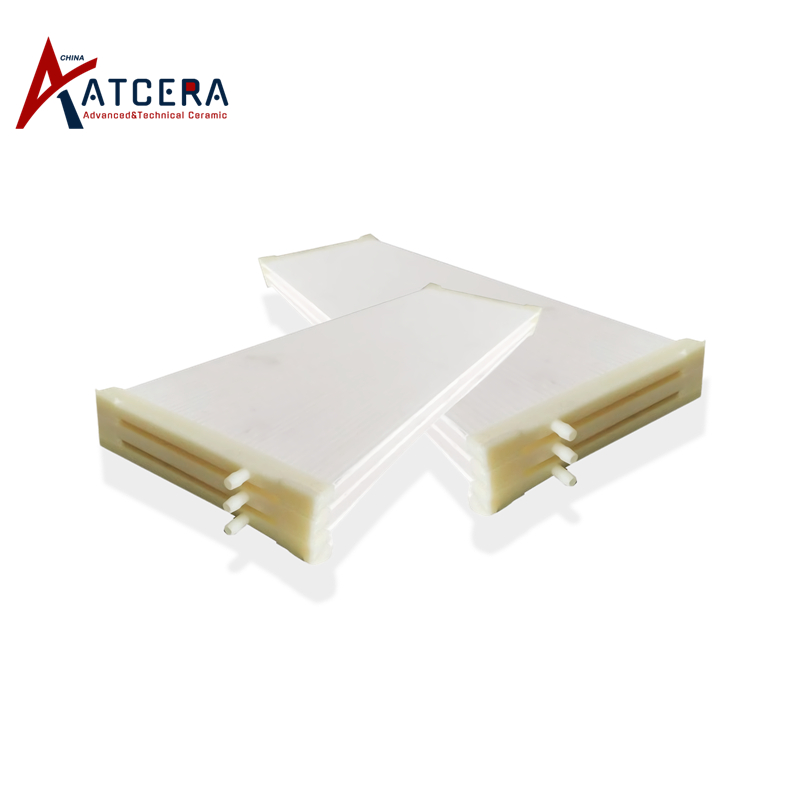

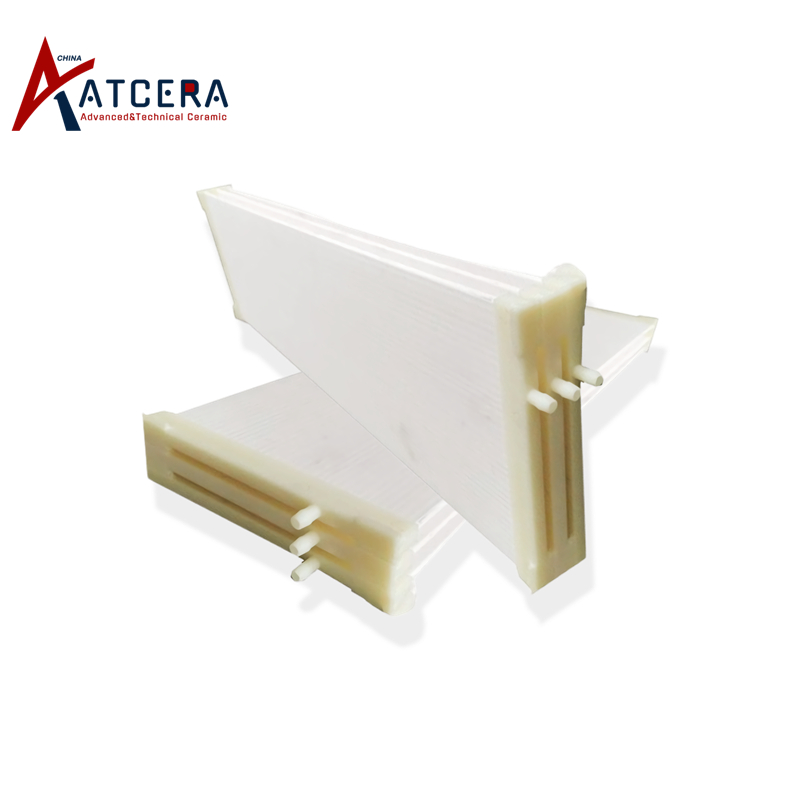

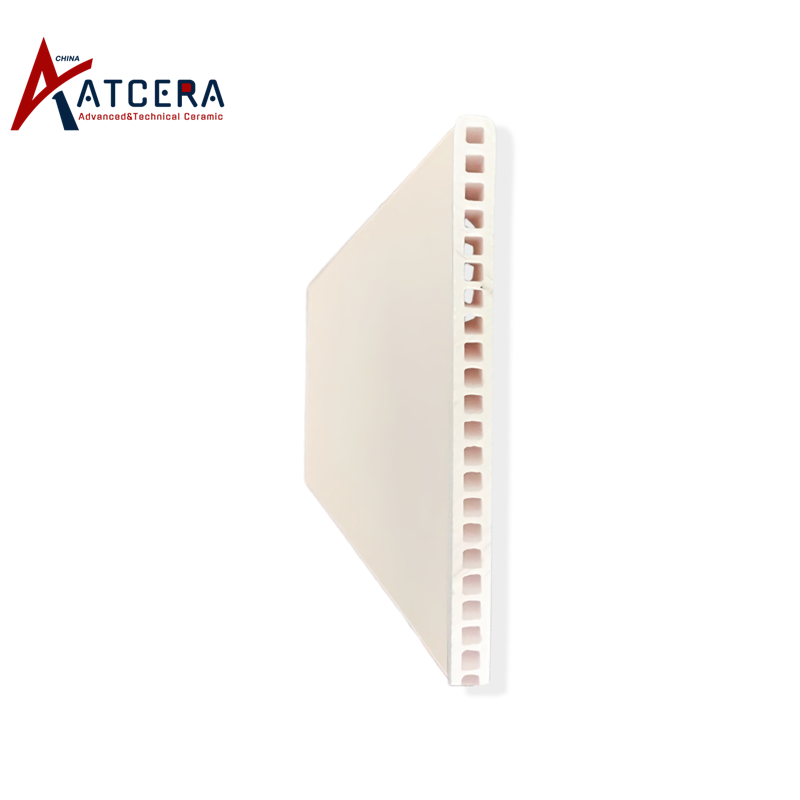

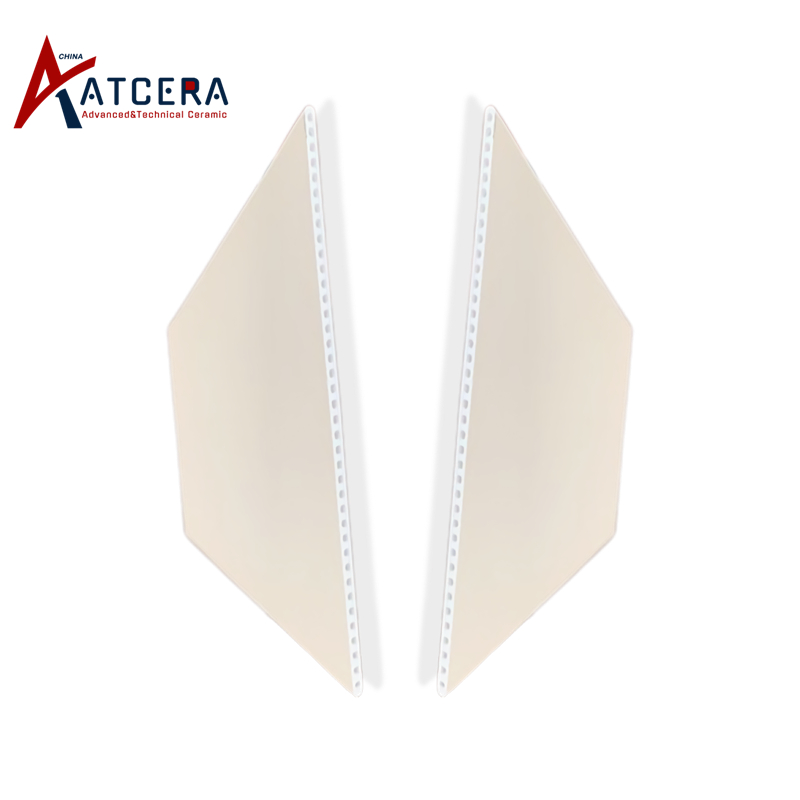

Alumina Filtration Module Ceramic Filter Plate

The alumina ceramic filtration module consists of multiple layers of alumina filter membranes, densely populated with micropores. When the feed liquid flows over the membrane surface, it only allows water, inorganic salts, and small molecules to pass through the membrane, while preventing suspended solids, colloids, microorganisms, and other macromolecules from passing.

Brand:
ATCERA
Item NO.:
AT-PM-01

Materials
Alumina
Shapes
Mechanical Parts
Applications
Petrochemical Industry , Food Processing , Biology and Medicine

Inquire Now

Properties of Alumina Filtration Module

1. The alumina filtration module boasts a high flux capacity, enabling it to operate at high flow rates without easily clogging the pores. It exhibits excellent backwashing recovery performance, long service life, concentrated pore size distribution, and high filtration accuracy.

2. The alumina filtration module possesses excellent chemical stability and corrosion resistance, enabling it to function normally under high-temperature conditions. It is suitable for filtering various liquids without causing any contamination.

Applications of Alumina Filtration Module

The alumina filtration module finds applications in water treatment, chemical industry, food and beverage production, biopharmaceuticals, and other fields.

1. Food and Beverage Industry

The alumina filtration module can be used for milk filtration, juice concentration, natural extraction, and production of alcoholic/tea beverages.

2. Chemical Industry

Primarily used for solid-liquid separation, gas-solid separation, as well as separation and purification of organic substances such as benzene, phenol, alcohol, and various pigments.

3. Environmental Protection

Used for purifying oily wastewater, textile wastewater, urban domestic sewage, papermaking wastewater, and purifying high-temperature gases.

4. Biopharmaceuticals

Filters particles, bacteria, and macromolecular impurities from drugs, decolors drugs, or refines and concentrates medicinal liquids to extract active ingredients and effective monomers.

Size Chart of Alumina Filtration Module

We are committed to delivering optimal alumina filtration modules tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parameter specifications if customization requirements needed.

Alumina Filtration Module
Item NO.	Specificatio (mm)	Quantity (pieces)	Membrane Area (m²)	Water Production Capacity (m³/d)	Weight (kg)
AT-YHL-GL001	3003201200	10	2.5	2-5	15
AT-YHL-GL002	720570450	34	6	7-14	32
AT-YHL-GL003	720570600	68	12	8-10	64
AT-YHL-GL004	9203201800	50	25	15-35	200
AT-YHL-GL005	17203201800	100	50	3-70	310
AT-YHL-GL006	17207201800	200	100	60-140	630
AT-YHL-GL007	17207203250	400	200	120-280	1185

Technical Data of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. The alumina filtration module should be kept in its original packaging before use to avoid exposure to the external environment and prevent dust from entering the filter membrane pores due to air contact.

2. During use, attention should be paid to controlling the liquid flow rate, which should not exceed the maximum water output. When the content of solid impurities is high, the flow rate should be appropriately reduced to avoid affecting filtration efficiency.

3. Regular backwashing maintenance of the filter membranes in the alumina filtration module should be performed to ensure filtration effectiveness.

Valuable Information

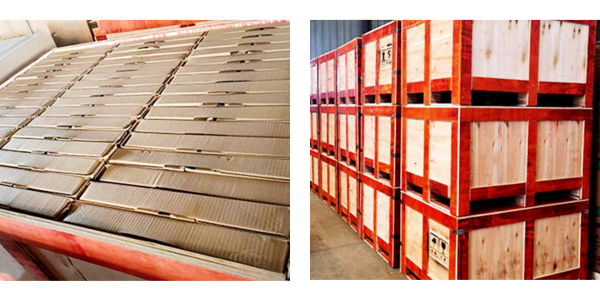

Alumina Filtration Module Packing

Alumina filtration modules are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
