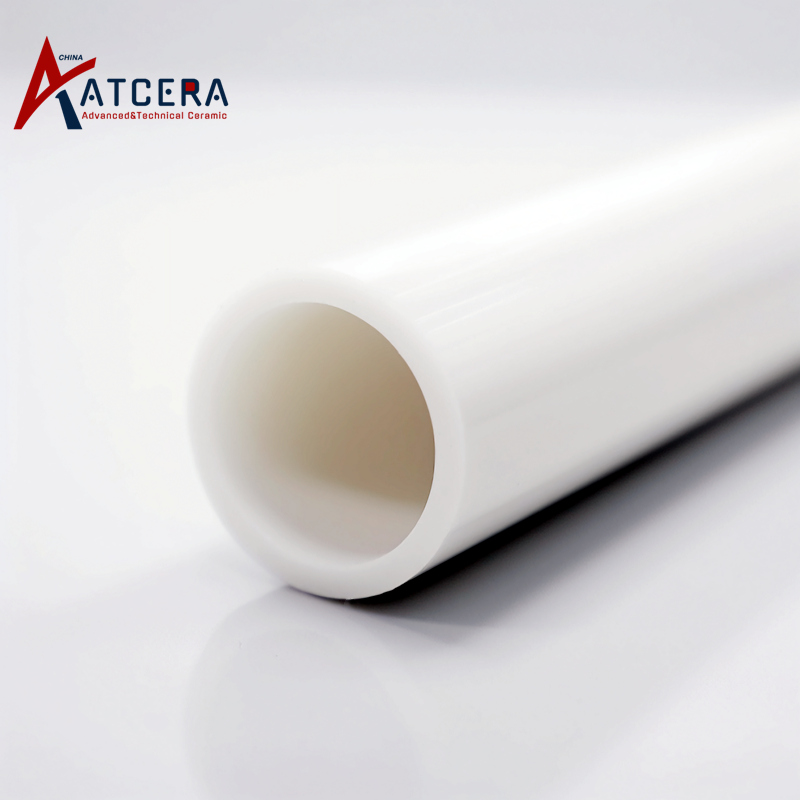

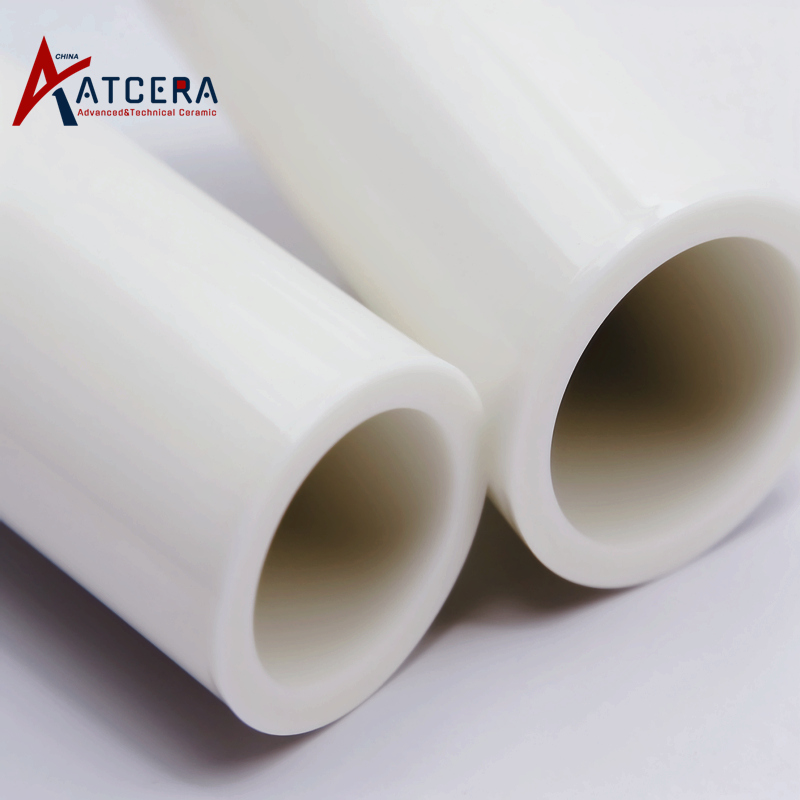

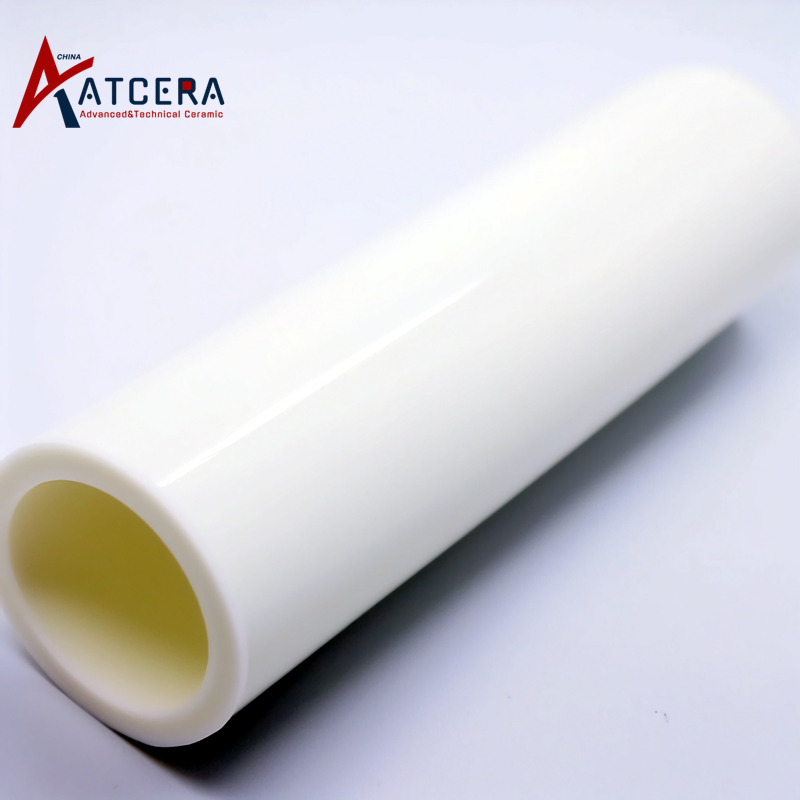

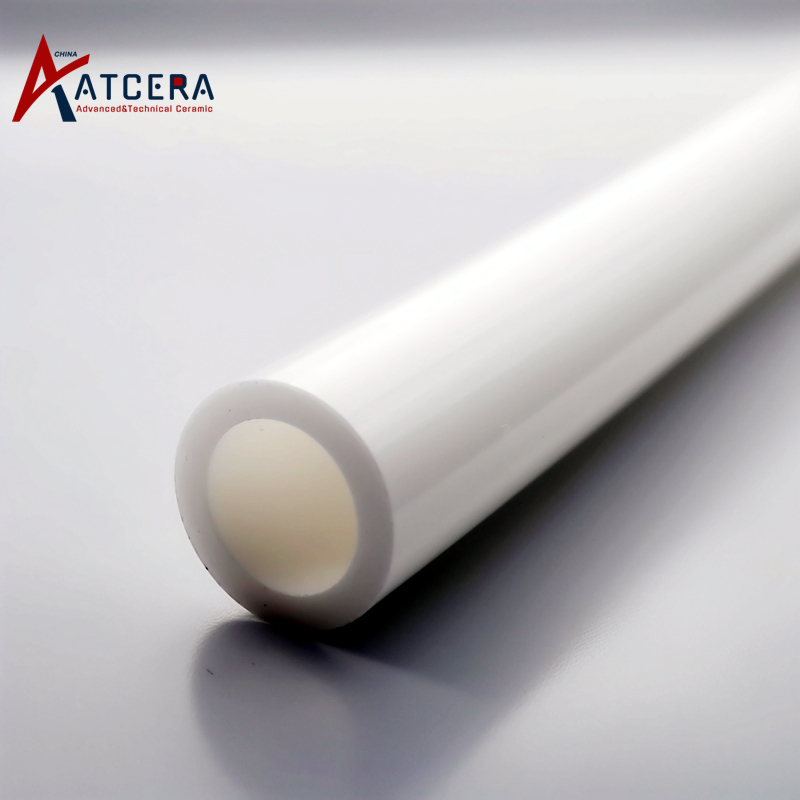

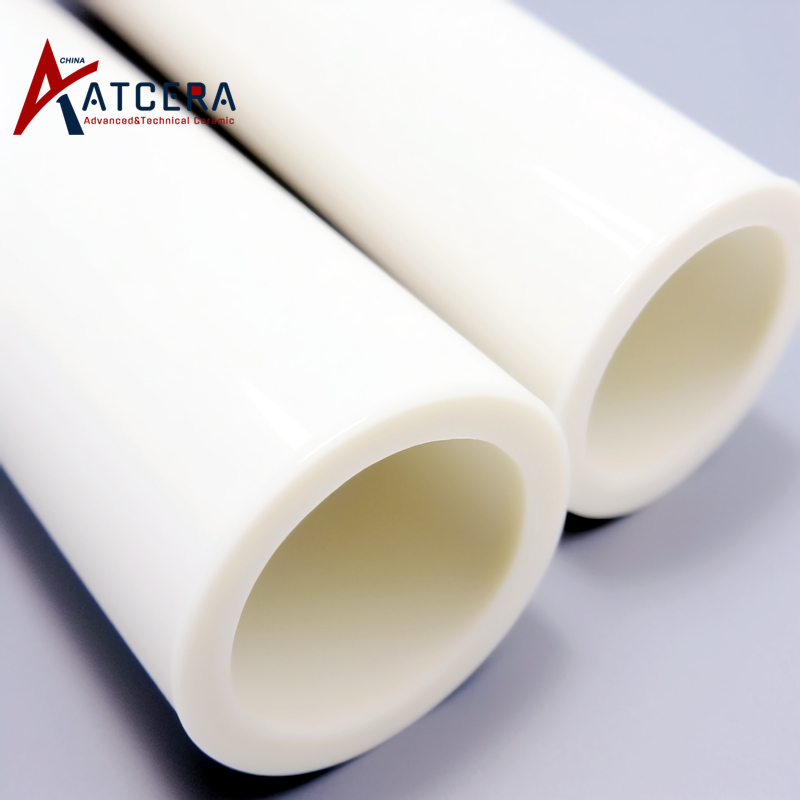

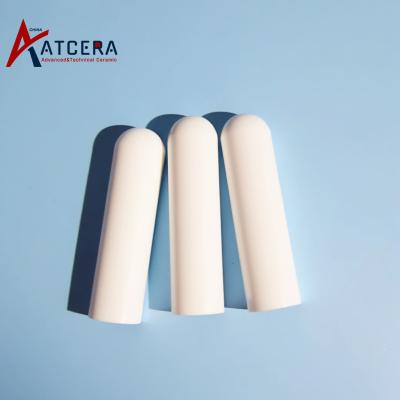

Yttria Stabilized Zirconia Ceramic Tubing YSZ Ceramic Tubes Open Both End

Zirconia tube has the characteristics of high hardness, high toughness, good wear resistance, high temperature resistance, acid & alkali and chemical corrosion resistance, good electrical insulation,etc.

Brand:
ATCERA
Item NO.:
AT-YHG-G1001

Materials
Zirconia
Shapes
Tube
Applications
Mechanical Parts , Petrochemical Industry , Food Processing , Metallurgy Industry , Biology and Medicine

Inquire Now

Properties of Zirconia Ceramic End Closed Tubing

1. High wear resistance and toughness

Zirconia ceramic tube adopts high purity microcrystalline zirconia ceramic powder as raw material, through high pressure isostatic pressing molding and high temperature sintering process, the powder crystal is denser, the internal crystal structure is stable, the processed tube has high hardness, good wear resistance, and high toughness.

2. Strong stability

Zirconia is an inert material that does not react to many substances in nature and has strong weather resistance, so its performance is very stable in various extreme environments.

3. Strong corrosion resistance

Zirconia material chemical stability is good, resistant to a variety of acid and alkali corrosion.

Applications of Yttria Stabilized Zirconia OBE Ceramic Tubing

Applications of YSZ Ceramic End Closed Tubing

Zirconia ceramic tube has high temperature resistance, good thermal shock resistance, and has high mechanical strength, good toughness, corrosion resistance, wear resistance and other characteristics, it is widely used in mechanical engineering, medical equipment, petrochemical, metallurgy and other industries.

1. Mechanical Engineering Industry

Zirconia ceramic tube has high compressive strength, good wear resistance, good toughness, stable performance at high temperature, and can be made into various mechanical parts, including connecting tube, piston cap, insulating protective sleeve, hydraulic cylinder,etc.

2. High Temperature Refractory Industry

Zirconia ceramic tube has high temperature resistance, good thermal conductivity and thermal shock resistance, corrosion resistance and wear resistance, can maintain stable performance under harsh working conditions, so it can be used to manufacture combustion tubes, thermocouple holding tubes, etc.

3. Chemical and Metallurgical Industries

Zirconia ceramic tube has very good corrosion resistance, good chemical inertia, and does not react with various chemical media, while ceramic tube surface finish is high, fluid transport resistance is small, can be made into a pipeline to transport chemical liquids, as well as filter membrane tube for chemical process;

4. Medical and Biological Industries

Zirconia ceramic tube has very good biological inert and compatibility, non-toxic and harmless, non-radioactive, corrosion resistance, in the medical and biological industry can be used to make syringes, tubular filters, biological experimental equipment.

Size Chart of Yttria Stabilized Zirconia(YSZ) Ceramic Tubes Open Both End

Dedicated to delivering high-quality zirconia ceramic tubes customized to your specific requirements. Our committed team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique needs.

Send Requirements for Custom Design

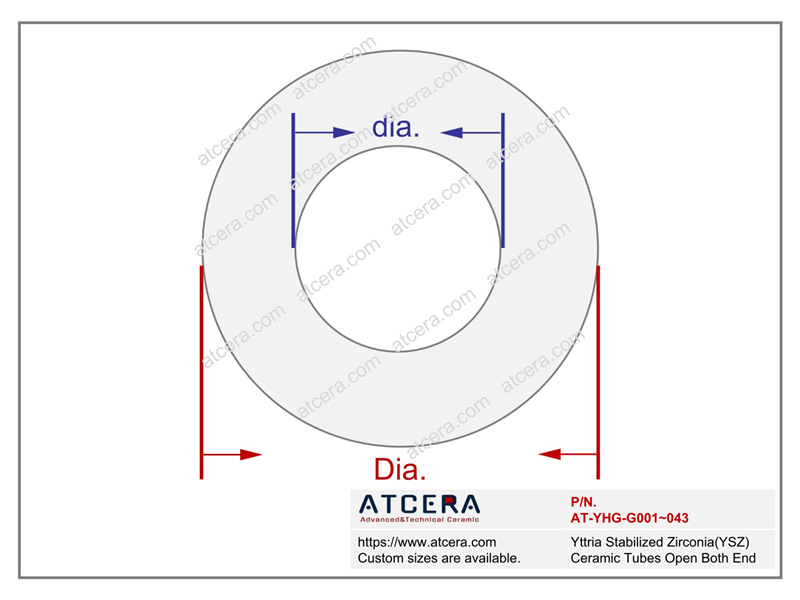

Drawing of Yttria Stabilized Zirconia(YSZ) Ceramic Tubes Open Both End

Yttria Stabilized Zirconia(YSZ) Ceramic Tubes Open Both End
Item No.	Diameter (mm)	diameter (mm)	Length (mm)
AT-YHG-G001	0.7	0.3	≤100
AT-YHG-G002	0.8	0.4
AT-YHG-G003	0.9	0.4
AT-YHG-G004	1	0.5	≤300
AT-YHG-G005	1.1	0.6
AT-YHG-G006	1.2	0.6
AT-YHG-G007	1.3	0.7
AT-YHG-G008	1.4	0.8
AT-YHG-G009	1.5	0.8
AT-YHG-G010	2.0	1.0	≤500
AT-YHG-G011	3.0	1.5
AT-YHG-G012	3.0	2.0
AT-YHG-G013	4.0	2.0
AT-YHG-G014	4.0	3.0
AT-YHG-G015	5.0	3.0
AT-YHG-G016	5.0	3.5
AT-YHG-G017	6.0	4.0
AT-YHG-G018	7.0	4.5
AT-YHG-G019	8.0	4.0
AT-YHG-G020	8.0	5.0
AT-YHG-G021	9.0	6.0
AT-YHG-G022	10.0	4.0
AT-YHG-G023	10.0	6.0
AT-YHG-G024	10.0	7.0
AT-YHG-G025	12.0	4.0	≤600
AT-YHG-G026	12.0	8.0
AT-YHG-G027	14.0	4.0
AT-YHG-G028	14	10
AT-YHG-G029	15	11
AT-YHG-G030	16	12
AT-YHG-G031	18	14
AT-YHG-G032	17.5	11.1
AT-YHG-G033	20	15
AT-YHG-G034	25	19
AT-YHG-G035	30	25
AT-YHG-G036	40	30
AT-YHG-G037	44	38
AT-YHG-G038	50	40
AT-YHG-G039	60	50
AT-YHG-G040	70	60
AT-YHG-G041	80	70
AT-YHG-G042	90	80
AT-YHG-G043	100	90

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. The type of stabilizing agent employed will significantly impact the performance of zirconia, necessitating the judicious selection of an appropriate material based on the operating environment.

2. Prior to installing the zirconia tube, it is imperative for the user to inspect its surface for any scratches, cracks, or other imperfections. If any defects are detected, the tube must be replaced.

3. It is essential to cleanse the surface of the zirconia tube of dust and impurities prior to installation to prevent any adverse effects on its performance.

4. The condition of the zirconia tube should be regularly monitored. If cracks or other defects begin to emerge, prompt action must be taken to discontinue its use and replace it.

Valuable Information

Machining Precision

1. Diameter Tolerance: ±0.01mm

2. Hole Depth Tolerance: ±0.005mm

3. Surfance Roughness: Ra0.5

4. Cylindricity: ±0.004mm

5. Concentricity: ±0.003mm

6. Parallelism: ±0.002mm

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote

Related Blog

Silicon Carbide Substrate Processing Challenges with Innovative Applications Of Metal Friction-induced Reaction Grinding Technology

In the field of semiconductor materials, silicon carbide (SiC) with its excellent thermal conductivity, wide band gap characteristics, high breakdown electric field strength and high electron mobility, is gradually becoming a research and development hotspot, leading the innovation of a new generation of electronic devices. As a substrate material for key components, the broad application prospect...

Exploration Of Laser Processing Technology Of AlN Substrate To Realize High Quality Flat Machining Surface

With the rapid development of electronic technology, the integration and performance requirements of large-scale integrated circuits are increasing day by day. As a key supporting material, aluminum nitride ceramics have become an ideal cooling substrate and packaging material because of their excellent thermal conductivity, mechanical strength, corrosion resistance and excellent electrical proper...

ELID Grinding Process Of AlN Substrate: Solving The Difficult Problem Of Machining High-hardness Brittleness

With the rapid development of microelectronics technology, the requirements for electronic packaging materials are increasingly stringent. Aluminum nitride ceramics, with its excellent thermal conductivity, excellent mechanical properties, corrosion resistance and excellent electrical properties, become the leader of large-scale integrated circuit cooling substrate and packaging materials. However...

AlN Ceramic Magnetorheological Polishing Process Achieves High-Quality Surface For AlN Substrate

Today, with the rapid development of the electronics industry, aluminum nitride ceramics have become the first choice for large-scale integrated circuit cooling substrates and packaging materials because of their excellent thermal conductivity, excellent mechanical properties, corrosion resistance and good electrical properties. Especially in the pursuit of miniaturization and high performance int...

Chemical Mechanical Polishing Of AlN Substrate: The Key Path To Overcome Micro-cracks And Subsurface Damage

In the field of microelectronic packaging, aluminum nitride ceramics are gradually becoming the preferred material for high-performance chip cooling substrates due to their excellent thermal conductivity, mechanical strength and electrical properties. However, its high hardness and high brittleness can easily cause surface micro-cracks and sub-surface damage during processing, which directly affec...

Study On Thermal Conductivity Of Aluminum Nitride Substrate And Analysis Of Influence Of Oxygen Impurity

For a long time, most of the substrate materials of high-power hybrid integrated circuits have been using Al2O3 and BeO ceramics, but the thermal conductivity of the Al2O3 substrate is low, and the thermal expansion coefficient is not well matched with Si. Although the comprehensive performance of BeO is excellent, its high production cost and highly toxic shortcomings limit its application and pr...

Evolution Of Ceramic Substrate Materials: Breakthroughs From Alumina To Aluminum Nitride And Silicon Nitride

In today's rapidly changing electronics industry, ceramic substrate materials as a key basis for supporting high-performance electronic devices, its performance and characteristics directly affect the overall performance and reliability of electronic products. From the early alumina ceramics to the later aluminum nitride, silicon nitride and other new materials, the development of ceramic substrat...

The Applicability of Aluminum Nitride Substrate as a Packaging Material for Enhancing Heat Dissipation in Power Devices

With the rapid development of electronic technology, the comprehensive performance of electronic chips is improving day by day, but the overall size is shrinking. This trend brings significant performance improvements, but it also comes with a serious challenge - a dramatic increase in heat flux. For electronic devices, even a small increase in temperature can have a significant impact on their pe...

Thermal Conductivity Improvement of Silicon Nitride Substrate

In the field of advanced ceramic materials, silicon nitride (Si3N4) has attracted much attention for its excellent mechanical strength, chemical stability and high temperature properties. However, the thermal conductivity of silicon nitride ceramics, as one of the key factors affecting its wide application, has been an important subject in materials science research. This paper aims to investigate...

Exploring Lattice Vibration Mechanism And Sintering Assistant Strategy Of Silicon Nitride Substrates

In cutting-edge technologies such as high-performance electronic packaging, aerospace and energy conversion, silicon nitride (Si3N4) substrate materials are highly regarded for their excellent mechanical properties, chemical stability and high temperature resistance. However, the thermal conductivity of silicon nitride, as one of the key factors affecting its wide application, has always been...

Yttria Stabilized Zirconia(YSZ) Tube Ceramic End Closed Tubing

Zirconia Ceramic Cylinder Sleeve ZrO2 Cylinder Liner for Mud Pump

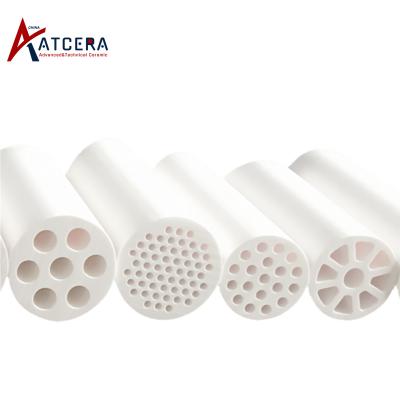

Zirconia Ceramic Membrane Filter Tube

Silicon Nitride Heater Protection Tube For Aluminum Smelting Industry

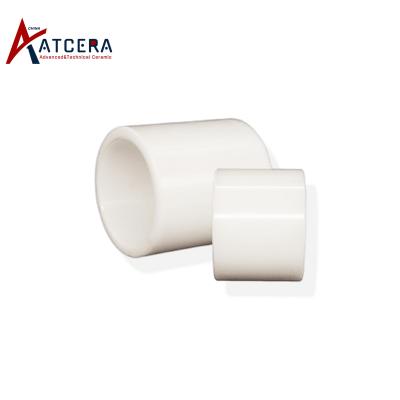

Alumina Ceramic Sleeve
