Yttria Stabilized Zirconia(YSZ) Tube Ceramic End Closed Tubing

Zirconia ceramic tube is formed by isostatic pressing method and sintered at high temperature, to form uniform, dense and smooth ceramic layer and transition layer, which has superior wear resistance,high temperature resistance and thermal shock performance is good, also with low thermal conductivity, it is suitable for thermal protection tube and high temperature conditions of the precision ceramic parts.

  • Brand:

    ATCERA
  • Item NO.:

    AT-YHG-G1001
  • Materials

    Zirconia
  • Shapes

    Tube
  • Applications

    Mechanical Parts , Petrochemical Industry , Food Processing , Metallurgy Industry

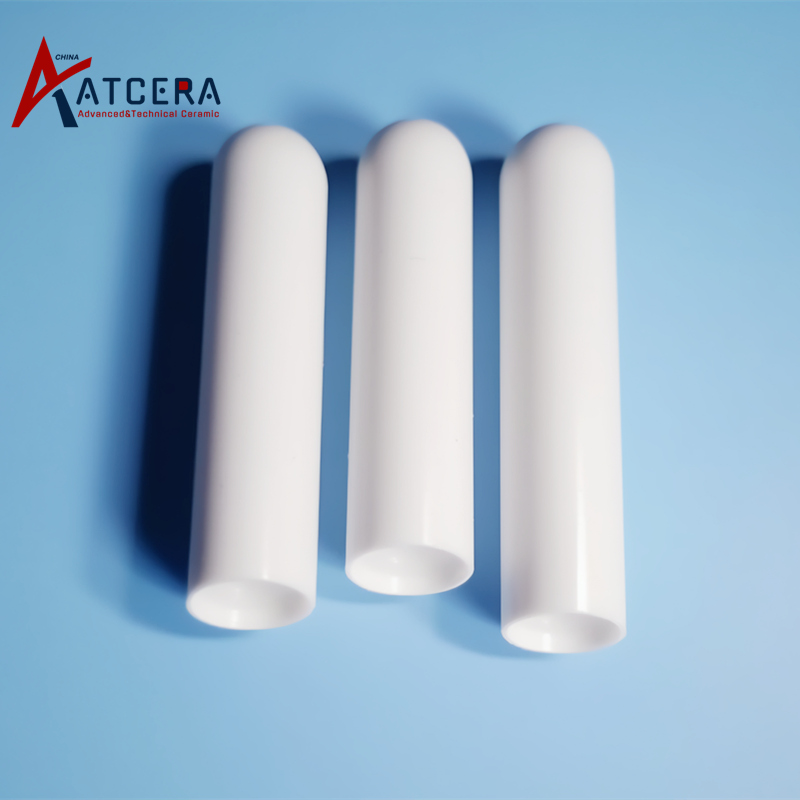

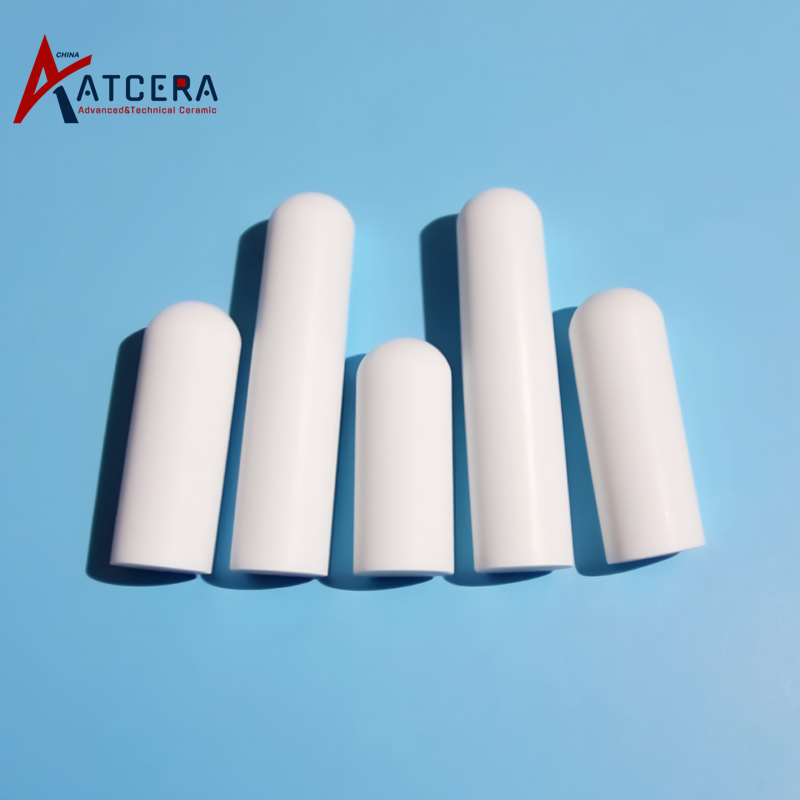

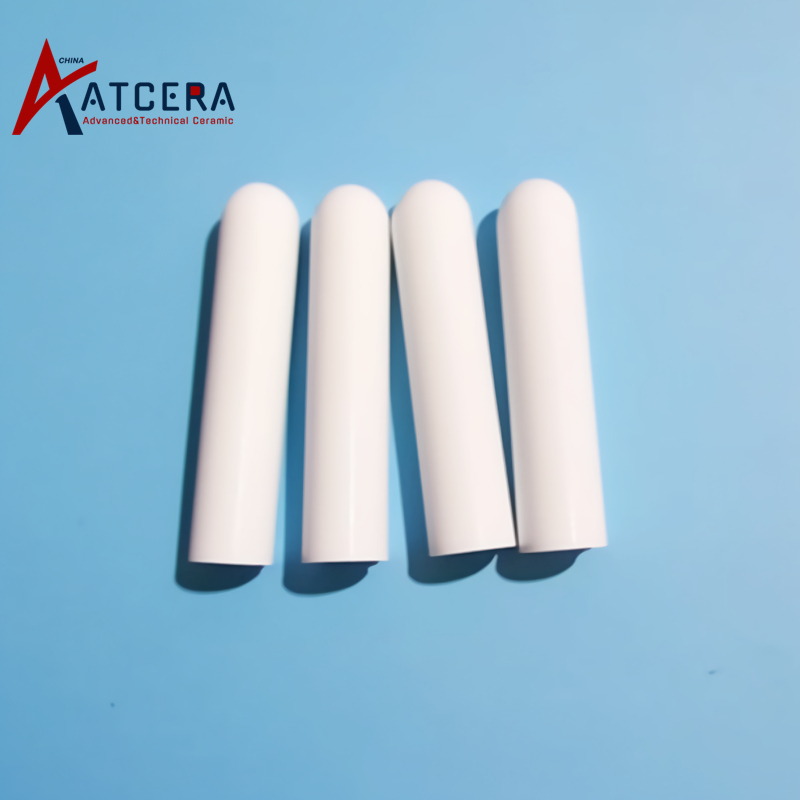

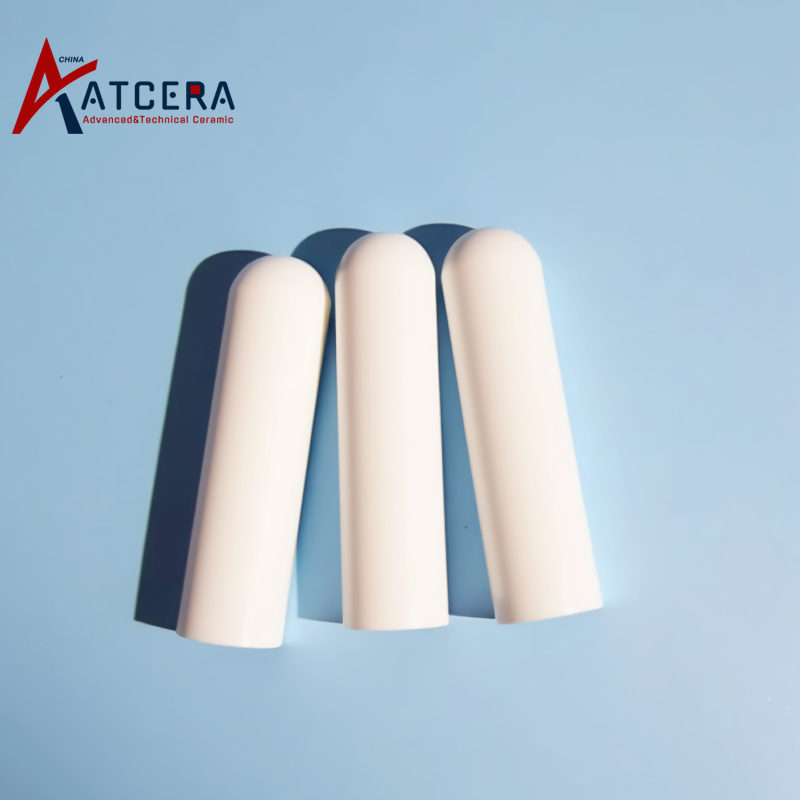

Zirconia ceramic closed end tube

Properties of Zirconia Ceramic End Closed Tubing



In order to improve performance of zirconia tube, according to the application scenario and demand, stabilizing agent is added to the zirconia raw material, among which the zirconia with yttrium oxide is called yttrium stabilized zirconia (YSZ), and its wear resistance and toughness can be significantly improved.



1. Excellent wear resistance and robustness

The zirconia ceramic tube employs high-purity microcrystalline zirconia ceramic powder as its base material. Through intense high-pressure isostatic pressing molding and rigorous high-temperature sintering, the powder crystals achieve enhanced densification, fostering a stable internal crystal structure. As a result, the processed tube exhibits remarkable hardness, superb wear resistance, and exceptional toughness.

2. Exceptional stability

Zirconia is an inert material that remains unreactive to numerous substances in nature, boasting exceptional weather resistance. Therefore, its performance remains highly consistent across diverse extreme environments.

3. Remarkable corrosion resistance

The zirconia material exhibits exceptional chemical stability, withstanding the corrosive effects of various acids and alkalis.

Applications of Yttria Stabilized Zirconia OBE Ceramic Tubing

Applications of YSZ Ceramic End Closed Tubing



1. Mechanical engineering industry

Zirconia ceramic tube has high compressive strength, good wear resistance, good toughness, stable performance at high temperature, and can be made into various mechanical parts, including connecting tube, piston cap, insulating protective sleeve, hydraulic cylinder,etc.

2. High temperature refractory industry

Zirconia ceramic tube has high temperature resistance, good thermal conductivity and thermal shock resistance, corrosion resistance and wear resistance, can maintain stable performance under harsh working conditions, so it can be used to manufacture combustion tubes, thermocouple holding tubes, etc.

3. Chemical and metallurgical industries

Zirconia ceramic tube has very good corrosion resistance, good chemical inertia, and does not react with various chemical media, while ceramic tube surface finish is high, fluid transport resistance is small, can be made into a pipeline to transport chemical liquids, as well as filter membrane tube for chemical process;

4. Medical and biological industries

Zirconia ceramic tube has very good biological inert and compatibility, non-toxic and harmless, non-radioactive, corrosion resistance, in the medical and biological industry can be used to make syringes, tubular filters, biological experimental equipment.



Size Chart of Yttria Stabilized Zirconia(YSZ) Ceramic Tubes Open Both End



Dedicated to delivering high-quality zirconia ceramic tubes customized to your specific requirements. Our committed team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique needs.

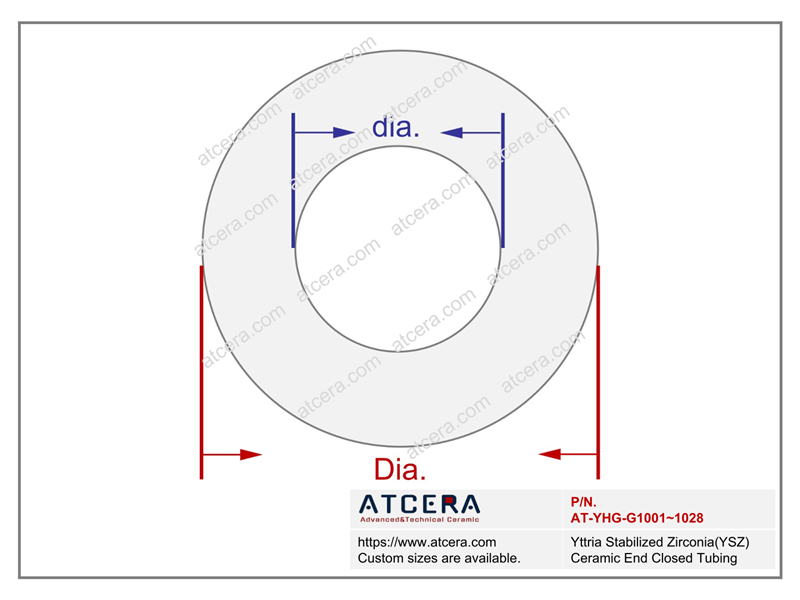

Drawing of Yttria Stabilized Zirconia(YSZ) Ceramic End Closed Tubing

Yttria Stabilized Zirconia(YSZ) Ceramic End Closed Tubing
Item No. Diameter (mm) diameter (mm) Length (mm)
AT-YHG-G1001 3 1 20-2000
AT-YHG-G1002 3 1.5 20-2000
AT-YHG-G1003 3 2 20-2000
AT-YHG-G1004 3.2 0.8 20-2000
AT-YHG-G1005 3.2 0.9 20-2000
AT-YHG-G1006 3.5 1.3 20-2000
AT-YHG-G1007 3.5 2 20-2000
AT-YHG-G1008 3.5 2.1 20-2000
AT-YHG-G1009 3.5 2.2 20-2000
AT-YHG-G1010 3.5 2.4 20-2000
AT-YHG-G1011 3.5 2.5 20-2000
AT-YHG-G1012 3.6 0.4 20-2000
AT-YHG-G1013 3.6 0.9 20-2000
AT-YHG-G1014 3.6 1.8 20-2000
AT-YHG-G1015 3.7 0.7 20-2000
AT-YHG-G1016 3.7 2 20-2000
AT-YHG-G1017 3.8 1.1 20-2000
AT-YHG-G1018 3.8 1.8 20-2000
AT-YHG-G1019 4 0.6 20-2000
AT-YHG-G1020 4 0.5 20-2000
AT-YHG-G1021 4 2.0  20-2000
AT-YHG-G1022 4 1.9 20-2000
AT-YHG-G1023 4 2.4 20-2000
AT-YHG-G1024 4 2.5 20-2000
AT-YHG-G1025 4 2.8 20-2000
AT-YHG-G1026 4 3 20-2000
AT-YHG-G1027 4.1 1.7 20-2000
AT-YHG-G1028 4.1 3.1 20-2000

Technical Data of Zirconium Oxide Materials

Material Zirconia (ZrO2)+ Stabilizing agent
Thermal Conductivity 3.0w/m.k
Temperature resistance 1000℃
Density 5.65-6.05g/cm3
Thermal Expansion Coefficient 0.00001/℃
Bending Strength 480-1000MPa
Hardness (Hv) 1200-1450HV1
Fracture Toughness 6-8MPa*m1/2
Hazardous Substances In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products  and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.




Usage Instructions

1. The type of stabilizing agent employed will significantly impact the performance of zirconia, necessitating the judicious selection of an appropriate material based on the operating environment.

2. Prior to installing the zirconia tube, it is imperative for the user to inspect its surface for any scratches, cracks, or other imperfections. If any defects are detected, the tube must be replaced.

3. It is essential to cleanse the surface of the zirconia tube of dust and impurities prior to installation to prevent any adverse effects on its performance.

4. The condition of the zirconia tube should be regularly monitored. If cracks or other defects begin to emerge, prompt action must be taken to discontinue its use and replace it.

Valuable Information



Machining precision

Machining Precision



1. Diameter Tolerance: ±0.01mm

2. Hole Depth Tolerance: ±0.005mm

3. Surfance Roughness: Ra0.5

4. Cylindricity: ±0.004mm

5. Concentricity: ±0.003mm

6. Parallelism: ±0.002mm

Customization Advantages
Customization Advantages





1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.



2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.



3. Flexible business cooperation mechanism, support at least one piece of quantity customization.



4. Quickly provide samples and test reports to confirm that the product meets your needs.



5. Provide product use and maintenance suggestions to reduce your cost of use.
