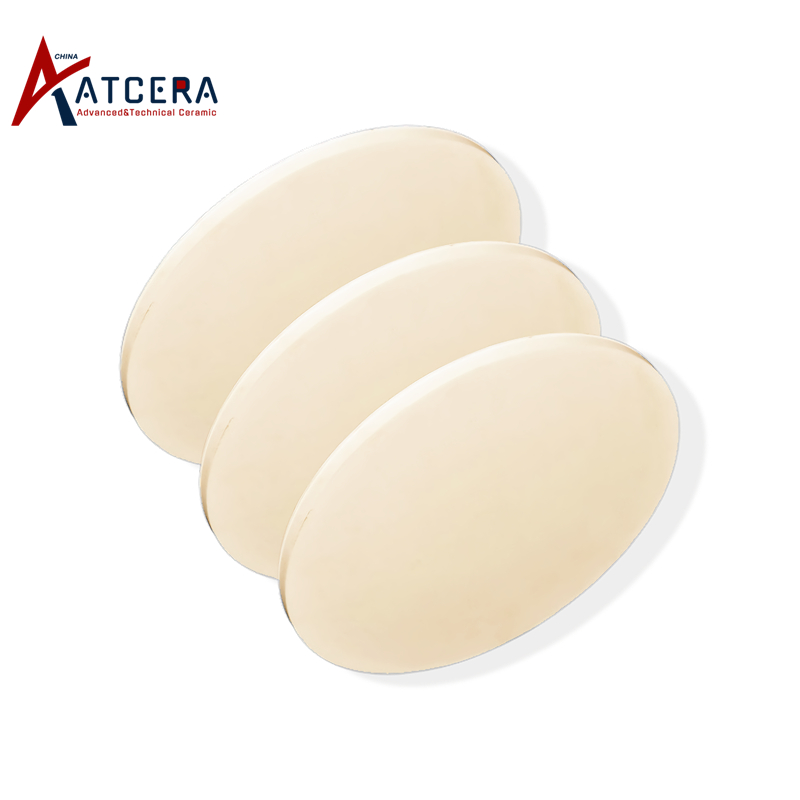

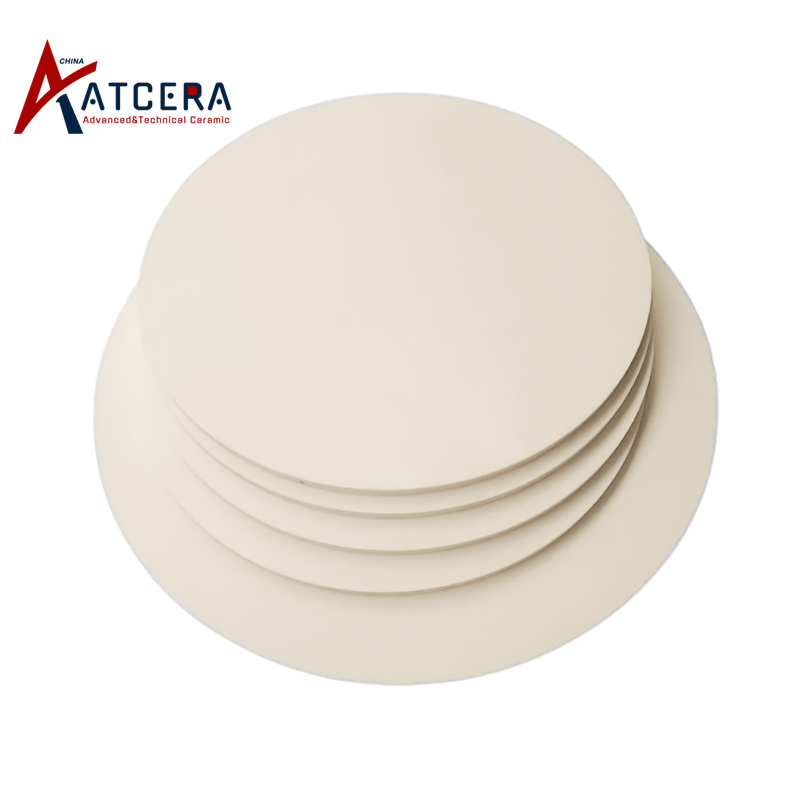

Alumina Polishing Pad Ceramic Polishing Disc

The alumina ceramic grinding pad is primarily utilized for grinding and polishing metal materials, boasting high grinding efficiency and precision. It fulfills the requirements of precision machining, while exhibiting minimal wear and tear, resulting in a long service life.

Brand:
ATCERA
Item NO.:
AT-YHL-YMP001

Materials
Alumina
Shapes
Plate
Applications
Metallurgy Industry

Inquire Now

Properties of Alumina Polishing Pad

1. The alumina grinding pad exhibits high hardness and excellent wear resistance, with minimal wear and deformation on the pad surface, ensuring a prolonged service life.

2. It offers superior grinding efficiency with reduced heat generation and waste residue. The processing precision is excellent, and the working environment is cleaner compared to traditional abrasive grinding operations.

Applications of Alumina Polishing Pad

The alumina grinding pad is applicable for grinding, polishing, and finishing metal materials.

It is suitable for grinding and polishing metal workpieces, particularly those made of high-hardness metals such as alloy steel and quenched steel. It offers high processing efficiency, excellent surface quality, and flatness.

Size Chart of Alumina Polishing Pad

We are committed to delivering optimal alumina grinding pads tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of custom sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parameter specifications if customization requirements needed.

Alumina Polishing Pad
Item NO.	Diameter (mm)	Thickness (mm)
AT-YHL-YMP001	100	15
AT-YHL-YMP002	120	15
AT-YHL-YMP003	130	20
AT-YHL-YMP004	150	15
AT-YHL-YMP005	150	20
AT-YHL-YMP006	160	15
AT-YHL-YMP007	160	20
AT-YHL-YMP008	180	15
AT-YHL-YMP009	190	20
AT-YHL-YMP010	200	15
AT-YHL-YMP011	200	20
AT-YHL-YMP012	240	15
AT-YHL-YMP013	280	15
AT-YHL-YMP014	300	15
AT-YHL-YMP015	350	15
AT-YHL-YMP016	360	16
AT-YHL-YMP017	400	15
AT-YHL-YMP018	450	20
AT-YHL-YMP019	480	30
AT-YHL-YMP020	500	30
AT-YHL-YMP021	550	30
AT-YHL-YMP022	600	35
AT-YHL-YMP023	650	35
AT-YHL-YMP024	700	40
AT-YHL-YMP025	750	45
AT-YHL-YMP026	850	45

Technical Data of Aluminium Oxide Materials

Material	99% Alumina (AL2O3)
Thermal Conductivity	24.0w/m.k
Electrical Insulation	≤22.5KV, temperature resistance up to 1600℃
Density	3.83g/cm3
Thermal Expansion Coefficient	*710-6/℃**
Bending Strength (at room temperature)	310MPa
Compressive Strength (at room temperature)	2200MPa
Hardness (Hv)	1650
Fracture Toughness	*4.2MPam1/2**

*This chart illustrates the standard characteristics of the alumina materials commonly employed in the manufacturing of our alumina products and parts. Please be aware that the attributes of customized aluminum oxide products and parts may vary depending on the specific processes involved.

Usage Instructions

1. When using the alumina ceramic grinding disc, it is essential to select the appropriate grinding disk model and specifications based on the specific workpiece material and processing requirements.

2. During the grinding process, it is crucial to control the grinding pressure and speed to avoid excessive grinding or damage to the workpiece surface.

Valuable Information

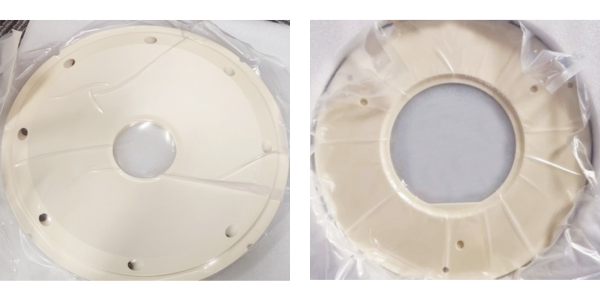

Alumina Polishing Pad Packing

Alumina grinding pads are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
