Zirconia Ceramic Gauge Zirconia Gauge Set

Zirconia ceramic gauge is used for dimensional measurement of products and equipment, including length, space, outer diameter, inner diameter, etc., they can also be used for calibration of other dimensional measuring tool.

Brand:
ATCERA
Item NO.:
AT-YHG-ZG001

Materials
Zirconia
Shapes
Rod , Ring , Plate , Mechanical Parts
Applications
Mechanical Parts

Inquire Now

Properties of ZrO2 Ceramic Gauge

Zirconia ceramic gauge has the advantages of high material hardness, good wear resistance, good corrosion resistance, high temperature resistance, no magnetic conductivity, no electricity, etc.

1. Zirconia ceramic gauge has high hardness, good wear resistance, so the service life is long, which is more than 10 times that of steel gauges;

2. Zirconia ceramic gauge has good corrosion resistance, can be in direct contact with acid and alkali, also it has high temperature resistance, can adapt to a variety of harsh working environment;

3. Zirconia ceramic gauge does not rust, no need anti-corrosion treatment, maintenance and storage is very easy;

4. No aging, no magnetization, no conduction, stable performance, calibration cycle is long.

Applications of Zirconium Oxide Ceramic Gauge

Zirconia ceramic gauge is used for accurate length measurement, inner and outer diameter measurement, as well as as a reference for calibration of other high-precision measuring instruments.

Zirconia ceramic gauge is used in machinery, electronic product manufacturing and other industries to accurately measure dimension, inlcuidng length, hole diameter, outer circle diameter and other dimensions, it can also be used as a standard device to calibrate other high-precision measuring instruments.

Size Chart of Zirconia Ceramic Gauge

We are committed to delivering optimal zirconia ceramic gauge tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Drawing and specification requirement shall be provided if customized request.

Send Requirements for Custom Design

Machining Capability:

1. Roughness ≤ Ra0.2.

2. Dimensional accuracy: Metric K class or imperial 0 class accuracy requirements can be met.

3. Size range: gauge bloack 0.5~150mm, gauge rod 0.3mm~30mm, gauge ring 3mm~40mm.

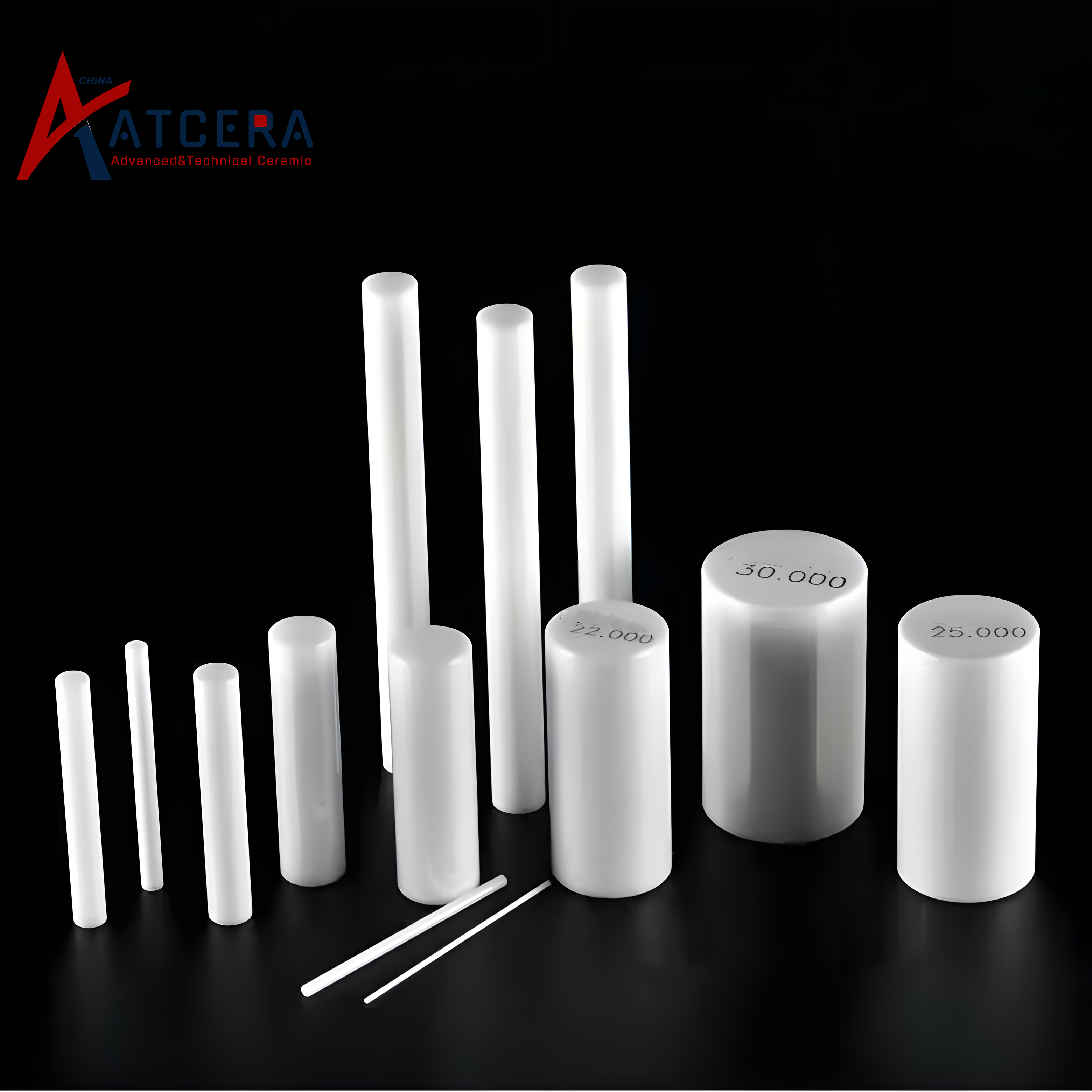

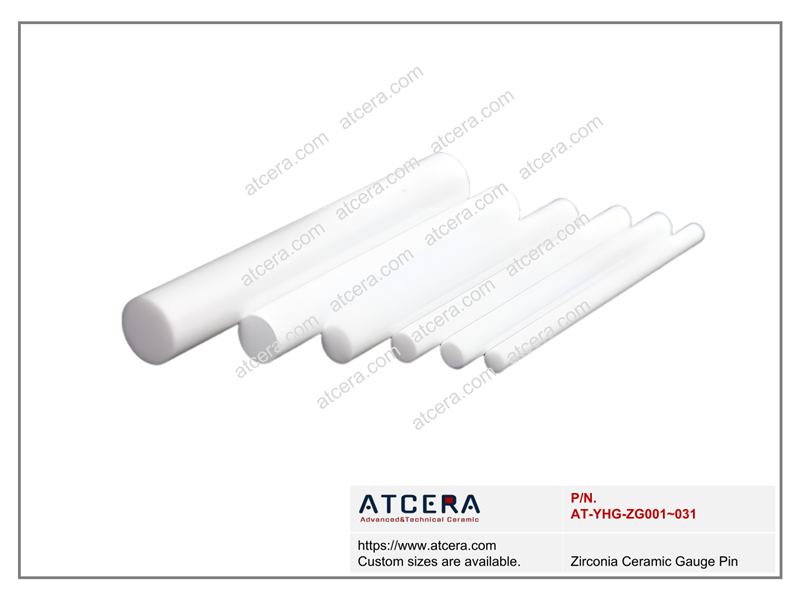

Drawing of Zirconia Ceramic Gauge Pin

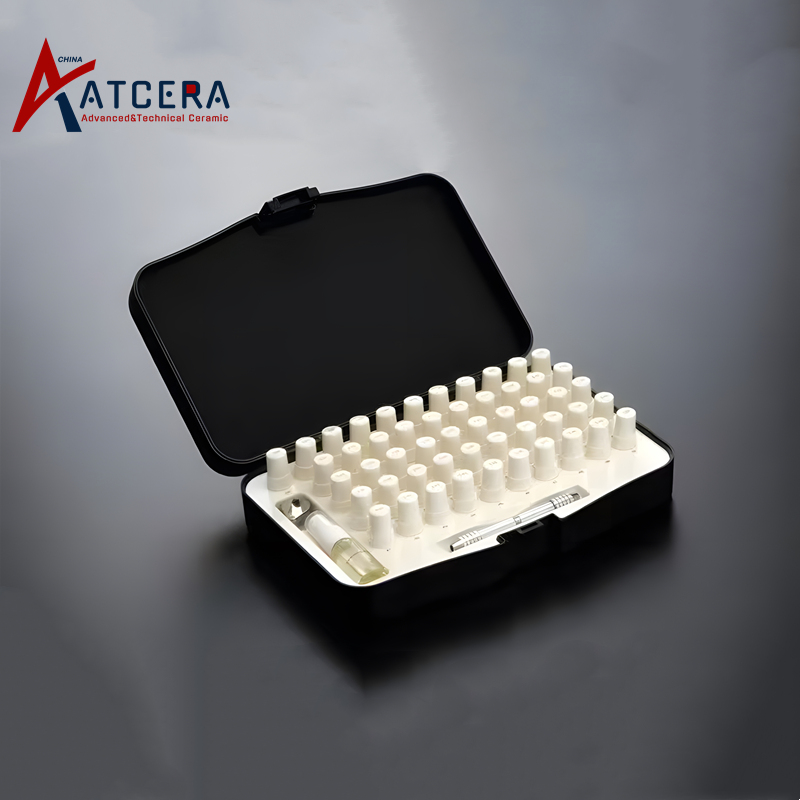

Zirconia Ceramic Gauge Pin
Item NO.	Size (mm)	Accuracy (H)	Measurement Range
AT-YHG-ZG001	0.300-0.499	0.0005-0.001	1-30mm
AT-YHG-ZG002	0.400-0.699	0.0005-0.001	1-30mm
AT-YHG-ZG003	0.700-0.999	0.0005-0.001	1-30mm
AT-YHG-ZG004	1.000-2.999	0.0005-0.001	1-30mm
AT-YHG-ZG005	3.000-3.999	0.0005-0.001	1-30mm
AT-YHG-ZG006	4.000-4.999	0.0005-0.001	1-30mm
AT-YHG-ZG007	5.000-5.999	0.0005-0.001	1-30mm
AT-YHG-ZG008	6.000-6.999	0.0005-0.001	1-30mm
AT-YHG-ZG009	7.000-7.999	0.0005-0.001	1-30mm
AT-YHG-ZG010	8.000-8.999	0.0005-0.001	1-30mm
AT-YHG-ZG011	9.000-9.999	0.0005-0.001	1-30mm
AT-YHG-ZG012	10.000-10.999	0.0005-0.001	1-30mm
AT-YHG-ZG013	11.000-11.999	0.0005-0.001	1-30mm
AT-YHG-ZG014	12.000-12.999	0.0005-0.001	1-30mm
AT-YHG-ZG015	13.000-13.999	0.0005-0.001	1-30mm
AT-YHG-ZG016	14.000-14.999	0.0005-0.001	1-30mm
AT-YHG-ZG017	15.000-15.999	0.0005-0.001	1-30mm
AT-YHG-ZG018	16.000-16.999	0.0005-0.001	1-30mm
AT-YHG-ZG019	17.000-17.999	0.0005-0.001	1-30mm
AT-YHG-ZG020	18.000-18.999	0.0005-0.001	1-30mm
AT-YHG-ZG021	20.000-20.999	0.0005-0.001	1-30mm
AT-YHG-ZG022	21.000-21.999	0.0005-0.001	1-30mm
AT-YHG-ZG023	22.000-21.999	0.0005-0.001	1-30mm
AT-YHG-ZG024	22.000-22.999	0.0005-0.001	1-30mm
AT-YHG-ZG025	23.000-23.999	0.0005-0.001	1-30mm
AT-YHG-ZG026	24.000-24.999	0.0005-0.001	1-30mm
AT-YHG-ZG027	25.000-25.999	0.0005-0.001	1-30mm
AT-YHG-ZG028	26.000-26.999	0.0005-0.001	1-30mm
AT-YHG-ZG029	27.000-27.999	0.0005-0.001	1-30mm
AT-YHG-ZG030	28.000-28.999	0.0005-0.001	1-30mm
AT-YHG-ZG031	29.000-30.000	0.0005-0.001	1-30mm

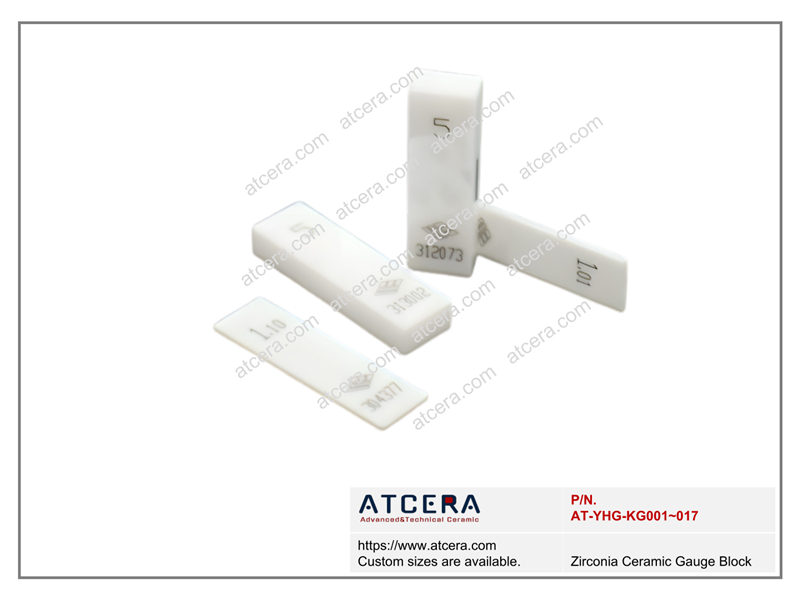

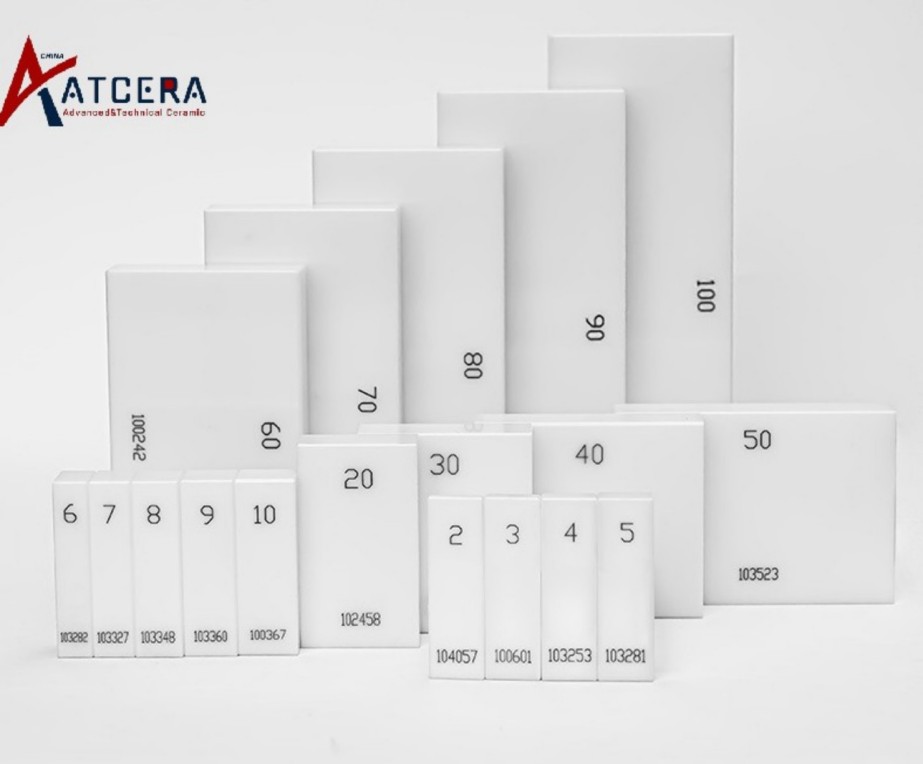

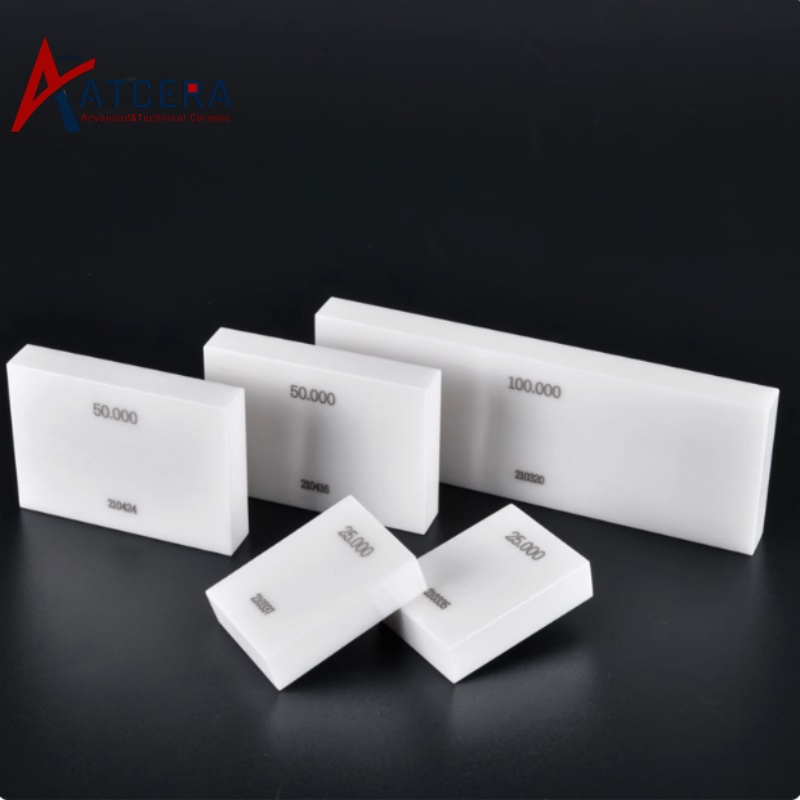

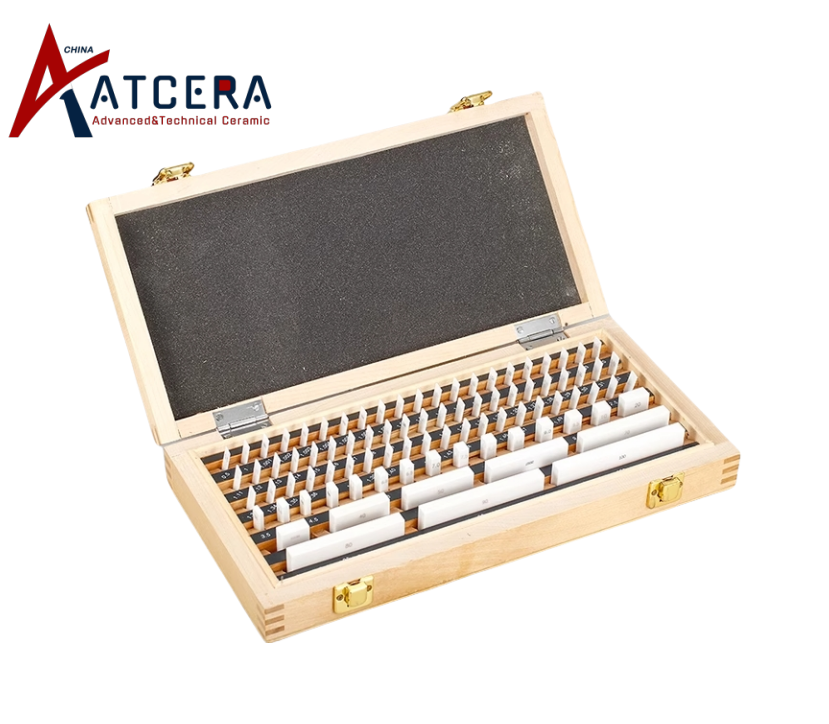

Drawing of Zirconia Ceramic Gauge Block

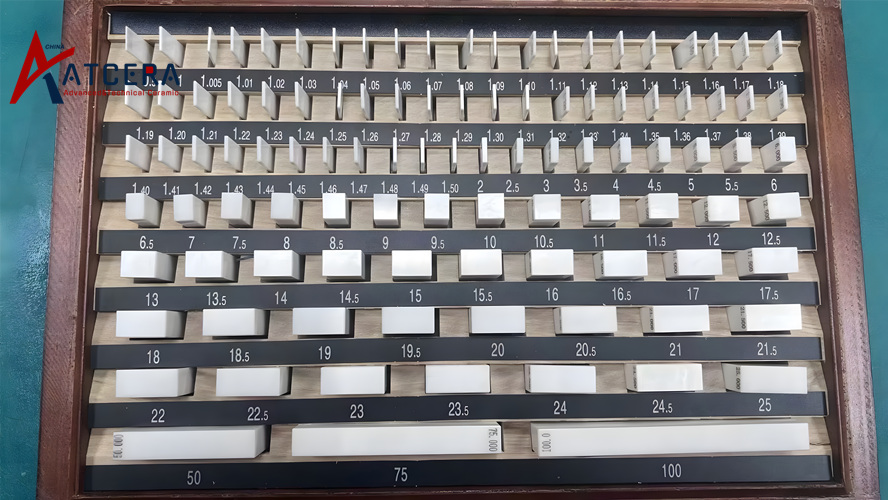

Zirconia Ceramic Gauge Block
Item NO.	Block Set	Size (mm)	Grade
AT-YHG-KG001	10 pieces, JIS	1/1.25/1.5/2/3/5/10/15/20/25	K 0 1
AT-YHG-KG002	32 blocks, ISO	1.005 1.01-1.09, 0.01 increments, 9 blocks in total 1.1-1.9, 0.1 increments, 9 blocks in total 1-9, 1 increments, 9 blocks in total 10-30, 10 increments, 3 blocks in total 50	K 0 1
AT-YHG-KG003	32 blocks, JIS	1.005 1.01-1.09, 0.01 increments, 9 blocks in total 1.1-1.9, 0.1 increments, 9 blocks in total 1-9, 1 increments, 9 blocks in total 10-30, 10 increments, 3 blocks in total 60	K 0 1
AT-YHG-KG004	38 blocks, GB/T 6093	1 1.005 1.01-1.09, 0.01 increments, 9 blocks in total 1.1-1.9, 0.1 increments, 9 blocks in total 2-9, 1 increments, 8 blocks in total 10-100, 10 increments, 10 blocks in total	K 0 1
AT-YHG-KG005	46 blocks, ISO	1.001-1.009, 0.001 increments, 9 blocks in total 1.01-1.09, 0.01 increments, 9 blocks in total 1.1-1.9, 0.1 increments, 9 blocks in total 1-9, 1 increments, 9 blocks in total 10-100, 10 increments, 10 blocks in total	K 0 1
AT-YHG-KG006	47 blocks, ISO	1.005 1.01-1.19, 0.01 increments, 19 blocks in total 1.2-1.9, 0.1 increments, 8 blocks in total 1-9, 1 increments, 9 blocks in total 10-100, 10 increments, 10 blocks in total	K 0 1
AT-YHG-KG007	47 blocks, JIS	1.005 1.01-1.09, 0.01 increments, 9 blocks in total 1.1-1.9, 0.1 increments, 9 blocks in total 1-24, 1 increments, 24 blocks in total 25-100, 25 increments, 4 blocks in total	K 0 1
AT-YHG-KG008	56 blocks, JIS	0.5 1.001-1.009, 0.001 increments, 9 blocks in total 1.01-1.09, 0.01 increments, 9 blocks in total 1.1-1.9, 0.1 increments, 9 blocks in total 1-24, 1 increments, 24 blocks in total 25-100, 25 increments, 4 blocks in total	K 0 1
AT-YHG-KG009	76 blocks, JIS	1.005 1.01-1.49, 0.01 increments, 49 blocks in total 0.5-10, 0.5 increments, 20 blocks in total 20-50, 10 increments, 4 blocks in total 75 100	K 0 1
AT-YHG-KG010	83 blocks, GB/T 6093	0.5 1 1.005 1.01-1.49, 0.01 increments, 49 blocks in total 1.5-1.9, 0.1 increments, 5 blocks in total 2.0-9.5, 0.5 increments, 16 blocks in total 10-100, 10 increments, 10 blocks in total	K 0 1
AT-YHG-KG011	87 blocks, ISO	1.001-1.009, 0.001 increments, 9 blocks in total 1.01-1.49, 0.01 increments, 49 blocks in total 0.5-9.5, 0.5 increments, 19 blocks in total 10-100, 10 increments, 10 blocks in total	K 0 1
AT-YHG-KG012	88 blocks, JIS	1.0005 1.001-1.009, 0.001 increments, 9 blocks in total 1.01-1.49, 0.01 increments, 49 blocks in total 0.5-9.5, 0.5 increments, 19 blocks in total 10-100, 10 increments, 10 blocks in total	K 0 1
AT-YHG-KG013	91 blocks, GB/T 6093	0.5 1 1.001-1.009, 0.001 increments, 9 blocks in total 1.01-1.49, 0.01 increments, 49 blocks in total 1.5-1.9, 0.1 increments, 5 blocks in total 2.0-9.5, 0.5 increments, 16 blocks in total 10-100, 10 increments, 10 blocks in total	K 0 1
AT-YHG-KG014	103 blocks, ISO	1.005 1.01-1.49, 0.01 increments, 49 blocks in total 0.5-24.5, 0.5 increments, 49 blocks in total 25-100, 25 increments, 4 blocks in total	K 0 1
AT-YHG-KG015	112 blocks, ISO	1.0005 1.001-1.009, 0.001 increments, 9 blocks in total 1.01-1.49, 0.01 increments, 49 blocks in total 0.5-24.5, 0.5 increments, 49 blocks in total 25-100, 25 increments, 4 blocks in total	K 0 1
AT-YHG-KG016	121 blocks, ISO	1.001-1.009, 0.001 increments, 9 blocks in total 1.01-1.49, 0.01 increments, 49 blocks in total 1.6--1.9, 0.1 increments, 4 blocks in total 0.5-24.5, 0.5 increments, 49 blocks in total 30-100, 10 increments, 8 blocks in total 25 75	K 0 1
AT-YHG-KG017	122 blocks, ISO	1.0005 1.001-1.009, 0.001 increments, 9 blocks in total 1.01-1.49, 0.01 increments, 49 blocks in total 1.6--1.9, 0.1 increments, 4 blocks in total 0.5-24.5, 0.5 increments, 49 blocks in total 30-100, 10 increments, 8 blocks in total 25 75	K 0 1

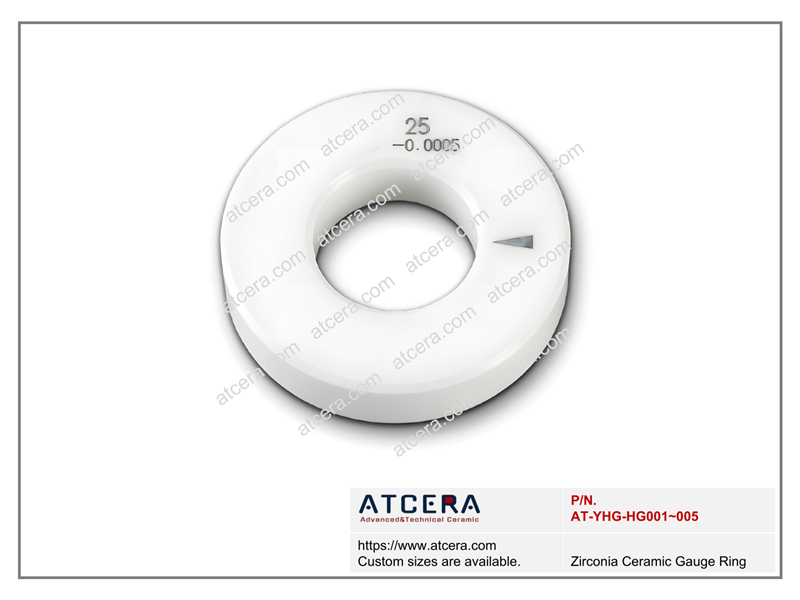

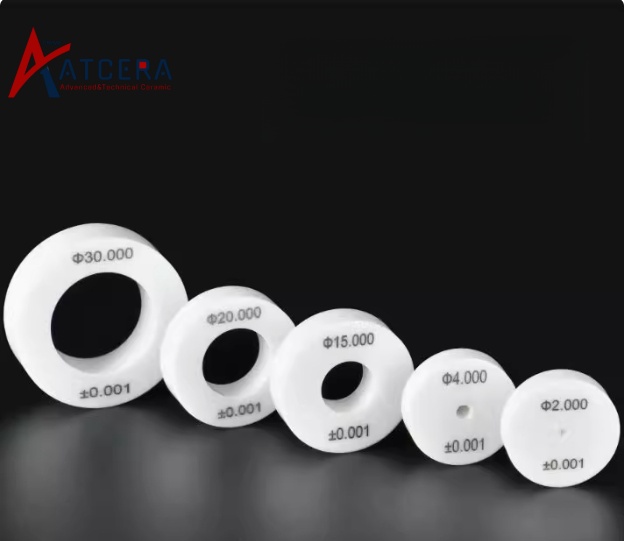

Drawing of Zirconia Ceramic Gauge Ring

Zirconia Ceramic Gauge Ring
Item NO.	Outer Diameter (mm)	Thickness (mm)	Measurement Range
AT-YHG-HG001	32	8	3-10mm
AT-YHG-HG002	38	10	10-15mm
AT-YHG-HG003	45	14	20-25mm
AT-YHG-HG004	53	16	25-32mm
AT-YHG-HG005	71	18	32-40mm

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. According to the measured size and tolerance, select zirconia gauge with appropriate specifications;

2. Check the zirconia gauge before using, to ensure that the surface is clean and free of oil, no dust or other impurities;

3. It is strictly prohibited to force the zirconia gauge into the thread to avoid excessive wear, which may affect the accuracy of gauge;

4. Perform regular inspection and calibration of the zirconia gauge.

Valuable Information

Zirconia Ceramic Gauge Packing

Zirconia ceramic gauges are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
