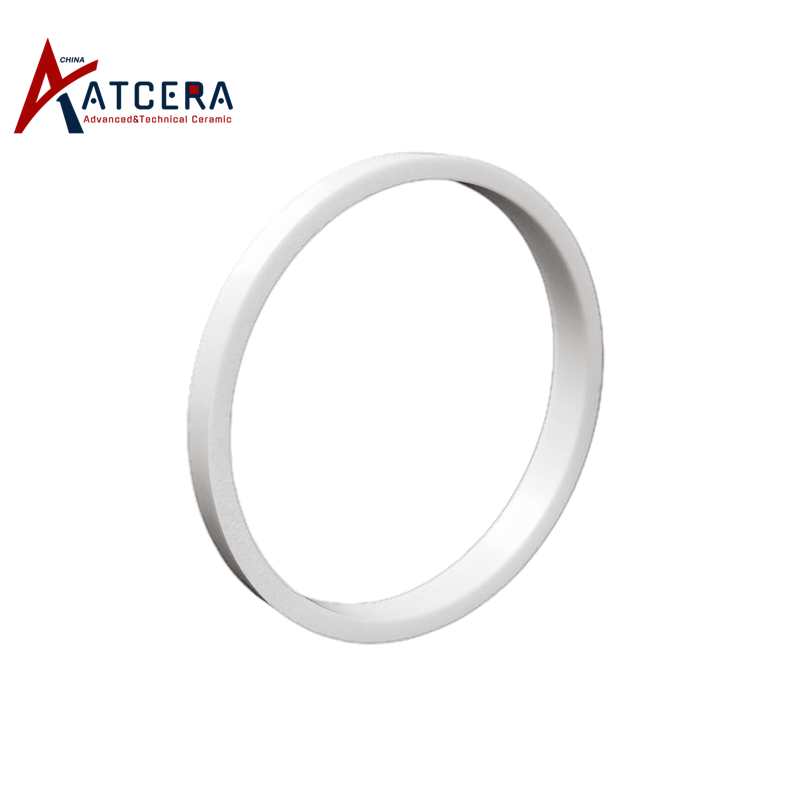

Zirconia Ceramic Ring for Pad Printer

The zirconia ceramic ring for pad printer, crafted from zirconia powder and stabilizers, undergoes high-temperature sintering after molding. It serves as a crucial component in pad printing machines, responsible for securing and sealing the ink cup to prevent ink leakage. Zirconia ring boasts high hardness, excellent wear resistance, temperature and corrosion resistance, superior self-lubrication properties, exceptional sealing performance, and a prolonged service life.

Brand:
ATCERA
Item NO.:
AAT-YHG-DH001

Materials
Zirconia
Shapes
Mechanical Parts
Applications
Electronics and Electricity

Inquire Now

Properties of Zirconia Ceramic Ring for Pad Printer

1. The zirconia ring's superior hardness, wear resistance, and extended service life, exceeding that of metal rings by over eight times, significantly reduces replacement costs and downtime, offering significant cost savings.

2. With its exceptional chemical stability, resistance to oxidation, acid-alkali corrosion, high temperatures, and excellent self-lubrication properties, the zirconia ring ensures high-quality printing results.

Applications of Zirconia Ring for Pad Printer

The zirconia ceramic ring is an integral part of pad printing machines, used to secure and seal the ink cup, preventing ink leakage. It is widely employed in the printing of patterns on surfaces of products such as automobiles, electronics, and toys.

Size Chart of Zirconia Ceramic Ring for Pad Printer

We are committed to delivering optimal zirconia rings tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parametric specifications for customization.

Zirconia Ceramic Ring Circular
Item no.	Outer Diameter (mm)	Inner Diameter (mm)	Height (mm)
AAT-YHG-DH001	30	26	6
AAT-YHG-DH002	43	37	9
AAT-YHG-DH003	46	12	6
AAT-YHG-DH004	46	42	12
AAT-YHG-DH005	47	42	5
AAT-YHG-DH006	54	49.6	7.3
AAT-YHG-DH007	59	53	10
AAT-YHG-DH008	60	53	12
AAT-YHG-DH009	64	56	12
AAT-YHG-DH010	65	58	10
AAT-YHG-DH011	65	55	12
AAT-YHG-DH012	68	60	10
AAT-YHG-DH013	70	60	5
AAT-YHG-DH014	70	60	7
AAT-YHG-DH015	70	60	12
AAT-YHG-DH016	70	62	8
AAT-YHG-DH017	75	65	12
AAT-YHG-DH018	80	70	12
AAT-YHG-DH019	85	75	12
AAT-YHG-DH020	89	82	12
AAT-YHG-DH021	89	82	12.1
AAT-YHG-DH022	90	80	10
AAT-YHG-DH023	90	81	12
AAT-YHG-DH024	90	82	12
AAT-YHG-DH025	90	82	13
AAT-YHG-DH026	90	82	15
AAT-YHG-DH027	94	86	12
AAT-YHG-DH028	95	90	5
AAT-YHG-DH029	95.31	88.96	19.18
AAT-YHG-DH030	101	90	10
AAT-YHG-DH031	100	90	12
AAT-YHG-DH032	100	90	12.3
AAT-YHG-DH033	101	91	11.5
AAT-YHG-DH034	101	90	12
AAT-YHG-DH035	120	110	12
AAT-YHG-DH036	125	116	14
AAT-YHG-DH037	128	120	8
AAT-YHG-DH038	136	126	14
AAT-YHG-DH039	140	131	14
AAT-YHG-DH040	140	135	6
AAT-YHG-DH041	147	142	6
AAT-YHG-DH042	165	155	12
AAT-YHG-DH043	165	6	1
AAT-YHG-DH044	180	170	14
AAT-YHG-DH045	190	180	14
AAT-YHG-DH046	240	230	12
AAT-YHG-DH047	247	237	12
AAT-YHG-DH048	332	320	15
AAT-YHG-DH049	357	345	15

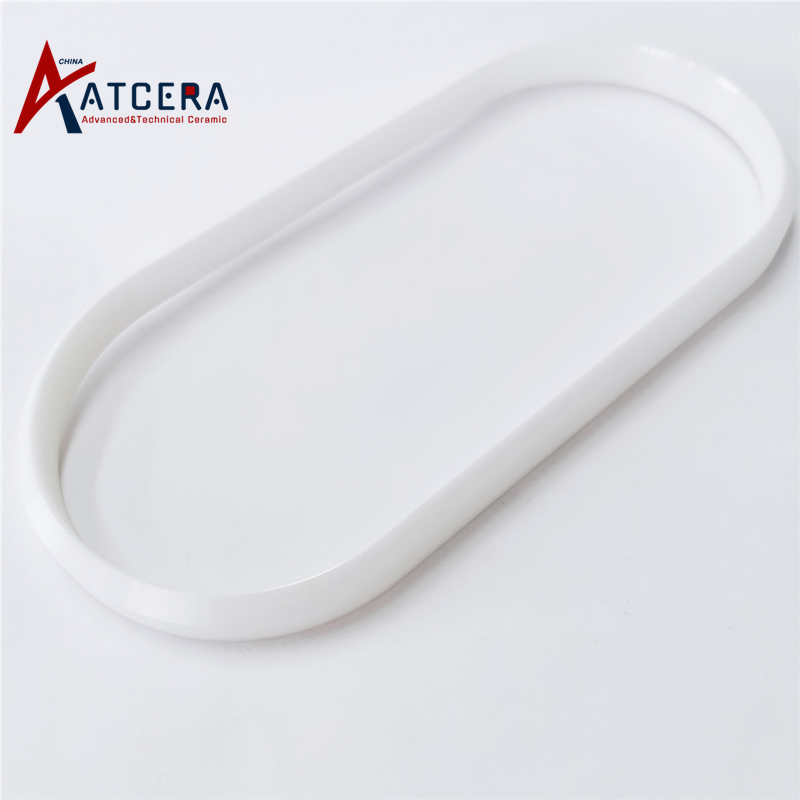

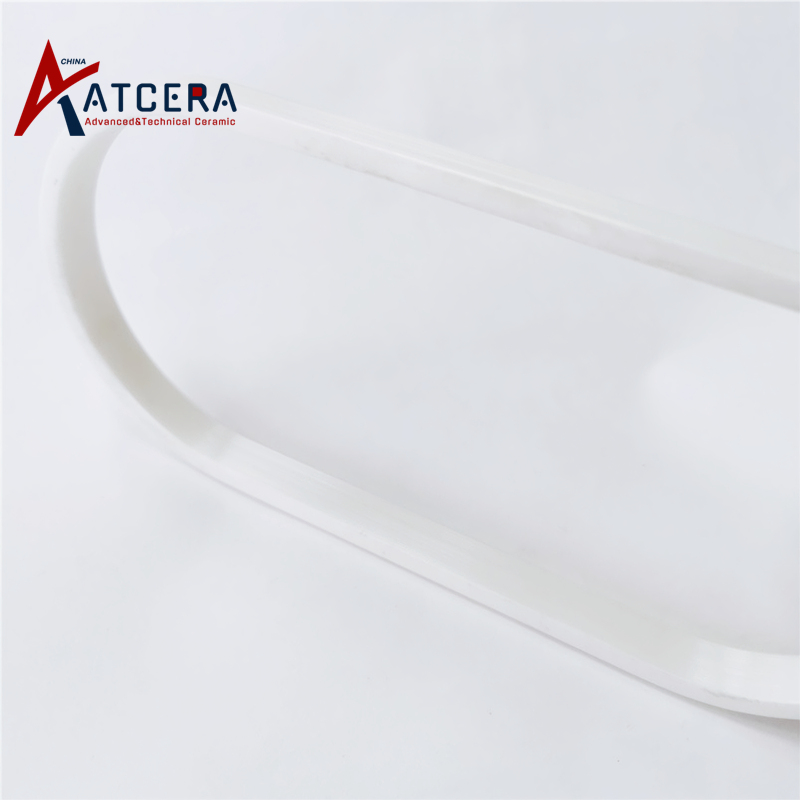

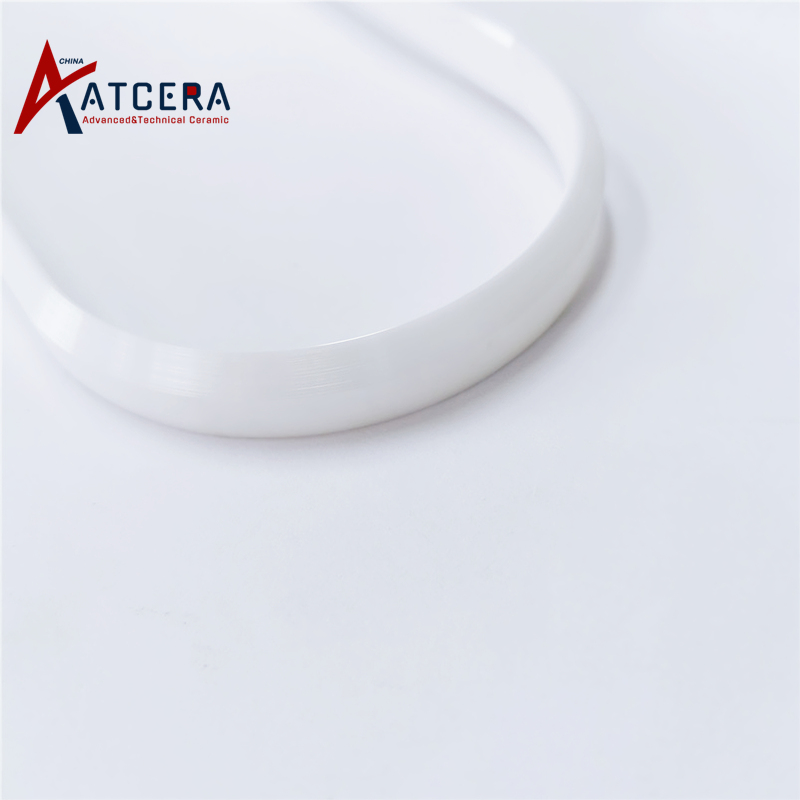

Zirconia Ceramic Ring Oval
Item no.	Outer Diameter (mm)	Inner Diameter (mm)	Height (mm)
AAT-YHG-DH050	227	85	16
AAT-YHG-DH051	228	83	16

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. During transportation and installation, the zirconia ceramic ring should be protected from collisions with other hard objects and falling, to prevent damage that could compromise its sealing ability.

2. When replacing the zirconia ceramic ring, ensure to verify the model and dimensions to match the original specifications of the pad printing machine.

3. Follow the manufacturer's instructions during the replacement process, paying particular attention to the clearance between the ring and the ink cup to guarantee optimal printing quality.

Valuable Information

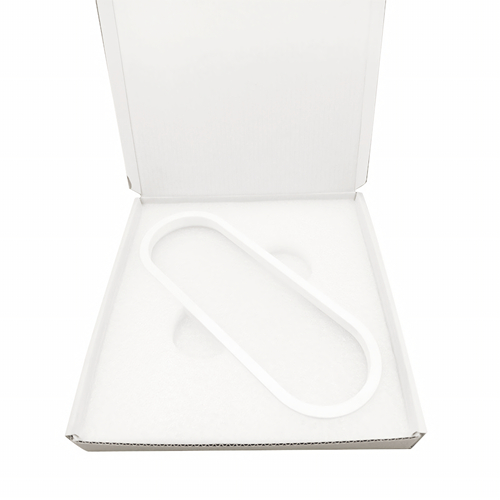

Zirconia Ceramic Ring Packing

Zirconia ceramic rings are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
