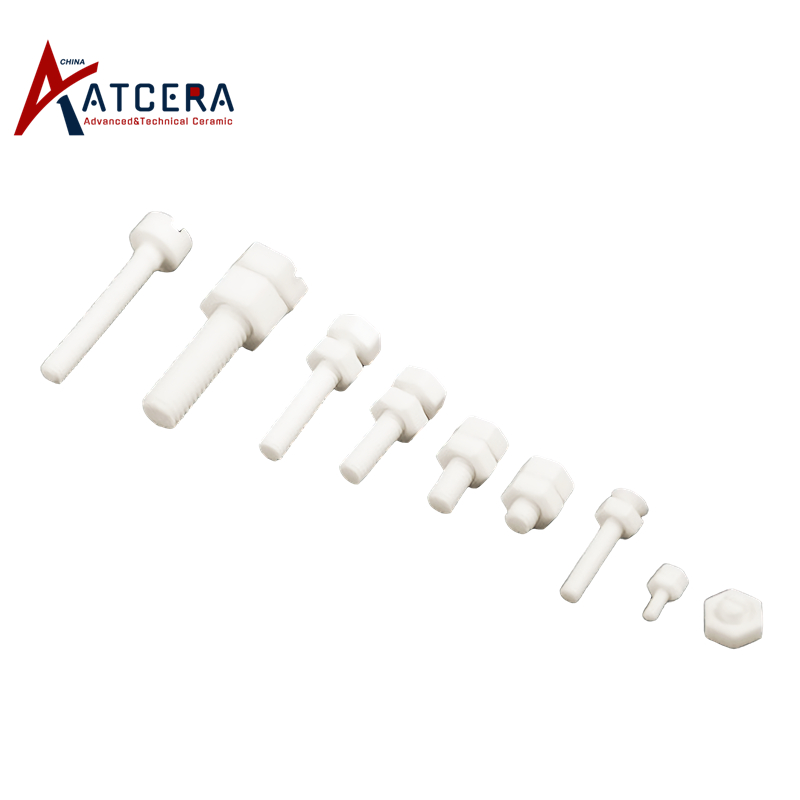

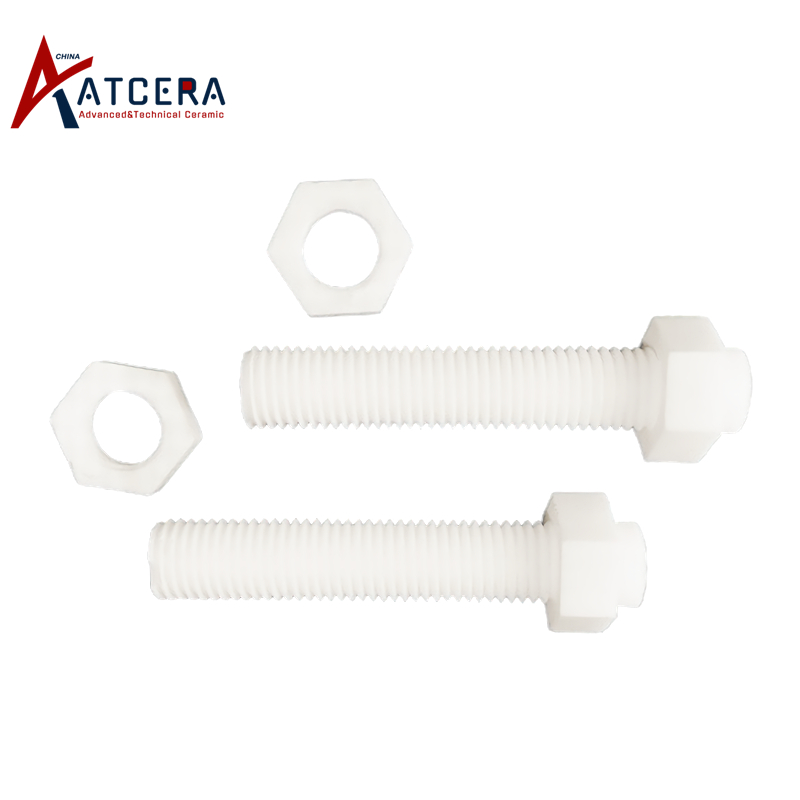

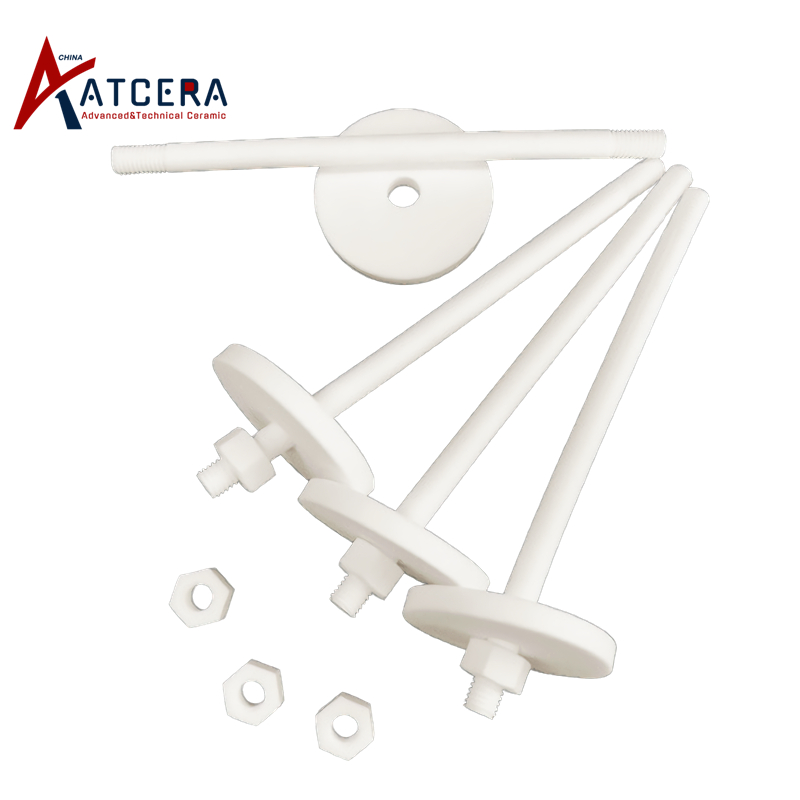

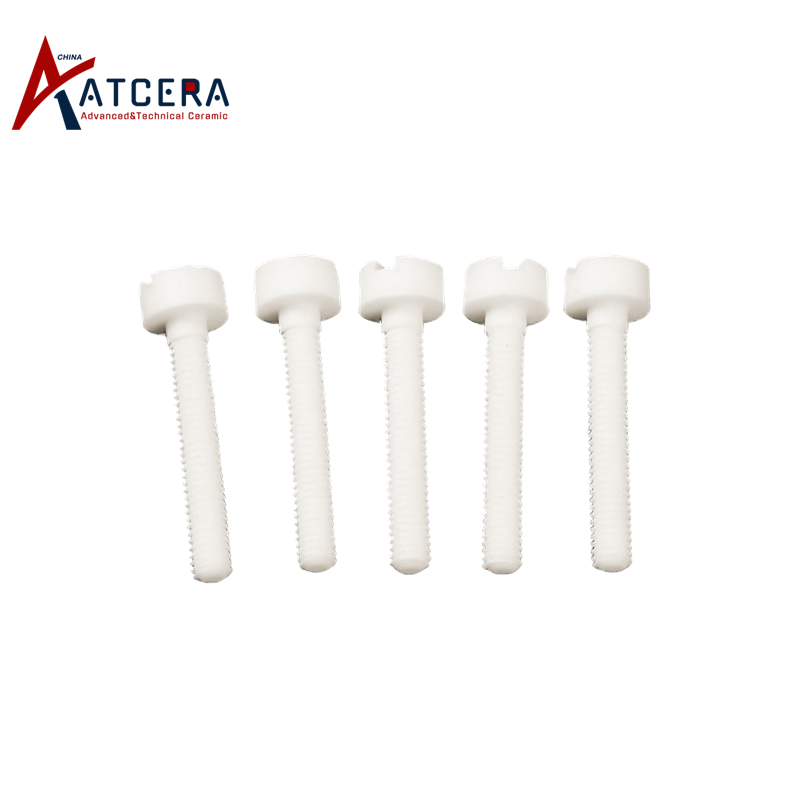

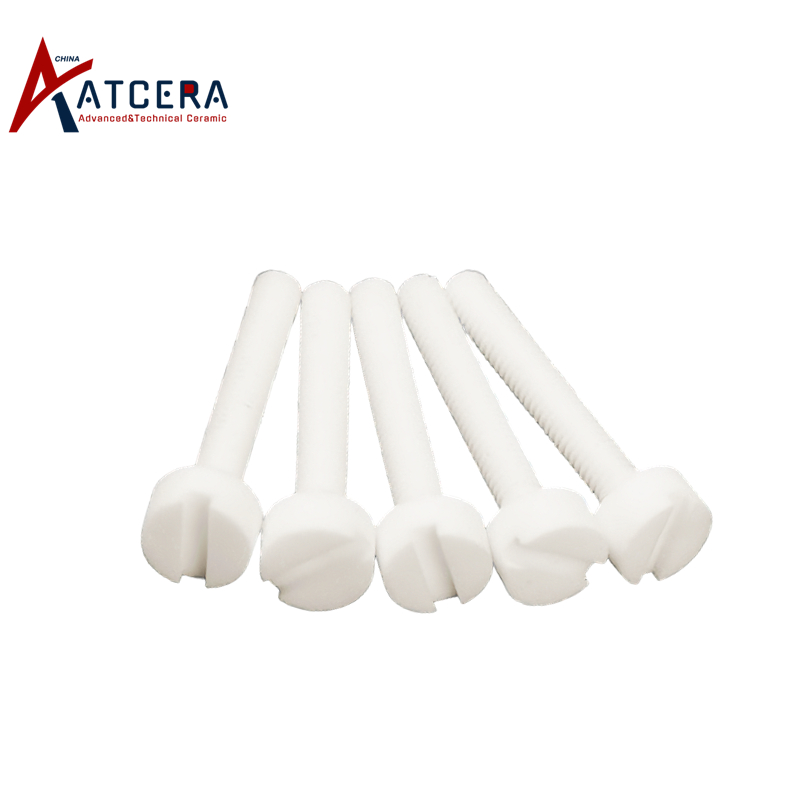

Ceramic Fasteners Zirconia Bolt and Screw

Zirconia bolts are fabricated from high-purity zirconia powder and stabilizers, undergoing shaping and high-temperature sintering. They possess exceptional mechanical strength, hardness, wear resistance, high-temperature endurance, and corrosion resistance. These bolts, when paired with nuts, serve to securely connect two components with through-holes.

Brand:
ATCERA
Item NO.:
AT-YHG-LS001

Materials
Zirconia
Shapes
Mechanical Parts
Applications
Mechanical Parts

Inquire Now

Properties of Zirconia Ceramic Bolt and Screw

1. Zirconia ceramic bolts exhibit remarkable tensile and torsional strength, high hardness, and excellent wear resistance, surpassing the wear capacity of manganese steel by over 200 times. This significantly extends their service life. Moreover, they possess a large elastic modulus, resulting in minimal deformation under stress compared to steel bolts.

2. Zirconia bolts maintain high strength and hardness even at temperatures exceeding 1000°C.

3. These bolts are highly corrosion-resistant, capable of enduring contact with various acids, bases, and chemical reagents. They can operate for extended periods in high-humidity environments without rusting.

4. Zirconia ceramic bolts possess excellent electrical insulation, are non-conductive, and non-magnetic, meeting the specific requirements of electrical, communication, and other devices.

Applications of Zirconia Bolt and Screw

Zirconia ceramic bolts, with their excellent wear resistance, high-temperature endurance, corrosion resistance, electrical insulation, and non-magnetic properties, find significant applications as fasteners in industries such as petrochemicals, marine equipment, electronics, aerospace, and communications.

Size Chart of Zirconia Ceramic Bolt and Screw

We are committed to delivering optimal zirconia bolts and screws tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parametric specifications for customization.

Item NO.	M2	L - Thread Length (mm)	K - Head Thickness (mm)	S - Opposite Side Length (mm)
AT-YHG-LS001	Flat Head with Single Slot Half-thread	22	1.4	3.8
AT-YHG-LS002	Internal Hexagon	14	1.9	3.8
AT-YHG-LS003	Flat Head with Single Slot	10	1.4	3.8
AT-YHG-LS004	Cross-head Self-tapping Thread	8	1.6	3.5
AT-YHG-LS005	Round Head with Cross-slot	8	1.5	3.5
AT-YHG-LS006	External hHexagon	6	1.6	3.9
AT-YHG-LS007	Countersunk Head with Cross-slot	6	/	4.2

Item NO.	M3	L - Thread Length (mm)	K - Head Thickness (mm)	S - Opposite Side Length (mm)
AT-YHG-LS008	External hHexagon	10	3	5.5
AT-YHG-LS009	Internal Hexagon	330	3	5.4
AT-YHG-LS010	Internal Hexagon	20/25	3	5.4
AT-YHG-LS011	Internal Hexagon	15	3	5.4
AT-YHG-LS012	Internal Hexagon	10	3	5.4
AT-YHG-LS013	Internal Hexagon	8	3	5.4
AT-YHG-LS014	Countersunk Head with Cross-slot	15	/	5.2
AT-YHG-LS015	Countersunk Head with Cross-slot	6	/	5.6
AT-YHG-LS016	Round Head with Cross-slot	6.5	2.7	5.5

Item NO.	M4	L - Thread Length (mm)	K - Head Thickness (mm)	S - Opposite Side Length (mm)
AT-YHG-LS017	External hHexagon	20	3.2	6.8
AT-YHG-LS018	External hHexagon	15	3.3	6.8
AT-YHG-LS019	External hHexagon	10	3.2	6.8
AT-YHG-LS020	Internal Hexagon	30/40/50	/	/
AT-YHG-LS021	Internal Hexagon	25	4	7
AT-YHG-LS022	Internal Hexagon	20	4.1	6.9
AT-YHG-LS023	Internal Hexagon	15	4.1	6.8
AT-YHG-LS024	Internal Hexagon	10	3.2	6.8
AT-YHG-LS025	Countersunk Head with Internal Hexagon	25	/	8.5
AT-YHG-LS026	Countersunk Head with Cross-slot	12	/	8.4
AT-YHG-LS027	Round Head with Cross-slot	8	2.9	7
AT-YHG-LS028	Round Head with Cross-slot	5	2.1	9.3
AT-YHG-LS029	Round Head with Single Slot and Hole	3	4.5	8.9

Item NO.	M5	L - Thread Length (mm)	K - Head Thickness (mm)	S - Opposite Side Length (mm)
AT-YHG-LS029	External hHexagon	25	3.5	8
AT-YHG-LS030	External hHexagon	20	3.6	8
AT-YHG-LS031	External hHexagon	15	3.6	8
AT-YHG-LS032	External hHexagon	10/12	3.6	7.6
AT-YHG-LS033	External hHexagon	5	3.6	8
AT-YHG-LS034	Internal Hexagon	35	4.7	7.8
AT-YHG-LS035	Internal Hexagon	25	4.9	8.1
AT-YHG-LS036	Internal Hexagon	20	4.9	8.1
AT-YHG-LS037	Internal Hexagon	15	4.9	8.1
AT-YHG-LS038	Internal Hexagon	10/12	4.9	8.1
AT-YHG-LS039	Internal Hexagon	5	4.9	8.1
AT-YHG-LS040	Round Head with Cross-slot	25	/	8.6
AT-YHG-LS041	Round Head with Cross-slot	20	/	8.5
AT-YHG-LS042	Round Head with Cross-slot	12	/	8.5
AT-YHG-LS043	Round Head with Internal Hexagon	25	2.6	9.3
AT-YHG-LS044	Round Head with Internal Hexagon	20	2.8	9.4
AT-YHG-LS045	Round Head with Internal Hexagon	12	2.8	8.6
AT-YHG-LS046	Round Head with Single Slot	10	3.4	7.9
AT-YHG-LS047	Countersunk Head with Cross-slot	10	/	8.9
AT-YHG-LS048	Round Head with Single Slot and Hole	6/15	3	10
AT-YHG-LS049	Blind Head with Internal Hexagon	10	/	/
AT-YHG-LS050	Blind Head with Internal Hexagon	6	/	/

Item NO.	M6	L - Thread Length (mm)	K - Head Thickness (mm)	S - Opposite Side Length (mm)
AT-YHG-LS051	External hHexagon	55	5.2	9.7
AT-YHG-LS052	External hHexagon	40	4.3	9.6
AT-YHG-LS053	Internal Hexagon	40	5.8	9.8
AT-YHG-LS054	Internal Hexagon	25	5.9	10
AT-YHG-LS055	Internal Hexagon	16	5.9	10
AT-YHG-LS056	Countersunk Head with Cross-slot	40	/	12
AT-YHG-LS057	External Hexagon with Single Slot	25	3.9	9.8
AT-YHG-LS058	Round Head with Single Slot and Hole	20	4.8	10
AT-YHG-LS059	Countersunk Head with Internal Hexagon	15	/	9.8

Item NO.	M8	L - Thread Length (mm)	K - Head Thickness (mm)	S - Opposite Side Length (mm)
AT-YHG-LS060	External hHexagon	70	5.6	14
AT-YHG-LS061	External hHexagon	50	4.5	11.7
AT-YHG-LS062	External hHexagon	35	5.3	12.9
AT-YHG-LS063	External hHexagon	25	5.3	12.9
AT-YHG-LS064	Internal Hexagon	50	7.6	12.3
AT-YHG-LS065	Internal Hexagon	35	7.9	12.3
AT-YHG-LS066	Flat Head with Internal Hexagon	30	/	13.8
AT-YHG-LS067	Countersunk Head with Cross-slot	20	/	14.2

Item NO.	M10	L - Thread Length (mm)	K - Head Thickness (mm)	S - Opposite Side Length (mm)
AT-YHG-LS068	External hHexagon	70	7	16.8
AT-YHG-LS069	External hHexagon	35	6.6	16.6
AT-YHG-LS070	Internal Hexagon	50	9	14.8
AT-YHG-LS071	Internal Hexagon	35	9.1	14.8

Item NO.	M12	L - Thread Length (mm)	K - Head Thickness (mm)	S - Opposite Side Length (mm)
AT-YHG-LS072	External hHexagon	75	8.1	18.8
AT-YHG-LS073	External hHexagon	50	10.2	18.8
AT-YHG-LS074	External hHexagon	35	10.1	18.4
AT-YHG-LS075	External hHexagon	25	10.3	18.4
AT-YHG-LS076	External hHexagon	15	10	21.2
AT-YHG-LS077	Internal Hexagon	50	10.5	17.2
AT-YHG-LS078	Internal Hexagon	35/25	10.4	17.1
AT-YHG-LS079	Internal Hexagon	15	12.2	18.1
AT-YHG-LS080	Internal Hexagon	14	12.2	18

Item NO.	M14	L - Thread Length (mm)	K - Head Thickness (mm)	S - Opposite Side Length (mm)
AT-YHG-LS081	External hHexagon	80	10	22
AT-YHG-LS082	External hHexagon	50	7.6	21.9
AT-YHG-LS083	External hHexagon	40	9.9	21

Item NO.	M16	L - Thread Length (mm)	K - Head Thickness (mm)	S - Opposite Side Length (mm)
AT-YHG-LS084	External hHexagon	100	9.2	24.2
AT-YHG-LS085	External hHexagon	70	9.2	24.2
AT-YHG-LS086	External hHexagon	40	9.2	24.2

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Select the appropriate zirconia ceramic bolt based on your needs, ensuring that its size, specifications, and intended use align with the installation method.

2. Prior to installation, clean the bolt holes thoroughly, ensuring they are free of impurities, oil stains, or other contaminants.

3. Use an appropriate screwdriver or wrench to securely tighten the zirconia ceramic bolt, ensuring it is firmly seated against the installation surface. Avoid excessive force or twisting.

4. After installation, conduct a thorough inspection to ensure the zirconia ceramic bolt is securely tightened, without any cracks, damage, or signs of loosening. It must be able to withstand the required load and stress.

Valuable Information

Zirconia Ceramic Bolt and Screw Packing

Zirconia ceramic bolts and screws are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
