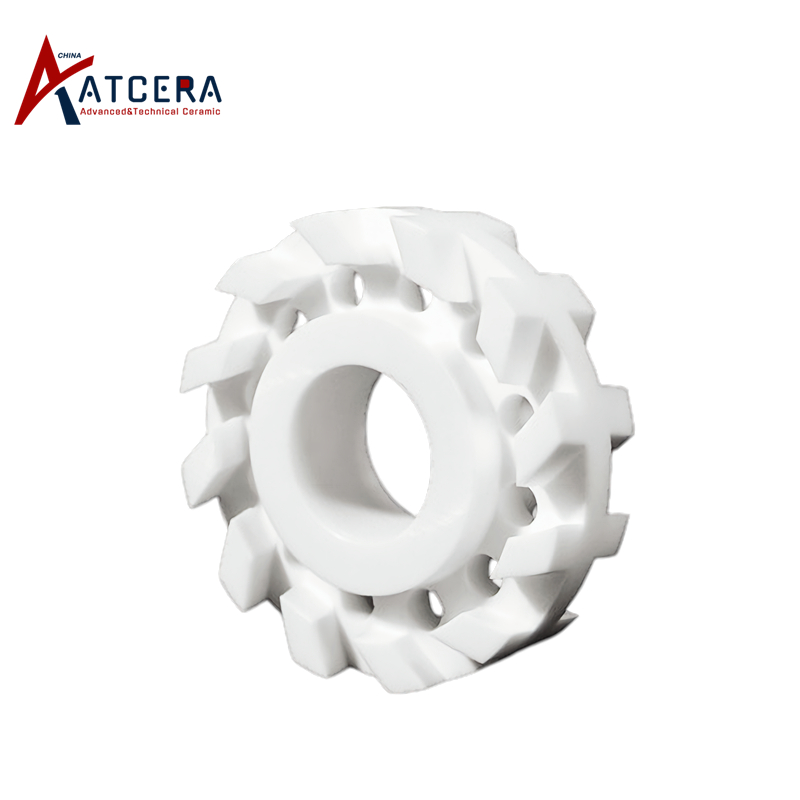

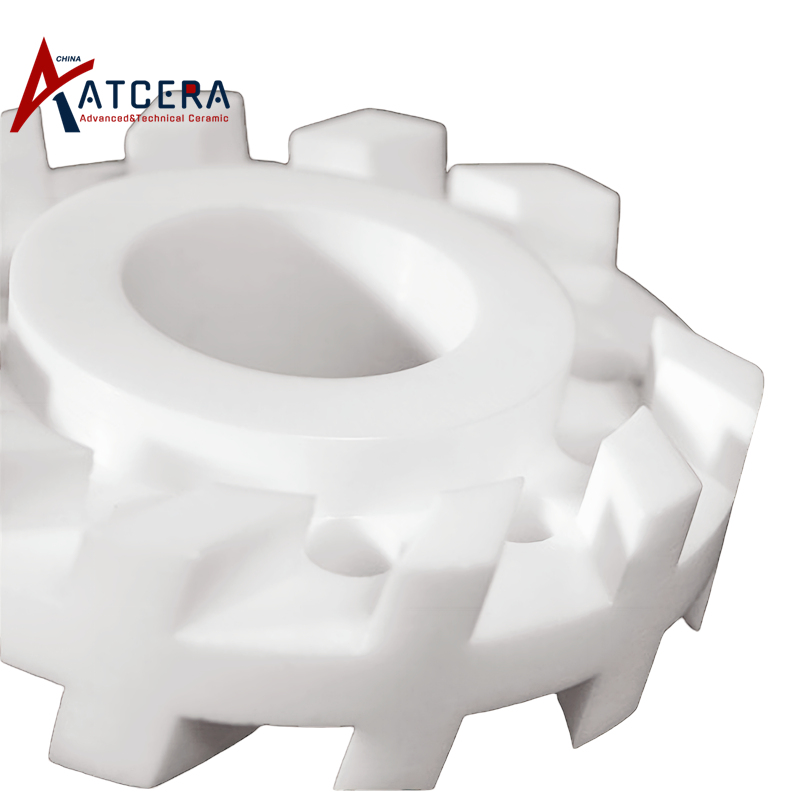

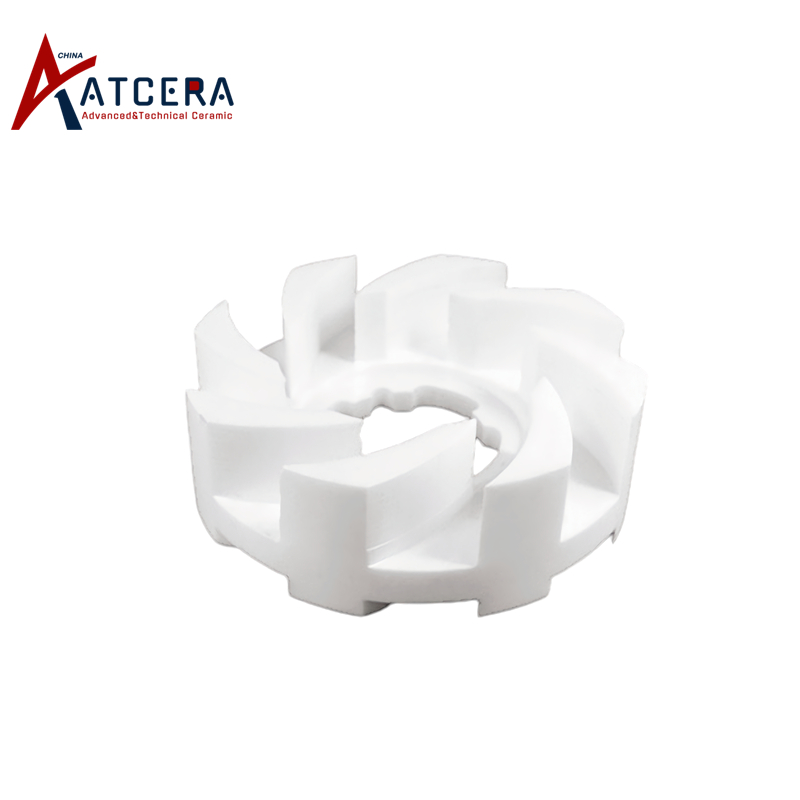

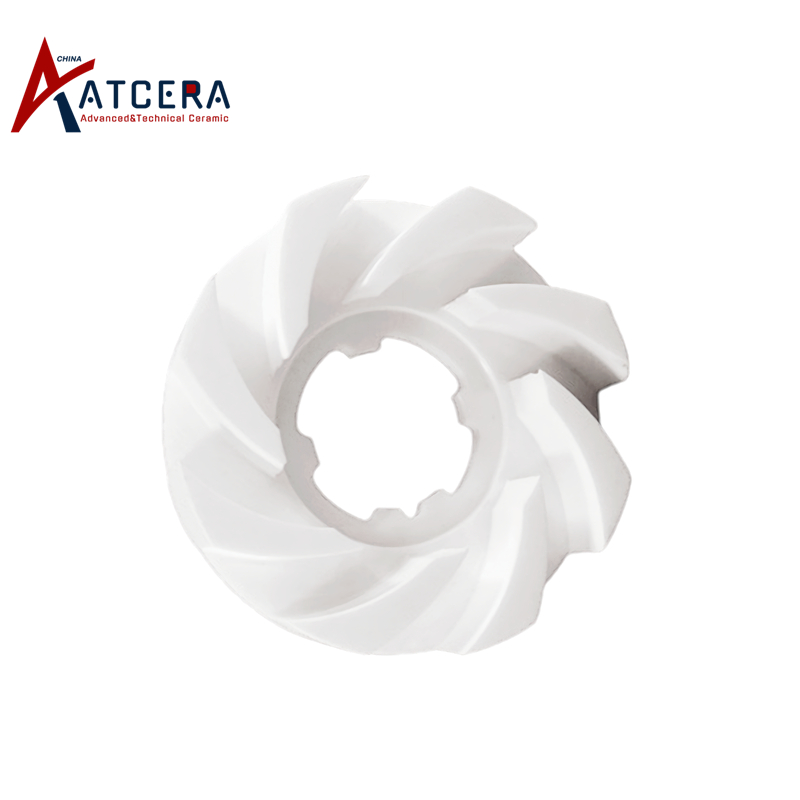

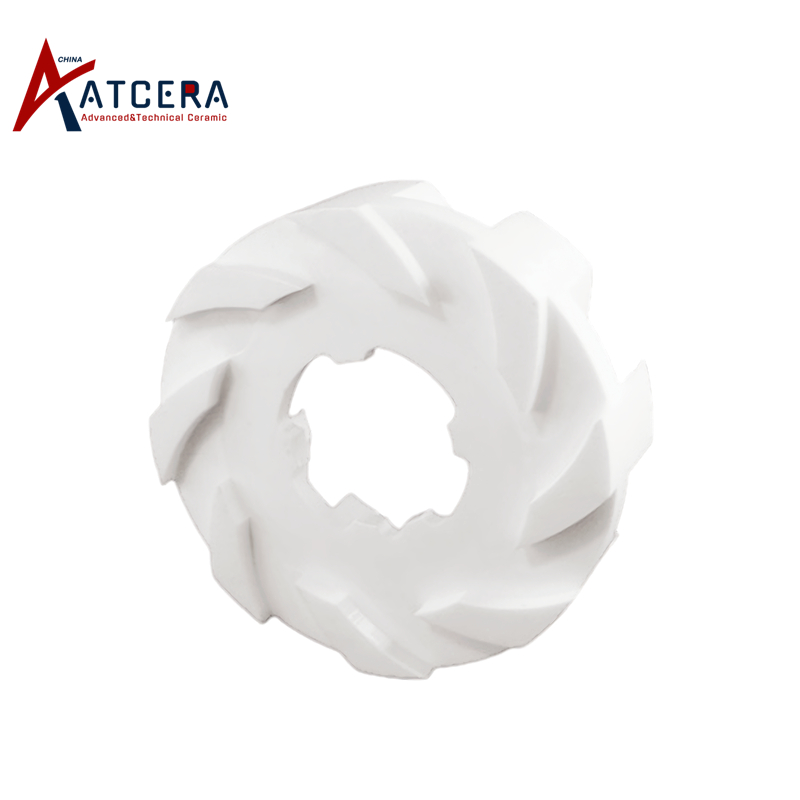

Zirconia Ceramic Disc for Sand Mill

The zirconia ceramic disc serves as a pivotal component in sand mills. Mounted securely on the main shaft, it rotates in tandem with the shaft's high-speed operation, executing functions such as shearing, impacting, pulverizing, and dispersing the materials, thus enabling the materials to rapidly achieve a state of dispersion, dissolution, mixing, and refinement.

Brand:
ATCERA
Item NO.:
AT-YHG-SM001

Materials
Zirconia
Shapes
Mechanical Parts
Applications
Mechanical Parts , Petrochemical Industry

Inquire Now

Properties of Zirconia Ceramic Disc for Sand Mill

1. High Hardness and Durability

The zirconia ceramic dispersion disc boasts exceptional hardness, wear resistance, and mechanical strength, ensuring a prolonged service life.

2. Strong Corrosion Resistance

It possesses robust corrosion resistance, enabling direct contact with acids, alkalis, and various chemicals, suitable for grinding a wide range of materials without contaminating them.

3. Smooth Surface and Easy Maintenance

Its highly polished surface prevents material adhesion, facilitating cleaning and maintenance.

Applications of Zirconia Disc

The zirconia ceramic disc, as a core component in sand mills, effectively disperses solid particles uniformly in liquid media, facilitating subsequent grinding and preparation processes. It is suitable for materials such as paints, coatings, and inks.

Size Chart of Zirconia Ceramic Disc for Sand Mill

We are committed to delivering optimal zirconia discs tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parametric specifications for customization.

Zirconia Ceramic Disc for Sand Mill
Item no.	Outer Diameter (mm)	Inner Diameter (mm)	Height (mm)
AT-YHG-SM001	90	30	26
AT-YHG-SM002	96	36	24
AT-YHG-SM003	100	45	30
AT-YHG-SM004	140	80	45
AT-YHG-SM005	165	85	50

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Selection of Appropriate Discs

Choose the appropriate type and size of zirconia dispersion disc based on the characteristics of the grinding material to ensure optimal performance.

2. Rational Adjustment of Parameters

Adjust parameters like the installation spacing and rotational speed of the dispersion disc in accordance with the material's properties and grinding volume to enhance grinding and dispersion efficiency. Avoid starting the equipment without grinding material or media.

3. Regular Inspection and Maintenance

Regularly inspect the wear condition of the dispersion disc and replace or repair it promptly if any wear or damage is detected to ensure its normal operation.

Valuable Information

Zirconia Ceramic Disc Packing

Zirconia ceramic discs are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.
