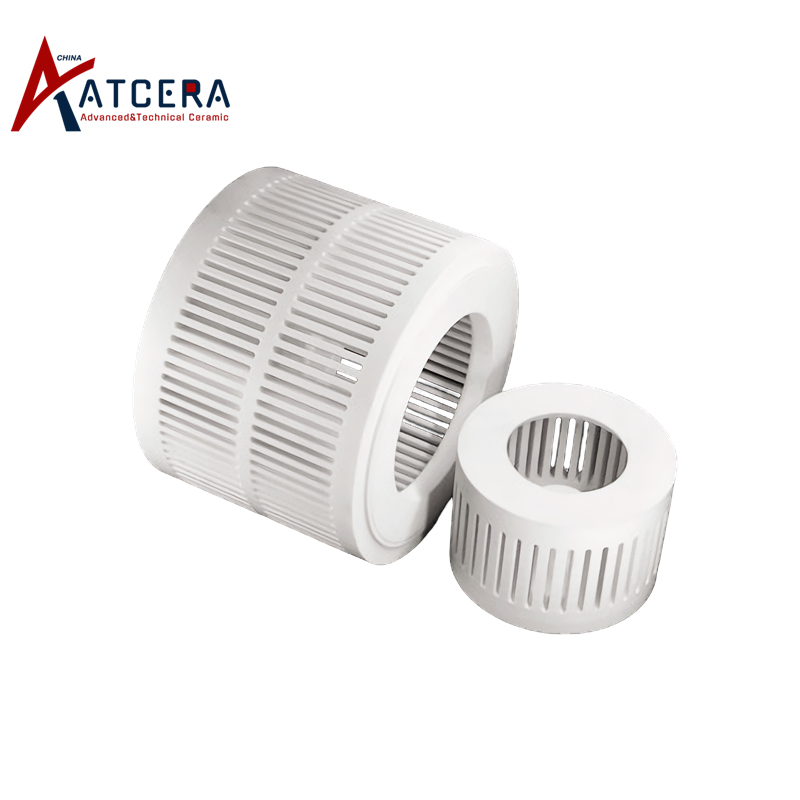

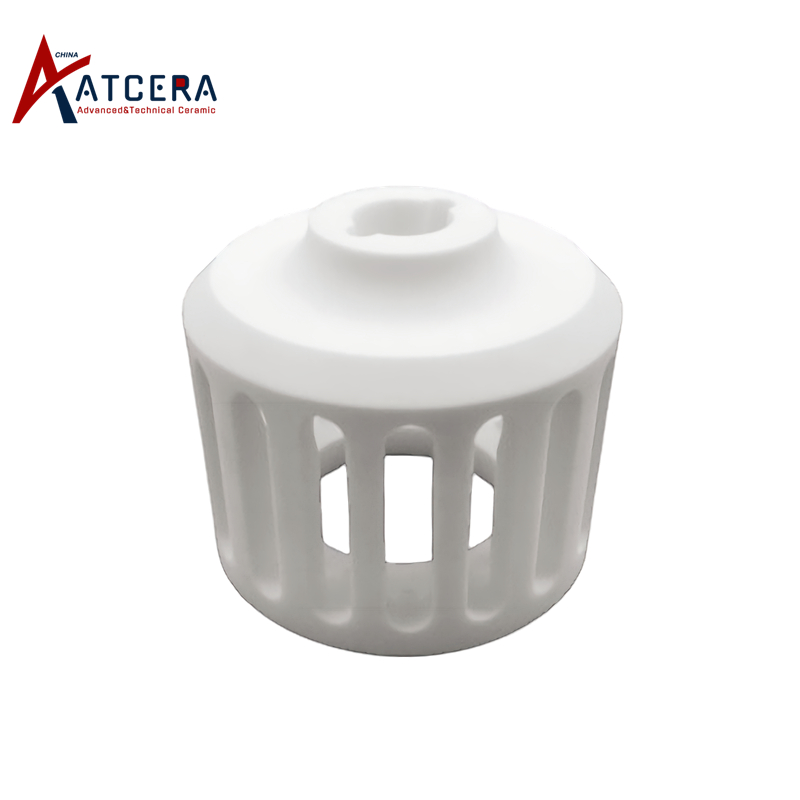

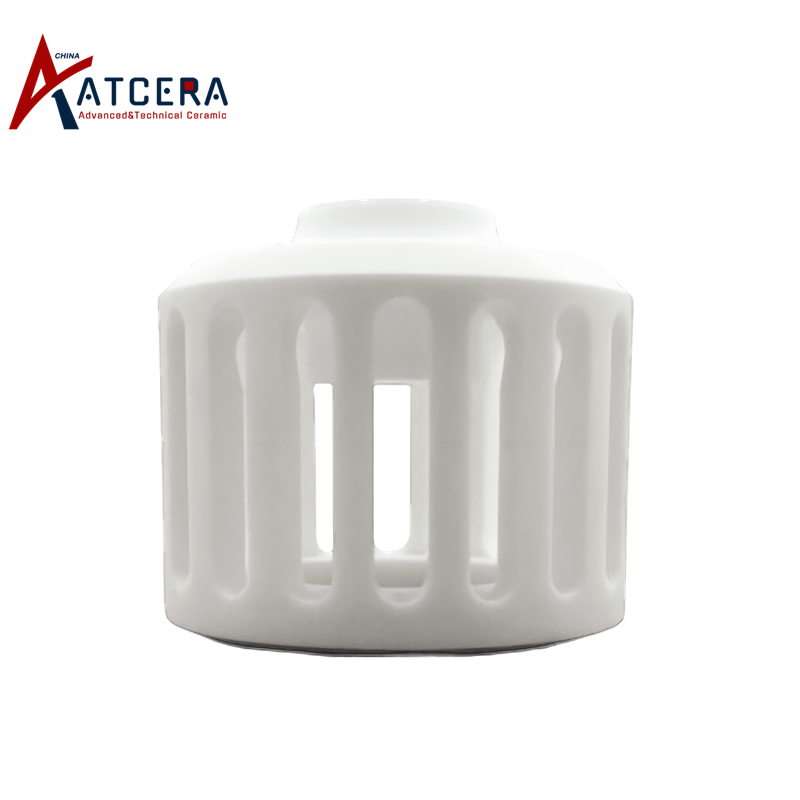

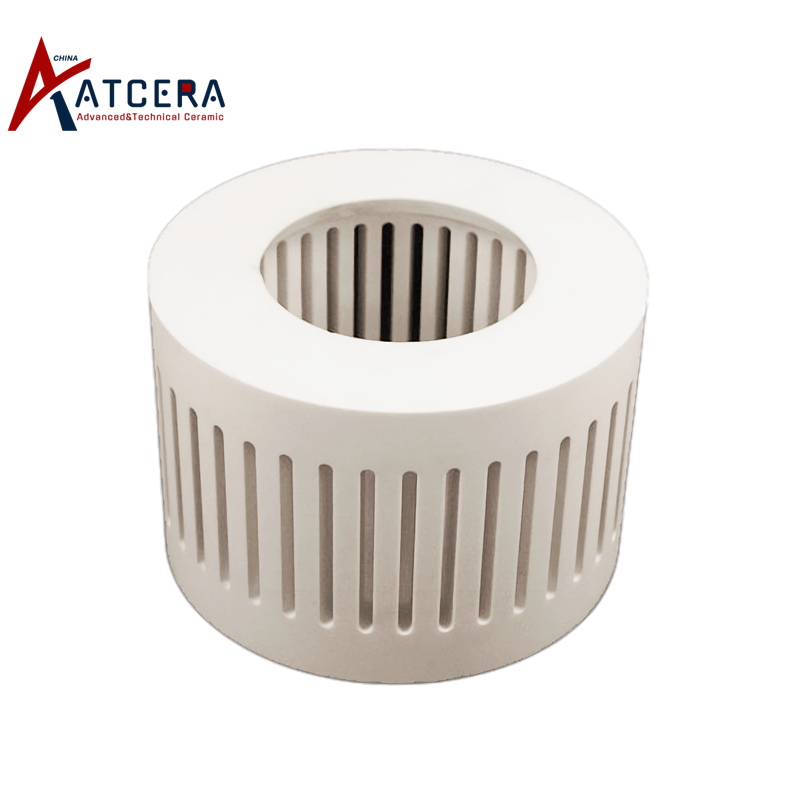

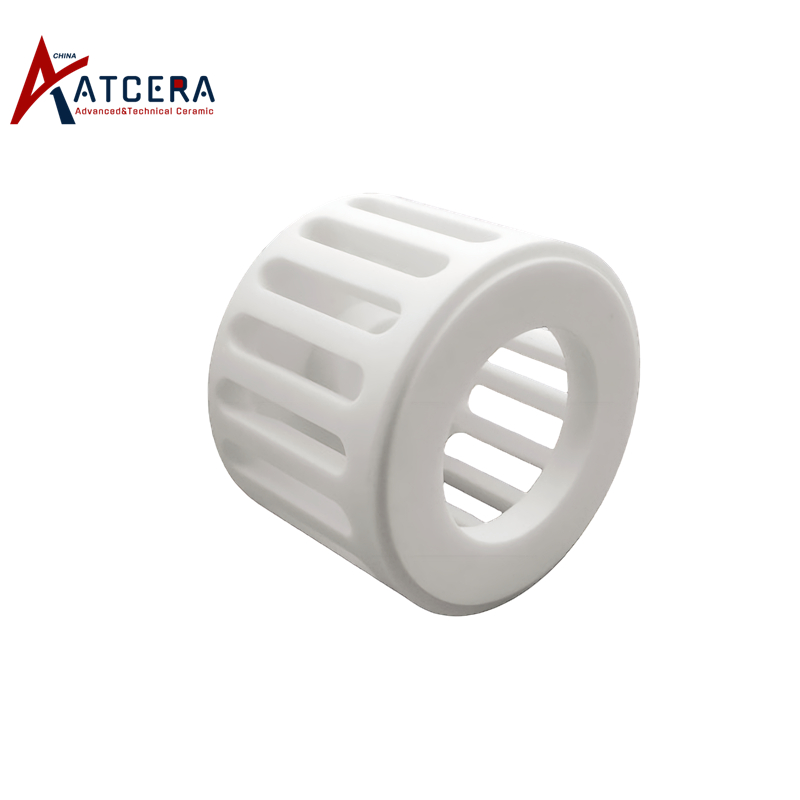

Zirconia Ceramic Grading Wheel for Sand Mill

The zirconia ceramic grading wheel, renowned for its high hardness, excellent wear resistance, toughness, high-temperature tolerance, and corrosion resistance, serves as a pivotal component in sand mills. It realizes grading and sorting of powdered materials through airflow generation and control, separating materials of different particle sizes.

Brand:
ATCERA
Item NO.:
AT-YHG-SM006

Materials
Zirconia
Shapes
Mechanical Parts
Applications
Mechanical Parts , Petrochemical Industry

Inquire Now

Properties of Zirconia Ceramic Grading Wheel for Sand Mill

1. High Temperature Resistance and Thermal Stability

The zirconia ceramic grading wheel boasts excellent heat resistance and thermal stability, withstanding temperatures exceeding 1500°C.

2. Strong Corrosion Resistance

It can directly contact various acids, alkalis, and salts, suitable for harsh working environments and multiple abrasives.

3. High Mechanical Strength and Toughness

Its robust mechanical strength and toughness ensure long-lasting wear resistance and service life.

4. Antimagnetic Material and High Separation Efficiency

Its non-magnetic material, smooth surface, and anti-adhesion properties prevent dust absorption, resulting in high material separation efficiency.

Applications of Zirconia Grading Wheel for Sand Mill

The zirconia ceramic grading wheel, as a core component in sand mills, is used to sort powdered materials of different particle sizes, widely applicable in the grinding of paints, coatings, inks, and other materials.

Size Chart of Zirconia Ceramic Grading Wheel for Sand Mill

We are committed to delivering optimal zirconia grading wheels tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parametric specifications for customization.

Zirconia Ceramic Grading Wheel for Sand Mill
Item no.	Outer Diameter (mm)	Inner Diameter (mm)	Height (mm)
AT-YHG-SM006	50	30	70
AT-YHG-SM007	80	65	90
AT-YHG-SM008	100	75	80
AT-YHG-SM009	155	135	95
AT-YHG-SM010	250	220	100
AT-YHG-SM011	260	240	120

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Selection of Appropriate Grading Wheel

Select the appropriate type and size of zirconia grading wheel based on the characteristics of the material to be classified, in order to ensure the grading effect.

2. Rational Adjustment of Parameters

Rationally adjust the parameters such as the feed rate and rotational speed of the grading wheel to enhance the grading efficiency and accuracy.

3. Regular Inspection and Maintenance

Regularly inspect the wear condition of the grading wheel. If there is any wear or damage, promptly replace or repair it to ensure its normal operation.

Valuable Information

Zirconia Ceramic Grading Wheel Packing

Zirconia ceramic grading wheels are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
