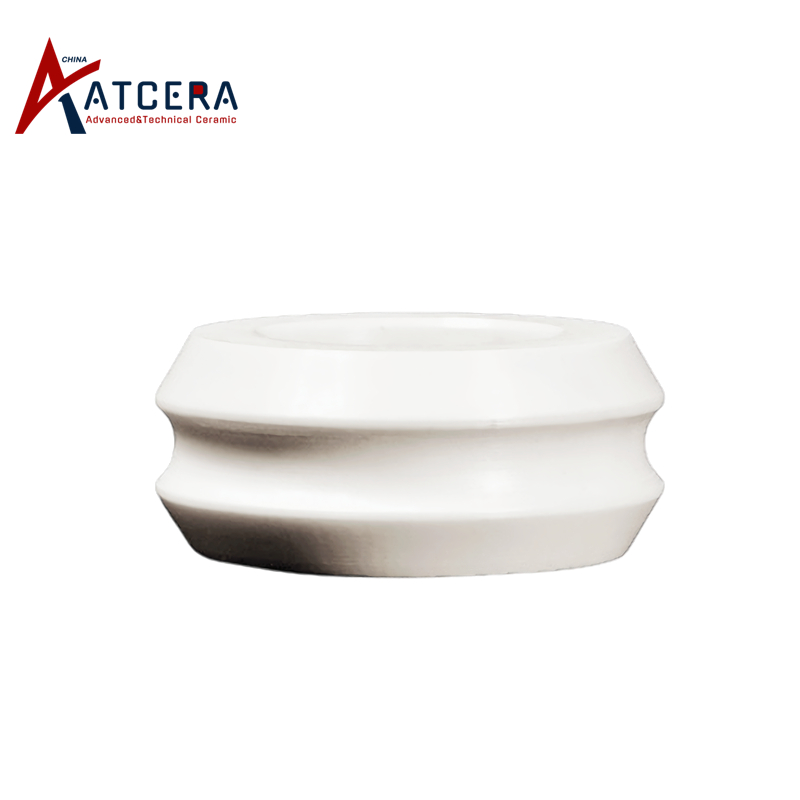

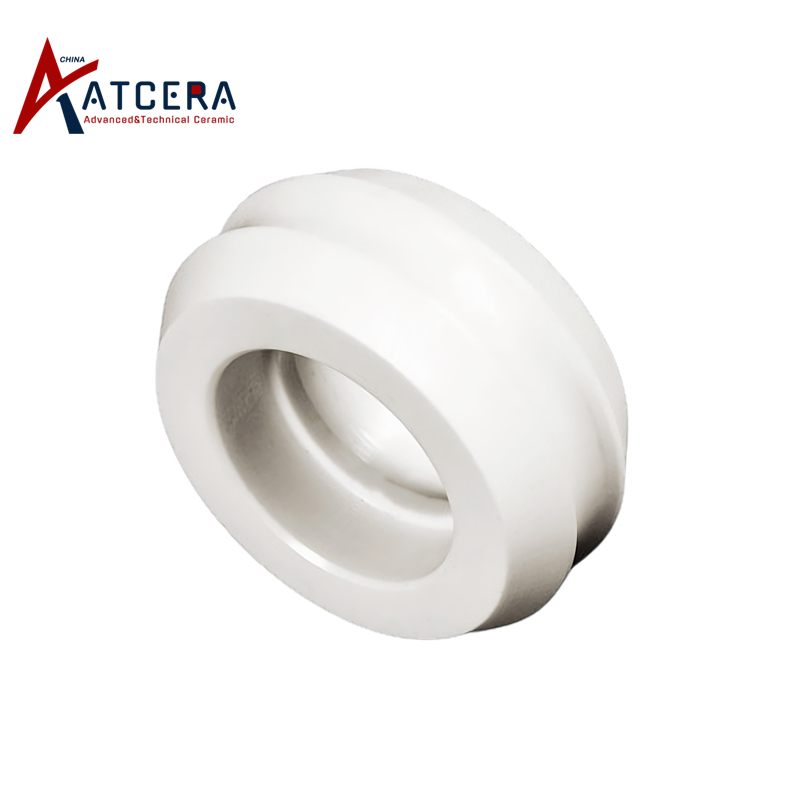

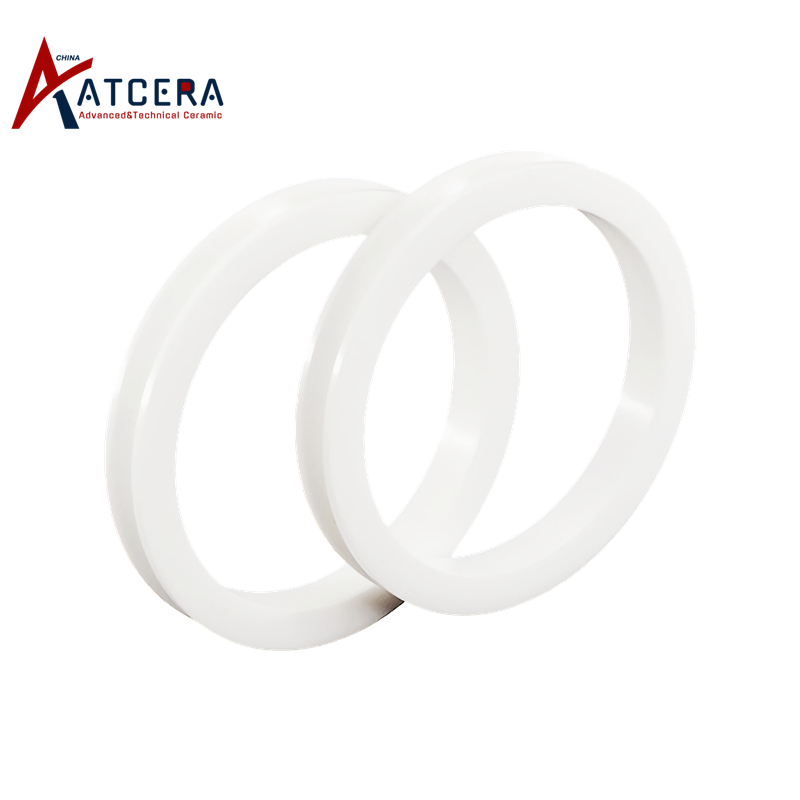

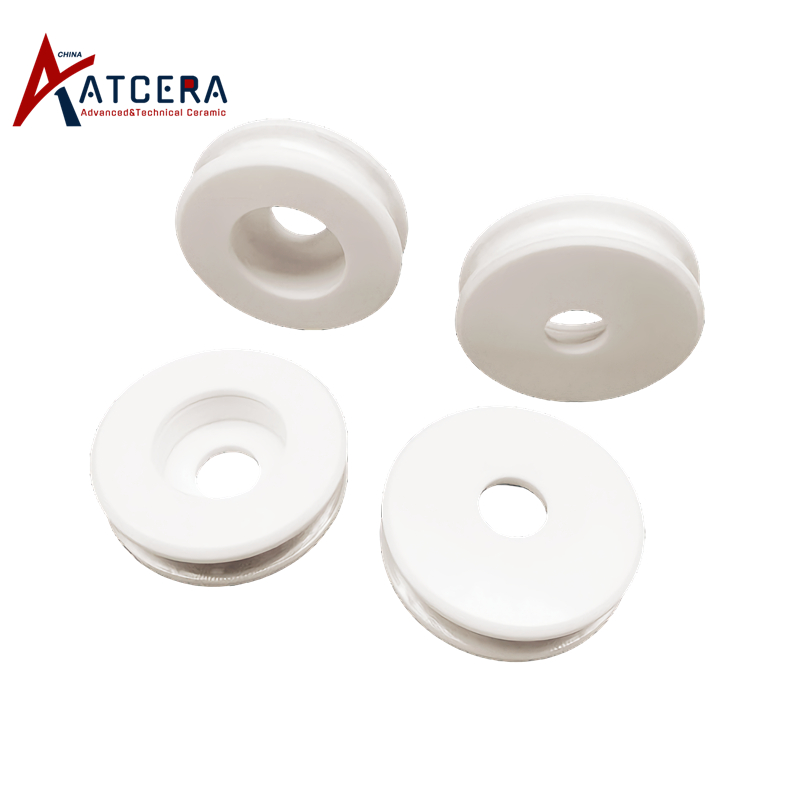

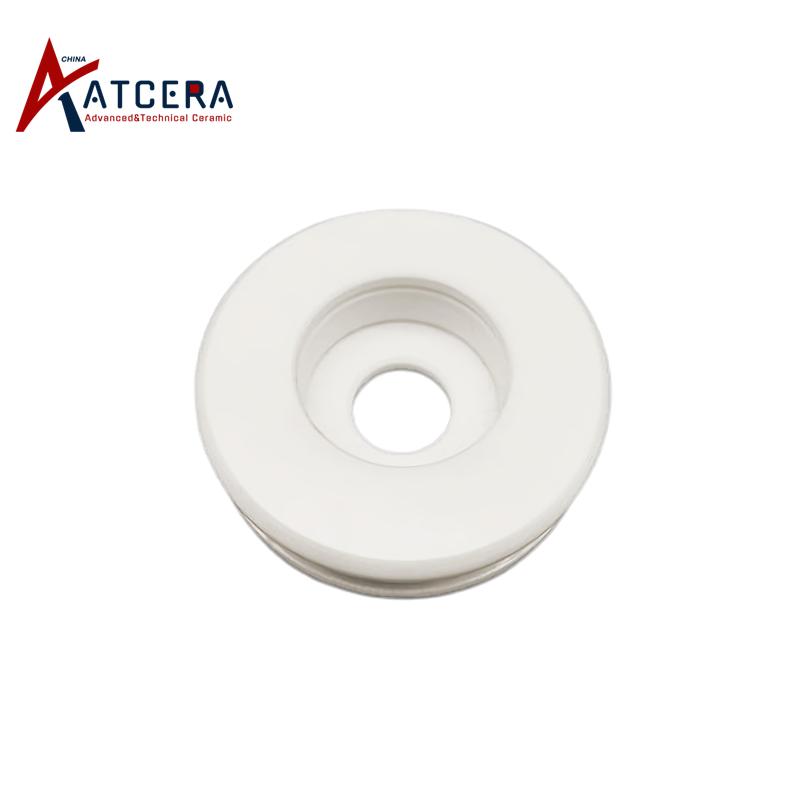

Zirconia Ceramic Wire Wheel

The zirconia ceramic wire wheel boasts superior mechanical strength, excellent wear resistance, and resistance to high temperatures and corrosion. It is used in the production process for various wires, such as conductive wires and welding wires, for purposes including traction, unwinding, and the processing and manufacturing of stranded wires.

Brand:
ATCERA
Item NO.:
AT-YHG-L1001

Materials
Zirconia
Shapes
Mechanical Parts
Applications
Electronics and Electricity , Mechanical Parts

Inquire Now

Properties of Zirconia Ceramic Wire Wheel

The zirconia ceramic wire wheel possesses significant mechanical strength, good resilience, high hardness, and exceptional wear resistance, resulting in a long service life.

Additionally, it is capable of enduring high temperatures and corrosion, making it suitable for various harsh working environments.

Applications of Zirconia Wire Wheel

Zirconia ceramic wire wheels are employed in the production process for various wires, including welding wires and conductive wires, for traction, unwinding, and the processing and manufacturing of stranded wires. This includes the stranding of aluminum and copper wires, PVC wires, steel cables, and others with large lengths and cross-sectional areas.

Size Chart of Zirconia Ceramic Wire Wheel

We are committed to delivering optimal zirconia wire wheels tailored to your exact specifications. Our dedicated team ensures meticulous adherence to your instructions, striving to exceed customer expectations. Additionally, we offer the flexibility of customized sizes to accommodate your unique requirements.

Send Requirements for Custom Design

Please provide drawings and parametric specifications for customization.

Zirconia Ceramic Wire Wheel
Item no.	Outer Dia. (mm)	Inner Dia. (mm)	Height (mm)
AT-YHG-L1001	14	3	6
AT-YHG-L1002	15	3	4
AT-YHG-L1003	23	4	10
AT-YHG-L1004	23	5	9
AT-YHG-L1005	26	4	10.5
AT-YHG-L1006	26	5	10.5
AT-YHG-L1007	26	6	10.5
AT-YHG-L1008	30	5	11
AT-YHG-L1009	30	6	11
AT-YHG-L1010	30	8	11
AT-YHG-L1011	32	5	20
AT-YHG-L1012	32	6	20
AT-YHG-L1013	35	5	10
AT-YHG-L1014	35	6	10
AT-YHG-L1015	35	8	10
AT-YHG-L1016	40	4	12
AT-YHG-L1017	40	5	24
AT-YHG-L1018	40	6	24
AT-YHG-L1019	45	8	14
AT-YHG-L1020	45	10	16
AT-YHG-L1021	45	10	16
AT-YHG-L1022	50	8	16
AT-YHG-L1023	50	10	18
AT-YHG-L1024	60	8	13
AT-YHG-L1025	60	10	13
AT-YHG-L1026	60	8	18
AT-YHG-L1027	72	12	25
AT-YHG-L1028	76	9	25

Technical Data of Zirconium Oxide Materials

Material	Zirconia (ZrO₂)+ Stabilizing agent
Thermal Conductivity	3.0w/m.k
Temperature resistance	1000℃
Density	5.65-6.05g/cm3
Thermal Expansion Coefficient	0.00001/℃
Bending Strength	480-1000MPa
Hardness (Hv)	1200-1450HV1
Fracture Toughness	*6-8MPam1/2**
Hazardous Substances	In compliance with EU ROHS standards

*This chart illustrates the standard characteristics of the zirconia materials commonly employed in the manufacturing of our zirconia products and parts. Please be aware that the attributes of customized zirconium oxide products and parts may vary depending on the specific processes involved. Detailed parameter is decided by type and composition of stabilizing agent.

Usage Instructions

1. Avoid severe collisions with hard objects or other rigid surfaces to prevent damage to the zirconia ceramic wire wheel.

2. After use, clean the zirconia wire wheel to remove surface residues and impurities for future use.

3. Regularly inspect the wear condition of the zirconia ceramic wire wheel. If severe wear is observed, prompt replacement is necessary.

Valuable Information

Zirconia Ceramic Wire Wheel Packing

Zirconia ceramic wire wheels are carefully packaged in appropriate containers to avoid any potential damage.

Customization Advantages

1. According to your application scenario, analyze the needs, choose the appropriate material and processing plan.

2. Professional team, quick response, can provide solutions and quotations within 24 hours after confirming the demand.

3. Flexible business cooperation mechanism, support at least one piece of quantity customization.

4. Quickly provide samples and test reports to confirm that the product meets your needs.

5. Provide product use and maintenance suggestions to reduce your cost of use.

Ask a Free Quote
